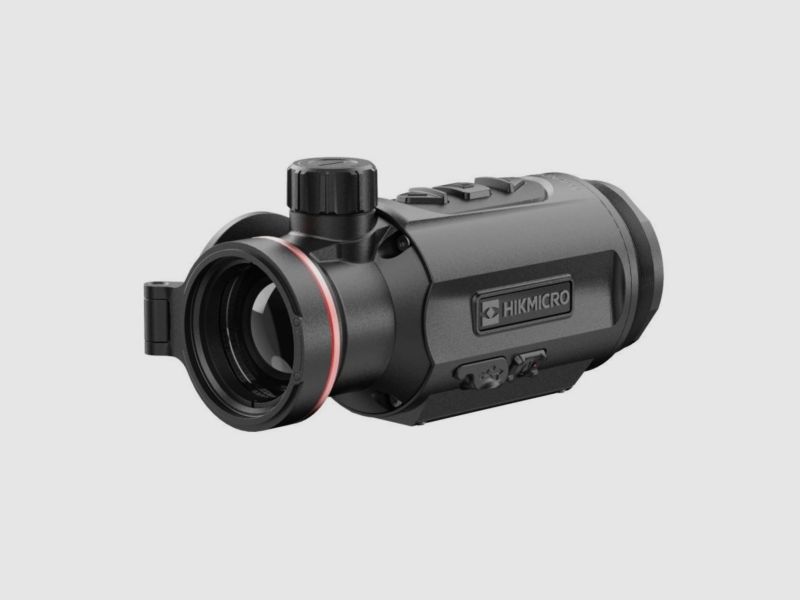

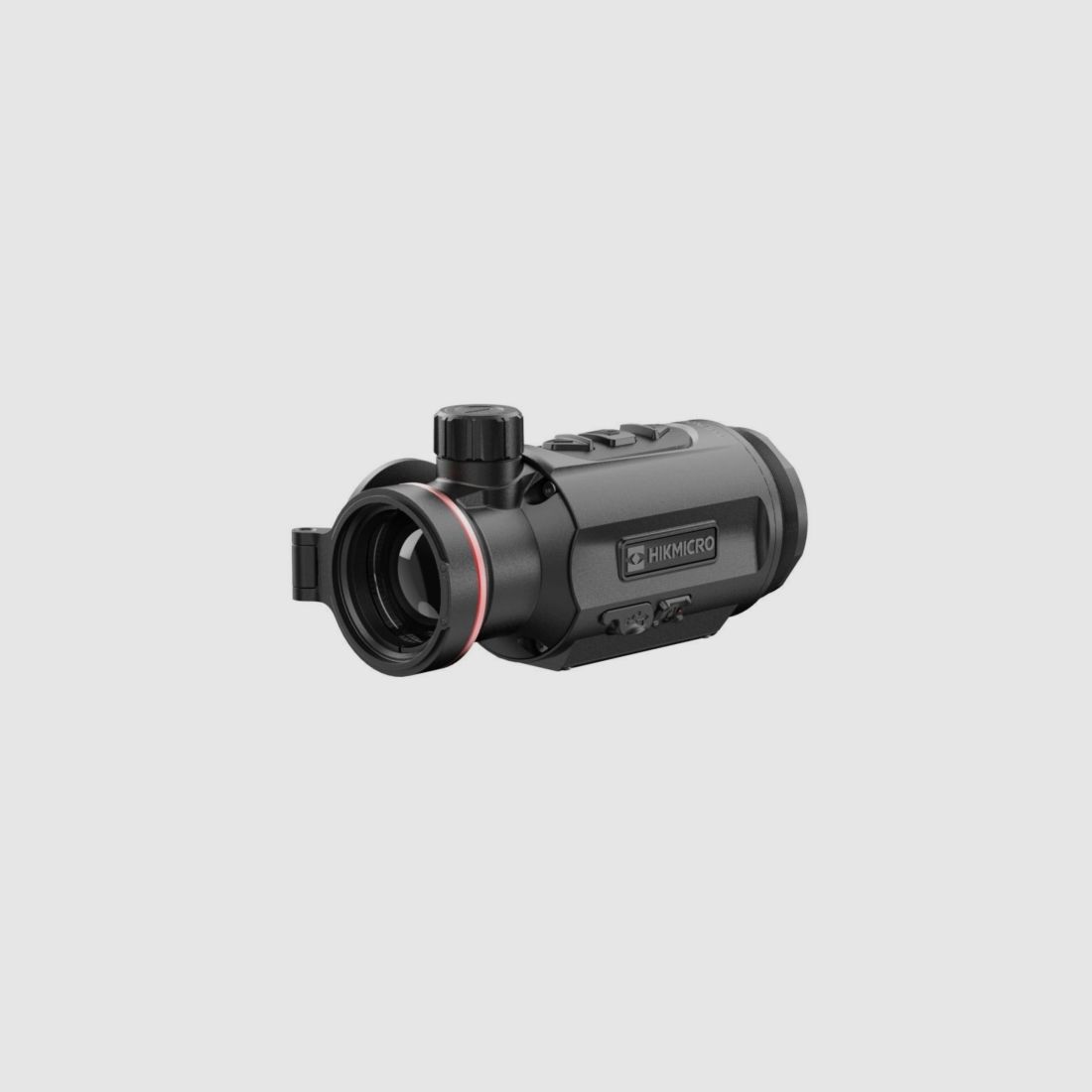

HIKMICRO Thunder TQ35C 3.0

Precision in Every Environment

The HIKMICRO Thunder TQ35C 3.0 Thermal Clip-On offers you the highest precision and image quality, regardless of external conditions. With a high-resolution 640 x 512 thermal image detector and exceptional thermal sensitivity (NETD < 15 mK), this device captures even the smallest details. The large 1920 x 1080 OLED display provides a brilliant visual experience and facilitates the detection of objects in various scenarios.

Main Features:

• Thermal Detector: 640 x 512 resolution at 12 µm for outstanding image quality


• Sensitivity: NETD < 15 mK (@25°C, F# = 1.0) for the highest detail fidelity


• Lens: 35 mm, F1.0 lens with a detection range of up to 1800 m


• Display: 1920 x 1080 resolution, 0.49 inch OLED for sharp images


• Technology: HIKMICRO Shutterless Image System (HSIS) for seamless image presentation


• Battery Life: Rechargeable and replaceable Li-Ion battery with up to 6 hours of operating time


• Dust Resistance: High dust resistance up to 1000 g/0.4 ms

Thermal Module:

• Image Sensor: Uncooled focal plane arrays


• Maximum Resolution: 640 x 512


• Frame Rate: 50 Hz


• Pixel Pitch: 12 µm


• Response Wavelength: 8 µm to 14 µm


• Focus Mode: Focus button


• Minimum Focus Distance: 10 m


• Magnification: 2.0x - 16.0x (4x)


• Field of View: 12.5° - 8.0° / 21.9 m - 14.0 m @ 100 m


• Recommended Magnification: 1-15x

Image Display:

• Display: 1920 x 1080, 0.49 inch OLED


• Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome


• Pupil Exit: 25 mm


• Eye Relief: 20 mm


• Brightness Adjustment: Yes


• Contrast Adjustment: Cold, Warm


• HSIS: HIKMICRO Shutterless Image System


• Image Pro 2.0: Yes

System Functions:

• Video Recording: Integrated video recording


• Snapshot: Yes


• Virtual Reticle: Yes


• Standby Mode: Yes


• Storage: Integrated EMMC (64GB)


• Hotspot: Yes


• Hot Track: Yes


• Audio Recorder: Yes


• Recoil-Activated Video Recording: Yes


• Maximum Recoil: 1000 g/0.4 ms


• Local Album: Yes


• Image Calibration: Yes


• Zeroing Profiles: 5

Power Supply:

• Battery Type: Replaceable and rechargeable Li-Ion battery


• Operating Time: 6 hours at 25°C (Hotspot off)


• Type-C Power Supply: 5 VDC, 2 A


• Supports External Power Supply: Yes

General Information:

• Protection Class: IP67


• Dimensions: 143.4 mm x 67.5 mm x 72.9 mm


• Weight: 460 g with battery


• Operating Temperature: -30°C to +55°C (-22°F to 131°F)


• Housing Material: Magnesium alloy


• Available Models: TQ35C 3.0

Scope of Delivery:

• 1x Thunder TQ35C 3.0


• 2x Rechargeable Li-Ion battery


• Charger


• 1x USB-C cable


• 2x O-rings


• 1x User manual
