HIKMICRO Clip-On Thunder TQ35CL 3.0

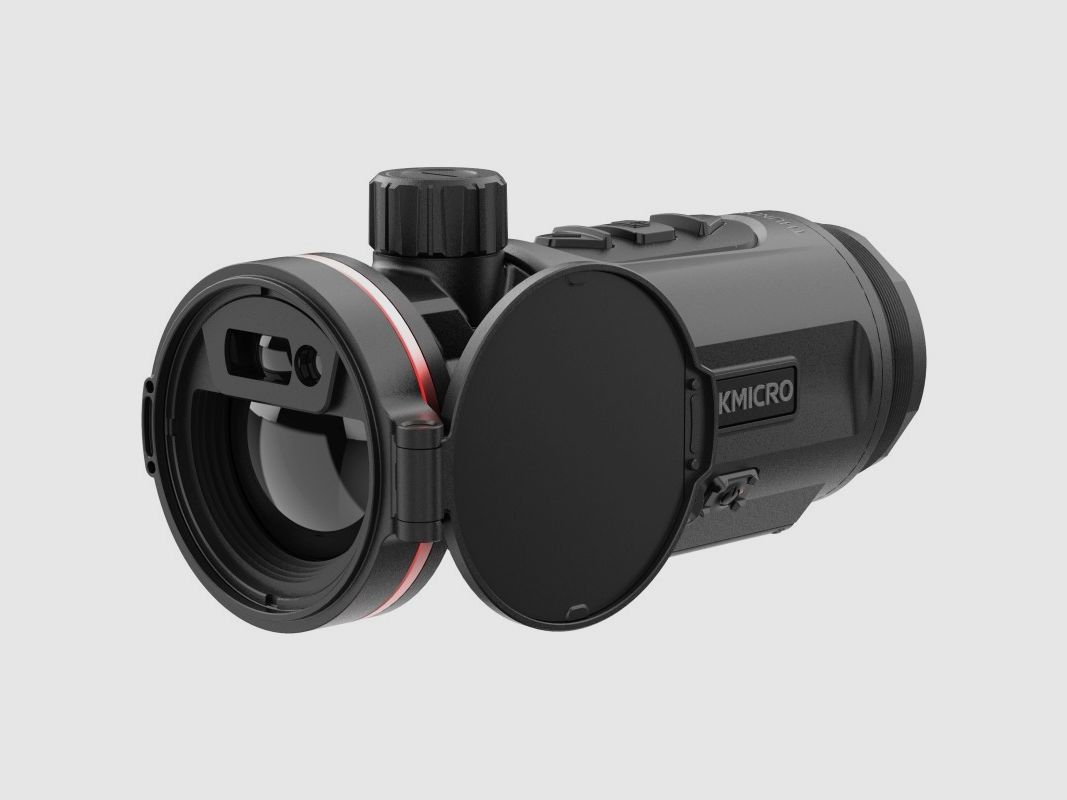

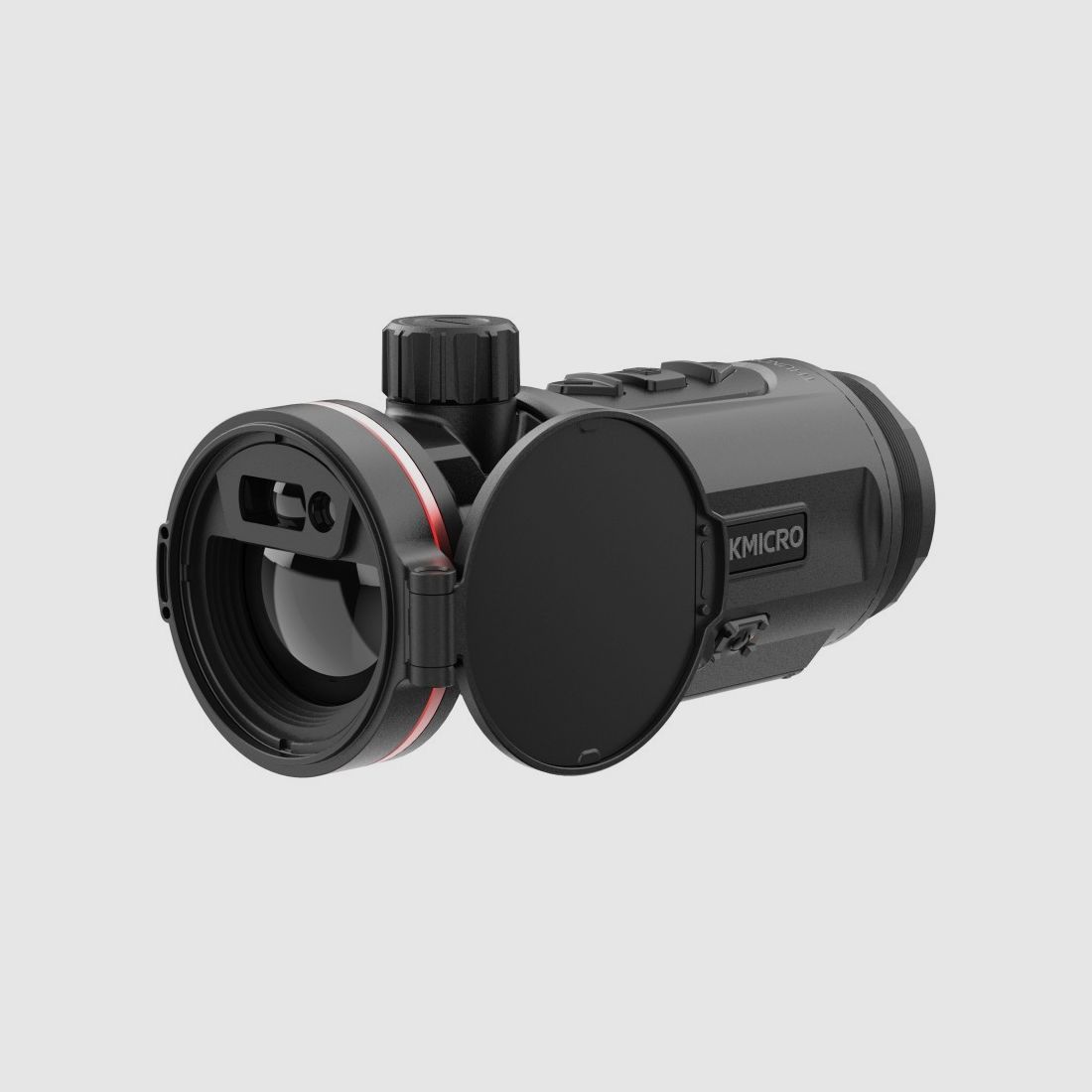

HIKMICRO Thunder TQ35CL 3.0 – Compact powerhouse with precise laser measurement

The HIKMICRO Thunder TQ35CL 3.0 is a versatile thermal imaging attachment for demanding nighttime and adverse weather operations. With a highly sensitive 640 × 512 pixel detector based on uncooled focal plane arrays and a thermal sensitivity of less than 15 mK, the device detects the slightest temperature differences – even in dense fog or rain.

The compact 35 mm F1.0 lens, combined with the HIKMICRO Shutterless Image System (HSIS), delivers an absolutely smooth image. The integrated laser rangefinder measures precise distances up to 1000 m – ideal for quick and secure target acquisition. Thanks to the large 0.49-inch OLED display with 1920 × 1080 pixels, you can keep everything in view even at long distances.

With features like hotspot, audio recording, recoil-activated video recording, and 64 GB of internal storage, the TQ35CL 3.0 offers everything that modern night vision technology stands for – all in a shockproof, weatherproof magnesium housing.

Main features:

• Thermal detector: 640 × 512 pixels with 12 μm pixel pitch

• Sensitivity: NETD < 15 mK (@25°C, F# = 1.0)

• Lens: 35 mm F1.0 lens with up to 1800 m detection range

• Display: 1920 × 1080 OLED, 0.49 inches for brilliant image representation

• Laser rangefinder: Up to 1000 m range, ±1 m accuracy

• Technology: HSIS & Image Pro 3.0 for smooth, high-contrast images

• Battery life: Over 5 hours with replaceable Li-Ion battery

• Shock resistance: Up to 1000 g / 0.4 MS

Thermal module:

• Image sensor: Uncooled focal plane arrays

• Resolution: 640 × 512 pixels

• Frame rate: 50 Hz

• Pixel pitch: 12 μm

• Wavelength: 8 – 14 μm

• Focus mode: Focusing ring

• Minimum focusing distance: 10 m

• Magnification (monocular mode): 2.0x – 16.0x (8x digital)

• Field of view: 12.5° × 8.0° / 21.9 m × 14.0 m @ 100 m

• Recommended daytime optics: 1x – 15x

Image display:

• Display: 1920 × 1080 OLED, 0.49 inches

• Color palettes: Black Hot, White Hot, Red Hot, Fusion, Red Mono, Green Mono

• Exit pupil: 25 mm

• Eye relief: 20 mm

• Brightness/Contrast: Adjustable (Cold/Warm)

• HSIS & Image Pro 3.0: Yes

Laser rangefinder:

• Class: Laser class 1

• Wavelength: 905 nm

• Range: 10 – 1000 m

• Accuracy: ±1 m

System functions:

• Video recording: Integrated, with recoil-activated recording

• Audio recording & snapshot function

• Hotspot & standby mode

• Internal storage: 64 GB EMMC

• Calibration & 5 zeroing profiles

• No virtual reticle in clip-on mode

Power supply:

• Battery: Replaceable, rechargeable Li-Ion battery

• Runtime: ≥5 hours (at 25°C, LRF on, hotspot off)

• USB-C charging function & support for external power supply

General:

• Protection class: IP67

• Dimensions: 152.3 × 63 × 74.1 mm

• Weight: 525 g with battery

• Operating temperature: -30 °C to +55 °C

• Housing material: Magnesium alloy

• Center height: 32 mm

Scope of delivery:

• 1x Thunder TQ35CL 3.0

• 1x Rechargeable Li-Ion battery (included in the device)

• 1x USB-C cable

• 2x O-rings

• 1x User manual
