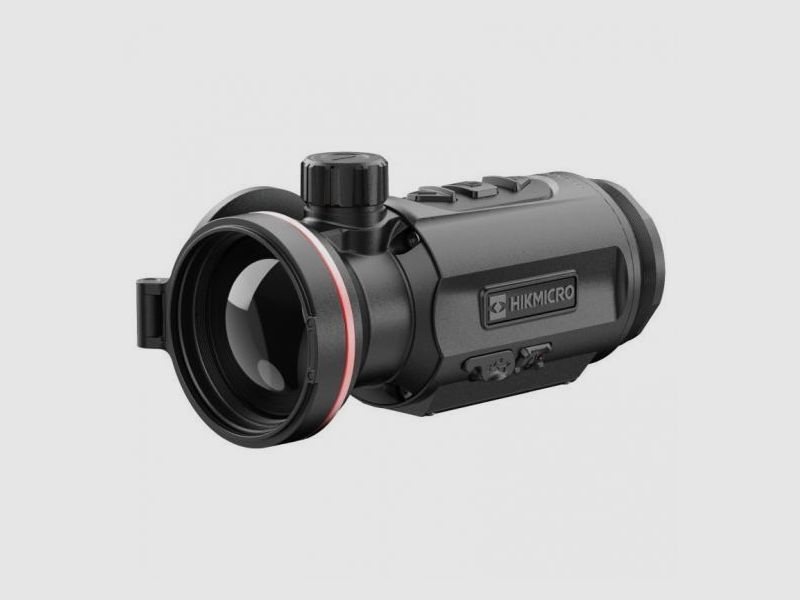

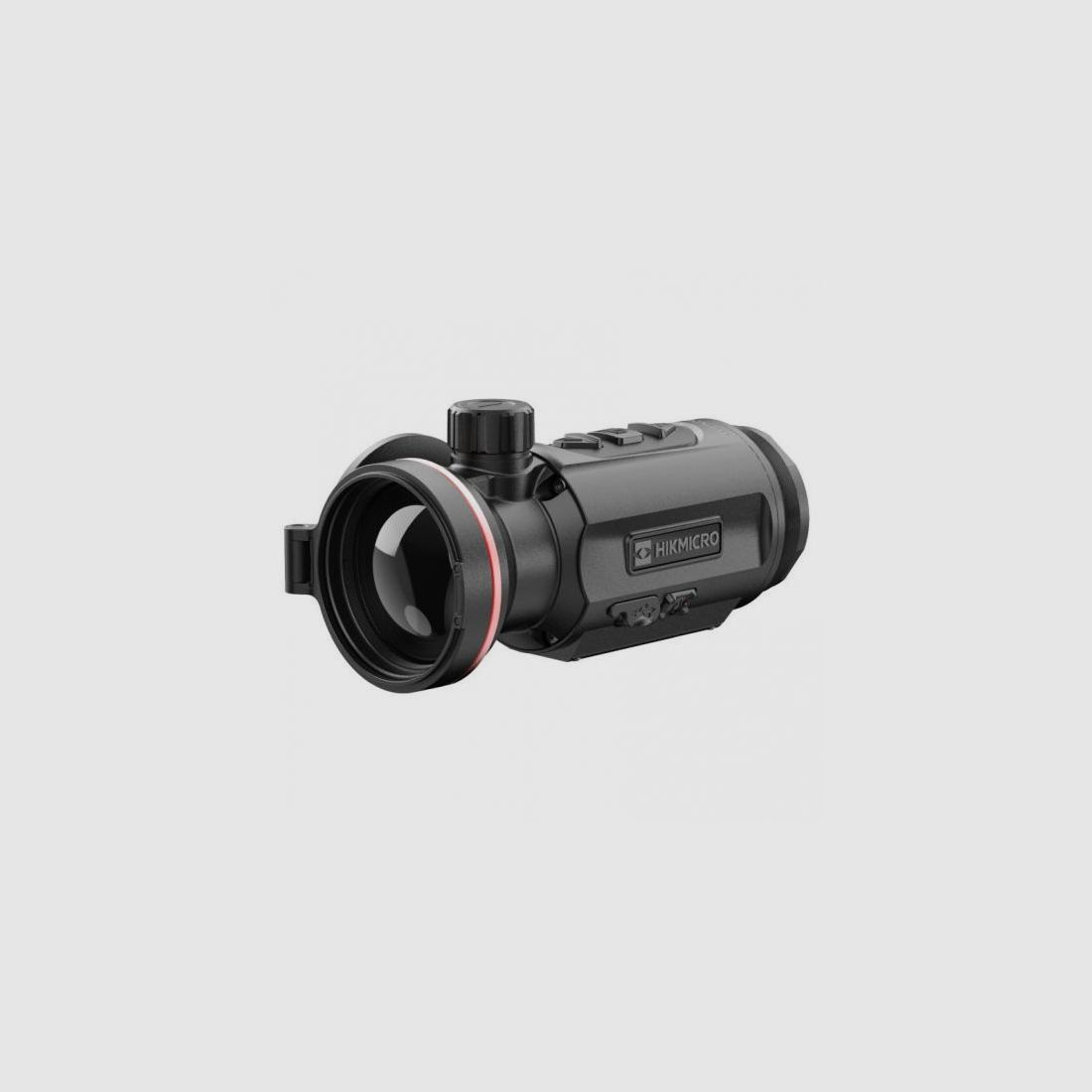

HIKMICRO Thunder TQ50C 3.0 – Ultimate Precision for Demanding Applications

The HIKMICRO Thunder TQ50C 3.0 Thermal Clip-On offers exceptional performance and detail accuracy, even under the toughest conditions. Equipped with a highly sensitive thermal imaging detector with a resolution of 640 × 512 and a thermal sensitivity of NETD < 15 mK, the TQ50C 3.0 captures even the finest details. The powerful 50 mm F1.0 lens enables a detection range of up to 2600 meters, allowing you to survey your surroundings with unparalleled clarity.

The 1920 × 1080 OLED display provides an enhanced visual experience, while the HIKMICRO Shutterless Image System (HSIS) ensures seamless image playback. The TQ50C 3.0 is the ideal companion for professional applications where precision and reliability are essential.

Main Features:

• Thermal Detector: 640 × 512 resolution at 12 μm for outstanding image quality


• Sensitivity: NETD < 15 mK (@25°C, F# = 1.0) for the highest detail fidelity


• Lens: 50 mm, F1.0 lens with a detection range of up to 2600 m


• Display: 1920 × 1080 resolution, 0.49 inch OLED for sharp images


• Technology: HIKMICRO Shutterless Image System (HSIS) for seamless image representation


• Battery Life: Rechargeable and replaceable Li-Ion battery with up to 6 hours of operating time


• Shock Resistance: High shock resistance up to 1000 g/0.4 ms

Thermal Module:

• Image Sensor: Uncooled focal plane arrays


• Maximum Resolution: 640 × 512


• Frame Rate: 50 Hz


• Pixel Pitch: 12 μm


• Response Wavelength: 8 μm to 14 μm


• Focus Mode: Focus button


• Minimum Focus Distance: 10 m


• Magnification: 1×


• Field of View: 8.8° × 7.0° / 15.4 m × 12.3 m @ 100 m


• Recommended Magnification: 1-15x

Image Display:

• Display: 1920 × 1080, 0.49 inch OLED


• Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome


• Exit Pupil: 25 mm


• Eye Relief: 20 mm


• Brightness Adjustment: Yes


• Contrast Adjustment: Cold, Warm


• HSIS: HIKMICRO Shutterless Image System


• Image Pro 2.0: Yes

System Functions:

• Video Recording: Integrated video recording


• Snapshot: Yes


• Virtual Reticle: Yes


• Standby Mode: Yes


• Storage: Integrated EMMC (64GB)


• Hotspot: Yes


• Hot Track: Yes


• Audio Recorder: Yes


• Recoil-Activated Video Recording: Yes


• Maximum Recoil: 1000 g/0.4 ms


• Local Album: Yes


• Image Calibration: Yes


• Zeroing Profiles: 5

Power Supply:

• Battery Type: Replaceable and rechargeable Li-Ion battery


• Operating Time: ≥6 hours at 25°C (Hotspot off)


• Type-C Power Supply: 5 VDC, 2 A


• Supports External Power Supply: Yes

General Information:

• Protection Class: IP67


• Dimensions: 149.4 mm × 76 mm × 74.6 mm


• Weight: 500 g with battery


• Operating Temperature: -30°C to + 55°C (-22°F to 131°F)


• Housing Material: Magnesium alloy

Available Models:

• TQ50C 3.0

Scope of Delivery:

• 1x Thunder TQ50C 3.0


• 1x Rechargeable Li-Ion battery (included in the device)


• 1x USB-C cable


• 2x O-rings


• 1x User manual

Note: Please observe the legal regulations when mounting attachments or add-on devices on weapons!
