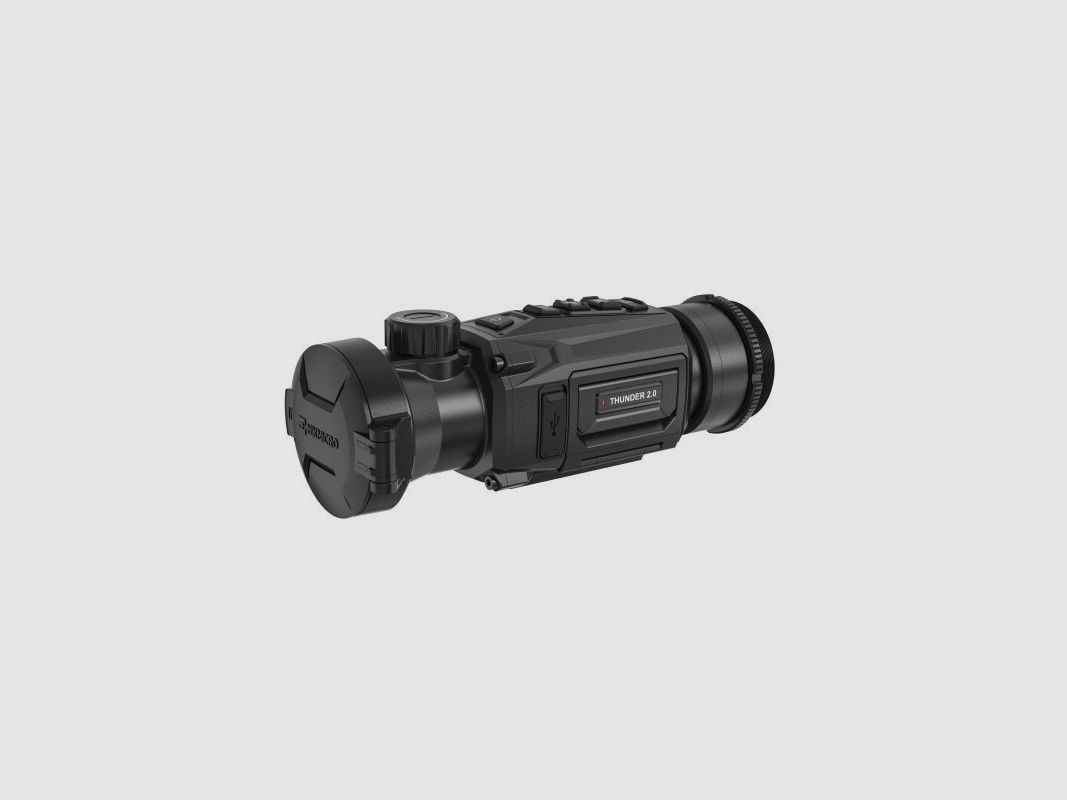

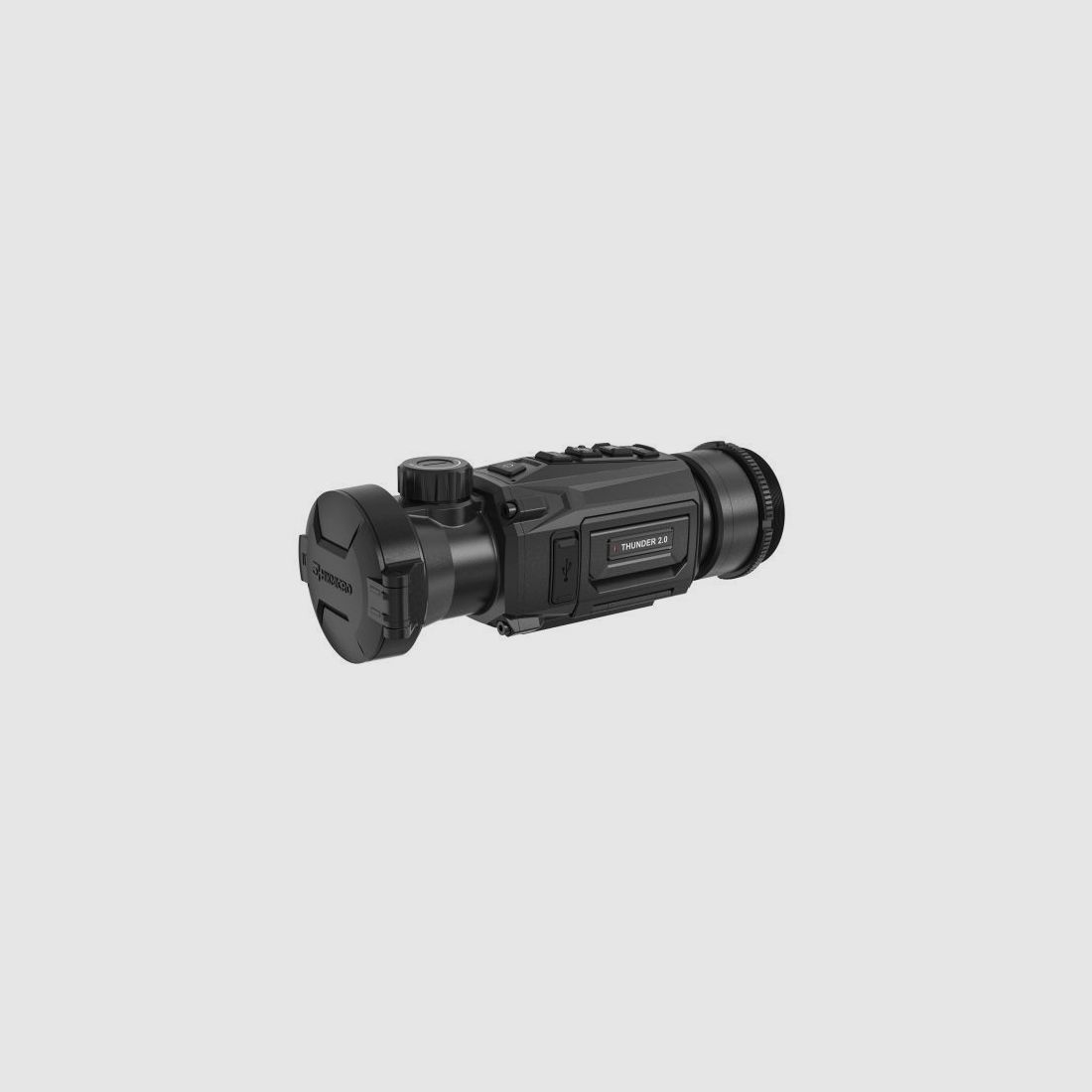

Hikmicro Thunder TQ50C 2.0 – High-Performance Thermal Imaging System

Recognizing the smallest details – Highest thermal sensitivity ≤ 20 mK NETD

With the Hikmicro Thunder TQ50C 2.0, you experience exceptional image quality. The innovative sensor with a thermal sensitivity of NETD ≤ 20 mK enables razor-sharp images down to the smallest detail, even under the most demanding conditions.

Thermal Module

Category	Technical Data
Image Sensor	VOx Uncooled Focal Plane Arrays
Resolution	640 x 512
Frame Rate	50Hz
Pixel Pitch	12 µm
NETD	less than 20 mK (@25°C), F#=1.0
Focal Length	50 mm
Detection Range	2600 m
Field of View	8.78° x 7.03° / 15.36 m x 12.29 m
Aperture	F1.0
Magnification	1x
Minimum Focus Distance	10 m


Category	Technical Data
Monitor	0.39 inch, OLED, 1024 × 768
Palettes	Black Hot, White Hot, Red Hot, Fusion
FFC (Flat Field Correction)	Automatic, manual, external correction
Adjustment of Image Brightness	Yes
Adjustment of Display Brightness	Yes
Gray Value Adjustment	Cold, Warm

System Functions

Category	Technical Specifications
Memory	Built-in memory module (16 GB)
Video Recording	Integrated video recording
Snapshot	Integrated image capture
Wi-Fi	Yes
Hot Track	Yes
Standby Mode	Yes
Audio Recording	Yes
Image Calibration	Yes
Focus Button	Yes

Battery

Category	Technical Specifications
Battery Type	Removable Li-Ion Battery
Operating Time	6.5 h with Wi-Fi turned off
Battery Capacity Indicator	Yes
Overcharge Protection	Yes
Reverse Polarity Protection	Yes
Power	5 VDC/ 2A, USB-C

General

Category	Technical Data
Operating Temperature/Humidity	From -30 °C to 55 °C; Humidity 90% or less
Protection Class	IP67
Dimensions	196.12 mm × 73.36 mm × 68.5 mm
Weight	553 g

Scope of Delivery

Hikmicro Thunder TQ50C 2.0

Quick Guide

Dust Cloth

USB Cable

2x Battery

Charger

FAQ

How long does the battery of the Hikmicro Thunder TQ50C 2.0 last?

The removable Li-Ion battery allows for a runtime of up to 6.5 hours with Wi-Fi turned off.

What image modes are available?

The device supports the image modes Black Hot, White Hot, Red Hot, and Fusion to accommodate various environmental conditions.

Is the device weatherproof?

Yes, the Hikmicro Thunder TQ50C 2.0 is certified to IP67 protection class and is therefore suitable for use in all weather conditions.
