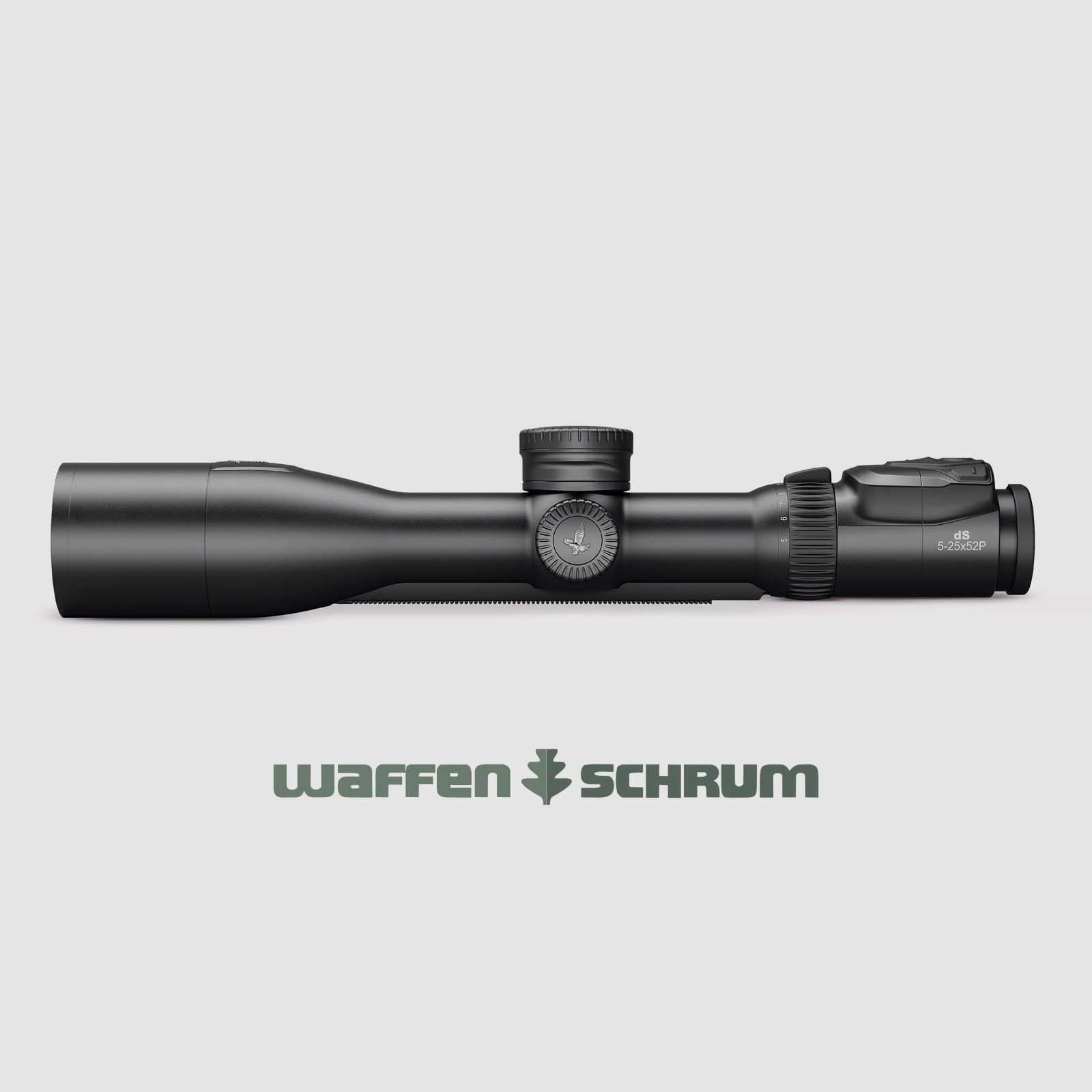

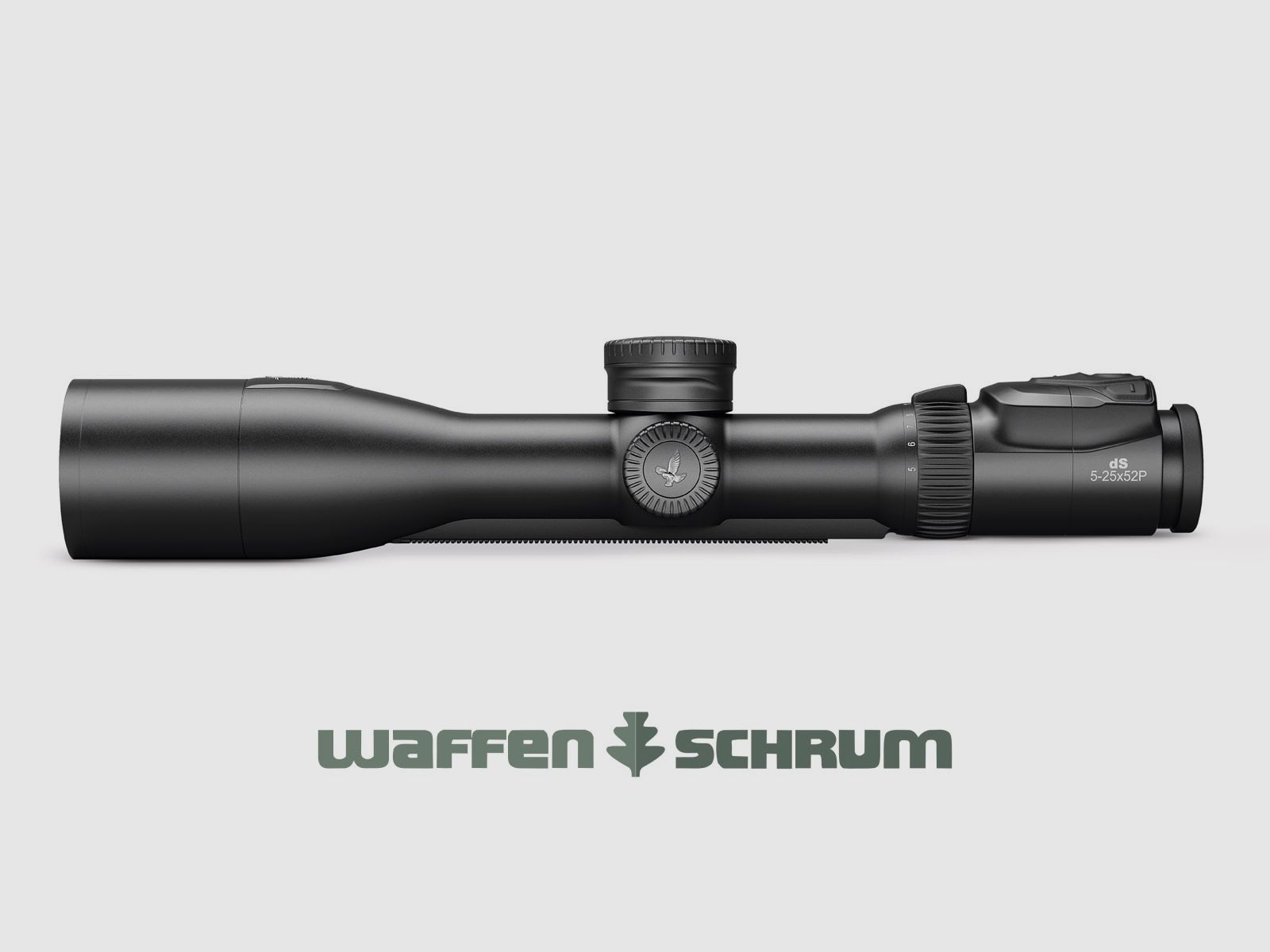

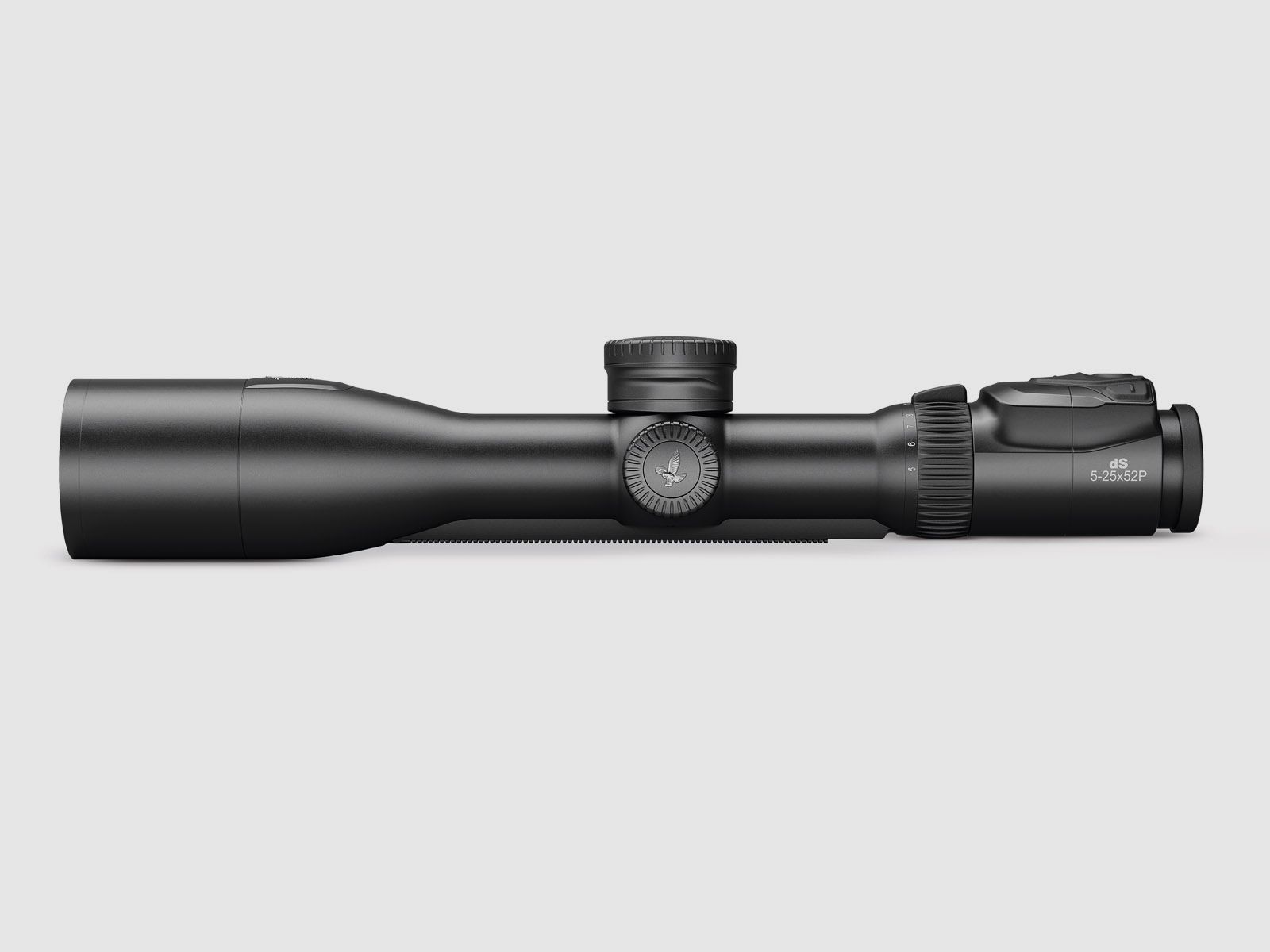

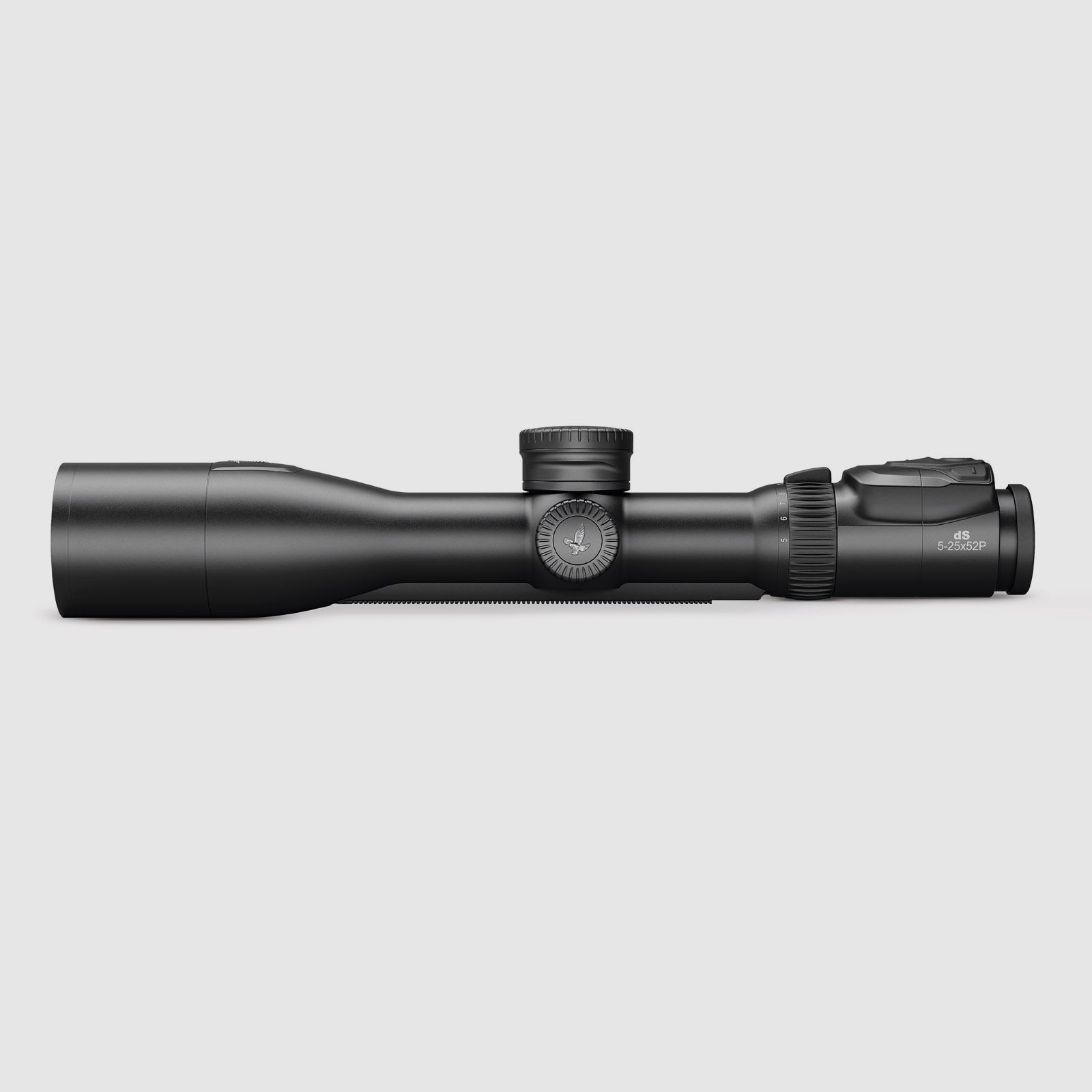

Swarovski dS - 5-25x52 P SR Gen. II with rail parallax adjustment

100% reliability in every situation and equipped for all hunting challenges with the SWAROVSKI dS - 5-25x52 P SR Gen. II riflescope.

Calculating the correct point of aim at the push of a button? With the SWAROVSKI dS - 5-25x52 P SR Gen. II riflescope, it’s no longer a problem. The weapon/ammunition combination and the display configuration are simply entered into the dS Configurator APP, and then the app calculates the ballistic curve, which can be quickly and easily transferred to the dS via Bluetooth.

The riflescope then automatically calculates the point of aim thanks to self-determined additional data such as the precisely measured distance, the angle of shot, the set magnification, air pressure, and temperature.

Windage lines and the new cant warning can be easily toggled on or off as an element. Also new is the reticle illumination. Here, the dS automatically selects between 3 brightness levels based on ambient light conditions.

The SWAROLIGHT function on the riflescope automatically detects whether the weapon is in shooting position or not. It is active when the central point of aim (night mode) is activated and the weapon is shouldered. Optimal handling in the shoulder position is ensured by ergonomically shaped controls on the cockpit and the extension of the distance between the magnification adjustment ring and the cockpit.

An automatic shut-off function for reticle illumination and display is also integrated.

📦 Scope of delivery

• Clear protective caps
• Torx key and adjustment tool in the battery compartment
• large adjustment tool
• microfiber cloth

⚙️ Technical data

• Magnification: 5–25x


• Effective objective diameter: 48–52 mm


• Exit pupil: 9.6–2.1 mm


• Eye relief: 95 mm


• Field of view at 100 m: 7.3–1.5 m


• Field of view: 4.2–0.84°


• Eye-side field of view: 21.5°
• Transmission: 83%


• Diopter adjustment: –3 to +2 dpt


• Point of impact correction/click (mm/100 m/MOA): 7 / 1/4


• Max. adjustment range for elevation/windage (m/100 m): 1.2–0.7


• Display adjustment range for elevation up/down at 25x (m/100 m): 0.13–4.68


• Display adjustment range for elevation left/right at 25x (m/100 m): 0.22–7.92


• Parallax adjustment: 50 m to ∞


• Filter thread (objective side): M63x0.75


• Length: 403 mm


• Weight: 1,115 g


• Display: LCoS monochrome


• Measurement range: 30–1,375 m


• Measurement accuracy: +/– 1 m


• Measurement duration: ≤ 0.7 sec.


• Angle measurement: ±60°


• Maximum point of impact correction: 1,024 m


• Laser: Class 1 EN/FDA


• Display duration after measurement: selectable in the dS Configurator APP


• Brightness levels: 64


• Battery: CR123


• Operating time: approx. 500x (at medium brightness)


• dS APP: Operating system iOS from version 16/Android from version 11, interface Bluetooth, minimum range of interface 1 m


• Function temperature electronics: –10 °C to + 55 °C


• Function temperature mechanics: –20 °C to + 55 °C


• Water resistance: 4 m


• Optical coatings: SWAROTOP, SWARODUR, SWAROCLEAN

Reticle: 4A-I
