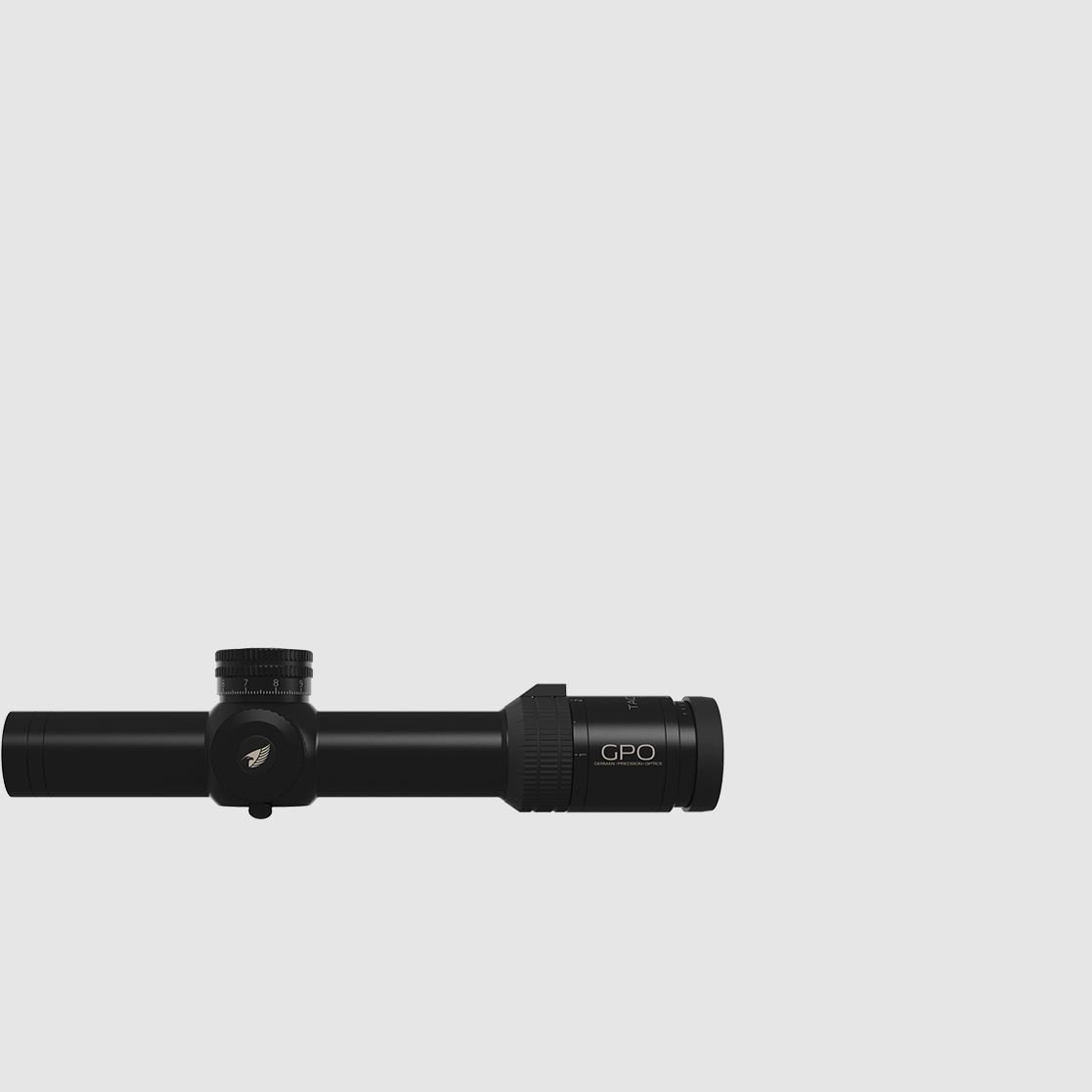

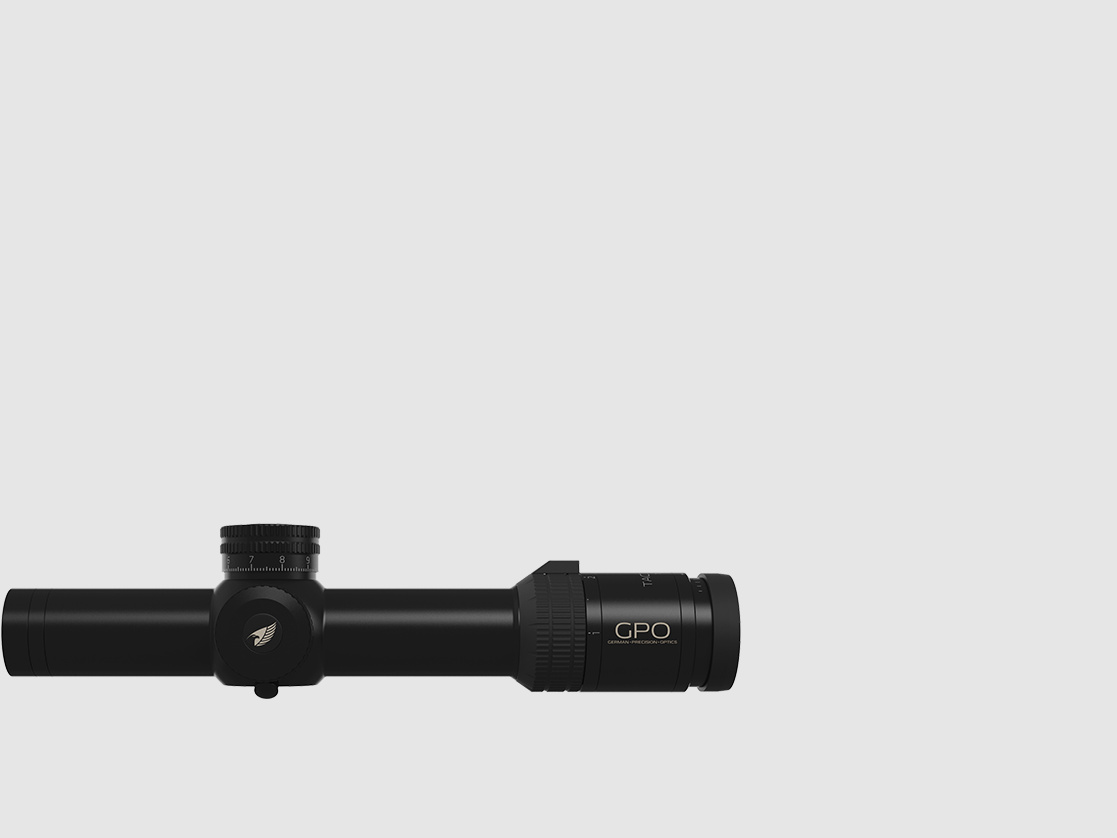

GPOTAC 8x 1-8x24i

Price on request

82266 Inning am Ammersee, Germany

ID: 9563210

Safe shopping with Gunfinder

Our AI-supported provider identity verification makes Gunfinder the safest online marketplace. Learn more

About the seller

GPO - German Precision Optics

Retailer

86 offers

Details

Original language

German

Brand

GPO

Category

Condition

New

Location

🇩🇪 82266 Inning am Ammersee, Germany

Availability

Available

Timeliness

This offer is based on an offer mirroring, where the offer data was transferred from a shop, merchant, or external marketplace to us. Please note that temporary price discrepancies may occur due to possible delays in data transmission.

Source: GPO - German Precision Optics
Last updated: before about 4 hours

Description

```html
Magnification

1x - 8x

Field of View (FOV) y at 100y

107 - 13

Field of View (FOV) m at 100m

35 - 4.4

Objective Diameter (mm)
Optically Clear Diameter
24

Exit Pupil (mm)

11.7 - 3

Eye Relief (inches)
Measured from the ocular lens surface
3.54

Eye Relief (mm)
Measured from the ocular lens surface
90

Image Plane

1

Click Adjustment at 100m
1 Click = x/100m
0.1 mrad

Elevation Adjustment (inches / 100y)
Total Adjustment Range
105.4

Elevation Adjustment (cm / 100m)
Total Adjustment Range
291

Windage Adjustment (cm / 100m)
Total Adjustment Range
291

Parallax Adjustment
Parallax Free
100 m

Transmission
ISO 14490-5:2005
90%

Height (inches)
Turret at Mid Position
2.4

Height (mm)
Turret at Mid Position
61

Width (inches)
Turret at Mid Position
3.1

Width (mm)
Turret at Mid Position
79

Length (inches)
Without Cover and Eyepiece Screwed In
10.7

Length (mm)
Without Cover and Eyepiece Screwed In
273

Center Tube Diameter (mm)

34

Weight (ounces)
Without Cover and Accessories
27.1

Weight (grams)
Without Cover and Accessories
770

Mechanical Outer Diameter (Objective mm)

34

Mechanical Outer Diameter (Eyepiece mm)

46

Reticle

HS(i) mil-based

Accessories Included

Manual, Cleaning Cloth, Flip Cover Objective, Battery CR2032

Our Quality Promise
.
Development & Design by GPO in Germany,
Electronics Made in Germany,
Final Assembly in our facility in Japan according to
GPO quality standards,
100% quality control and packaging in Germany,
10 years warranty
``` (Show description in original language)

Vergrößerung

1x - 8x

Sehfeld (FOV) y auf 100y

107 - 13

Sehfeld (FOV) m auf 100m

35 - 4,4

Objektivdurchmesser (mm)
Optisch freier Durchmesser
24

Austrittspupille (mm)

11,7 - 3

Augenabstand (inches)
Gemessen von der Okularlinsenoberfläche
3,54

Augenabstand (mm)
Gemessen von der Okularlinsenoberfläche
90

Bildebene

1

Klickverstellung auf 100m
1 Klick = x/100m
0,1 mrad

Höhenverstellung (inches / 100y)
Gesamtverstellweg
105,4

Höhenverstellung (cm / 100m)
Gesamtverstellweg
291

Seitenverstellung (cm / 100m)
Gesamtverstellweg
291

Parallaxeinstellung
Parallaxfrei
100 m

Transmission
ISO 14490-5:2005
90%

Höhe (inches)
Turm auf Mittelstellung
2,4

Höhe (mm)
Turm auf Mittelstellung
61

Breite (inches)
Turm auf Mittelstellung
3,1

Breite (mm)
Turm auf Mittelstellung
79

Länge (inches)
Ohne Cover und Okular eingedreht
10,7

Länge (mm)
Ohne Cover und Okular eingedreht
273

Mittenrohrdurchmesser (mm)

34

Gewicht (ounces)
Ohne Cover und Zubehör
27,1

Gewicht (Gramm)
Ohne Cover und Zubehör
770

Mechanische Außendurchmesser (Objektiv mm)

34

Mechanische Außendurchmesser (Okular mm)

46

Absehen

HS(i) mil-basierend

Zubehör im Lieferumfang

Anleitung, Reinigungstuch, Flip Cover Objektiv, Batterie CR2032

Unser Qualitätsversprechen
.
Entwicklung & Design durch GPO in Deutschland,
Elektronik Made in Germany,
Endmontage in unserem Verbund in Japan nach
GPO Qualitätsstandards,
100% Qualitätskontrolle und Verpackung in Deutschland,
10 Jahre Garantie
