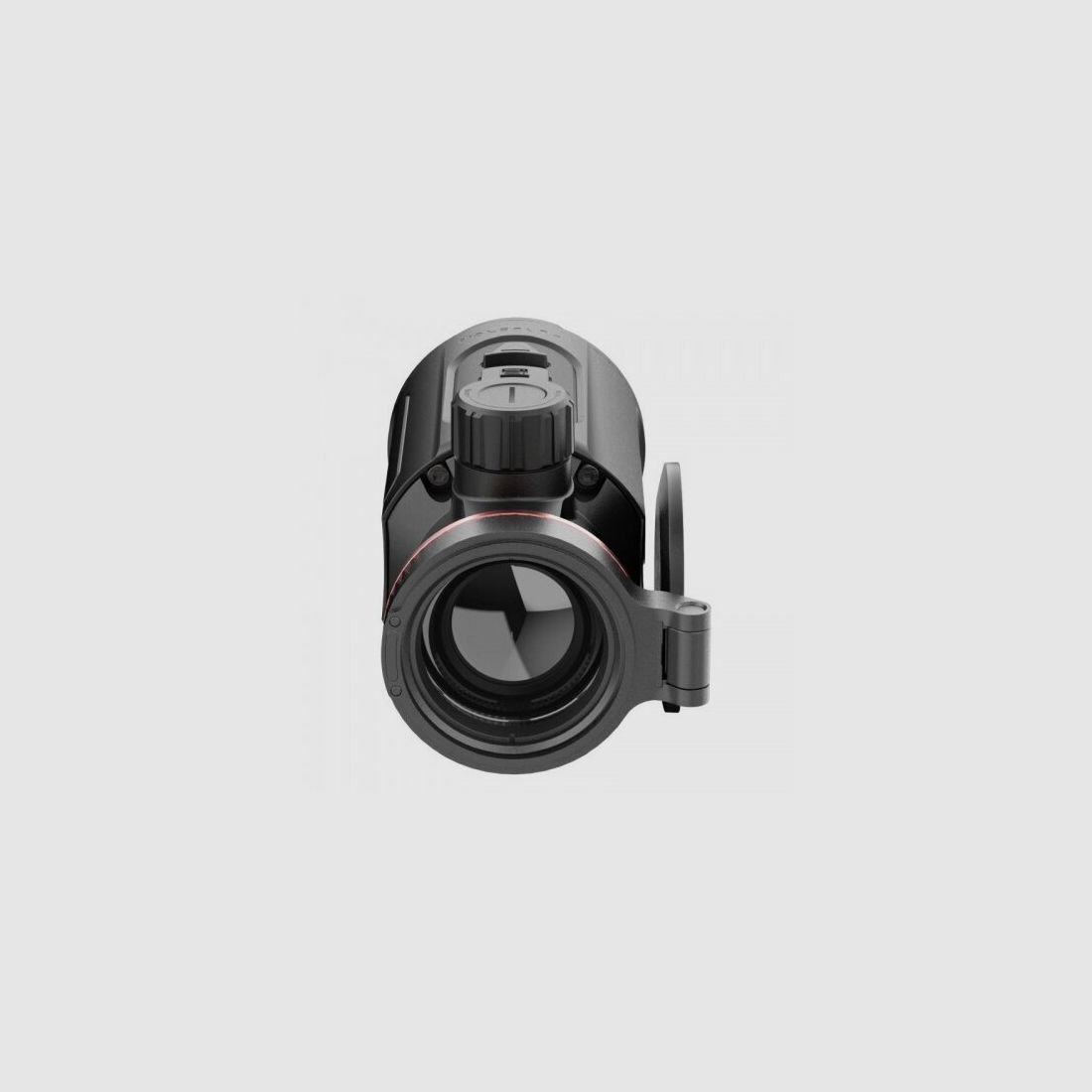

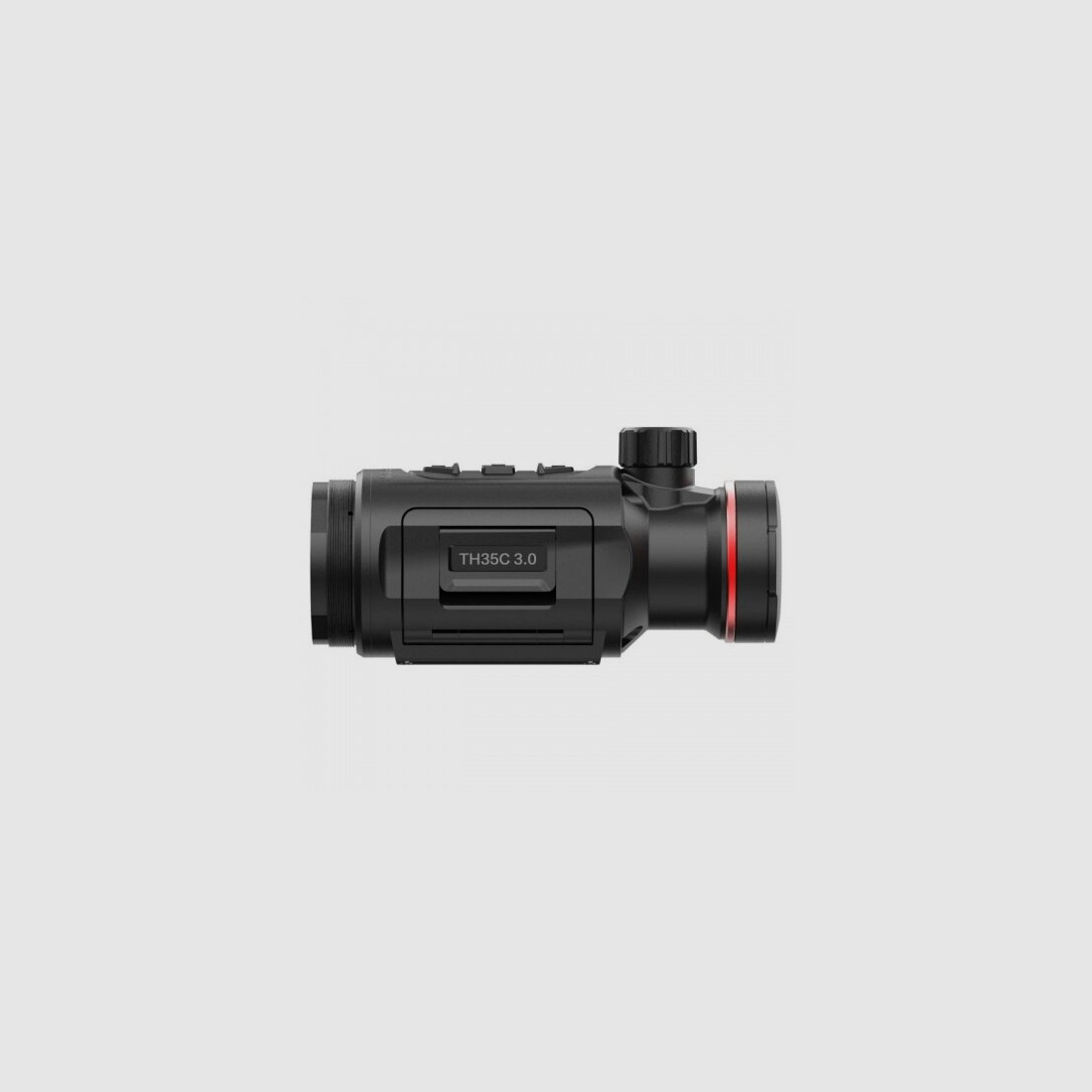

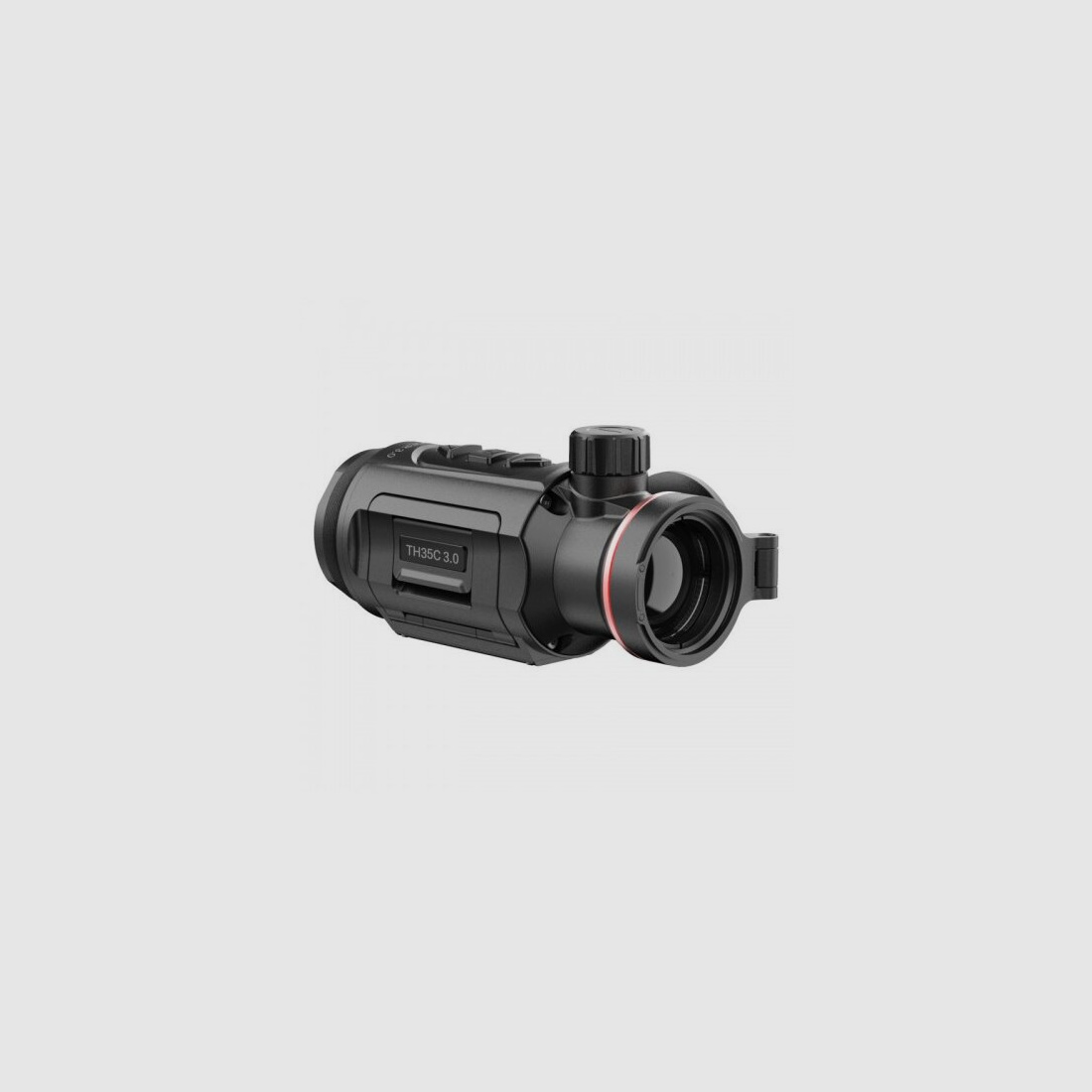

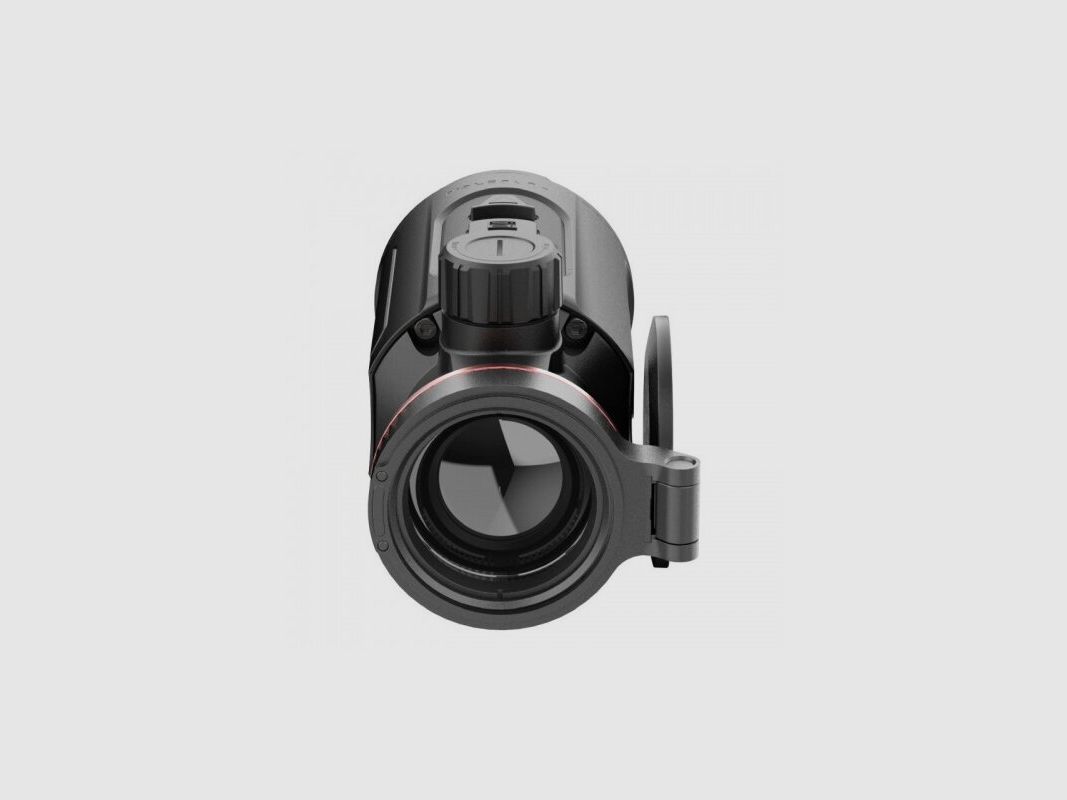

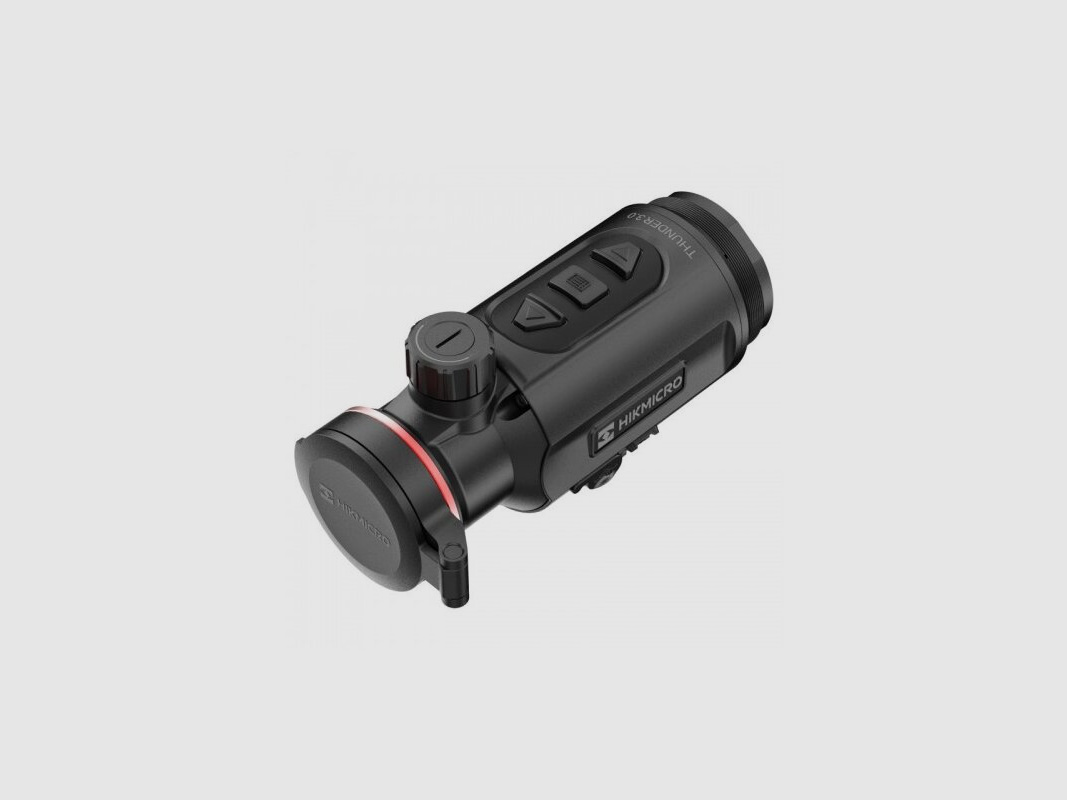

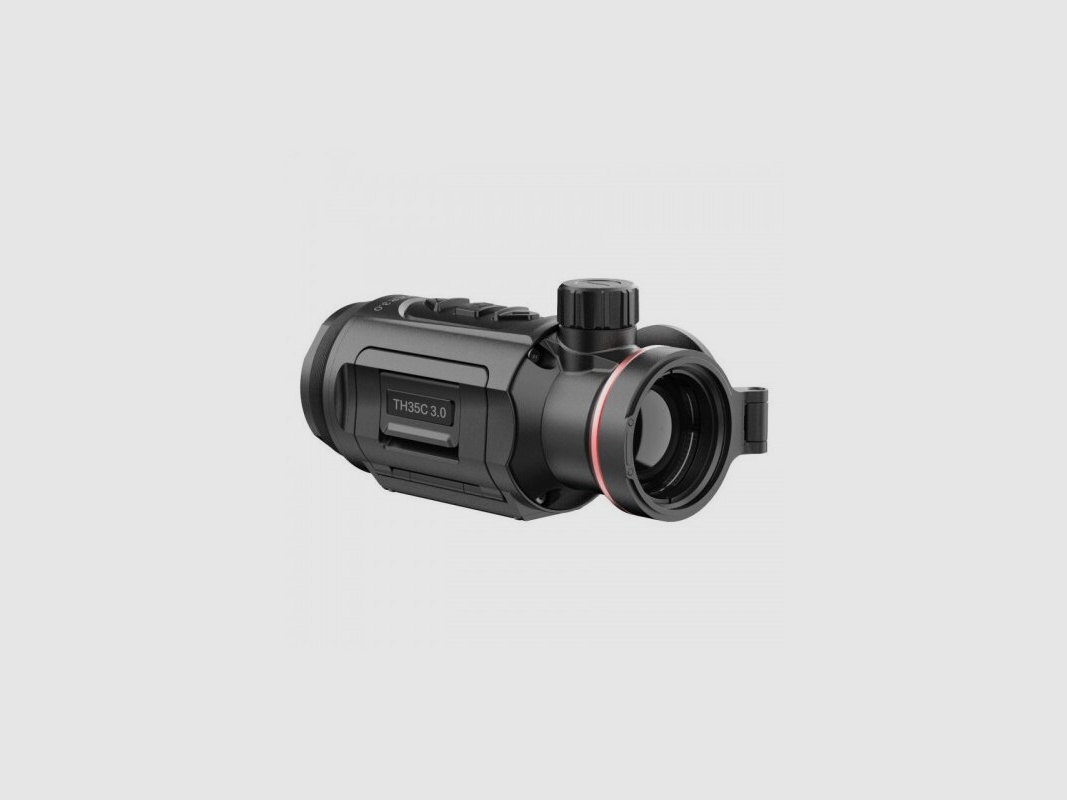

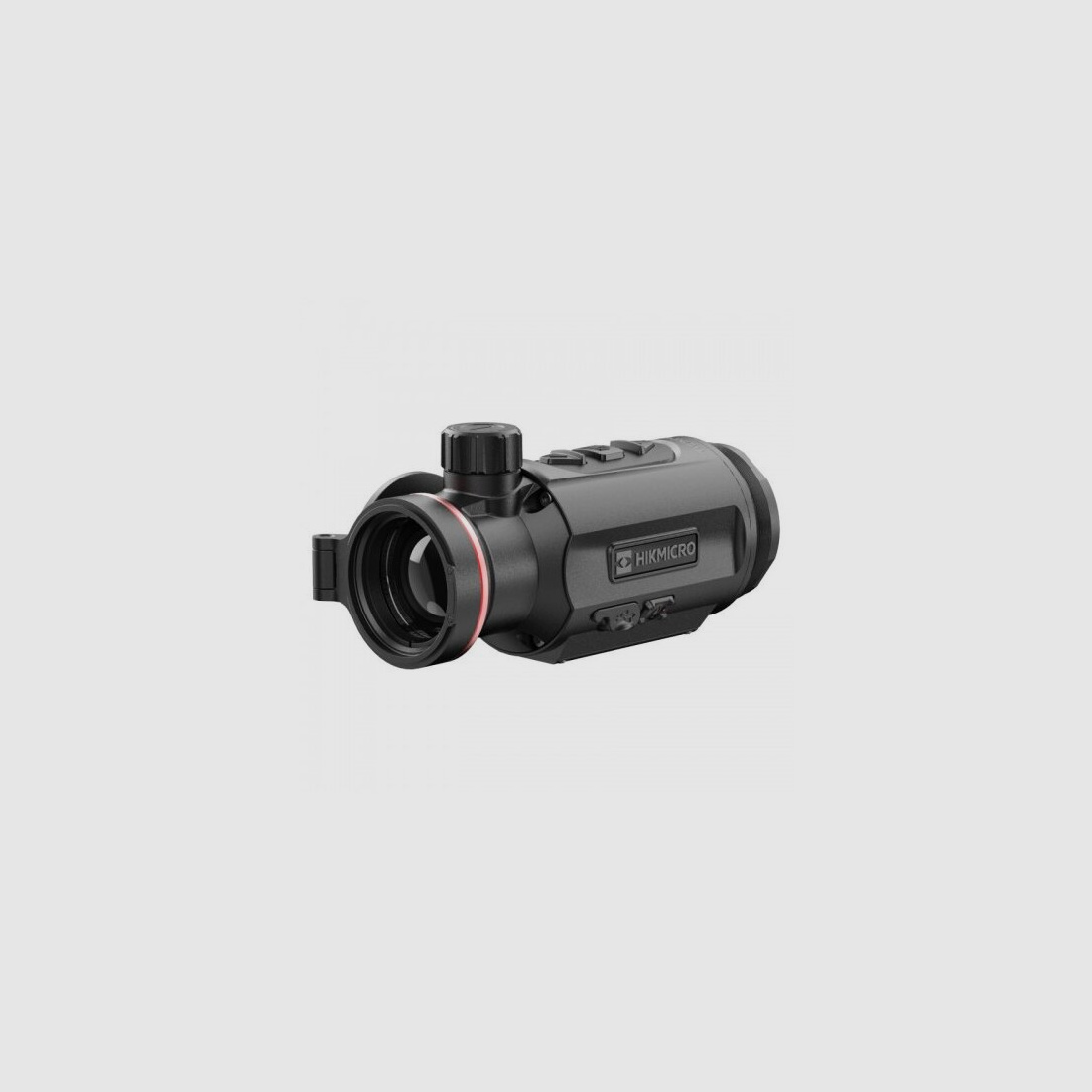

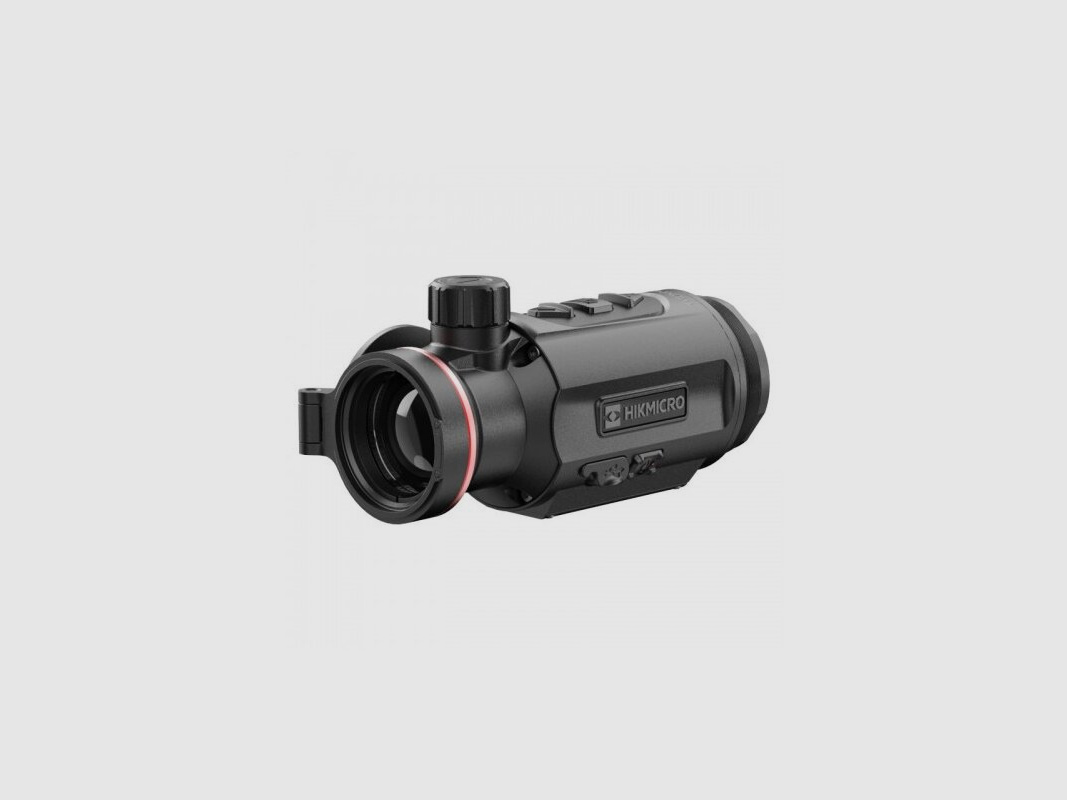

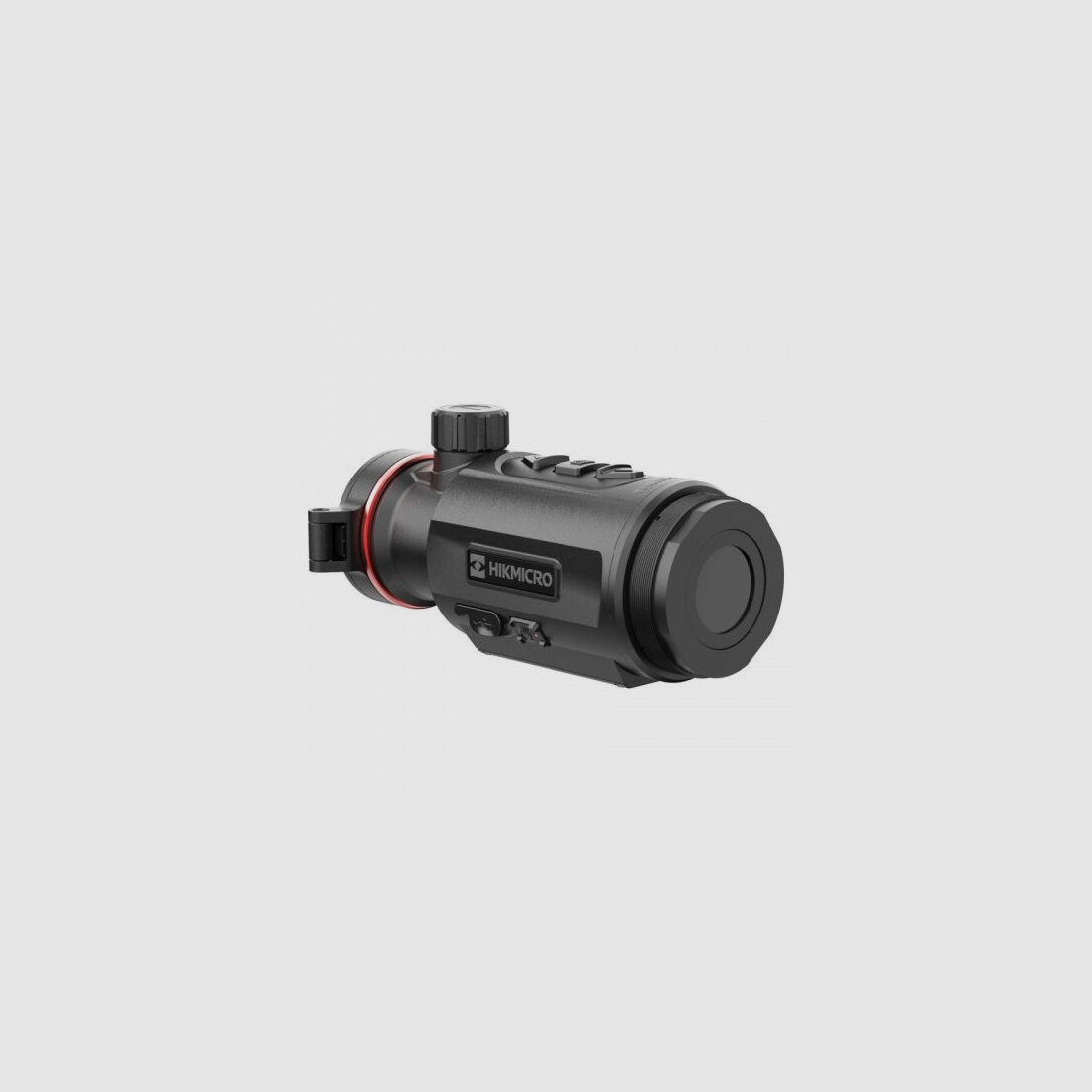

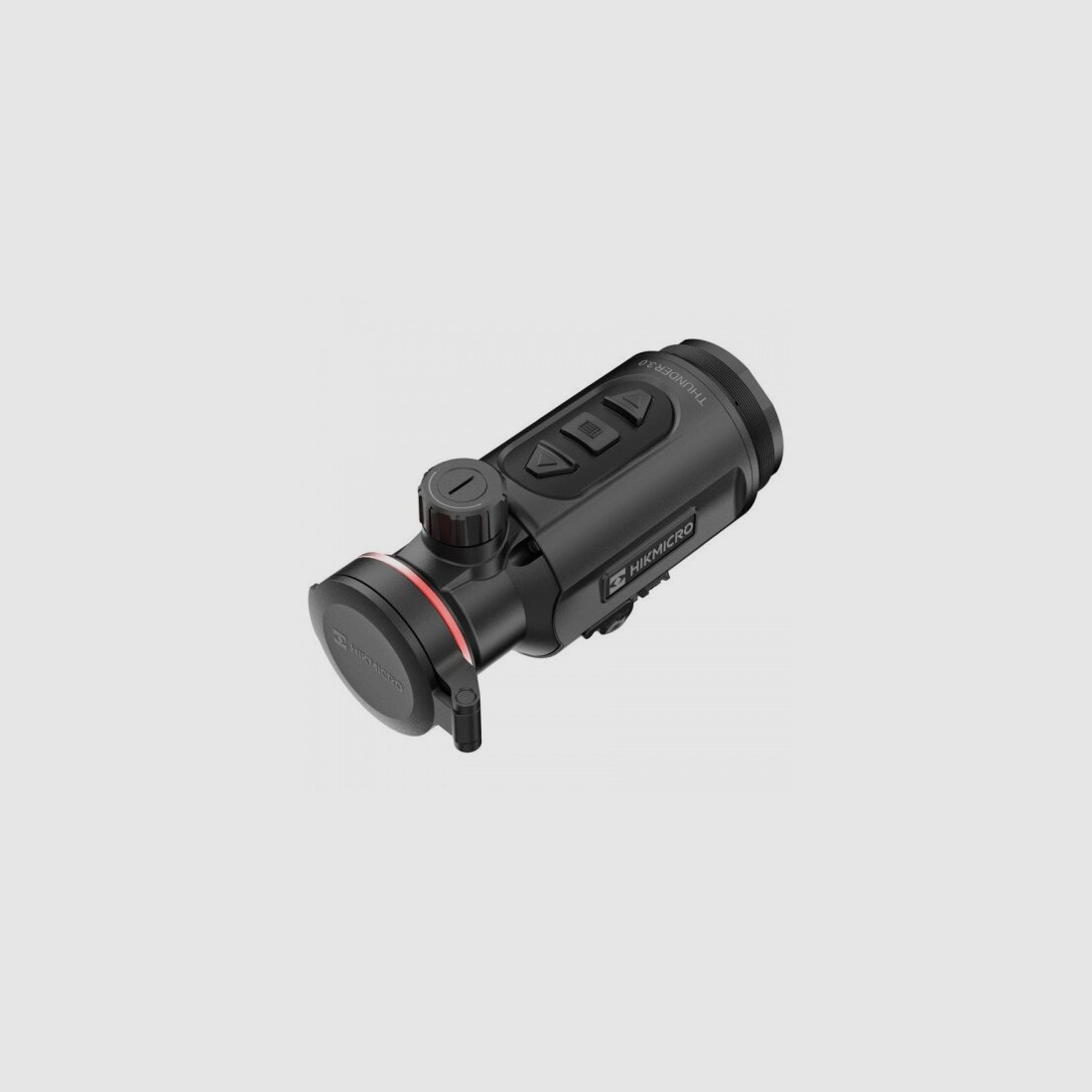

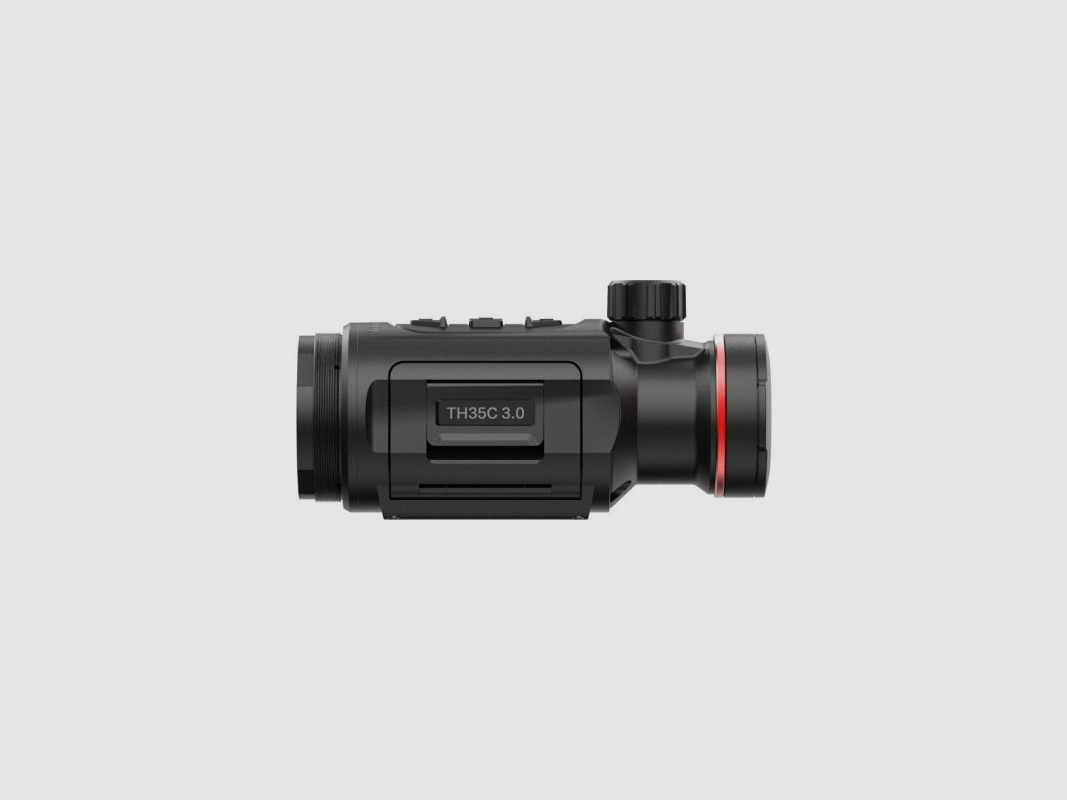

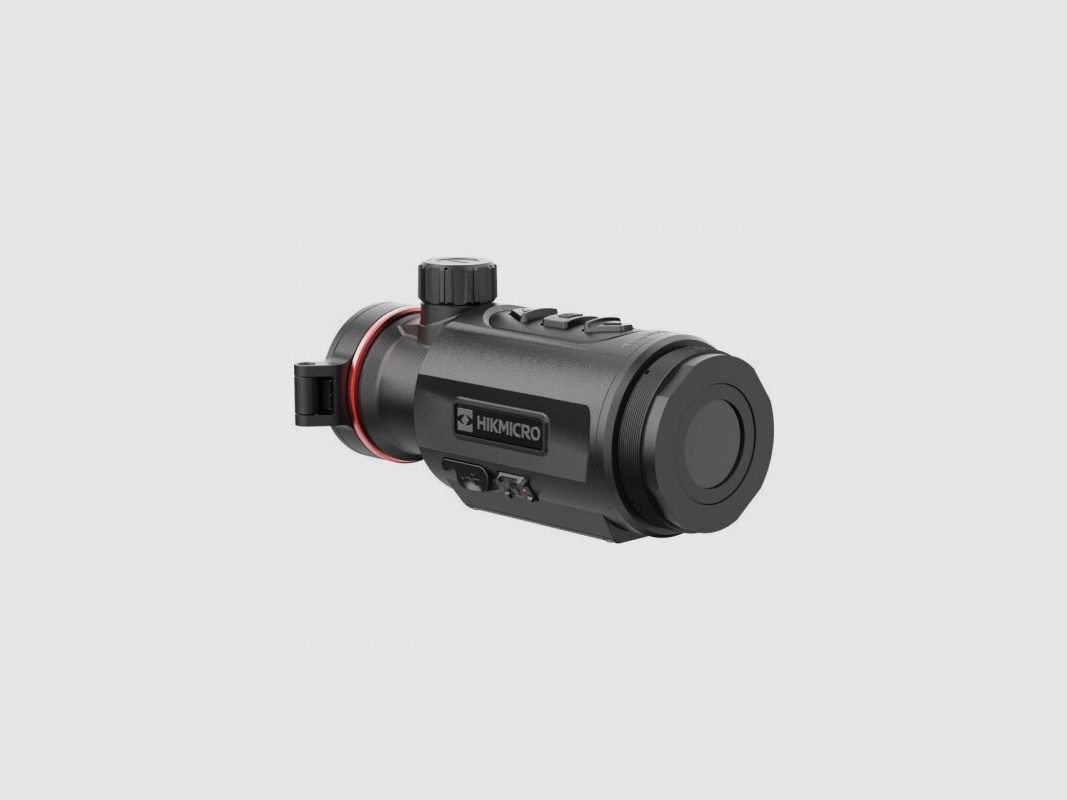

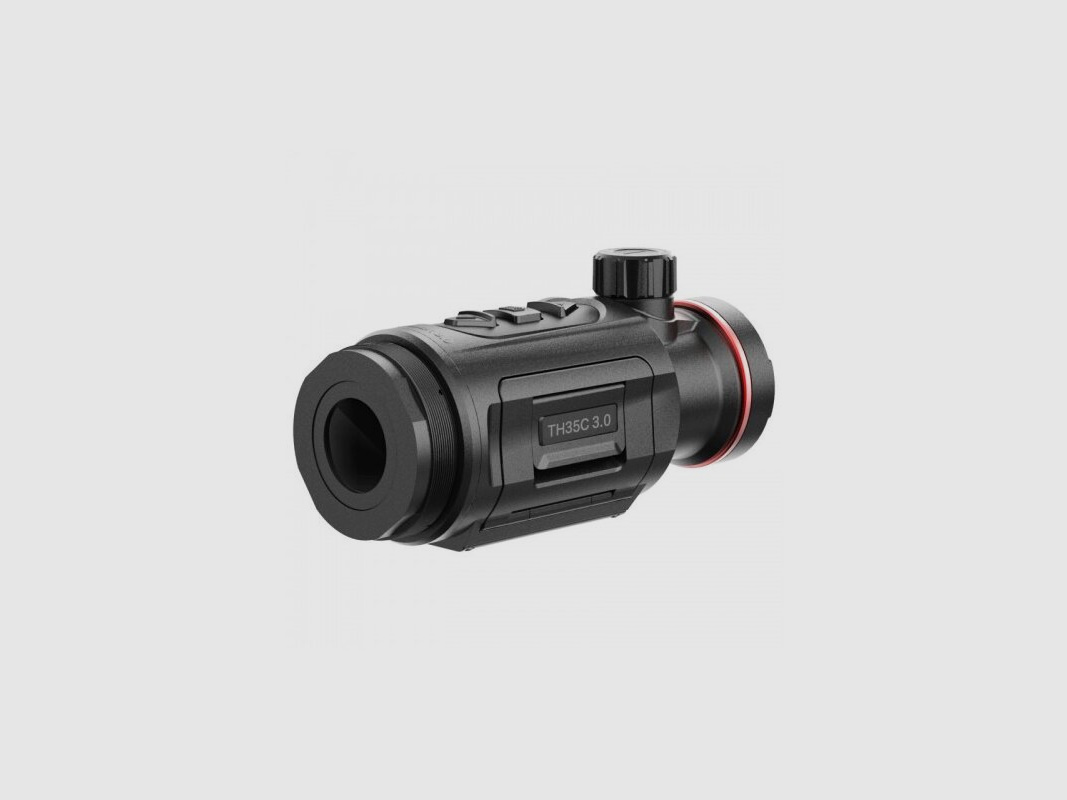

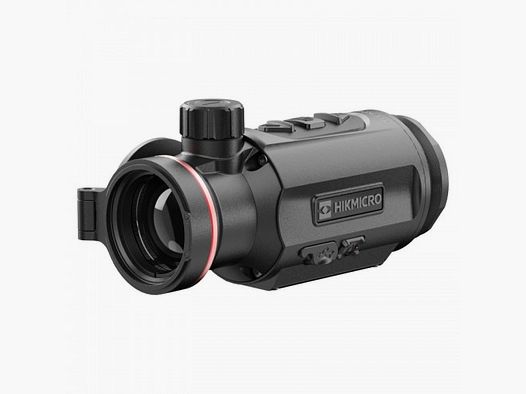

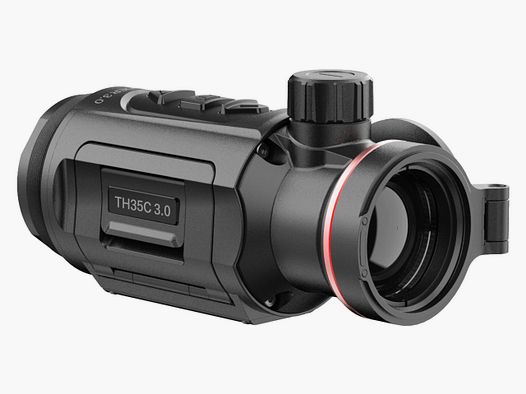

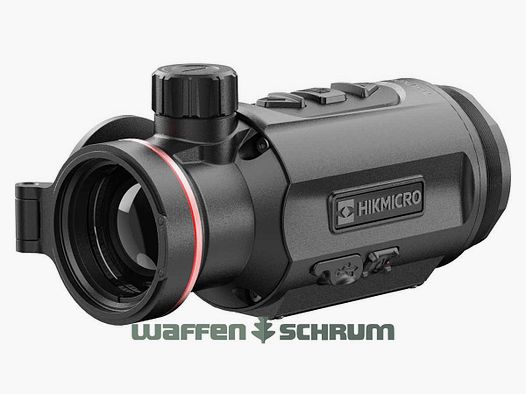

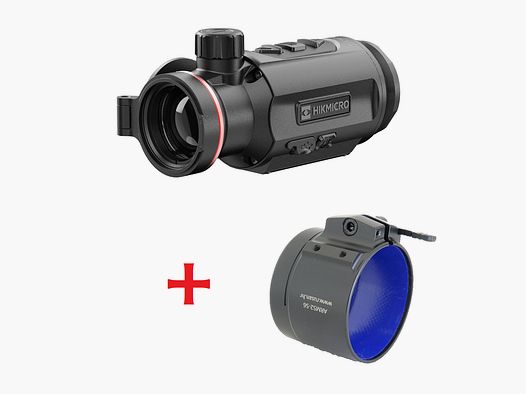

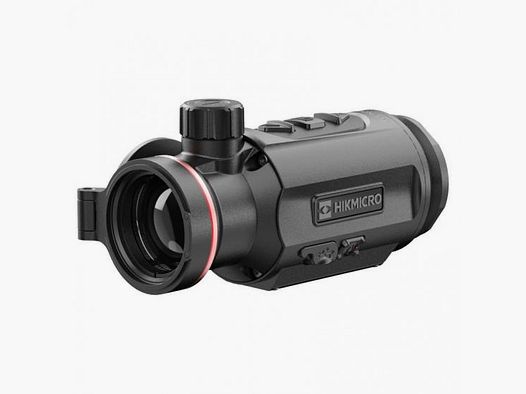

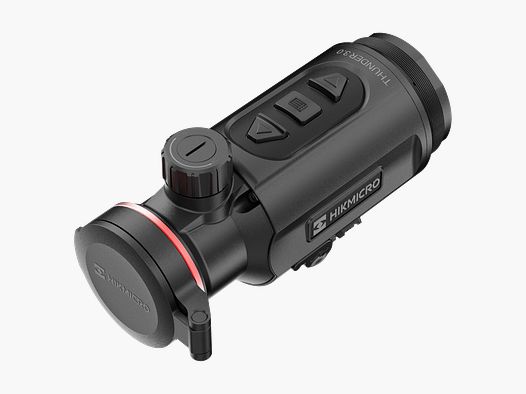

HIKMICRO Thunder TH35C 3.0 – State-of-the-Art Thermal Performance in Compact Design

The HIKMICRO Thunder TH35C 3.0 Thermal Clip-On sets new standards in thermal imaging technology. Equipped with a powerful, highly sensitive thermal imaging detector and the latest image processing algorithm technology, the Thunder TH35C 3.0 allows for the capture of the finest details, regardless of weather or lighting conditions. The 1920 × 1080 OLED display provides an impressive visual experience, ensuring that no detail is overlooked.

Main Features:

• Resolution: 384 × 288 at 12 μm thermal detector


• Thermal Sensitivity: NETD < 15 mK (@25°C, F# = 1.0)


• Lens: 35 mm, F1.0 lens with a detection range of up to 1800 m


• Display: 1920 × 1080 resolution, 0.49 inch OLED


• Image Processing: HIKMICRO Shutterless Image System (HSIS) for seamless images


• Battery: Rechargeable and replaceable Li-Ion battery, provides up to 6 hours of continuous operation


• Shock Resistance: High shock resistance up to 1000 g/0.4 ms

Thermal Module:

• Image Sensor: Uncooled focal plane arrays


• Maximum Resolution: 384 × 288


• Frame Rate: 50 Hz


• Pixel Pitch: 12 μm


• Response Wavelength: 8 μm to 14 μm


• Focus Mode: Focus button


• Minimum Focus Distance: 10 m


• Magnification: 1×


• Field of View: 7.5° × 5.7° / 13.2 m × 9.9 m @ 100 m


• Recommended Magnification: 1-12x

Image Display:

• Display: 1920 × 1080, 0.49 inch OLED


• Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome


• Exit Pupil: 25 mm


• Eye Relief: 20 mm


• Brightness Adjustment: Yes


• Contrast Adjustment: Cold, Warm


• HSIS: HIKMICRO Shutterless Image System


• Image Pro 2.0: Yes

System Functions:

• Video Recording: Integrated video recording


• Snapshot: Yes


• Virtual Reticle: Yes


• Standby Mode: Yes


• Storage: Integrated EMMC (64GB)


• Hotspot: Yes


• Hot Track: Yes


• Audio Recorder: Yes


• Recoil-Activated Video Recording: Yes


• Maximum Recoil: 1000 g/0.4 ms


• Local Album: Yes


• Image Calibration: Yes


• Zeroing Profiles: 5

Power Supply:

• Battery Type: Replaceable and rechargeable Li-Ion battery


• Operating Time: ≥6 hours at 25°C (Hotspot off)


• Type-C Power Supply: 5 VDC, 2 A


• Supports External Power Supply: Yes

General Information:

• Protection Class: IP67


• Dimensions: 143.4 mm × 67.5 mm × 72.9 mm


• Weight: 460 g with battery


• Operating Temperature: -30°C to + 55°C (-22°F to 131°F)


• Housing Material: Magnesium Alloy

Scope of Delivery:

• 1x Thunder TH35C 3.0


• 1x Rechargeable Li-Ion battery (included in the device)


• 1x USB-C cable


• 2x O-rings


• 1x User manual

The HIKMICRO Thunder TH35C 3.0 offers you outstanding performance and reliable functionality for any challenge. Perfect for hunting, surveillance, and other demanding applications – this clip-on is an indispensable companion for precise observations.

Note: Please observe the legal regulations when mounting attachment or add-on devices on firearms!
