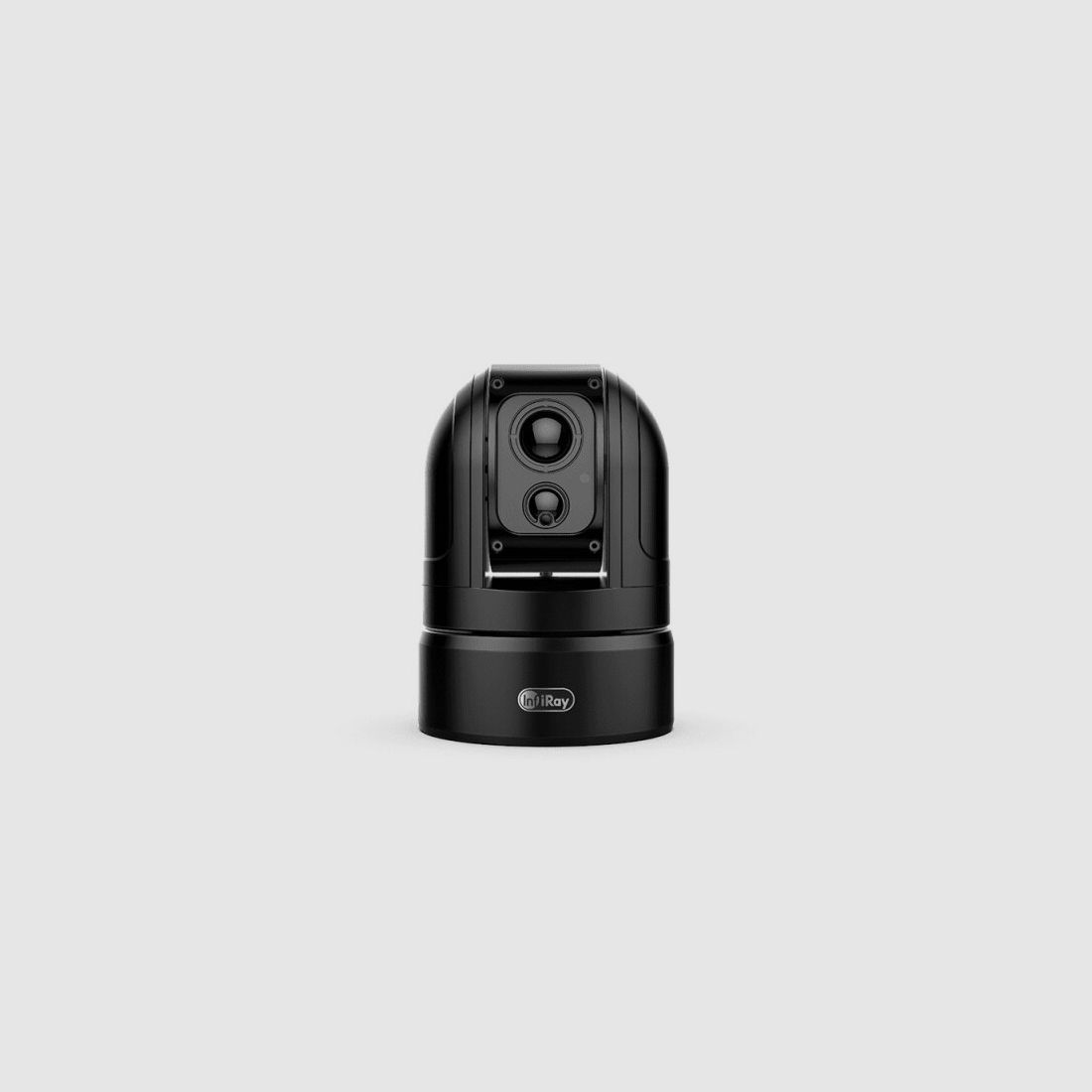

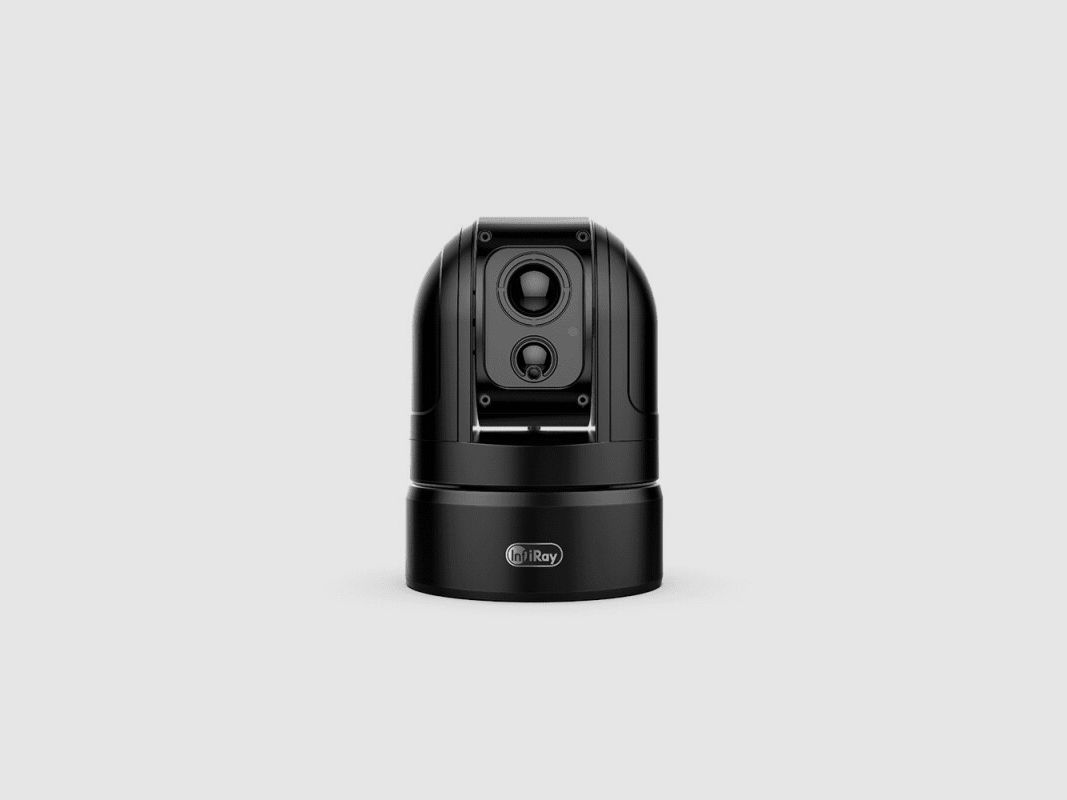

The PTZ thermal imaging camera of the M6 series is vehicle-mounted for outdoor observation, search, and security patrol. With an infrared detector, featuring a high resolution of 640×512, the M6s can deliver sharp and clear images.
With two axes, the M6 can rotate 360° horizontally and ±90° vertically. It is controlled via a wired Type 485 keyboard (optional accessory) or the WIFI app.
The camera is designed to be mounted on the car roof. Control can be done from the closed vehicle cabin (app). The PTZ Thermal has powerful image stabilization, providing a good and steady image even while driving. The camera can also be used in frost conditions, as it features a de-icing function. Other equipment features include: LAN connection (for stationary monitoring operation); 8 quick-select camera positions; up to 4x digital zoom.
| Model | M6s PTZ Thermal |
| Sensor | 640 x 512 pixels |
| Sensor Technology | Vanadium Oxide (VOx, sun-safe) |
| Display | – (via app) |
| Display Technology | – |
| Detection Distance (The device perceives the heat source) | from 3m |
| Zoom | 1x, 2x, 4x digital magnification |
| Power Supply | DC 12 V |
| Image Processing | Noise reduction of the digital filter/digital detail enhancement |
| Rotation (horizontal) | 360° |
| Rotation (vertical) | -90° to +90° |
| Pixel Pitch | 12µm |
| Frame Rate | 50Hz |
| Focal Length | 19mm |
| Motor | Direct drive of the brushless motor, without gearbox mechanism, with low noise and stable performance |
| Quick Select Orientations | up to 8 positions |
| Stabilization | Two-axis gyro stabilization |
| Laser Pointer | no |
| Laser Rangefinder (LRF) | yes |
| Power Supply | DC 12V |
| Power Consumption | normal 8.4W; max. 24W |
| WiFi | yes |
| Ethernet (LAN) | yes |
| Network Video Output | Output on browser pages and H.264 network video stream are supported |
| Analog Video Output | yes, PAL |
| Storage | Built-in 64GB storage, photo capture, video recording, and network access to storage are supported |
| Video Recording | yes |
| Control | RS485 PELCO-D protocol and network control interface (InfiRayOutdoor app is supported) |
| Frost Removal | yes |
| Operating Temperature Range, °C | -20° to +60° C |
| Protection Class | IP56 |
| Size | Diameter 133mm; 188mm high |
| Weight | 2Kg |
| Mounting | Suction cup / stationary |
| Optional Accessories | 485 joystick keyboard/vehicle-mounted screen/external battery |
