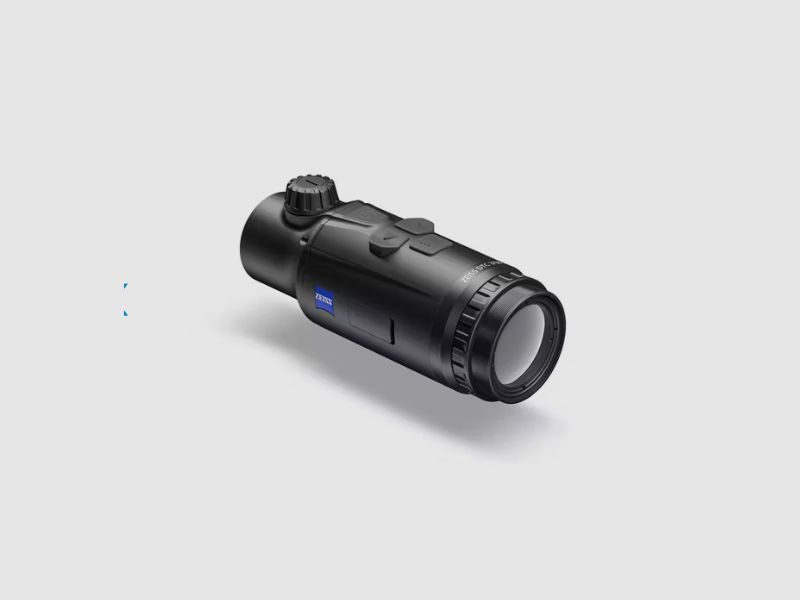

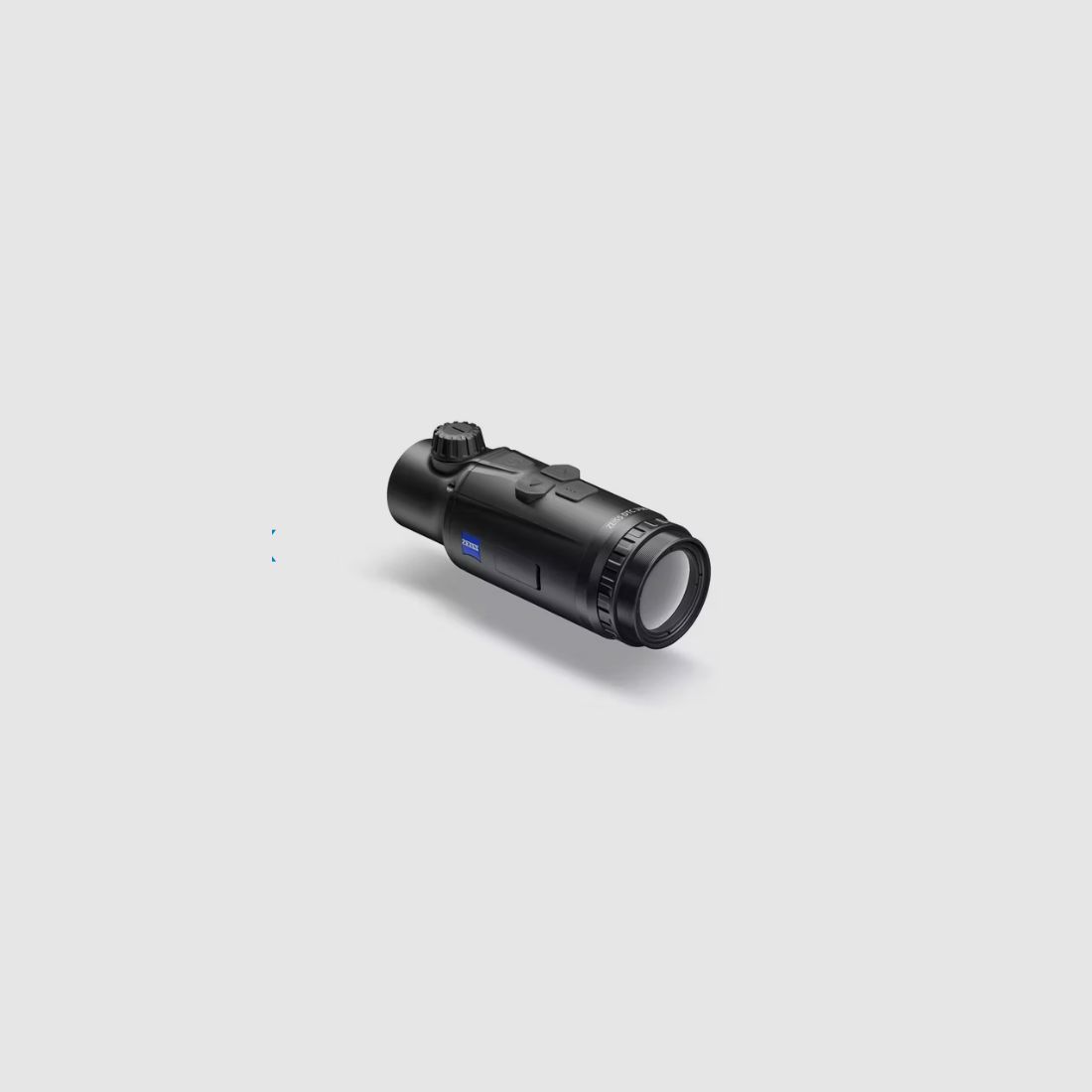

Best conditions for a successful hunt in the dark: The new ZEISS DTC 3 thermal imaging attachments offer perfectly matched optics with a large and high-contrast 1024 × 768 HD AMOLED display, intuitive ergonomics, precise and comfortable zeroing thanks to the app-controlled zeroing assistant, an almost unlimited battery life, and numerous customization options.
Range and accuracy at long distances play a crucial role in night hunting in open terrain. The ZEISS DTC 3/38 features a higher detection range, a field of view of 12.3 m at 100 m distance, and an exact click value of 1.6 cm at 100 m distance – for very precise zeroing and thus highly accurate and ethical shot placement.
First-class optics and a sharp, clear image are essential for night hunting to safely identify game. Two models of the ZEISS DTC 3 thermal imaging attachment offer high-quality, optimally tuned germanium lenses for thermal radiation, the latest generation of 12 µm sensors, a large HD AMOLED display, and outstanding image processing, ensuring absolute detail recognition and maximum precision.
For nighttime hunting success, the intuitive and simple operation of the attachment is crucial. The central positioning of the focus tower on the upper side of the attachment allows for better accessibility and precise focusing. The ErgoControl Concept with an intelligent cross-shaped arrangement of buttons also guarantees additional user-friendliness – for both left- and right-handed users as well as when wearing gloves.
For the perfect alignment of the target optics, thermal imaging attachment, and weapon, careful and precise zeroing of the weapon is indispensable. The ZEISS DTC 3 is equipped with a digital zeroing assistant. It can be easily operated via the ZEISS Hunting App, allowing for faster, simplified, and even more precise zeroing.
To attach the ZEISS DTC 3 to a riflescope, an adapter is required. The two-part ZEISS adapter features the latest technology and allows for easy and quick attachment and detachment of the thermal imaging attachment. In combination with the zeroing profiles of the DTC 3, the ZEISS adapter can be used for up to four different riflescopes. The bayonet mount enables quick changes without shot deviation.
Thanks to its detection range of up to 1950 m and a field of view of 12.3 m at 100 m, the ZEISS DTC 3/38 is especially well-suited for hunting in open fields and at longer distances. For hunting in wooded areas or on the stalk, the ZEISS DTC 3/25 provides a field of view of 18.4 m at 100 m distance for a perfect overview at short distances and excellent detail recognition. The ZEISS DTC 3/25 thus has the perfect conditions for quick reactions.
Sometimes hunting success takes longer to achieve. With a runtime of 10 hours in continuous use, the ZEISS DTC 3/25 and 3/38 offer nearly unlimited operational possibilities. The integrated angle sensor automatically detects the exact position of the device and activates standby mode at a 45° lateral tilt and at a 70° tilt up or down. This can be deactivated with a short press of the power button.
Via Bluetooth, the ZEISS DTC 3 can be connected to the ZEISS Hunting App, through which the device settings can be adjusted to individual requirements. Particularly convenient: Once the combination of ZEISS DTC 3 and riflescope is zeroed, the setting can be saved as a profile in the app, allowing the attachment to be easily switched from one riflescope to another. Four storable zeroing profiles provide impressive flexibility.
| Focal Length | 38 mm |
| Aperture | f/1.0 |
| Field of View at 100 m (yds) | 12.3 m (40 ft) |
| Objective Field Angle | 7° x 5° |
| Range | 1,950 m (2,133 yd) |
| Sensor Resolution | 384 x 288 |
| Pixel Pitch Sensor | 12 μm |
| Display Resolution | 1024 x 768 |
| Display Frame Rate | 50 Hz |
| Display Type | AMOLED |
| Optical Magnification | 1.0 |
| Max Digital Zoom | - |
| Zoom Steps | - |
| Adjustment Range Height at 100 m | 154 cm |
| Adjustment Range Side at 100 m | 205 cm |
| Adjustment per Click at 100 m | 1.6 cm |
| Battery | Li-Ion |
| Battery Life | 10 h |
| Internal Memory | - |
| WLAN | - |
| Bluetooth | + |
| Livestream Function (Video & Photo) | - |
| Operating Temperature | − 10°C | + 50°C (+ 14 °F | + 122°F) |
| Length x Width x Height | 164 x 60 x 65 mm (6.5 x 2.4 x 2.6") |
| Weight | 650 g (22.9 oz) |
