The advantages of the 2nd Generation:

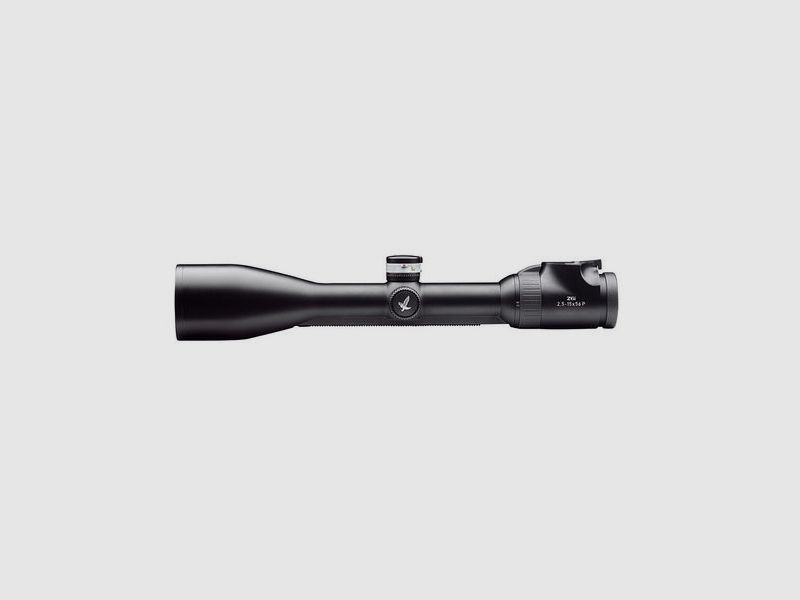

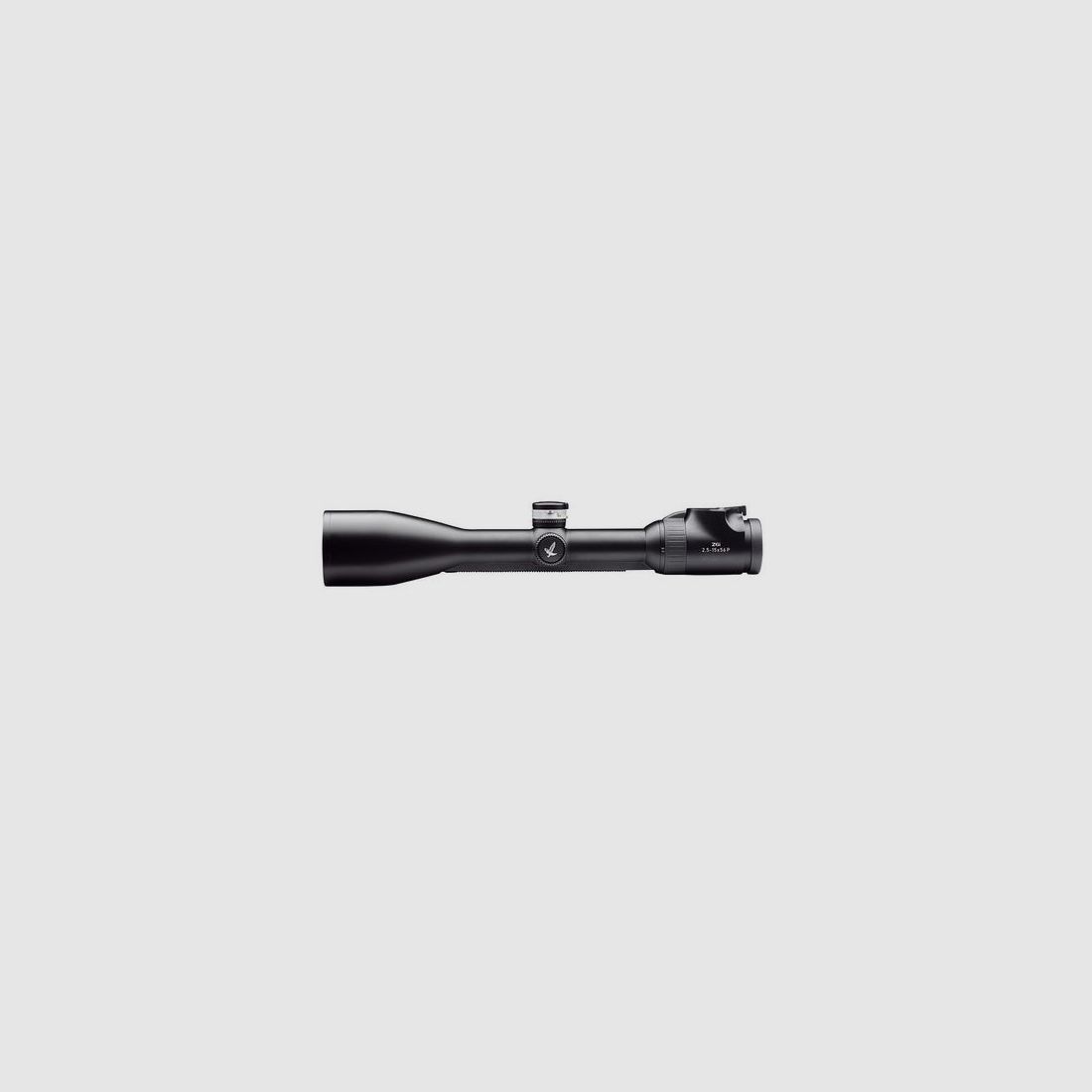

Swarovski 2.5-15x56 with rail and illuminated reticle 4A-I in the 2nd image plane. The innovative 6x zoom from Swarovski Optik offers a unique magnification and field of view range. This allows for more flexibility in hunting without compromising on image quality or design. The extended eye relief also provides more safety.
* These percentage figures refer to a device with 4x zoom and 80mm exit pupil distance.
With new ballistic turret - better hitting at distance.
The ballistic turret from Swarovski Optik offers you the possibility to "hold the spot" at different distances.
- quick mounting, - selected distances can be changed at any time, - calculated ballistic programs can be found under:
| Magnification: | 2.5 - 15 x 56 |
| Effective objective diameter: | 24.0 - 56 mm |
| Exit pupil: | 9.5 - 3.8 mm |
| Exit pupil distance: | 95 mm |
| Field of view at 100 m: | 16.5 - 2.7 m |
| Diopter adjustment: | +2 / -3 |
| Transmission: | 91 % |
| Dusk number: | 7.1 - 29 |
| Impact point correction per click at 100 m: | 10 mm |
| Max. adjustment range for elevation and windage at 100 m: | 1.8/1 m |
| Length: | 367 mm |
| Weight: | 675 g |
| Reticle: | 2nd image plane |
Die Vorteile der 2nd Generation:
Swarovski 2,5-15x56 mit Schiene und Leuchtabsehen 4A-I in der 2. Bildebene. Der innovative 6-fach Zoom von Swarovski Optik bietet einen einzigartigen Vergrößerungs- und Sehfeldbereich. Dieser ermöglicht mehr Flexibilität bei der Jagd ohne Kompromisse bei Bildqualität oder Design einzugehen. Der verlängerte Augenabstand sorgt zudem für mehr Sicherheit.
* Diese Prozentangaben beziehen sich auf ein Gerät mit 4-fach Zoom und 80mm Austrittspupillen-Abstand.
Mit neuem Ballistikturm - besser treffen auf Distanz.
Der Ballistikturm von Swarovski Optik bietet Ihnen die Möglichkeit, auf verschiedene Entfernungen "Fleck zu halten".
- schnelle Montage, - gewählte Entfernungen können jederzeit selbst geändert werden, - berechnete Ballistikprogramme sind unter: zu finden.
| Vergrößerung: | 2,5 - 15 x 56 |
| Wirksamer Objektivdurchmesser: | 24,0 - 56 mm |
| Austrittspupille: | 9,5 - 3,8 mm |
| Austrittspupillen-Abstand: | 95 mm |
| Sehfeld bei 100 m: | 16,5 - 2,7 m |
| Dioptrieausgleich: | +2 / -3 |
| Transmission: | 91 % |
| Dämmerungszahl: | 7,1 - 29 |
| Treffpunktkorrektur je Klick auf 100 m: | 10 mm |
| Max. Stellweg nach Höhe und Seite bei 100 m: | 1,8/1 m |
| Länge: | 367 mm |
| Gewicht: | 675 g |
| Absehen: | 2. Bildebene |
