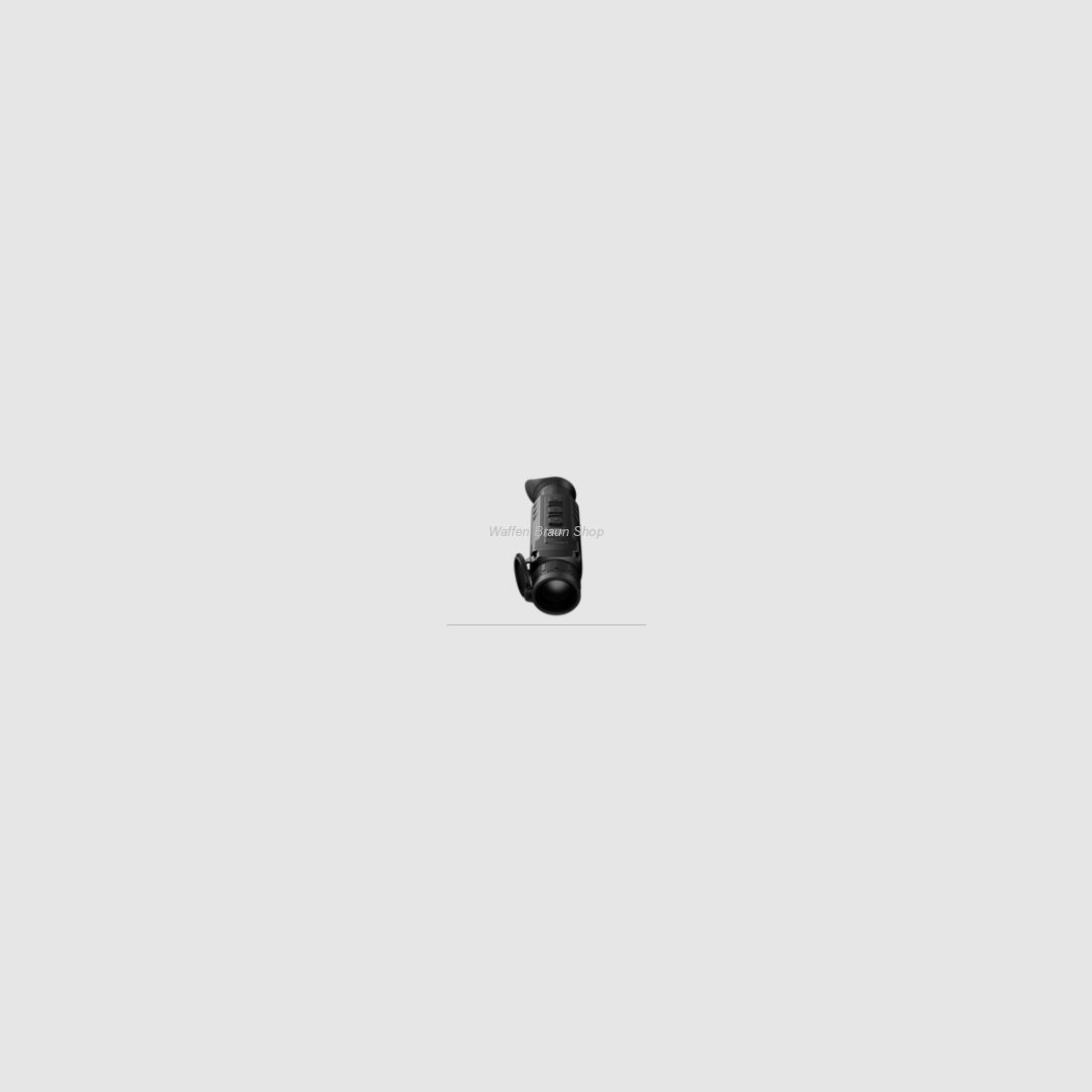

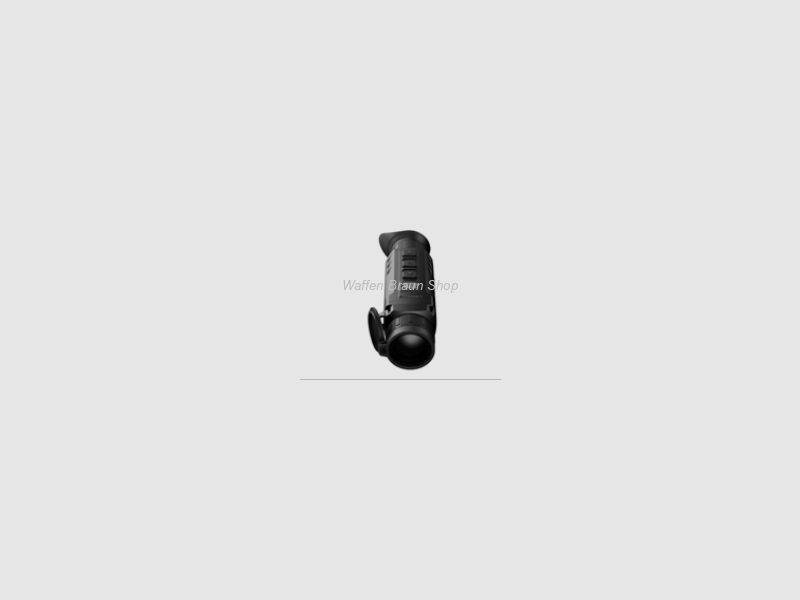

Infiray ZoomZH38 thermal imaging camera 38mm 640x512 pixels The Infiray Zoom ZH38 has the following technical specifications: Detector resolution 640x 512 px Pixel size 12µm NETD, mk = 25 Frame Rate, Hz 50 Optical properties Lens 38mm F=1.2 / 19mm F=0.9 Field of view without digital zoom 11.5° x 8.7° / 23° x 17.4° Magnification 1.6–12.8 (1.6 /3.2x optical, 2x/4x digital) Detection range 1974m / 987m (target size: 1.7m x 0.5m) Field of view at 100m 17m / 34m Display, screen Type AMOLED screen Resolution 1440x1080px Connections / interfaces USB-C charging and access to camera storage WLAN APP connection for image transmission Video output via USB-C video plug Max. battery life (t = 24°C), h 10 hours / replaceable battery IP protection class IP66 Weight (without battery), g =580g Size 190x65x60mm Optical performance 38mm lens 19mm lens Identification 493m 246m Detection 987m 493m Detection 1974m 987m
(Show description in original language)
Infiray ZoomZH38 Wärmebildkamera 38mm 640x512 PixelDie Infiray Zoom ZH38 hat folgende technische Eigenschaften:Detektorauflösung 640x 512 pxPixelgröße 12µmNETD, mk = 25Frame Rate, Hz 50Optische EigenschaftenObjektiv 38mm F=1.2 / 19mm F=0.9Sichtfeld ohne digital Zoom 11.5° x 8.7° / 23° x 17.4° Vergrößerung 1.6–12.8 (1.6 /3.2x optisch, 2x/4x digital)Erkennung Reichweite 1974m / 987m (Zielgrösse: 1.7m x 0.5m)Sehfeld in 100m 17m / 34mAnzeige, DisplayType AMOLED-BildschirmAuflösung 1440x1080pxAnschlüsse / VerbindungenUSB-C Laden und Zugang zum KameraspeicherWLAN APP Anbindung für BildübertragungVideoausgang über USB-C VideosteckerMax. Akkulaufzeit (t = 24°C), h 10 Stunden / wechselbarer AkkuIP Schutzklasse IP66Gewicht (ohne Akku), g =580gGrösse 190x65x60mmOptische Leistung 38mm Objektiv 19mm ObjektivIdentifikation 493m 246mErkennung 987m 493mDetektion 1974m 987m
