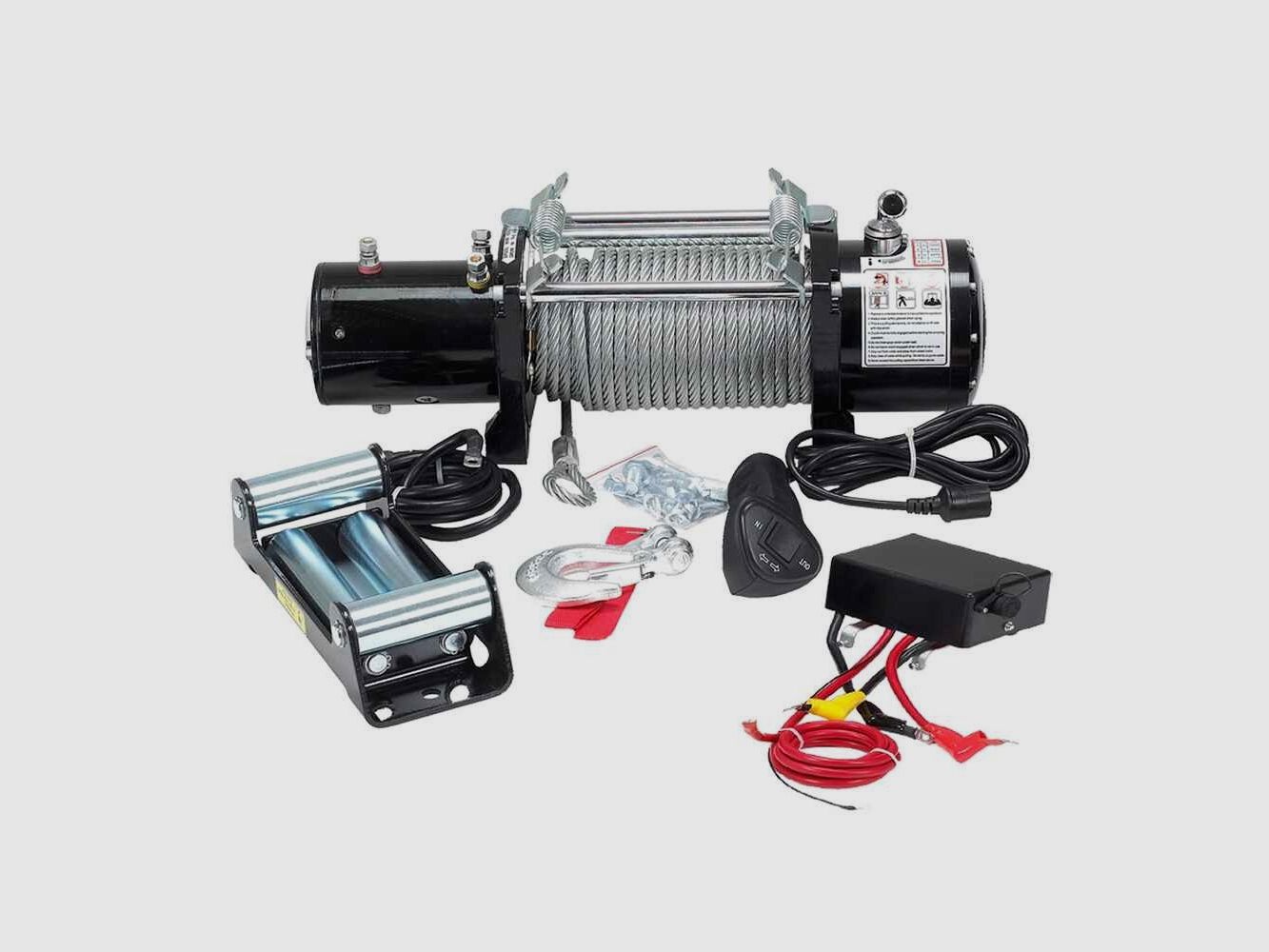

Motor winch professional 13 t

664 € 614 €

39261 Zerbst, Germany

ID: 9172070

This offer is currently not available.

Safe shopping with Gunfinder

Our AI-supported provider identity verification makes Gunfinder the safest online marketplace. Learn more

About the seller

Waffenpro

Retailer

2,711 offers

Legal notices

Details

Original language

German

Category

Calibers

Andere/Unbekannt

Condition

New

Location

🇩🇪 39261 Zerbst, Germany

Availability

Not available

Timeliness

This offer is based on an offer mirroring, where the offer data was transferred from a shop, merchant, or external marketplace to us. Please note that temporary price discrepancies may occur due to possible delays in data transmission.

Source: Waffenpro
Last updated: before about 15 hours

Description

Note: The item location is abroad. Please note that this may affect delivery conditions, shipping times, and/or the purchasing process.

Especially suitable for quads, ATVs (4x4) and commercial use. Cable and remote control, electric forward/reverse, manual freewheel, 4-way roller rope window. Waterproof housing, rope guide, automatic shut-off/brake in case of power failure. 3-stage planetary gear, fixed installation possible. Connection to the 12V car battery required. Pulling speed 1,360 kg - 2.4 m/min. Gear ratio 265:1. Rolling pulling capacity 13,636 kg – with pulley 27,272 kg. (Load specifications vary depending on the ground and slope). Accessories: 1.50 m battery connection cable, pulley, cable remote control approx. 3 m and radio remote control. Mounting plate for Jeep + truck/universal can be ordered separately.

Rope length 26 m - 9.2 mm Ø

Dimensions 53x16x21.8 cm

Mounting dimensions 254x114.3 mm

Drum 225 mm - width 114.3 mm

Motor 12V/DC permanent magnet 6.5 HP. Power 4.5 kW fuse 500 Amp. Voltage 12V.

Weight approx. 43 kg (Show description in original language)

Besonders geeignet für Quads, ATV (4x4) und gewerblichen Gebrauch. Kabel- und Funkfernbedienung, elektr. Vor-/ Rücklauf, manueller Freilauf, 4-Wege Rollen-Seilfenster. Wasserdichtes Gehäuse, Seilführung, automatische Endabschaltung/Bremse bei Stromausfall. 3-fach Planetengetriebe, Festmontage möglich. Anschluss an der 12V-Autobatterie erforderlich. Zuggeschwindigkeit 1.360 kg - 2,4 m/min. Untersetzung 265:1. Rollende Zugleistung 13.636 kg – mit Umlenkrolle 27.272 kg. (Angaben Zuglasten variieren nach Untergrund und Schräglage). Zubehör: 1,50 m Batterieanschlusskabel, Umlenkrolle, Kabel-Fernbedienung ca. 3 m und Funkfernbedienung. Montageplatte Jeep + LKW/Universal können separat bestellt werden.

Zugseillänge 26 m - 9,2 mm Ø

Maße 53x16x21,8 cm

Befestigungsmaße 254x114,3 mm

Trommel 225 mm - Breite 114,3 mm

Motor 12V/ DC Dauermagnet 6,5 PS. Leistung 4,5kw Sicherung 500 Amp. Spannung 12V.

Gewicht ca 43 kg
