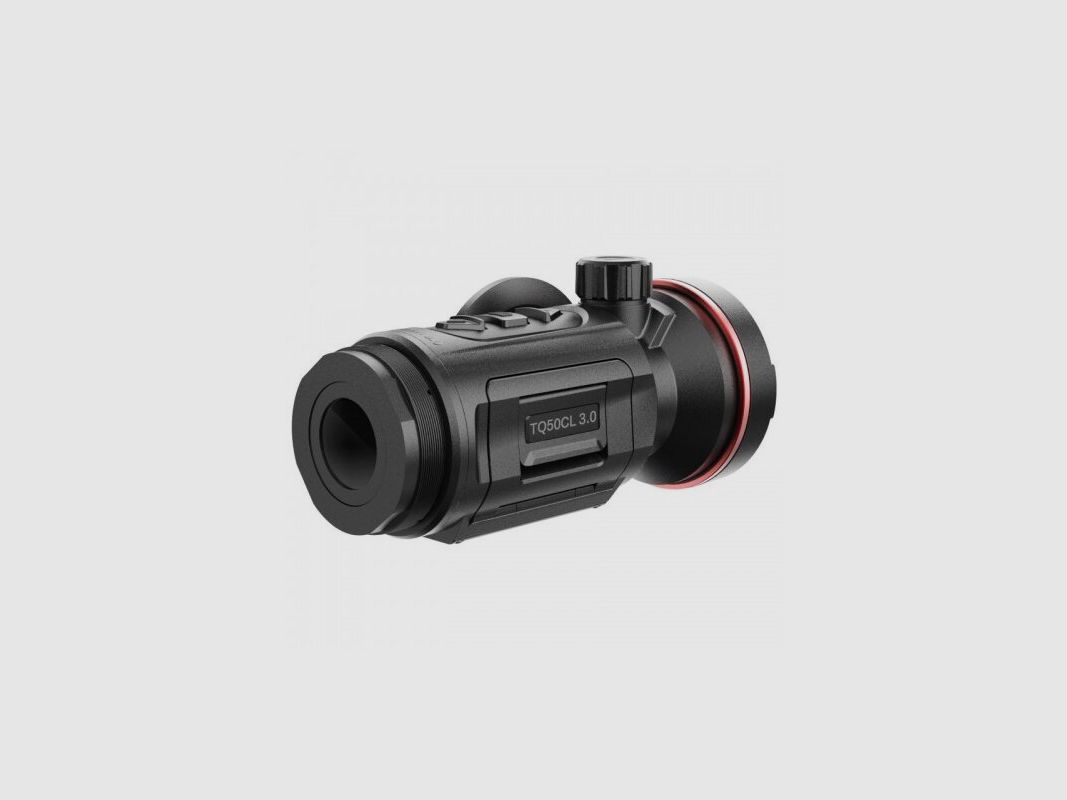

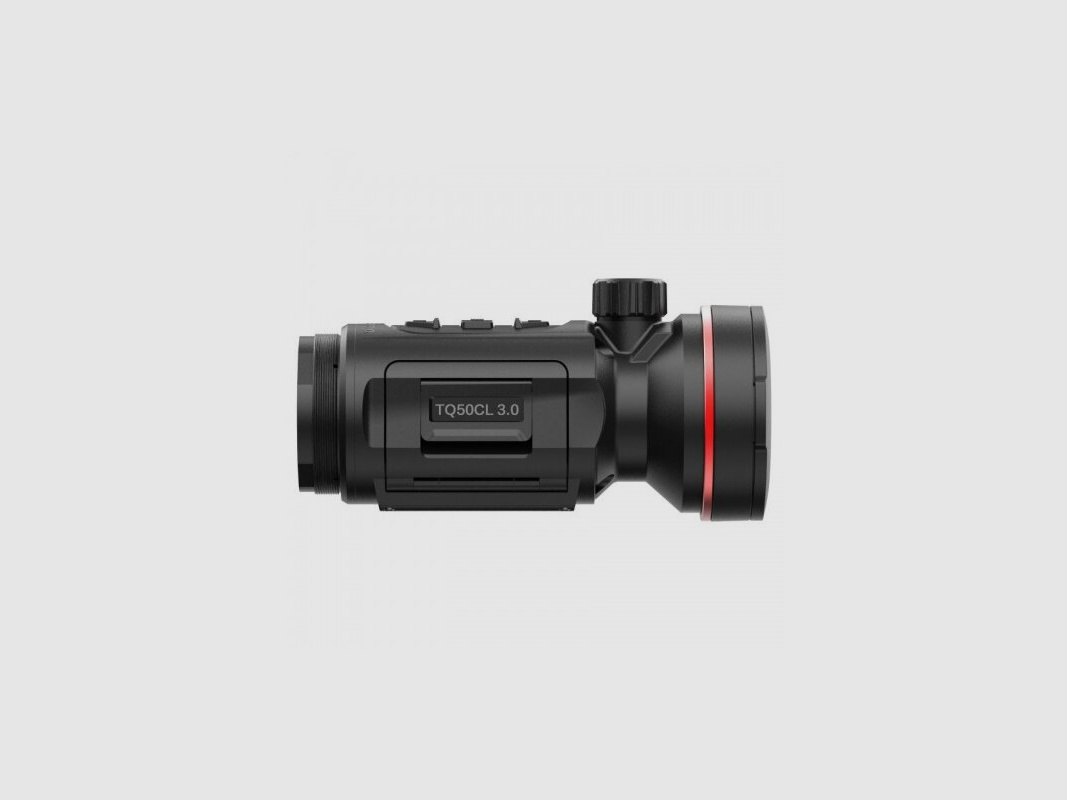

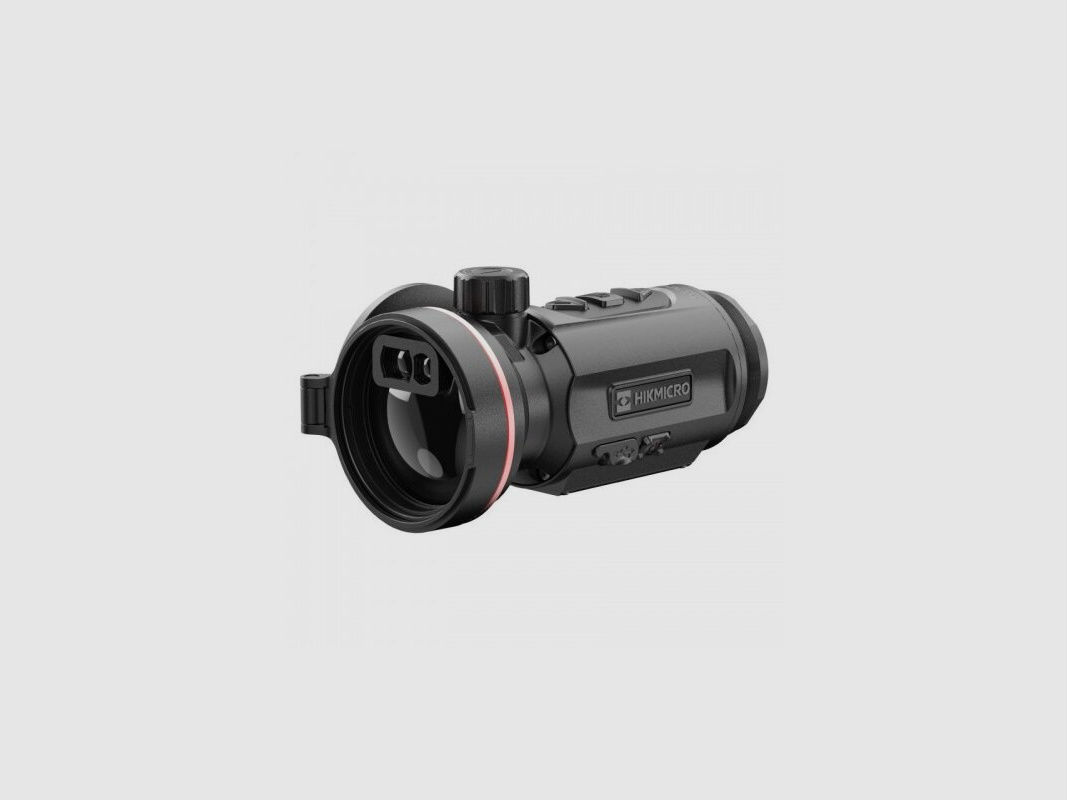

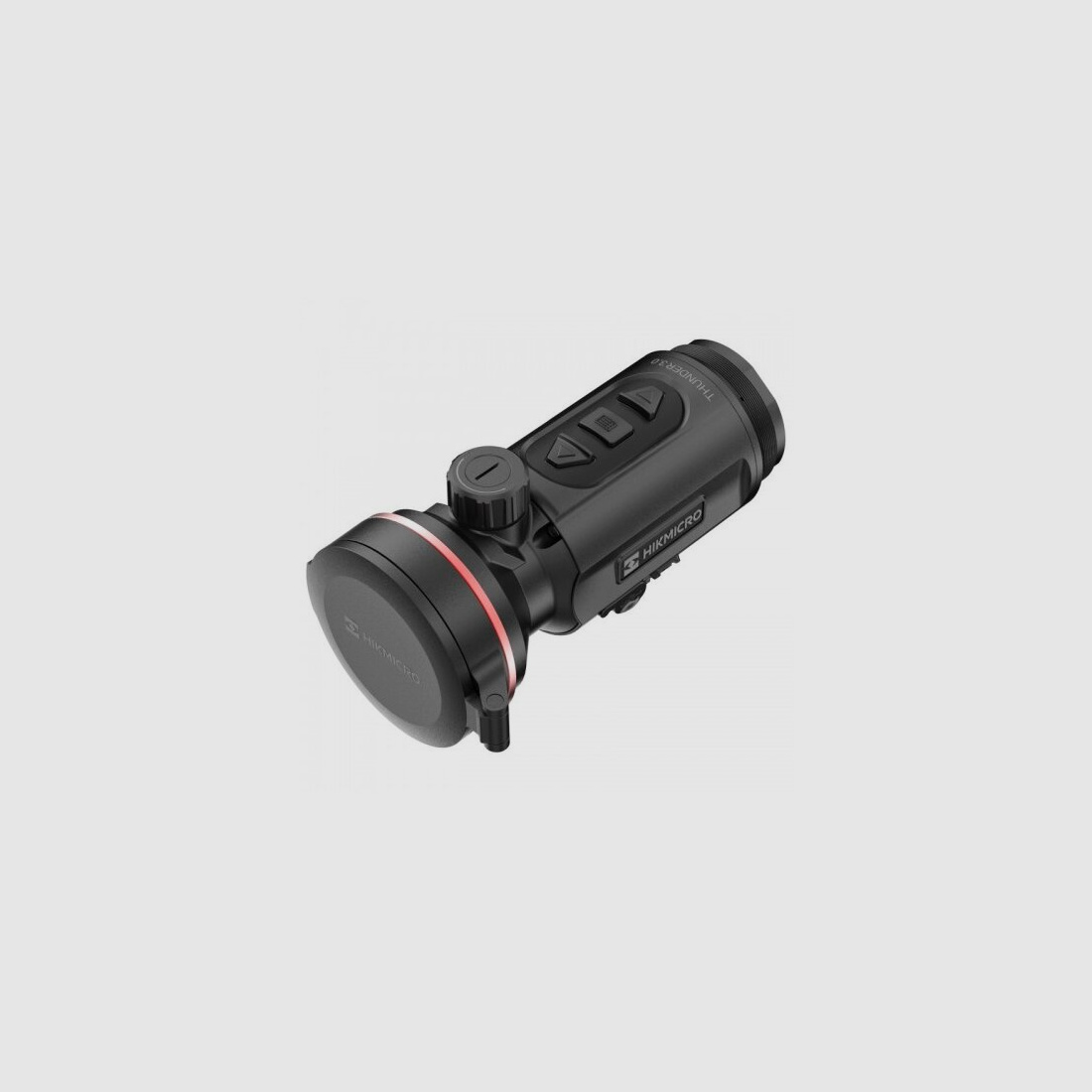

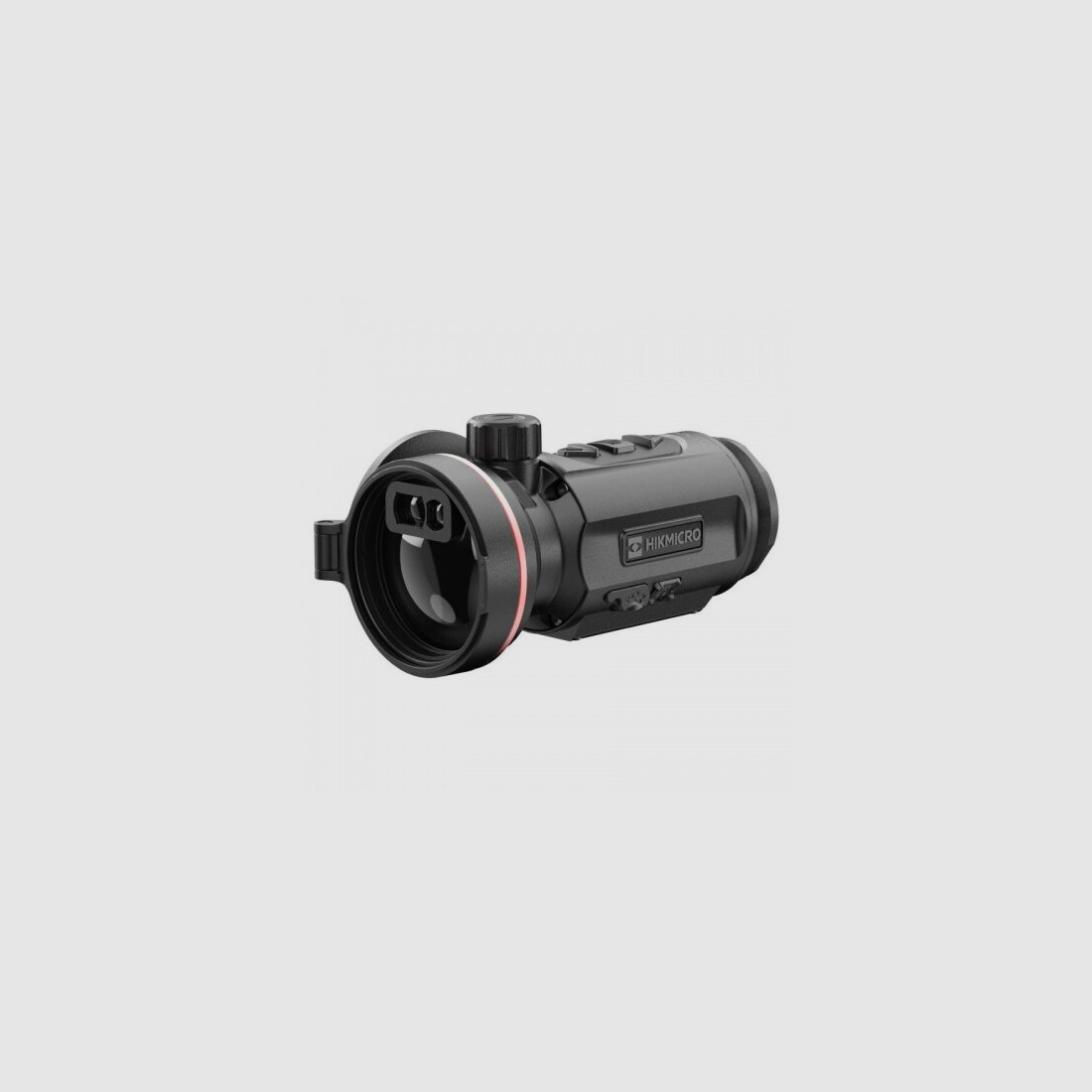

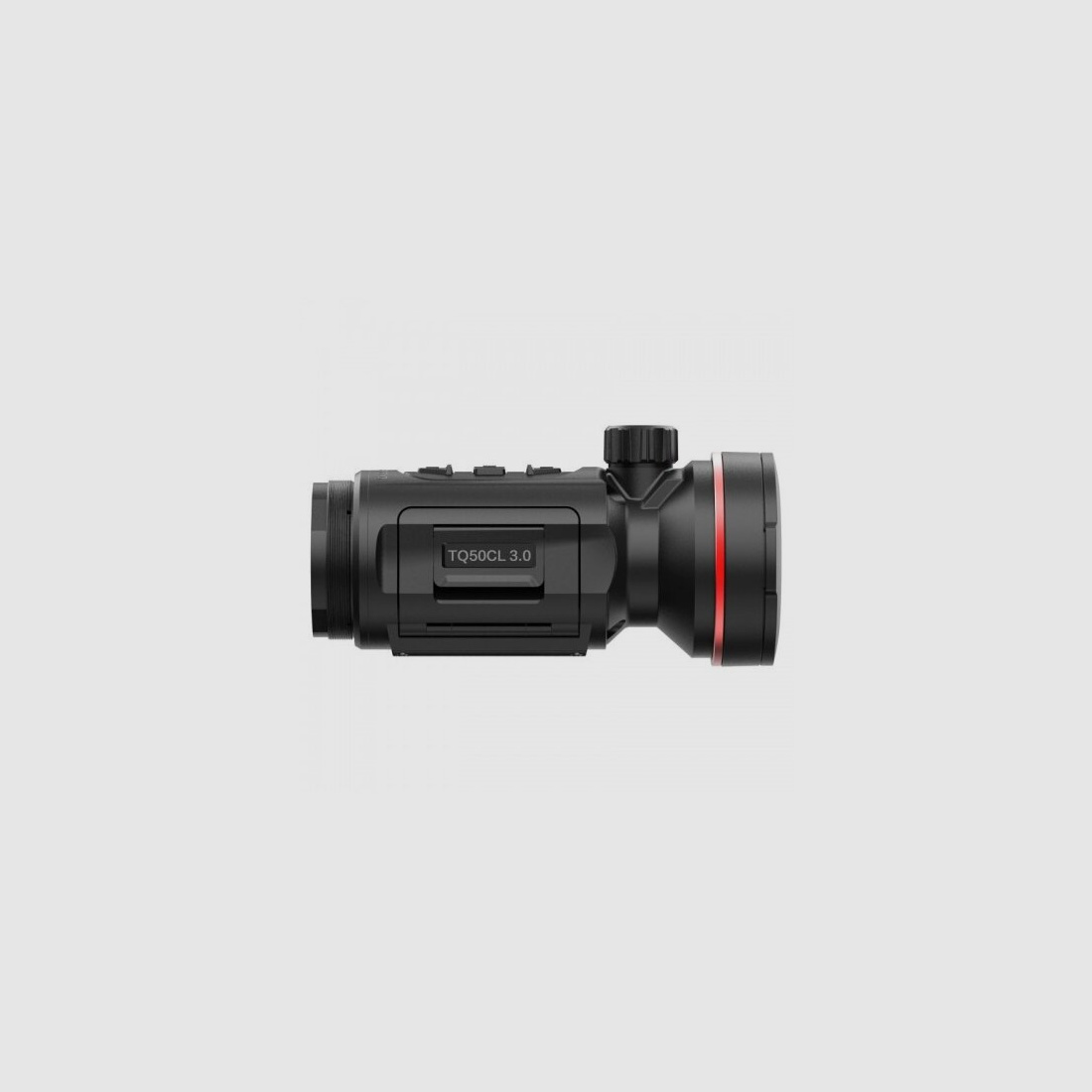

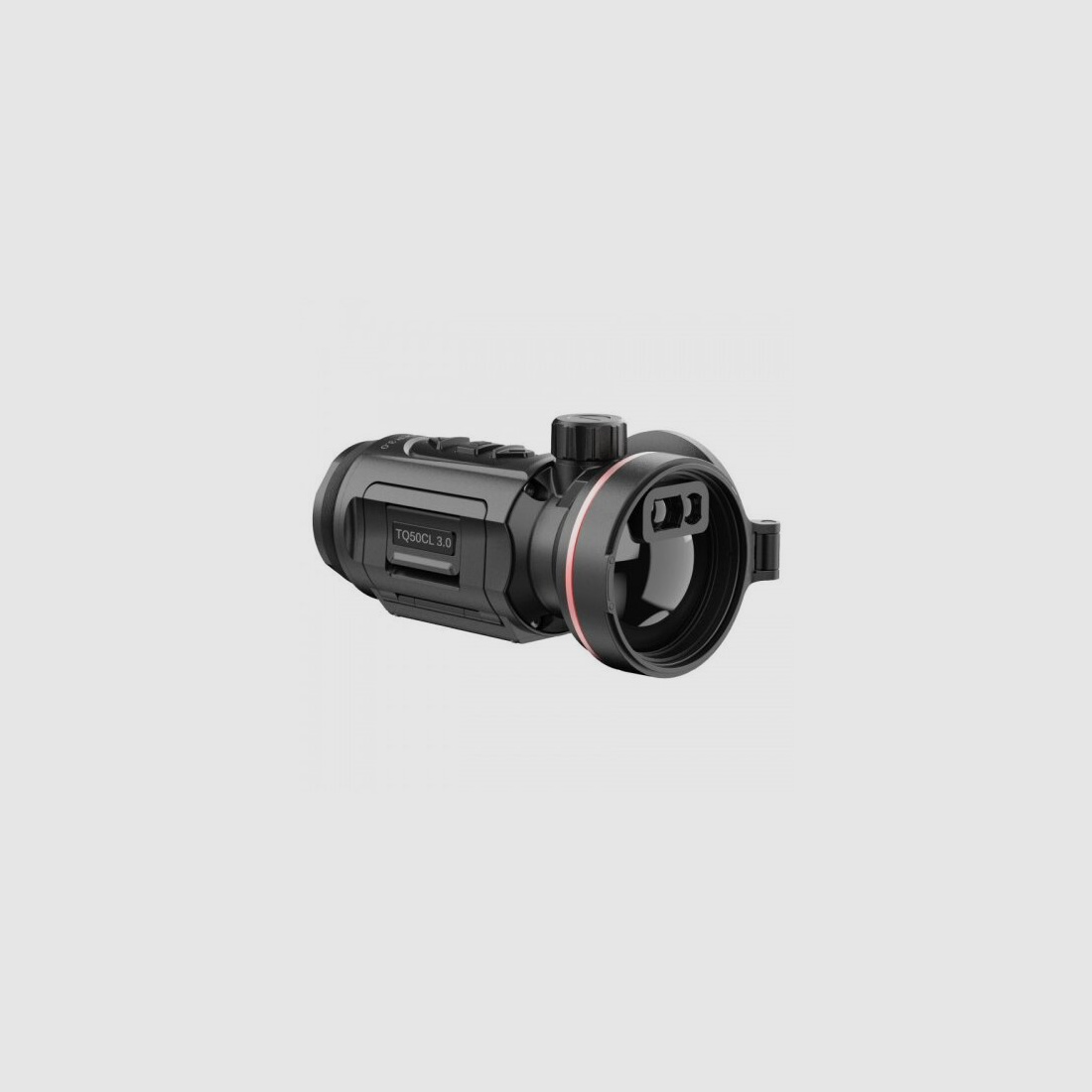

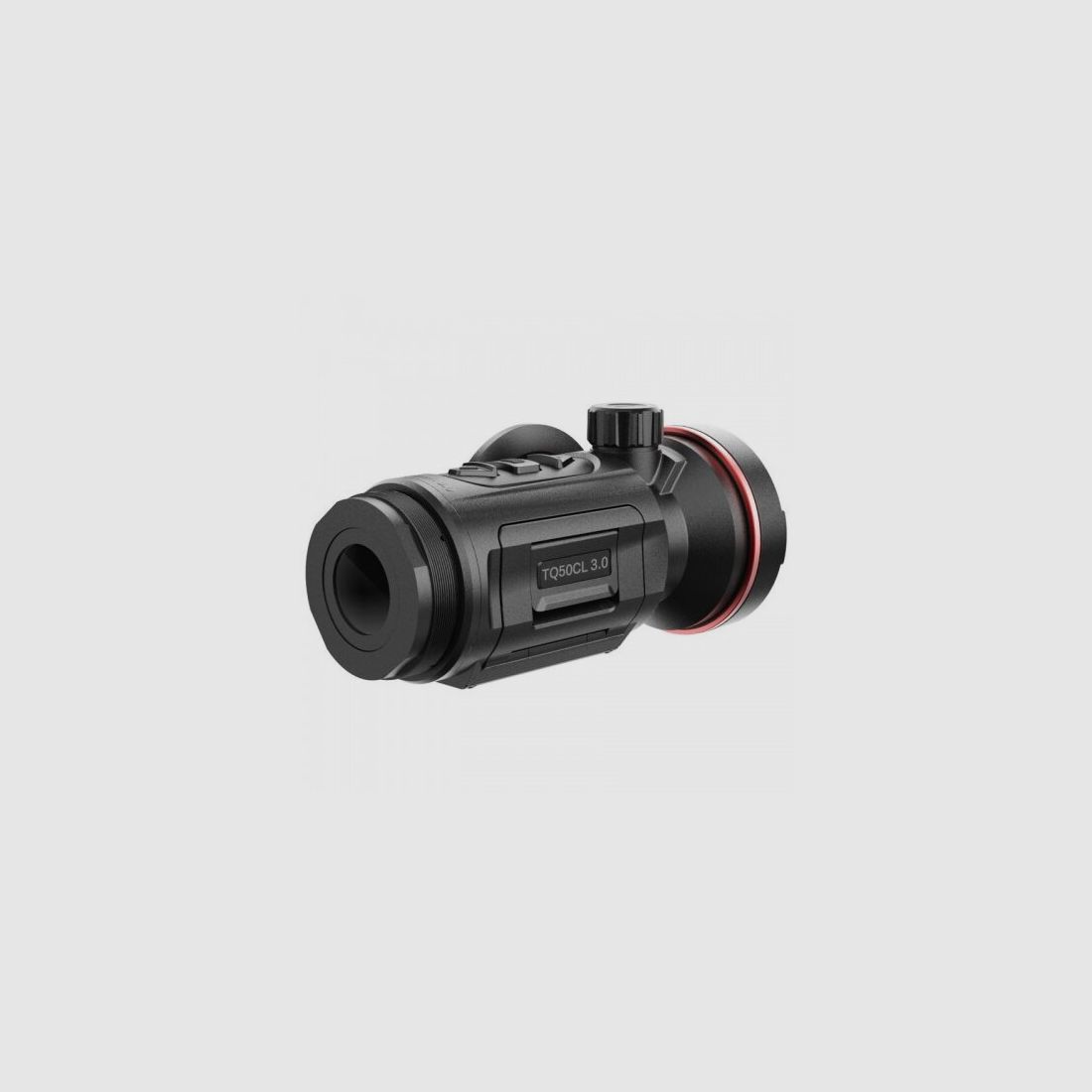

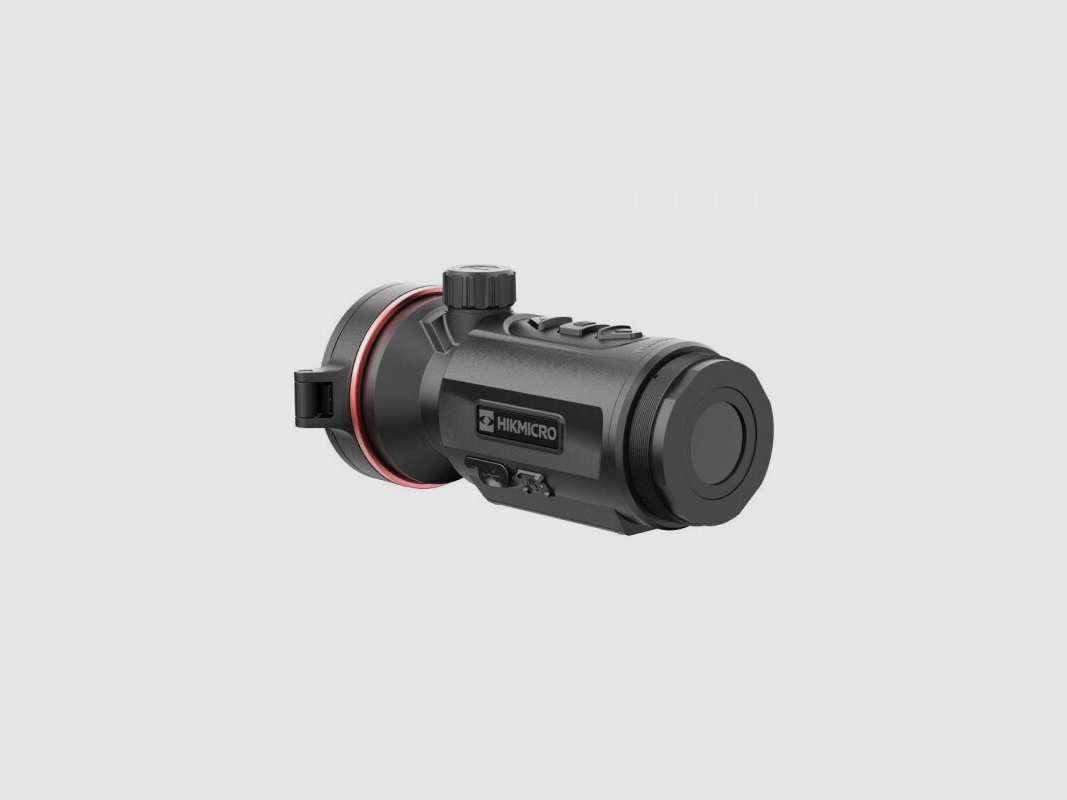

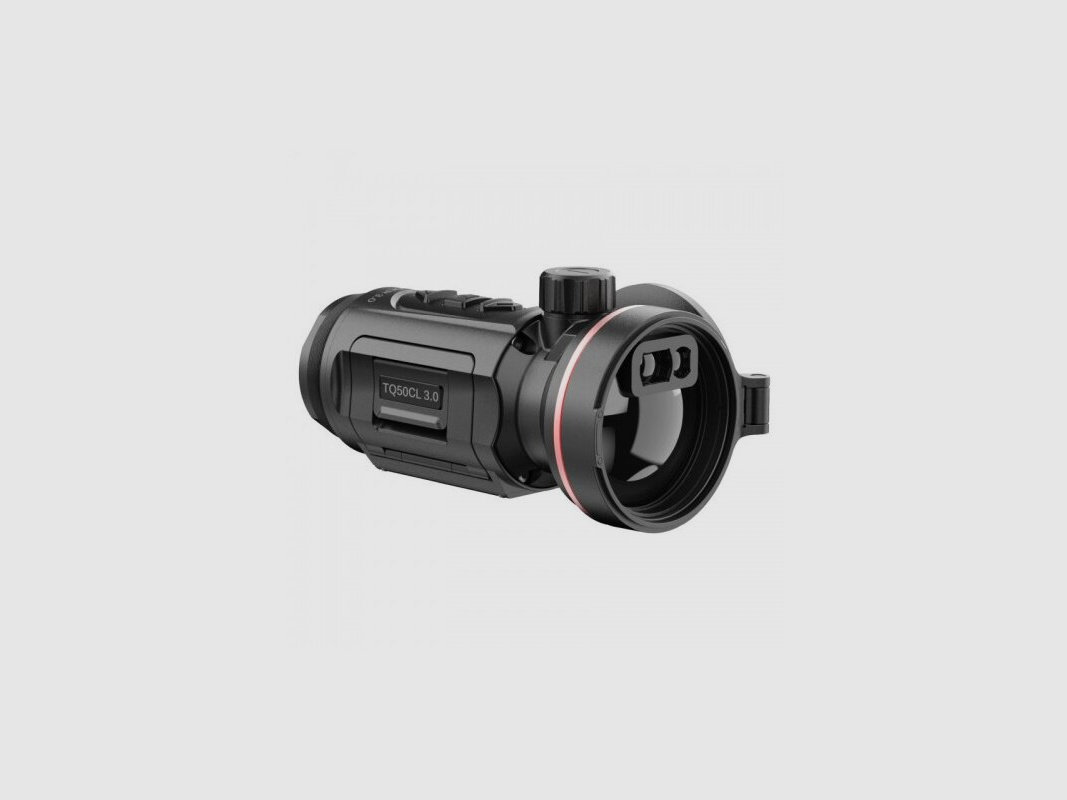

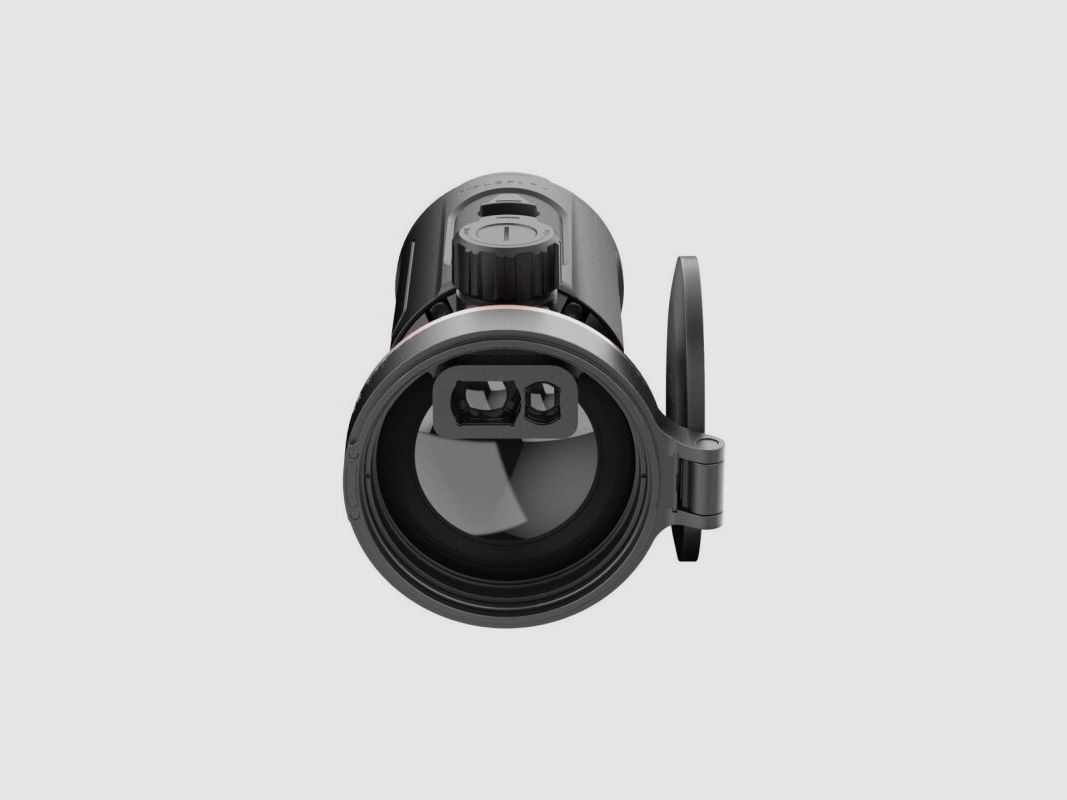

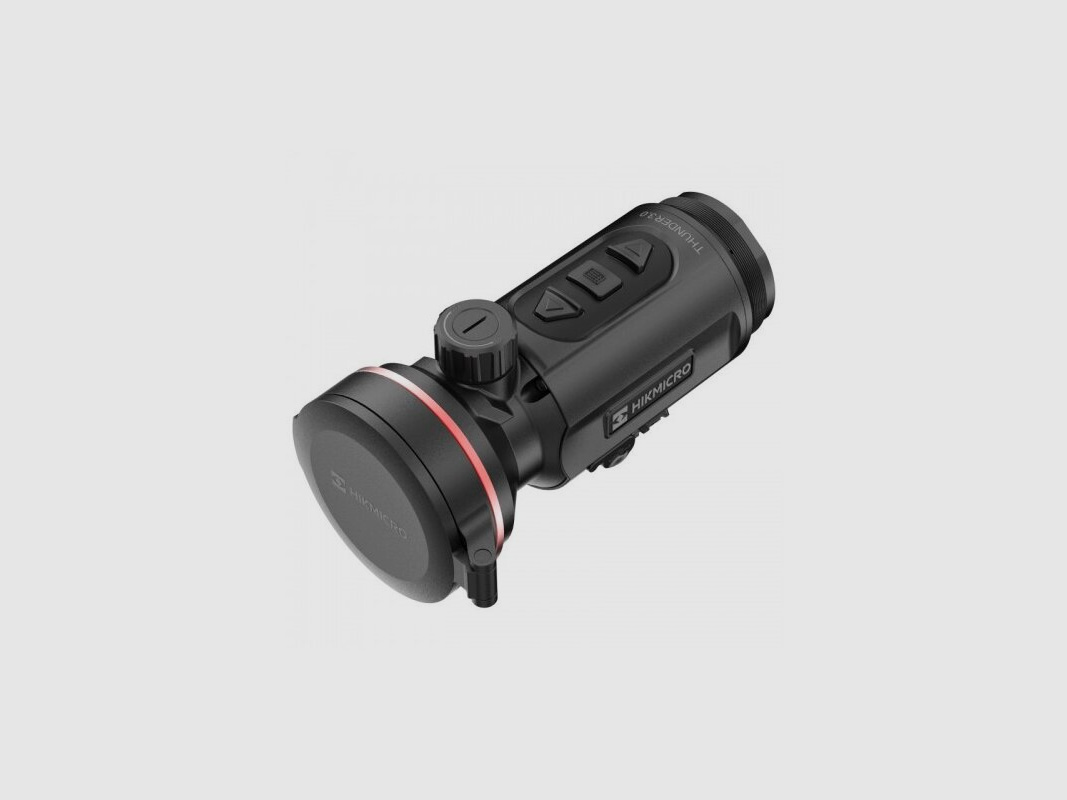

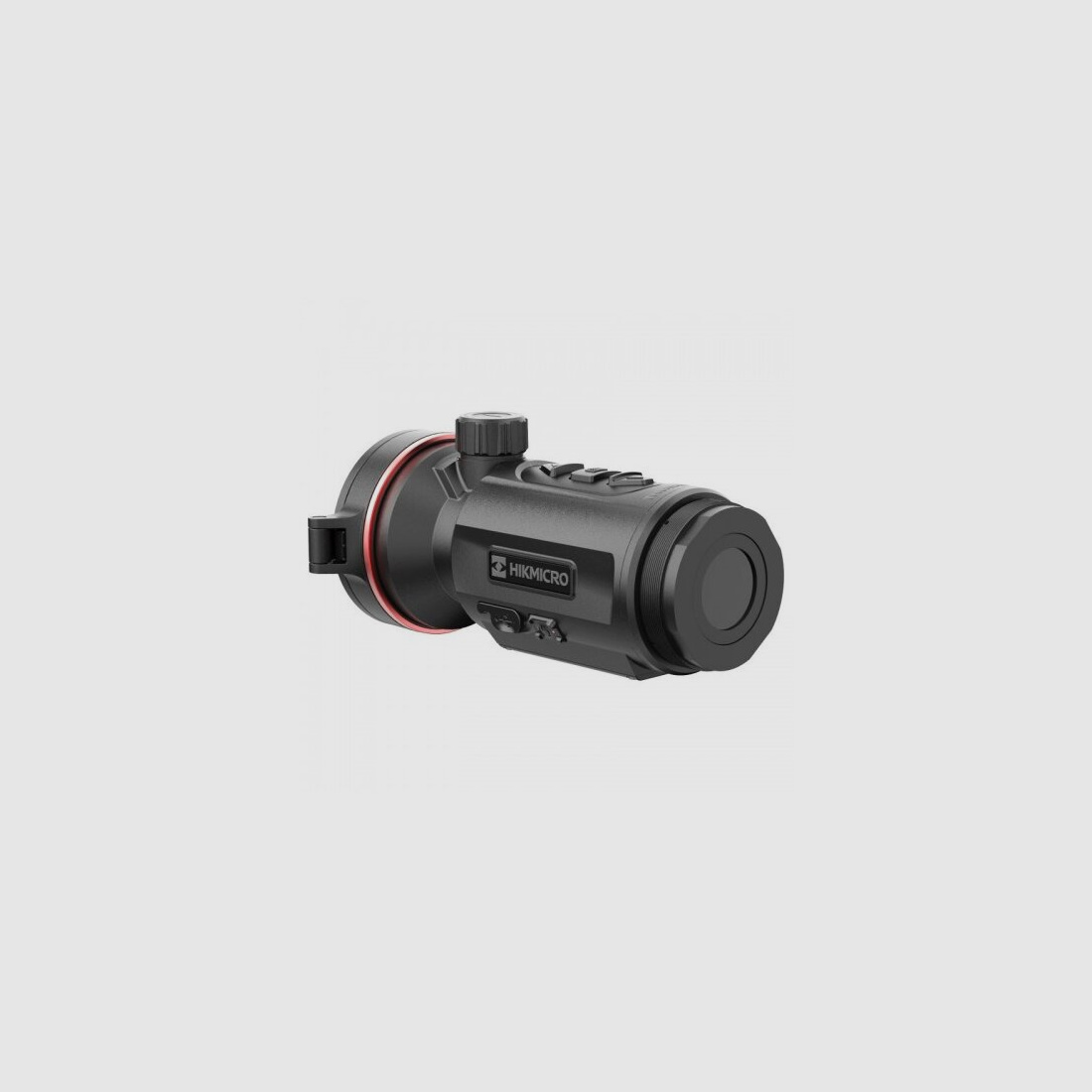

HIKMICRO Thunder TQ50CL 3.0 – Ultimate Precision with Integrated Laser Measurement

The HIKMICRO Thunder TQ50CL 3.0 Thermal Clip-On sets new standards in the world of thermal imaging technology. Equipped with a highly sensitive thermal imaging detector with a resolution of 640 × 512 and a thermal sensitivity of NETD < 15 mK, the TQ50CL 3.0 allows for the capture of the finest details in all weather and lighting conditions. The powerful 50 mm F1.0 lens offers a detection range of up to 2600 meters, while the large 1920 × 1080 OLED display provides impressive visual clarity.

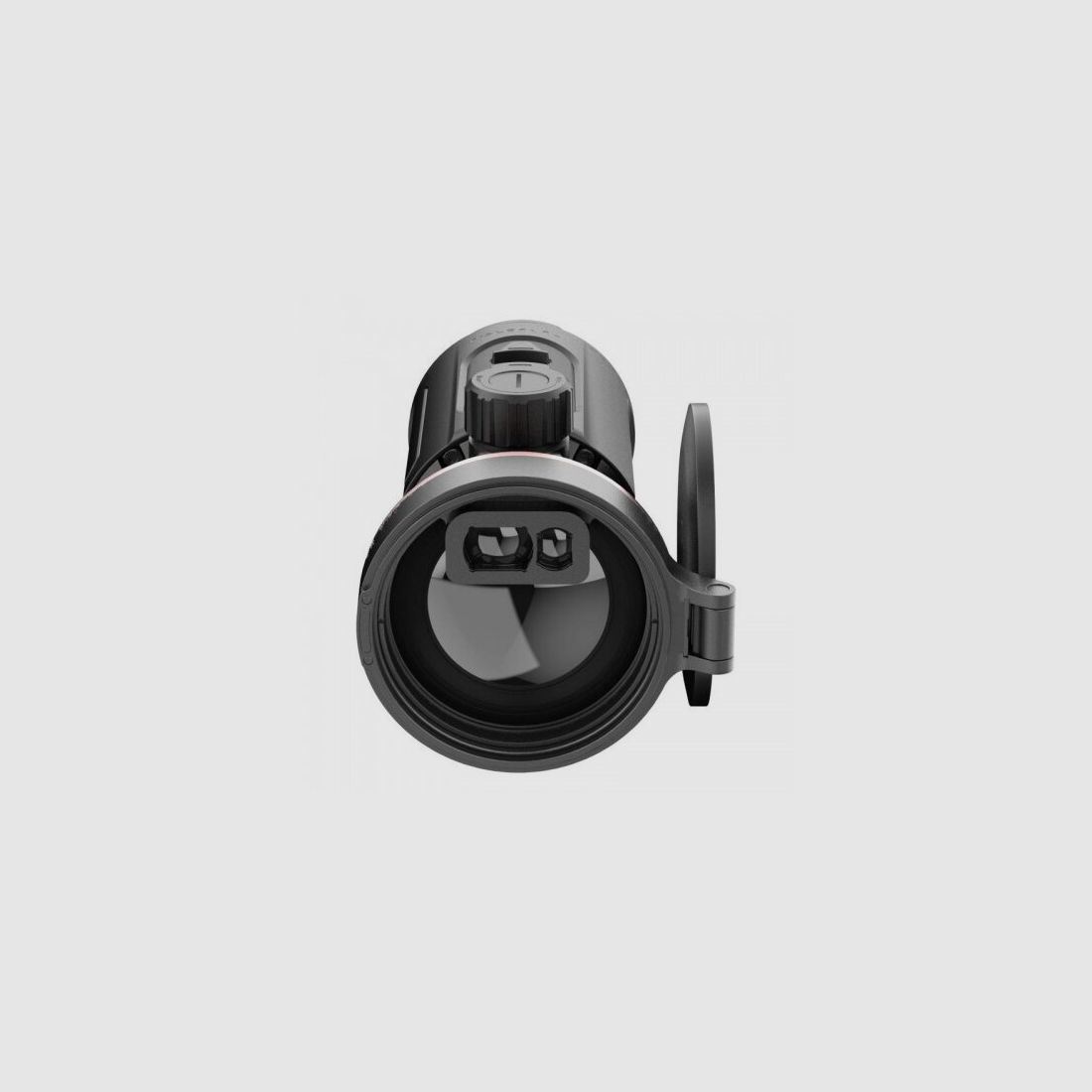

A particular strength of the TQ50CL 3.0 is the integrated laser rangefinder, which accurately measures distances up to 1000 meters and even performs ballistic calculations. This makes it an indispensable tool for professionals who rely on accuracy.

Main Features:

• Thermal Detector: 640 × 512 resolution at 12 μm for outstanding image quality


• Sensitivity: NETD < 15 mK (@25°C, F# = 1.0) for highest detail fidelity


• Lens: 50 mm, F1.0 lens with a detection range of up to 2600 m


• Display: 1920 × 1080 resolution, 0.49 inch OLED for razor-sharp images


• Laser Rangefinder: Integrated with a range of up to 1000 m and ballistic calculation


• Technology: HIKMICRO Shutterless Image System (HSIS) for seamless image representation


• Battery Life: Rechargeable and replaceable Li-Ion battery with up to 5 hours of operating time


• Shock Resistance: High shock resistance up to 1000 g/0.4 ms

Thermal Module:

• Image Sensor: Uncooled focal plane arrays


• Maximum Resolution: 640 × 512


• Frame Rate: 50 Hz


• Pixel Pitch: 12 μm


• Response Wavelength: 8 μm to 14 μm


• Focus Mode: Focus button


• Minimum Focus Distance: 10 m


• Magnification: 1×


• Field of View: 8.8° × 7.0° / 15.4 m × 12.3 m @ 100 m


• Recommended Magnification: 1-15x

Image Display:

• Display: 1920 × 1080, 0.49 inch OLED


• Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome


• Exit Pupil: 25 mm


• Eye Relief: 20 mm


• Brightness Adjustment: Yes


• Contrast Adjustment: Cold, Warm


• HSIS: HIKMICRO Shutterless Image System


• Image Pro 2.0: Yes

Laser Rangefinder:

• Laser Class: Class 1


• Wavelength: 905 nm


• Maximum Measurement Range: 1000 m


• Measurement Accuracy: <300 m, ±1 m; >300 m, ±2 m


• Minimum Measurement Range: 10 m

System Functions:

• Video Recording: Integrated video recording


• Snapshot: Yes


• Virtual Reticle: Yes


• Standby Mode: Yes


• Storage: Integrated EMMC (64GB)


• Hotspot: Yes


• Hot Track: Yes


• Audio Recorder: Yes


• Recoil-Activated Video Recording: Yes


• Maximum Recoil: 1000 g/0.4 ms


• Local Album: Yes


• Image Calibration: Yes


• Zeroing Profiles: 5

Power Supply:

• Battery Type: Replaceable and rechargeable Li-Ion battery


• Operating Time: ≥5 hours at 25°C (Hotspot off and LRF on)


• Type-C Power Supply: 5 VDC, 2 A


• Supports External Power Supply: Yes

General Information:

• Protection Class: IP67


• Dimensions: 150.3 mm × 83 mm × 78.1 mm


• Weight: 540 g with battery


• Operating Temperature: -30°C to + 55°C (-22°F to 131°F)


• Housing Material: Magnesium Alloy

Available Models:

• TQ50CL 3.0

Scope of Delivery:

• 1x Thunder TQ50CL 3.0


• 1x Rechargeable Li-Ion battery (included in the device)


• 1x USB-C cable


• 2x O-rings


• 1x User manual

Note: Please observe the legal regulations when mounting attachments or add-on devices on weapons!
