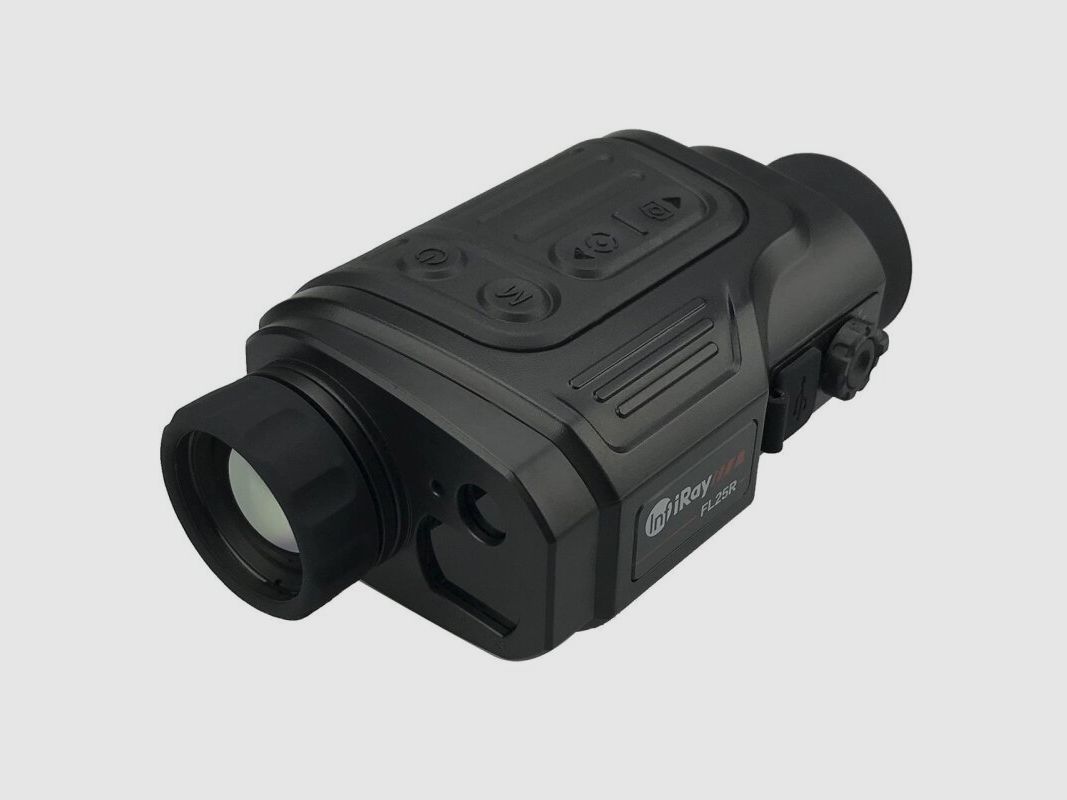

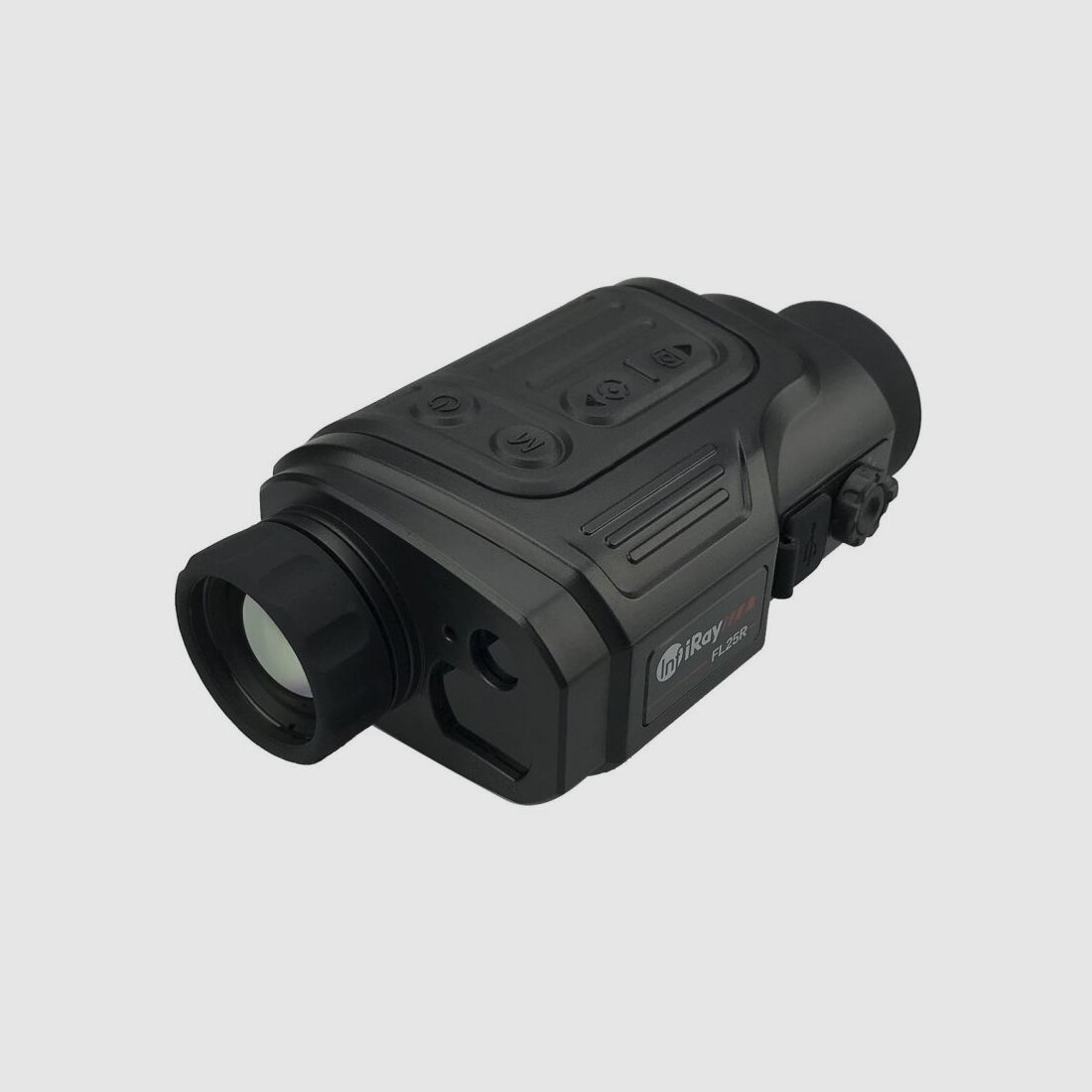

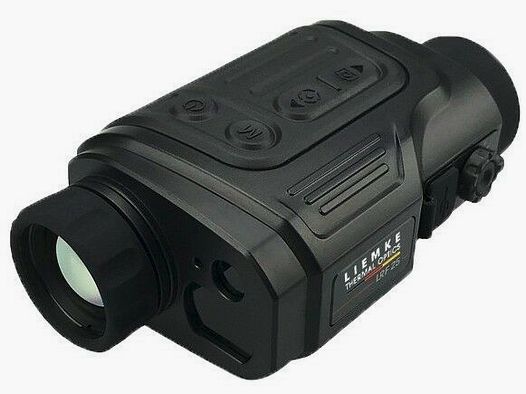

KEILER-25 LRF

KEILER-25 LRF is a real powerhouse in a compact format with a laser rangefinder.

The new KEILER-25 LRF impresses with its new 12µm VOx ceramic detector with a temperature sensitivity of <35mK and the integrated laser rangefinder. With a system weight of only 320g and its compact design, the KEILER-25 LRF sets new standards that excite.

Facts that matter: The 25mm manually focusable front lens combined with the 12µm pixel pitch offers a field of view of 18m at 100m and a detection range of 1,250m.

The simple and intuitive operation, as well as the extensive technical features, make the KEILER-25 LRF a leading compact optic. 16GB of storage allows for internal recording of up to 20,000 images or 24 hours of video sequences. Thanks to the integrated Wi-Fi function, you can stream image data to an Android or Apple device from a distance of up to 20m.

The laser rangefinder allows you to determine an object distance of up to 600m with an accuracy of +/-1m. With the IR sensor on the eyepiece, you can put the display into standby mode as soon as you remove the optic from your face. The advantage: battery life is extended and annoying light radiation is prevented.

The robust housing - IP66 protection class - offers excellent protection against heavy rain and allows for simple, intuitive operation even with gloves. With this device, you receive a 3-year warranty as well as a commitment to a service response time of only 10 working days. This means the advantage of constant readiness for use.

Technical Features

• Objective lens: 25 mm


• Detector material: VOx


• Detector resolution (pixels): 384x288


• Pixel pitch: 12µm


• Frame rate: 50 Hz


• NETD: < 35mK


• Laser rangefinder: Range: 600m


• Shutter/calibration: auto/manual


• Display resolution (pixels): 1,280x960 LCOS


• Compass and inclinometer


• Focus: manual


• Digital zoom: 1-4x


• Picture in Picture (PIP): Yes


• Field of view: 10.5x7.9°


• Field width at 100m in m: 18


• Battery: internal


• Operating time: 7 hrs.


• Pixel FOV (mRad): 0.48


• Weight: 320g


• Image-video storage (internal): yes


• Storage: 16 GB


• Wi-Fi Life: yes


• Detection: 1,250 m


• Warranty: 3 years

Scope of Delivery

KEILER-25 LRF optic, protective case, manual BRD, carrying strap, power-video cable
