ThermTec Cyclone 315 Wärmebildkamera

949 €

38179 Schwülper, Germany
25
ID: 9361021
Safe shopping with Gunfinder
Our AI-supported provider identity verification makes Gunfinder the safest online marketplace. Learn more
About the seller
Knappworst
PRO
Retailer

Details

Original language
German
Brand
ThermTec
Category
Condition
New
Location
🇩🇪 38179 Schwülper, Germany
Availability
available for pre-order

Description

Note: The item location is abroad. Please note that this may affect delivery conditions, shipping times, and/or the purchasing process.

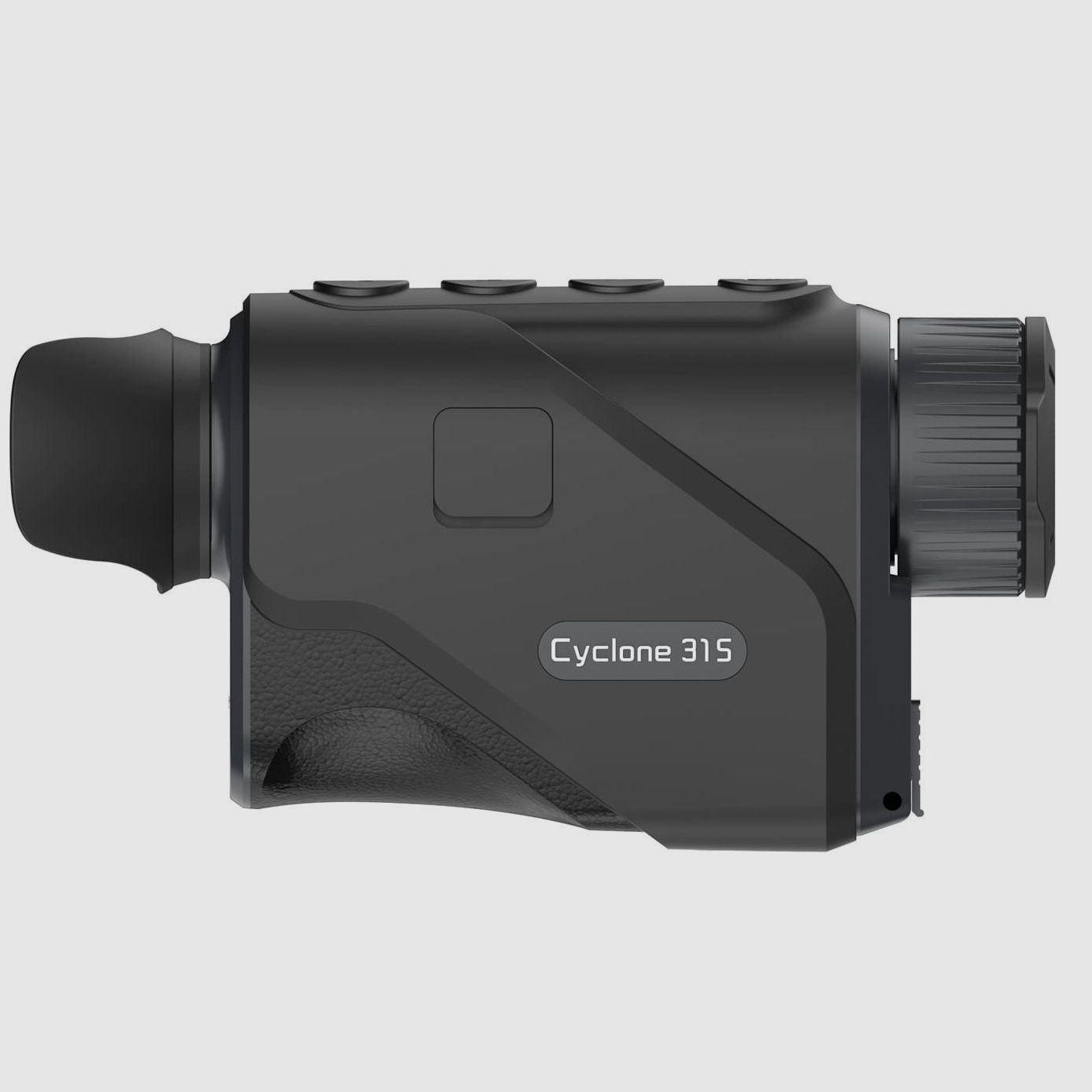

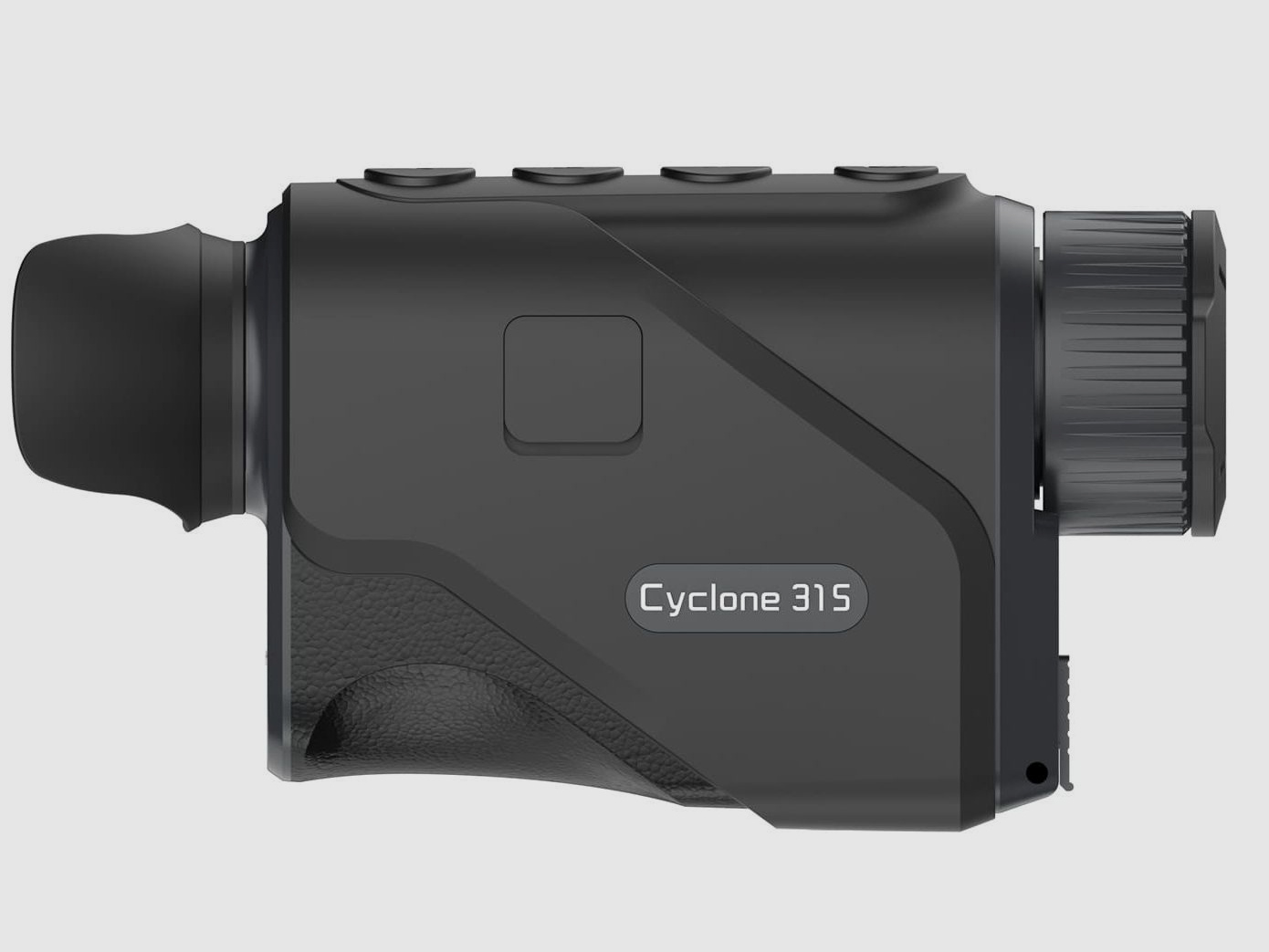

ThermTec Cyclone 315 Compact Thermal Imaging Device in Pocket Size

The ThermTec Cyclone 315 is a high-performance thermal imaging device in a compact form and impresses with a weight of only 250 g. With a NETD value of <20 mK, the Cyclone delivers highly detailed images even in challenging weather conditions. Ideal for hunting, wildlife observation, and outdoor activities, it offers maximum flexibility in a small, easily transportable format.


Highly Sensitive Sensor & Image Quality

The Cyclone 315 is equipped with a 12 µm VOx microbolometer that detects the smallest temperature differences. The combination of high thermal sensitivity and optimized system electronics ensures clear and high-contrast object images even in rain, fog, or high humidity. The image is displayed on a 0.39 inch AMOLED display with 1024x768 pixels for excellent detail sharpness.


Flexible Battery Replacement System

The operation is powered by standard 18650 Li-Ion batteries, which can be easily replaced and quickly charged via USB. Two included batteries allow for a runtime of up to 20 hours in continuous operation.


Intuitive Operation & Extensive Image Settings

  • Brightness, contrast, sharpness, and anti-noise each adjustable in 10 levels
  • 3 display background colors (Gray, Blue, Purple)
  • 6 selectable color palettes, including eye-friendly green mode, individually deactivatable
  • Three scene modes: Object mode, Background mode, Target outline mode
  • Picture-in-Picture (PIP), hotspot marking, and playback function integrated

AI Distance Measurement & Object Detection

The AI-based object detection and distance measurement recognizes up to 6 animals or people simultaneously and displays the distance directly. Through the app, you receive notifications of object movements optionally acoustically, via vibration, or silently.


Lightweight & Compact Design

Weighing only 250 g and measuring 139x76x54 mm, the Cyclone 315 is a true lightweight. Perfect for quick deployments in woods and fields, easy to transport and handle.


Technical Highlights

  • Lens: 15 mm, F1.0
  • Frame Rate: 50 Hz
  • Sensor Resolution: 384x288 pixels, Pixel Pitch 12 µm
  • Field of View: 17.5° x 13.1° (30.7 m @ 100 m)
  • Optical Zoom: 1.4x, Digital Zoom: 1x, 2x, 4x
  • Diopter Adjustment for Glasses Wearers: Yes
  • Color Palettes: 6 selectable modes
  • Detection Distance Deer: 710 m / Human: 750 m
  • Storage: 32 GB internal
  • Protection Class: IP67
  • Tripod Thread: 1/4"
  • Operating Temperature: -20 °C to +50 °C
  • Hotspot Connection for App Live Image
  • Marking Laser: No

Areas of Application

  • Hunting in the forest
  • Field hunting (conditional)
  • Wildlife observation & outdoor
  • Search and rescue operations
(Show description in original language)

ThermTec Cyclone 315 Kompaktes Wärmebildgerät im Taschenformat

Das ThermTec Cyclone 315 ist ein hochleistungsfähiges Wärmebildgerät in kompakter Form und überzeugt mit einem Gewicht von nur 250 g. Mit einem NETD-Wert von <20 mK liefert das Cyclone selbst bei schwierigen Wetterbedingungen hochdetaillierte Bilder. Ideal für Jagd, Wildbeobachtung und Outdoor-Aktivitäten, bietet es maximale Flexibilität in einem kleinen, leicht transportierbaren Format.

Hochempfindlicher Sensor & Bildqualität

Das Cyclone 315 ist mit einem 12 µm VOx-Mikrobolometer ausgestattet, das kleinste Temperaturunterschiede erkennt. Die Kombination aus hoher Wärmeempfindlichkeit und optimierter Systemelektronik gewährleistet klare und kontrastreiche Objektbilder auch bei Regen, Nebel oder hoher Luftfeuchtigkeit. Die Bildwiedergabe erfolgt auf einem 0,39 Zoll AMOLED Display mit 1024x768 Pixeln für exzellente Detailschärfe.

Flexibles Akkuwechsel-System

Der Betrieb erfolgt über handelsübliche 18650 Li-Ionen Akkus, die leicht gewechselt und über USB schnell aufgeladen werden können. Zwei mitgelieferte Akkus ermöglichen eine Betriebsdauer von bis zu 20 Stunden im Dauerbetrieb.

Intuitive Bedienung & umfangreiche Bild-Einstellungen

  • Helligkeit, Kontrast, Schärfe und Anti-Bildrauschen jeweils in 10 Stufen einstellbar
  • 3 Display-Hintergrundfarben (Grau, Blau, Lila)
  • 6 auswählbare Farbpaletten, inkl. augenschonendem Grünmodus, individuell deaktivierbar
  • Drei Szenen-Modi: Objektmodus, Hintergrundmodus, Zielumrissmodus
  • Bild-in-Bild (PIP), Heißpunkt-Markierung und Wiedergabefunktion integriert

KI-Entfernungsmessung & Objekterkennung

Die KI-basierte Objekterkennung und Entfernungsmessung erkennt bis zu 6 Tiere oder Menschen gleichzeitig und zeigt die Entfernung direkt an. Über die App erhalten Sie Benachrichtigungen bei Objektbewegungen wahlweise akustisch, per Vibration oder stumm.

Leichtgewicht & kompaktes Design

Mit nur 250 g und Abmessungen von 139x76x54 mm ist das Cyclone 315 ein echtes Fliegengewicht. Perfekt für schnelle Einsätze in Wald und Feld, leicht zu transportieren und zu handhaben.

Technische Highlights

  • Objektiv: 15 mm, F1.0
  • Bildfrequenz: 50 Hz
  • Sensorauflösung: 384x288 Pixel, Pixel-Pitch 12 µm
  • Sehfeld: 17,5° x 13,1° (30,7 m @ 100 m)
  • Optische Vergrößerung: 1,4x, Digitale Vergrößerung: 1x, 2x, 4x
  • Dioptrienverstellung für Brillenträger: Ja
  • Farbpaletten: 6 auswählbare Modi
  • Entdeckungsdistanz Hirsch: 710 m / Mensch: 750 m
  • Speicher: 32 GB intern
  • Schutzklasse: IP67
  • Stativgewinde: 1/4"
  • Betriebstemperatur: -20 °C bis +50 °C
  • Hotspot-Verbindung für App-Livebild
  • Markierlaser: Nein

Einsatzbereiche

  • Jagd im Wald
  • Feldjagd (bedingt)
  • Wildbeobachtung & Outdoor
  • Such- und Rettungsaktionen
