ThermTec Wild 650 Wärmebildkamera

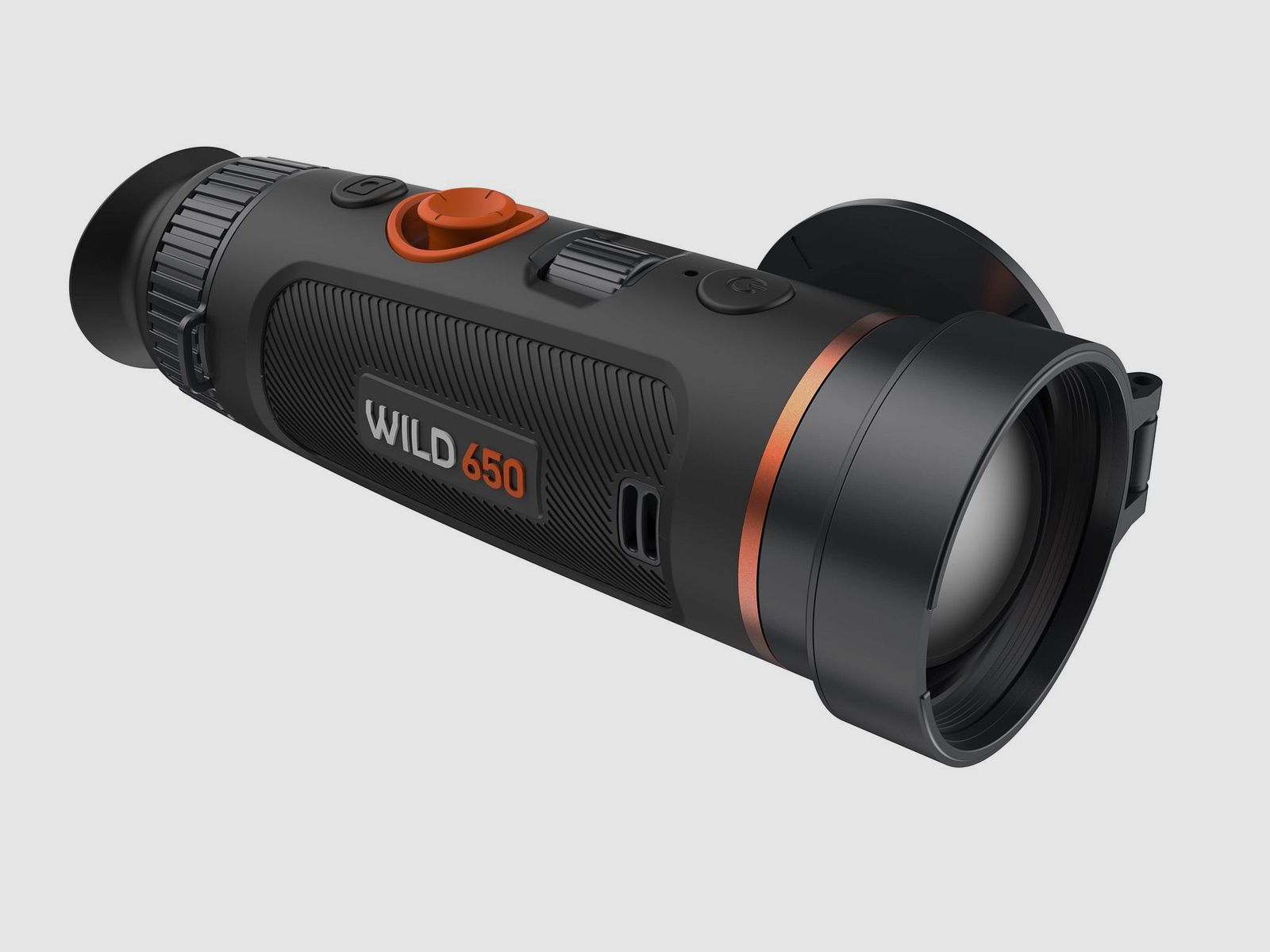

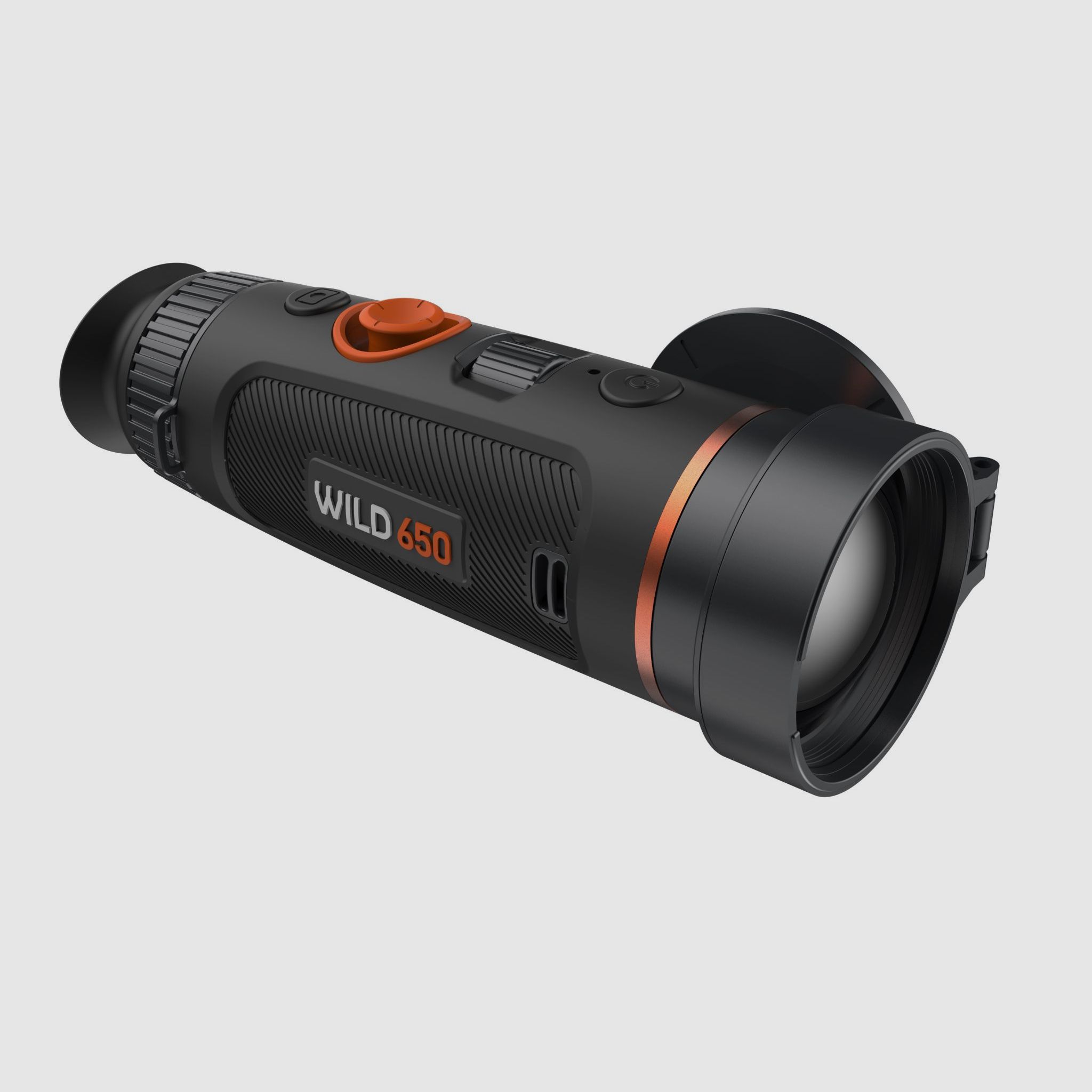

ThermTec WILD 650 Thermal Imaging Camera High Resolution with AI Technology

Highly Sensitive Sensor with Modern Image Algorithm

The WILD 650 is equipped with a VOx microbolometer sensor that delivers 640x512 pixels with a 12?µm pixel size. With a system performance NETD <18?mK and advanced image algorithm, even the smallest temperature differences are precisely visible. Ideal for wildlife observation, hunting, and outdoor activities in all weather conditions.

AMOLED Display & Color Palettes

High-resolution 1024x768 pixel AMOLED display with high pixel density (>1200 dpi) for high-contrast and detailed representation. Backlighting in 4 colors (Gray, Blue, Purple, Red) adjustable. Six color palettes, including eye-friendly green mode, individually activatable/deactivatable.

One-Hand Operation & Ergonomic Design

Joystick and tilt control combined with a finger focus wheel for precise one-hand operation. Robust, rubberized magnesium housing, IP67 water and dust resistant. Hand strap included for both right and left-handed users.

Replaceable battery system for long runtimes

The camera uses standard 18650 Li-Ion batteries with up to 8 hours of runtime per battery. With two batteries included in the package, up to 16 hours of operating time is possible. USB charging function included.

Optical and Digital Magnification

Optical magnification 2.8x, continuous digital zoom 1x4x. Zoom Pro function ensures razor-sharp details, even at maximum digital zoom.

Extensive Image Settings

Brightness, contrast, sharpness, and anti-noise each in 10 levels, display brightness in 5 levels. Two scene modes and ice mode for image stabilization during small movements. Picture-in-Picture (PIP) function, hotspot marking, image and video recordings on 64?GB internal storage.

AI Object Detection & Distance Measurement

Deep learning-based AI distance measurer can identify up to 6 objects simultaneously and display distance directly. Real-time notifications via app, optionally acoustic, via vibration, or silent. Perfect for hunting, forest observation, and outdoor operations.

Technical Data

• Manufacturer: ThermTec
• Model: WILD 650
• Objective Lens Ø: 50 mm
• Aperture: F0.9
• Frame Rate: 50 Hz
• Pixel Size: 12 µm
• NETD: <18 mK
• Microbolometer Resolution: 640x512 pixels
• Sensor Type: VOx
• Field of View Horizontal/Vertical: 8.8° x 7.0°
• Field Width at 100 m: 15.5 m
• AMOLED Display: 1024x768 pixels
• Optical Magnification: 2.8x
• Digital Magnification: 1x 4x continuous
• Diopter Adjustment: Yes
• Color Palettes: 6
• Detection Distance / Recognition (Deer): 2600 m / 860 m
• Hotspot Connection: Yes
• AI Rangefinder: Yes
• AI Object Detection: Yes
• Marker Laser: No
• Object Alarm (via App): Yes
• Stadiametric Rangefinder: No
• Hotspot Marking Function: Yes
• PIP (Picture-in-Picture): Yes
• Recording Function: Yes
• Playback Function: Yes
• Manual Lens Focus: Yes
• Internal Memory: 64 GB
• Protection Class: IP67
• Tripod Thread: 1/4"
• Weight: 475 g
• Dimensions LxWxH: 190x76x66 mm
• Operating Temperature: -20° C / +50 °C
• Battery Type: Li-ion
• Supply Voltage: 3.7 V
• External Power Supply USB: 5 V

Conclusion

The ThermTec WILD 650 thermal imaging camera combines state-of-the-art VOx sensor technology, AMOLED display, AI-supported distance measurement, long battery life, and a robust IP67 magnesium housing. Optimal for precise wildlife observation, hunting, and outdoor operations under all conditions.
