ThermTec Hunt 650 Wärmebildkamera

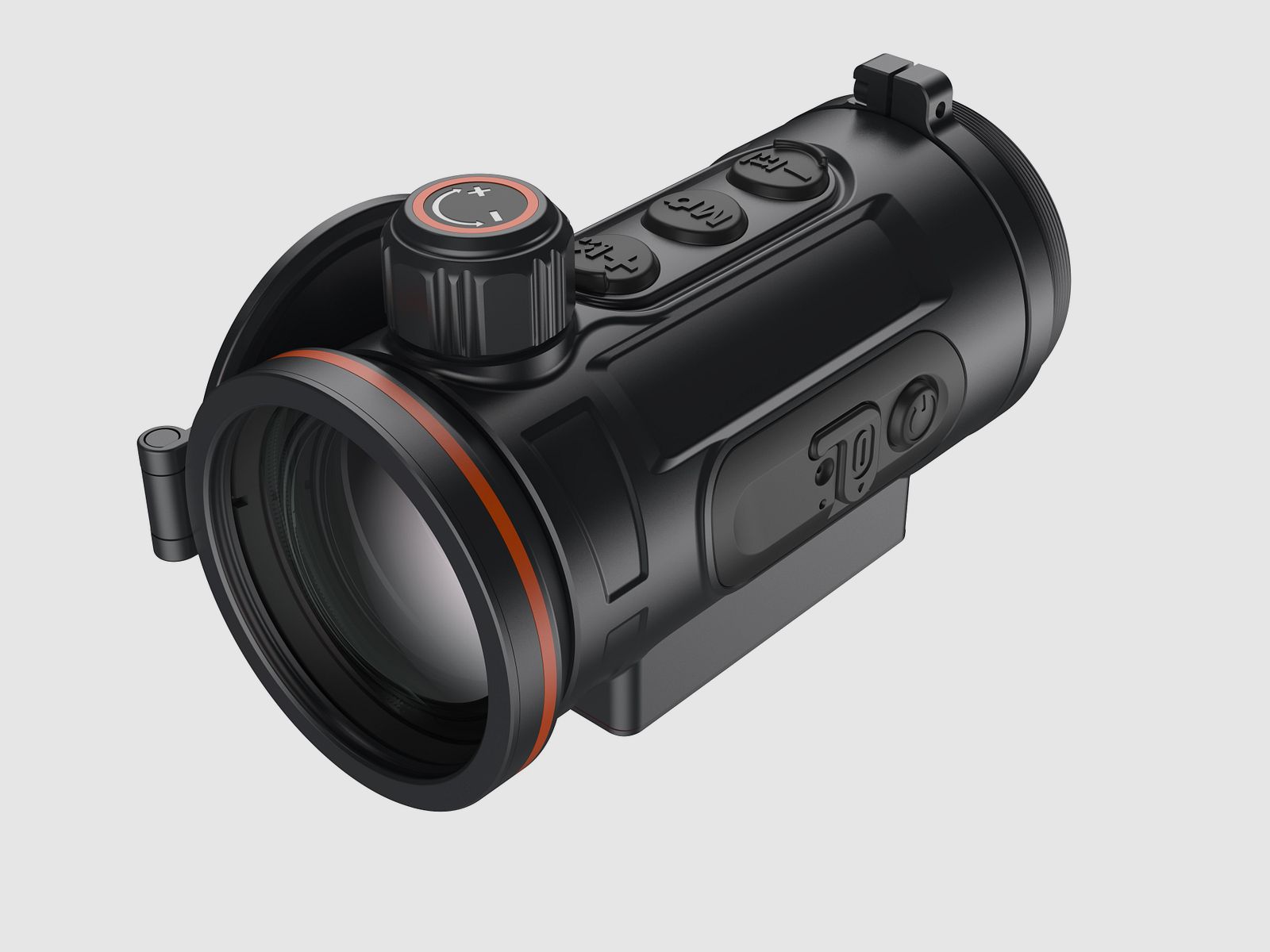

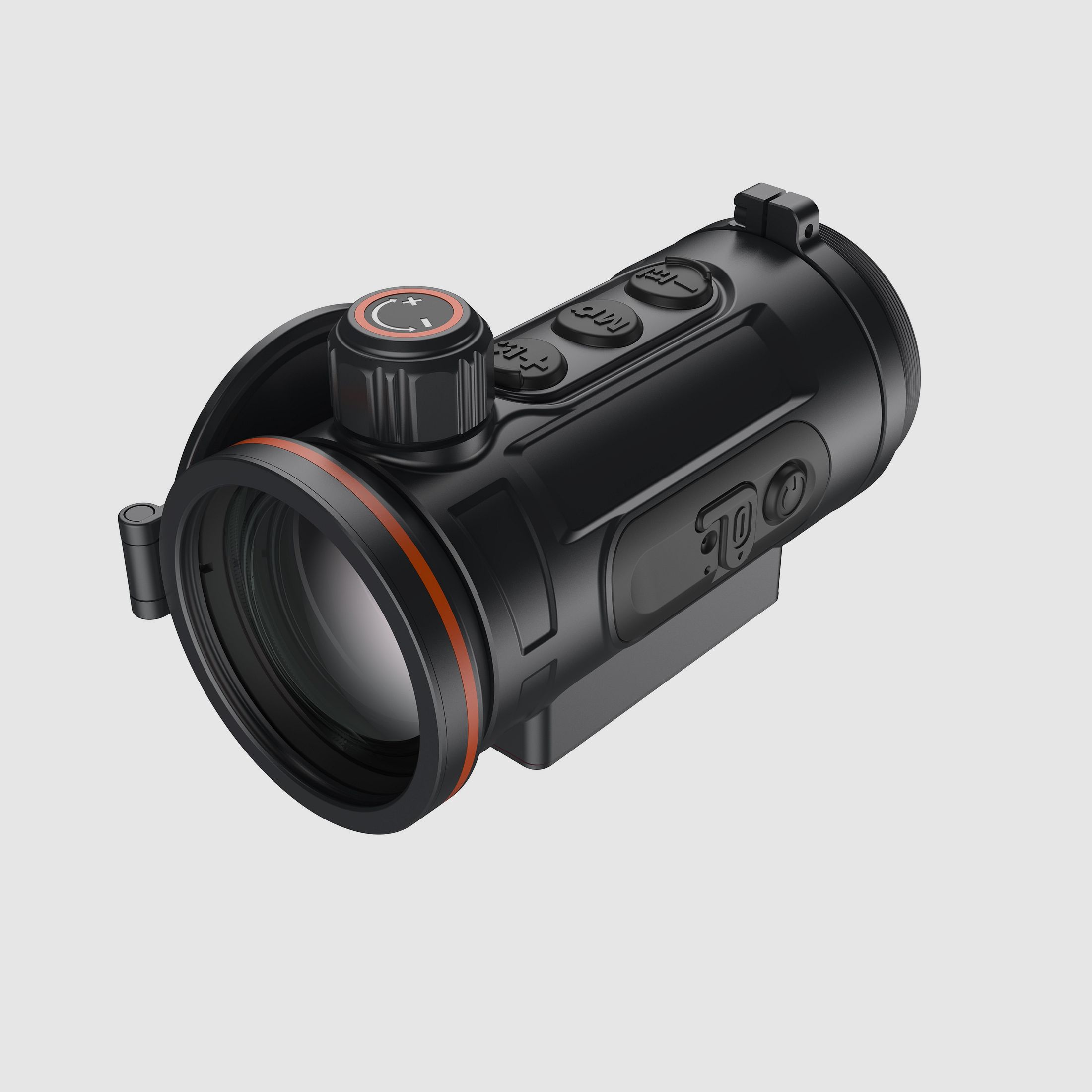

ThermTec Hunt650

High-end thermal imaging device for professional hunting and wildlife observation

Your Advantages at a Glance

• 3 years warranty on all ThermTec devices
• Latest highly sensitive VOx sensor (640x512, 12 µm) with F1.0 aperture system performance 20 mK NETD
• Replaceable Li-ion battery with up to 6 hours of runtime, up to 12 hours with a second battery
• HD-OLED display 1024x768 pixels, 64 GB internal storage
• Automatic RAV recording: 11 seconds before and after the recoil
• Direct playback function on the display for photos, videos, and RAV recordings
• 12x magnification thanks to new collimator lens without noticeable loss of quality
• UI scaling: menu display can be flexibly adjusted to the base magnification of the optics
• Ring Bluetooth remote control for comfortable operation
• Focus tower design for precise and easily accessible focus adjustment
• 4 memory slots for weapon profiles
• Field of view width at 100 m: 15.4 m
• Detection distance: 2,600 m / recognition distance: 800 m
• Compatible with MAR modular adapter & viewfinder for monocular operation
• Lightweight: only 400 g thanks to magnesium housing
• Compact dimensions: 129 x 70 x 77 mm
• IP67 protection class, operating temperature -20°C to +50°C

Extremely fine details thanks to 20 mK NETD

The Hunt650 resolves even the smallest temperature differences and enables the reliable identification of wildlife, vegetation, or other details, particularly effective in summer heat or high humidity.

Compact HD OLED Display & Image Quality

The high-quality OLED display ensures clear image representation, excellent detail accuracy, and allows for comfortable, long viewing even at night.

RAV video recording & playback function

The automatic RAV recording saves 11 seconds before and after the recoil. Thanks to the playback function, you can immediately analyze shots, prepare for tracking, and document experiences.

Collimator Lens for Up to 12x Magnification

The new collimator lens allows for up to 12x magnification without loss of quality. The fixed lens ensures maximum stability and repeat accuracy when shooting.

Light and Compact

Weighing only 400 g and featuring a compact design, the Hunt650 is one of the lightest high-end thermal imaging devices on the market. Perfect for long hunting sessions and flexible mounting.

Extensive Image Settings

• Sensor brightness, contrast, sharpness, anti-noise & display brightness each with 10 levels
• Four display background colors: Gray, Blue, Purple, Red
• 6 color palettes & target outline mode

Color Palettes

• Black: precise communication
• White: best communication
• Green: easy on the eyes at night
• Red: quick detection of warmest sources
• Purple: representation of cooler areas
• Gold: high-contrast detail representation

Technical Specifications

• Model: Hunt650
• Objective lens Ø: 50 mm, aperture F1.0
• Frame rate: 50 Hz
• Pixel size: 12 µm
• Battery life: 6 h, optional 12 h with second battery
• Microbolometer resolution: 640x512 pixels
• Sensitivity (NETD): 20 mK
• Display resolution: OLED 1024x768 pixels
• Field of view horizontal/vertical: 8.8° x 7.0°
• Field of view width at 100 m: 15.4 m
• Optical magnification: 3x
• Color palettes: 6
• Weapon profiles: 4
• Detection distance / response distance (human): 2,600 / 800 m
• WLAN hotspot: Yes
• Internal memory: 64 GB
• Photo/video recording and live image transmission: Yes
• RAV video recording function: Yes
• Playback function in the device: Yes
• Protection class: IP67
• Operating temperature: -20 °C to +50 °C
• Weight: 400 g
• Dimensions: 129 x 70 x 77 mm
• Replaceable battery system: Yes
• Manual focus: Yes
• External power supply: USB 5 V
