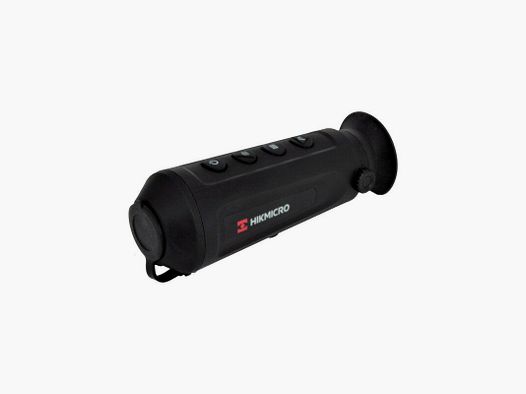

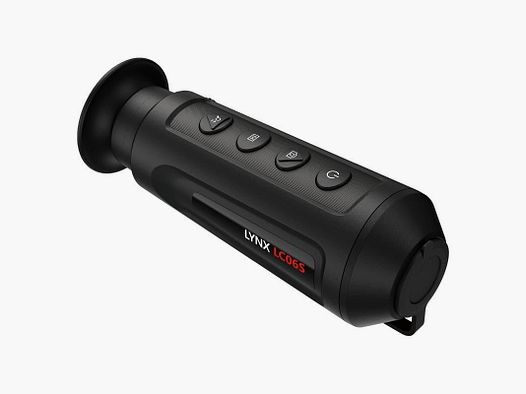

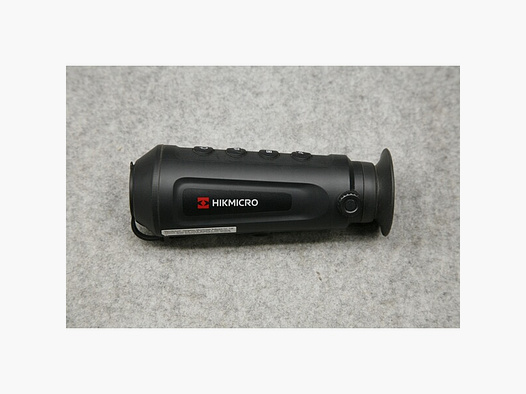

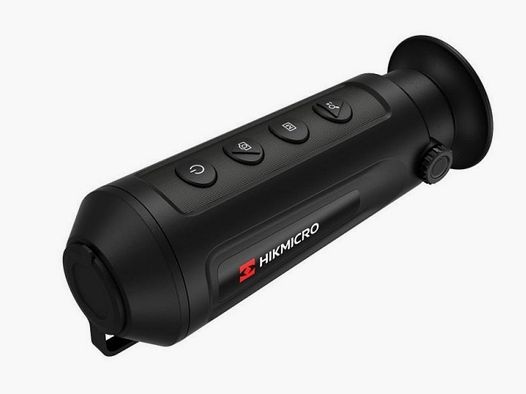

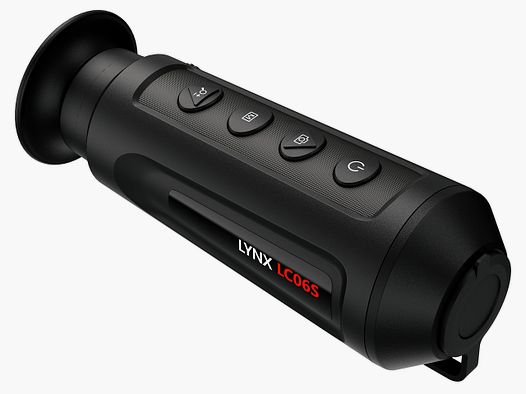

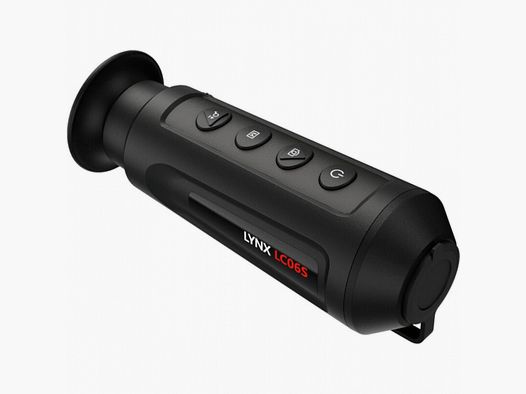

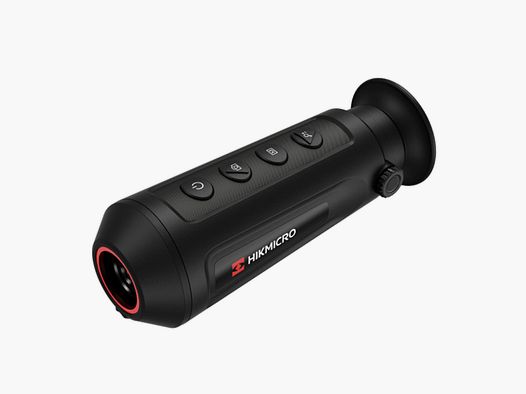

The HIKMICRO Lynx LC06 is a compact and lightweight thermal imaging monocular designed specifically for hunting, wildlife observation, and security applications. With its advanced technology and user-friendly features, it provides a reliable solution for detecting heat sources both day and night.
Technical Specifications
- Sensor: The device is equipped with an uncooled VOx detector that offers a resolution of 160 x 120 pixels and a pixel size of 17 μm. With a thermal sensitivity (NETD) of less than 35 mK, it can detect even the smallest temperature differences.
- Lens: The monocular features a 6.2 mm lens with an aperture of F1.1, providing a field of view of 24.7° x 18.7° (H x V). This corresponds to a field width of about 43.2 meters at a distance of 100 meters.
- Display: Equipped with a 0.2-inch LCOS display with a resolution of 720 x 540 pixels, the Lynx LC06 delivers clear and high-contrast images.
- Digital Zoom: The device offers a digital zoom with 1x, 2x, and 4x magnification, making details visible even at greater distances.
- Detection Range: With a maximum detection range of up to 219 meters, heat sources can be detected at medium distances.
Features and Characteristics
- Color Palettes: The Lynx LC06 offers various color modes, including White Hot, Black Hot, Red Hot, and Fusion. These allow the user to choose the optimal display based on the environment and personal preferences.
- Photo and Video Recording: With an internal memory of 8 GB, both photos and videos can be stored directly on the device. This facilitates documentation and later analysis of observations.
- Wi-Fi Connectivity: Thanks to the built-in Wi-Fi function, the Lynx LC06 can be connected to the HIKMICRO Sight app. This allows for the transmission of live images to mobile devices as well as remote control of certain functions.
- Hot Spot Detection: A feature for marking the hottest point in the field of view helps quickly identify heat sources.
Design and Handling
With dimensions of 158.3 x 61 x 57 mm and a weight of 250 g, the Lynx LC06 is compact and lightweight, making it easy to transport and handle. The large, easily accessible buttons allow for intuitive operation, even with gloves. The diopter adjustment ensures that even glasses wearers receive a clear image.
Battery Life and Power Supply
The built-in lithium-ion battery provides a runtime of up to 10 hours. Charging is done via the USB Type-C interface, ensuring quick and uncomplicated power supply.
Applications
The HIKMICRO Lynx LC06 is excellent for:
- Hunting: Detection and identification of wildlife, even in low light conditions or in densely wooded areas.
- Wildlife Observation: Studying animal behavior in their natural environment without disturbing them.
- Security Applications: Monitoring properties or buildings, especially at night.
Conclusion
The HIKMICRO Lynx LC06 combines advanced technology with user-friendliness and robustness. It offers good image quality, versatile features, and reliable performance, making it an ideal companion for hunters, nature observers, and security personnel. With its attractive price-performance ratio, it represents a worthwhile investment for anyone looking for a compact and efficient thermal imaging camera.
