Nocpix Quest L35R with LRF

2,133 €

25782 Hövede, Germany
21
ID: 9407555
Safe shopping with Gunfinder
Our AI-supported provider identity verification makes Gunfinder the safest online marketplace. Learn more
About the seller
Waffen Schrum
Retailer

Details

Original language
German
Brand
Nocpix
Product
Nocpix Quest
Condition
New
Location
🇩🇪 25782 Hövede, Germany
Availability
Available

Timeliness

This offer is based on an offer mirroring, where the offer data was transferred from a shop, merchant, or external marketplace to us. Please note that temporary price discrepancies may occur due to possible delays in data transmission.
Source
Waffen Schrum
Last updated
before about 6 hours

Description

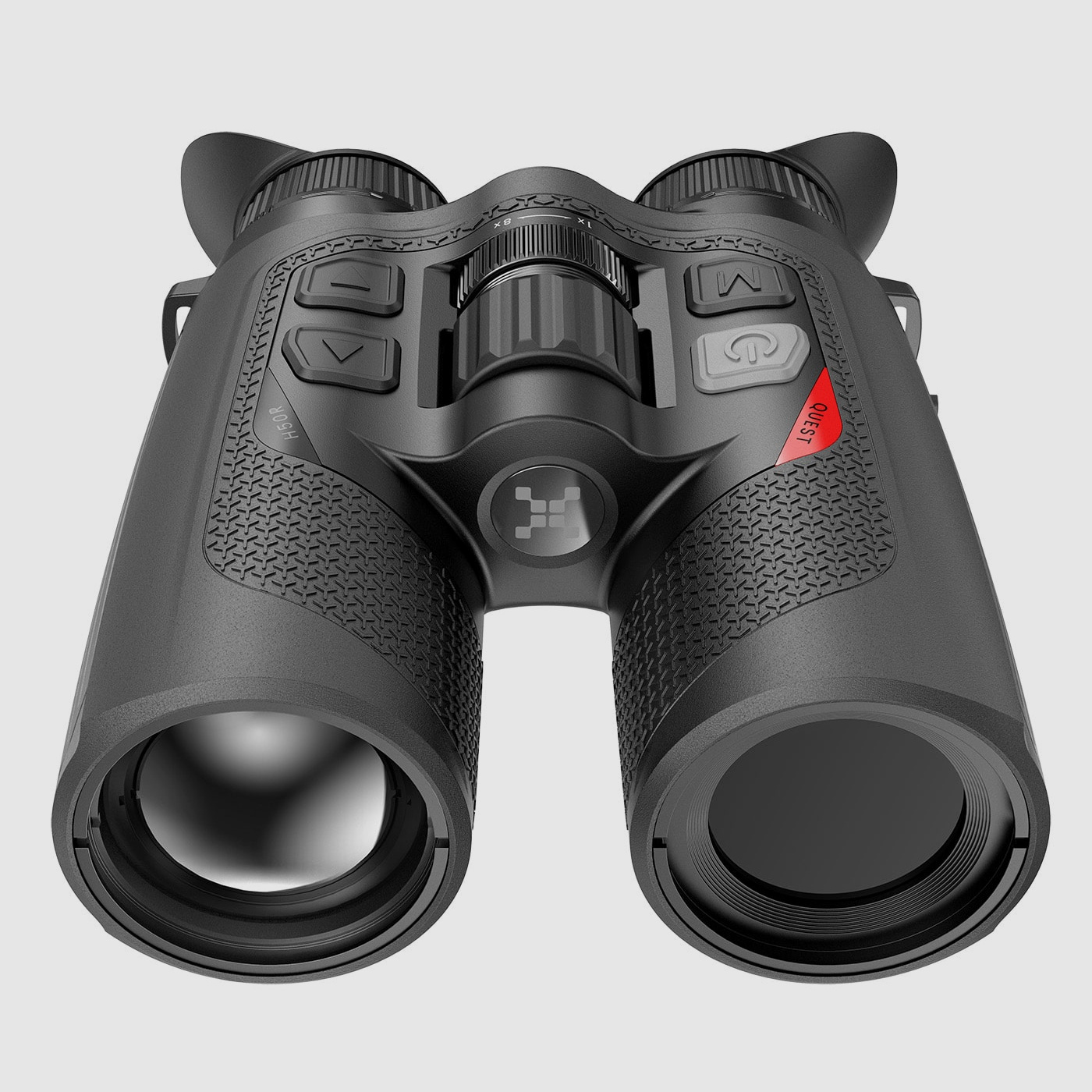

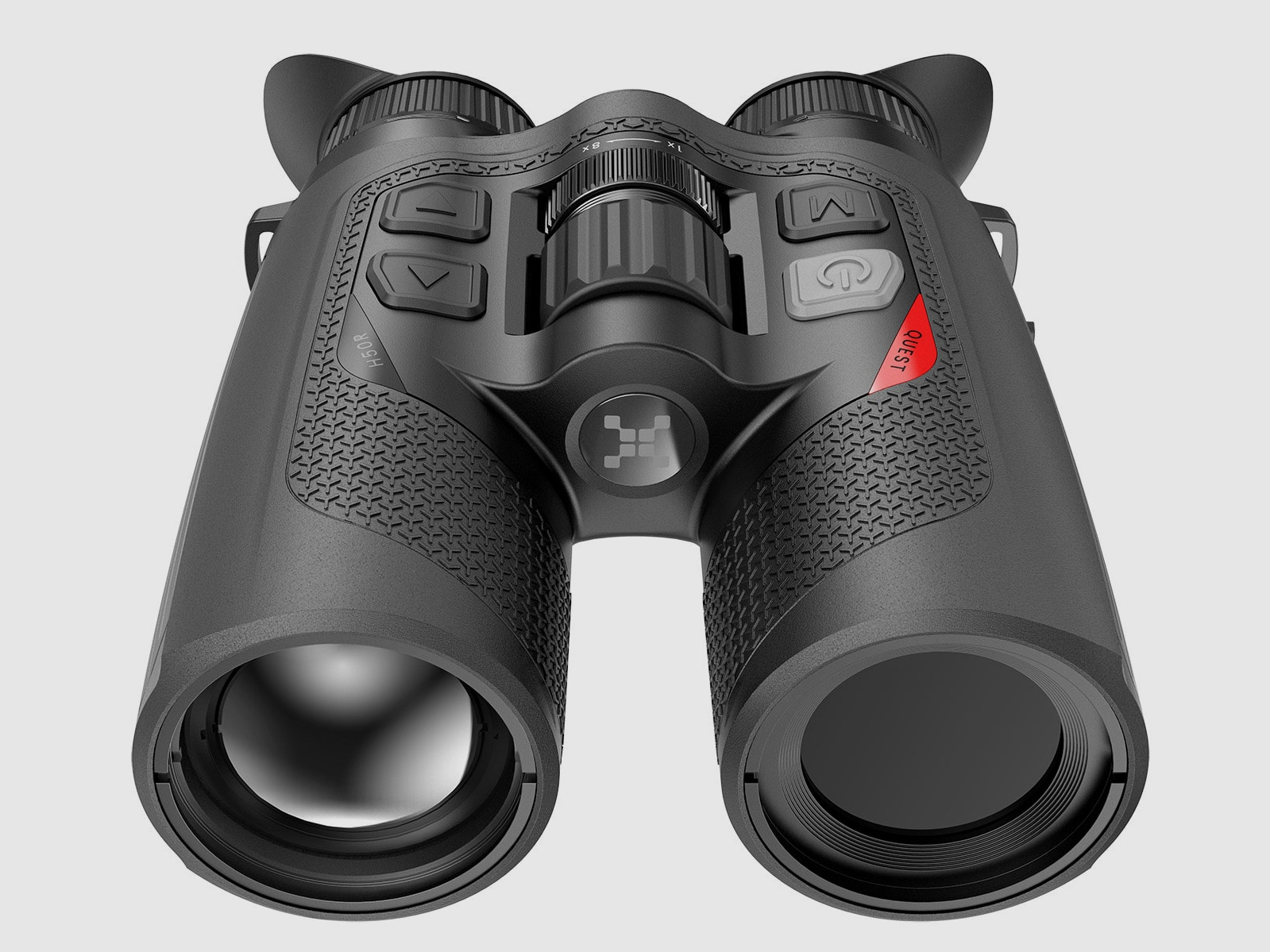

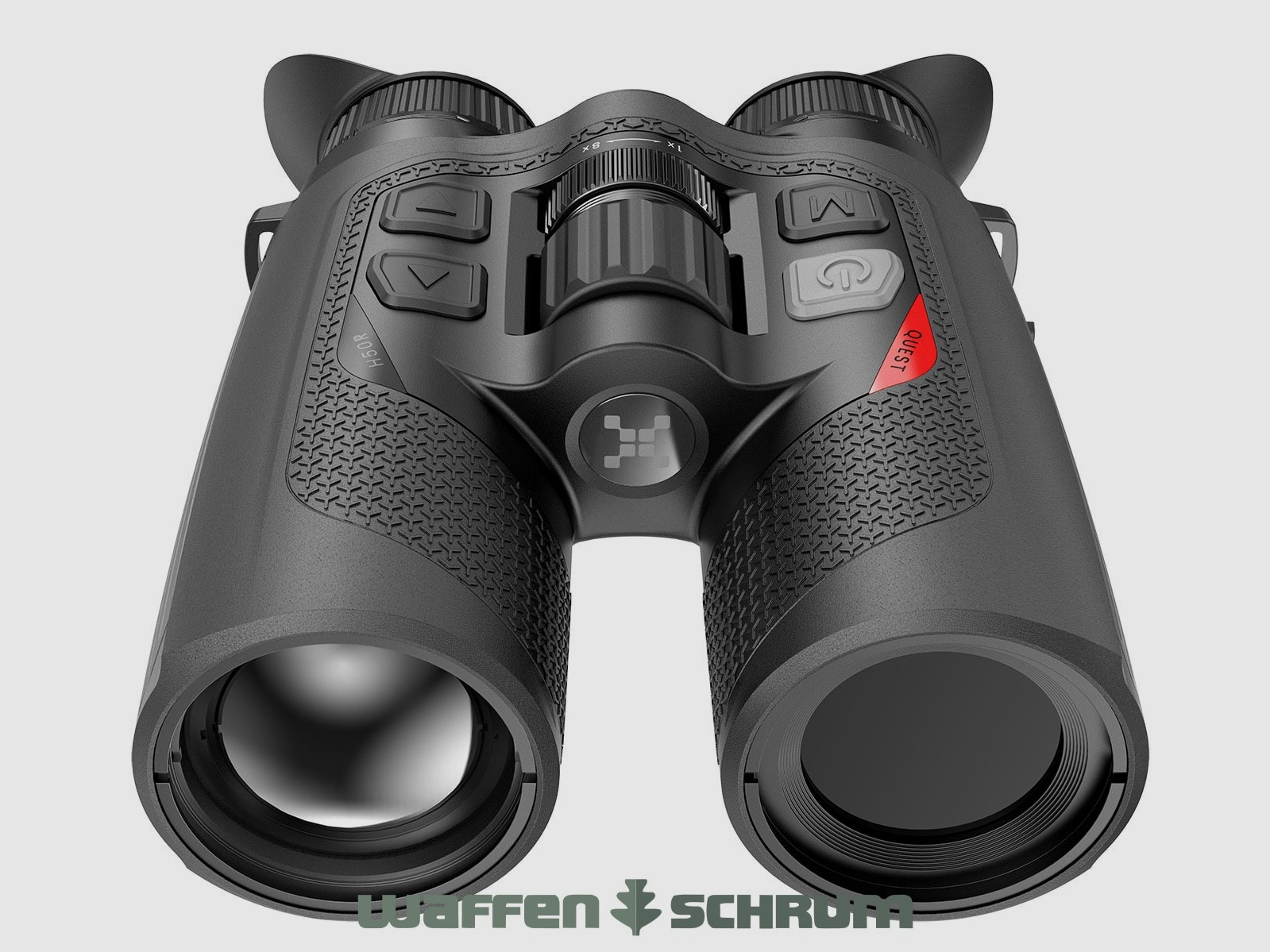

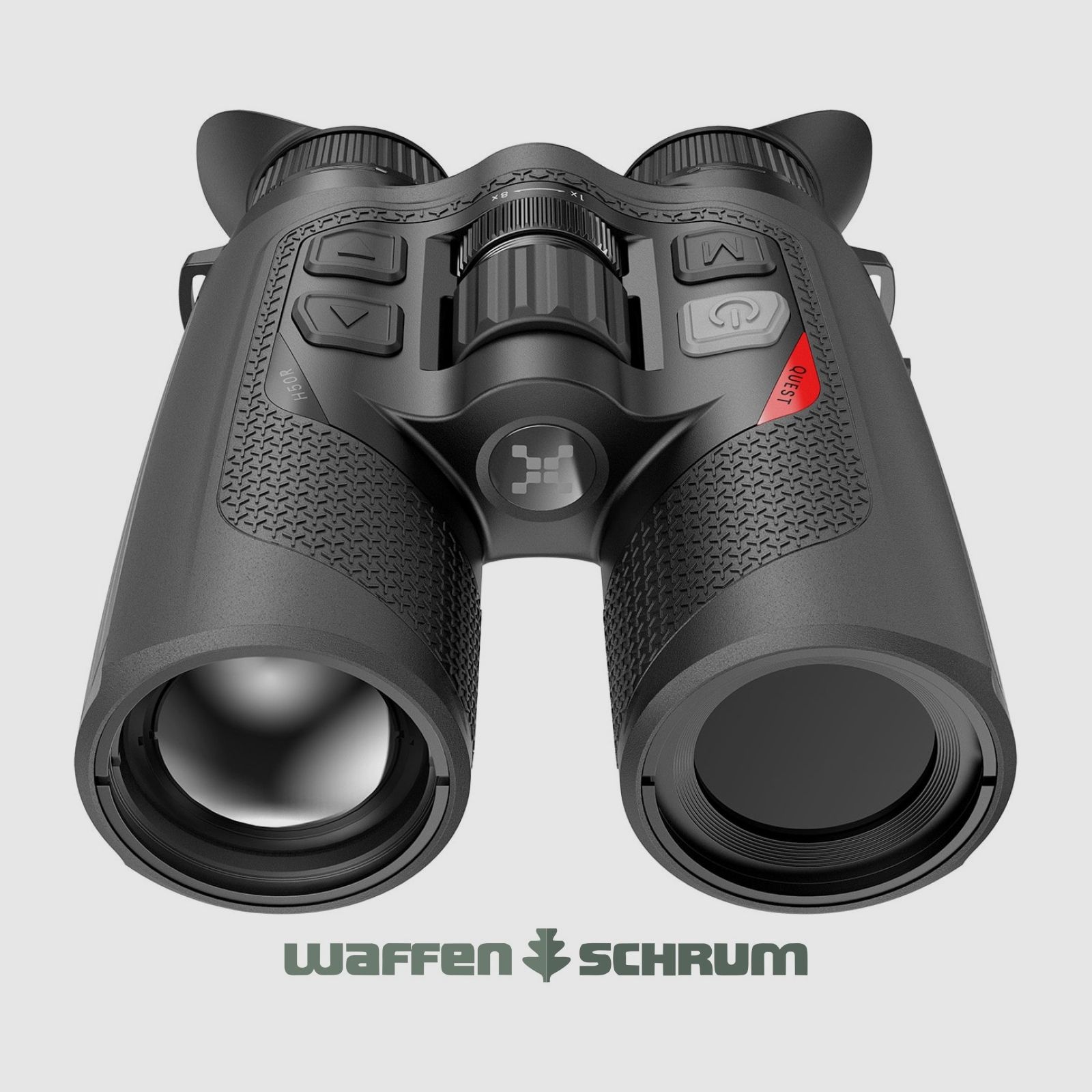

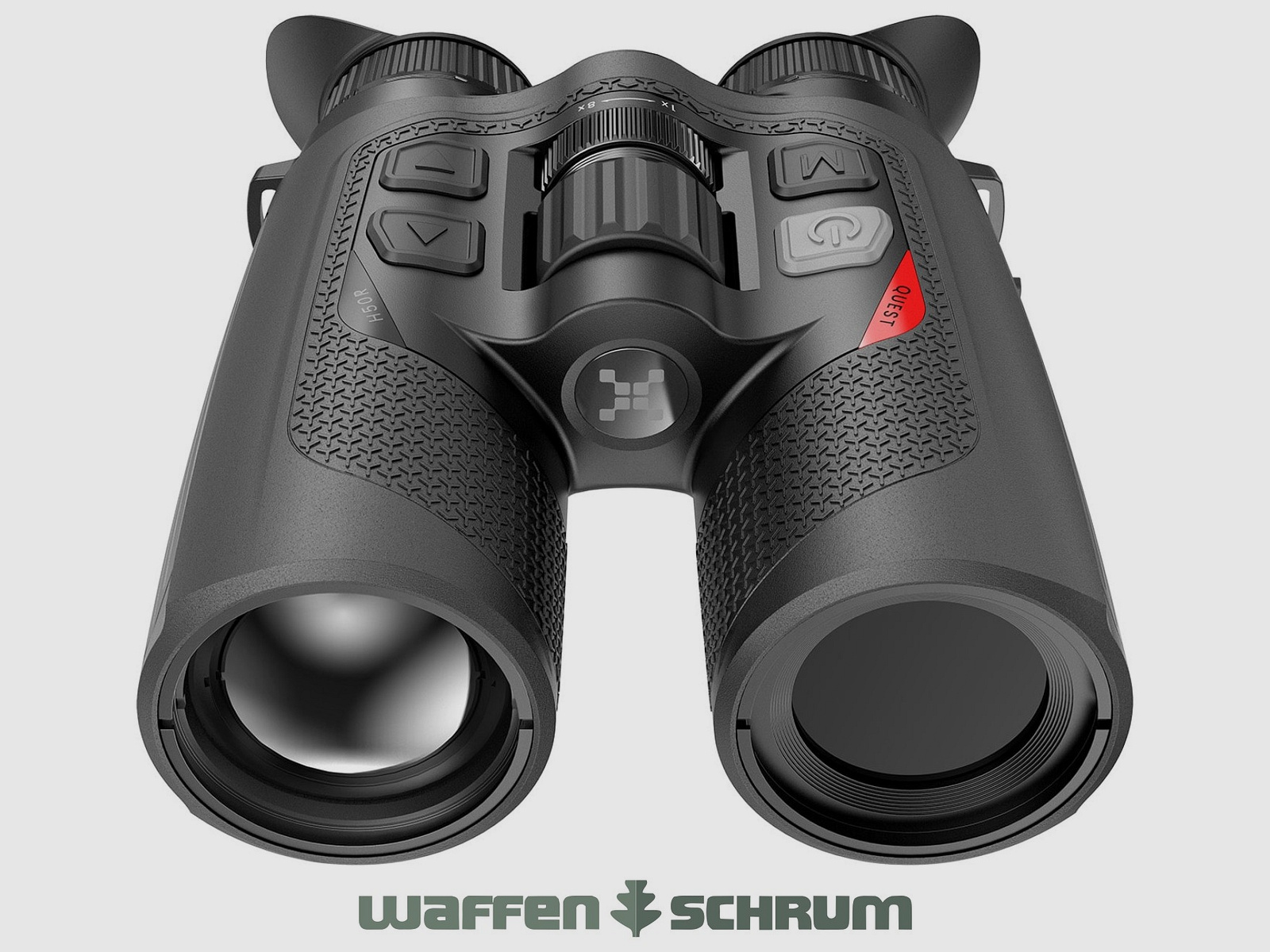

The Quest L35R from Nocpix is a thermal imaging device with the comfort of binoculars and an integrated laser rangefinder.

Observing wildlife with binoculars is generally more relaxing for the eyes than with a monocular. Therefore, Nocpix offers its thermal imaging devices in the Quest series in the format of a classic binocular. The viewing comfort hardly affects the weight: The Quest L35R weighs only 700 g without additional batteries. And since knowing the exact position of the game is advantageous for a fair shot, a laser rangefinder has been integrated into the thermal-optical instrument. The L35R is the entry-level model in the Quest series with a 384x288-px sensor.

The Sensor
The Quest L35R thermal imaging device features a thermal imaging sensor developed by Nocpix with a resolution of 384x288 px, with a pixel pitch of 12 µm. A NETD value of ≤15 mK ensures high thermal differentiation capability. The frame rate is 60 Hz, which significantly improves the detection of moving objects. Compared to conventional 50 Hz detectors, the representation is smoother and more precise, with less noise and more detailed and contrast-rich images. The magnification range is 5-20x, and the detection range of the L35R with the 35 mm lens is 1,800 m, with a field of view of 13×10 m at 100 m.

The Display
The 0.72‘‘ AMOLED display with a resolution of 1,920x1,200 px features the helpful picture-in-picture (PiP) function. This shows you a zoomed image of the observation object in a frame in the upper display field if needed. An ultra-clear mode combined with the R+ image algorithm allows for quick detection and identification of animals in almost any weather and under almost all environmental conditions. Depending on individual needs and the observation situation, you can choose between warm and cool color tones and various color palettes to adjust the image. Brightness, contrast, and sharpness can be manually set in levels 1-10.

The Device
The Quest L35R offers the comfort of a classic binocular. It impresses with its excellent haptics and fits perfectly in the hands with its rubber-coated housing. The symmetrical arrangement of the silent buttons on the top and the centrally located objective focusing wheel, along with the zoom ring above, make it intuitive to operate. Difficult environmental conditions are not an issue. The device is dust and waterproof according to IP67 and can be used in a temperature range of -20 °C to 50 °C. The F0.9 lens increases light intake by 20% compared to the usual F1.0 lenses.

The Laser Rangefinder
The integrated laser rangefinder of safety class 1 can be used in single measurement and continuous measurement modes. The maximum measuring range is 1,000 m with an accuracy of ±1 m. This way, you always know how far the game is and can make the right decision for the optimal shot.

The Power Supply
The Quest L35R features a dual power supply:
  • a built-in 4200mAh battery and
  • a replaceable and rechargeable 18650 battery.
These allow for a runtime of up to 6 hours, depending on usage – number of recordings, WiFi, LRF, etc. The device can be powered via USB-C cable from an external power source, e.g., a 5V power bank, especially for stationary use. At the same time, the built-in battery is charged, although the replaceable 18650 battery cannot be charged in the device. A charger for this is included in the delivery. When disconnected from the external power source, the device automatically switches to battery power without interruption.

Camera and Connectivity
With the integrated camera, you can document your observations and the process of tracking wildlife as photos and videos with sound. The internal memory has a capacity of 64 GB. Using the Nocpix app – available for iOS and Android – you can connect the thermal imaging device to your smartphone via the integrated WiFi module. This way, you will also receive the latest software updates. Images and videos are transmitted in real-time to the monitors of mobile devices. Additionally, you can remotely control functions of your Quest L35R through this.

Scope of Delivery
  • Quest L35R
  • Carrying case
  • Carrying strap
  • Objective lens cover
  • 2 x 18650 battery
  • 18650 battery charger
  • Data cable
  • Lens cleaning cloth
  • Quick start guide
Technical Specifications
  • Type: Thermal imaging binocular with integrated laser rangefinder
  • Sensor: Uncooled Vox 384x288 px @ 12 µm, NETD ≤15 mK
  • Frame rate: 60 Hz
  • Lens: 35 mm / F0.9
  • Diopter adjustment: ±5 dpt
  • Exit pupil: 10 mm
  • Distance to exit pupil: 25 mm
  • Eye distance adjustment range: 63-72 mm
  • Magnification: 5-20x
  • Field of view: 13×10 m at 100 m / 7.5°×5.7°
  • Detection range: 1,800 m
  • Display: 0.72‘‘ AMOLED 1,920×1,200 px
  • Internal memory: 64 GB
  • Photo, video, and audio recording
  • App: Nocpix, connection via WiFi
  • Protection: Waterproof according to IP67
  • Operating temperature range: -20 °C to 50 °C
  • Battery: built-in 4200mAh + replaceable 18650 battery
  • Operating time at 22 °C: up to 6 h depending on usage
  • External power supply via USB-C cable
  • Laser: Safety class 1
  • Measuring range: 1,000 m
  • Measurement accuracy: ±1 m
  • Dimensions: 175.4×138×66 mm
  • Weight without replaceable battery: 700 g
(Show description in original language)

Das Quest L35R von Nocpix ist ein Wärmebildgerät mit dem Komfort eines Fernglases und mit integriertem Laser-Entfernungsmesser.

Das Beobachten von Wild mit einem Binokular ist in der Regel für die Augen entspannter als mit einem Monokular. Deshalb bietet Nocpix seine Wärmebildgeräte der Quest-Serie im Format eines klassischen Fernglases an. Der Sehkomfort schlägt sich dabei kaum im Gewicht nieder: Das Quest L35R wiegt ohne Zusatzbatterien nur 700 g. Und weil die Kenntnis der genauen Position des Wilds für den waidgerechten Schuss von Vorteil ist, wurde in das thermo-optische Instrument ein Laser-Entfernungsmesser integriert. Das L35R ist das Einsteigermodell in die Quest-Serie mit einem 384x288-px-Sensor.


Der Sensor
Das Quest L35R-Wärmebildgerät verfügt über einen von Nocpix selbst entwickelten Wärmebildsensor mit einer Auflösung von 384x288 px, wobei der Pixelabstand 12 µm beträgt. Ein NETD-Wert von ≤15 mK gewährleistet eine hohes thermisches Differenzierungsvermögen. Die Bildfrequenz beträgt 60 Hz, was die Erfassung bewegter Objekte wesentlich verbessert. Verglichen mit den herkömmlichen 50 Hz-Detektoren ist die Darstellung flüssiger und präziser, das Rauschen geringer und die Bilder detailreich- und kontrastreicher. Der Vergrößerungsbereich ist 5-20x, der Detektionsbereich des L35R mit dem 35-mm-Objektiv beträgt 1.800 m, das Sehfeld ist 13×10 m auf 100 m.


Das Display
Das 0,72‘‘-AMOLED-Display mit einer Auflösung von 1.920x1.200 px verfügt über die hilfreiche Bild-im-Bild-Funktion (PiP). Die zeigt Ihnen bei Bedarf in einem Rahmen im oberen Displayfeld ein gezoomtes Bild des Beobachtungsobjekts. Ein Ultraklar-Modus in Verbindung mit dem R+ Bildalgorithmus ermöglicht eine schnelle Enddeckung und Identifizierung der Tiere bei fast jedem Wetter und bei fast allen Umweltbedingungen. Sie können je nach individuellen Bedürfnissen und der Beobachtungssituation zwischen warmen und kühlen Farbtönen und diversen Farbpaletten auswählen, um das Bild anzupassen. Helligkeit, Kontrast und Schärfe können manuelle in den Stufen 1-10 eingestellt werden.


Das Gerät
Das Quest L35R verfügt über den Komfort eines klassischen Fernglases. Es besticht durch seine ausgezeichnete Haptik und liegt mit seiner Gummi-Ummantelung des Gehäuses ausgezeichnet in den Händen. Die symmetrische Anordnung der geräuschlosen Tasten an der Oberseite und das mittige Objektiv-Fokussierrad sowie der darüberliegende Zoom-Ring machen es intuitiv bedienbar. Schwierige Umweltbedingungen sind dabei kein Thema. Das Gerät ist staub- und wasserdicht gemäß IP67 und in einem Temperaturbereich von -20 °C bis 50 °С einsetzbar. Das F0,9-Objektiv steigert die Lichtaufnahme um 20% im Vergleich zu den üblichen F1,0-Objektiven.


Der Laser-Entfernungsmesser
Den integrierten Laser-Entfernungsmesser der Sicherheitsklasse 1 können Sie in den Modi einzelne Messung und kontinuierliche Messung einsetzen. Die maximale Messreichweite beträgt 1.000 m mit einer Genauigkeit von ±1 m. So wissen Sie immer, wie weit das Wild entfernt ist und können die richtige Entscheidung zu dem optimalen Schuss treffen.


Die Stromversorgung
Das Quest L35R verfügt über eine duale Stromversorgung:
  • eine fest eingebaute 4200mAh-Batterie und
  • eine austauschbare und wiederaufladbare 18650-Batterie.

Diese ermöglichen, je nach Nutzung – Menge der Aufnahmen, WLAN, LRF etc. –, eine Betriebsdauer von bis zu 6 Stunden. Das Gerät kann – etwa bei einem stationären Einsatz – via USB-C-Kabel mit einer externen Stromquelle, z. B. mit einer 5V-Powerbank, betrieben werden. Dabei wird gleichzeitig die eingebaute Batterie aufgeladen, wobei die austauschbare 18650-Batterie allerdings nicht im Gerät aufgeladen werden kann. Ein Ladegerät für diese ist im Lieferumfang enthalten. Bei Trennung von der externen Stromquelle erfolgt ohne Unterbrechung die automatische Umschaltung auf die Batterien.


Kamera und Konnektivität
Mittels der integrierten Kamera können Sie Ihre Beobachtungen und den Verlauf des Aufspürens von Wild als Foto und als Video mit Ton dokumentieren. Der interne Speicher hat eine Kapazität von 64 GB. Mittels der Nocpix-App – erhältlich für iOS und Android – können Sie per integriertem WiFi-Modul das Wärmebildgerät mit Ihrem Smartphone verbinden. Über diesen Weg erhalten Sie auch immer die aktuellen Software-Updates. Bilder und Videos werden in Echtzeit auf den Monitor mobiler Endgeräte übertragen. Außerdem können Sie Funktionen Ihres Quest L35R darüber fernsteuern.



Lieferumfang
  • Quest L35R
  • Tragetasche
  • Tragegurt
  • Objektivdeckel
  • 2 x Batterie 18650
  • 18650-Batterieladegerät
  • Datenkabel
  • Objektivreinigungstuch
  • Schnellstartanleitung

Technische Daten
  • Typ: Wärmebild-Binokular mit integriertem Laser-Entfernungsmesser
  • Sensor: Vox ungekühlt 384x288 px @ 12 µm, NETD ≤15 mK
  • Bildfrequenz: 60 Hz
  • Objektiv: 35 mm / F0,9
  • Dioptrienausgleich: ±5 dpt
  • Austrittspupille: 10 mm
  • Abstand Austrittspupille: 25 mm
  • Einstellbereich des Augenabstands: 63-72 mm
  • Vergrößerung: 5-20x
  • Sichtfeld: 13×10 m auf 100 m / 7,5°×5,7°
  • Detektionsreichweite: 1.800 m
  • Display: 0,72‘‘-AMOLED 1.920×1.200 px
  • integrierter Speicher: 64 GB
  • Foto-, Video- und Tonaufnahme
  • App: Nocpix, Verbindung per WiFi
  • Schutz: wasserdicht nach IP67
  • Betriebstemperaturbereich: -20 °C bis 50 °С
  • Batterie: eingebaut 4200mAh + austauschbare 18650-Batterie
  • Betriebsdauer bei 22 °C: je nach Nutzung bis zu 6 h
  • externe Stromversorgung per USB-C-Kabel
  • Laser: Sicherheitsklasse 1
  • Messreichweite: 1.000 m
  • Messgenauigkeit: ±1 m
  • Maße: 175,4×138×66 mm
  • Gewicht ohne austauschbare Batterie: 700 g
