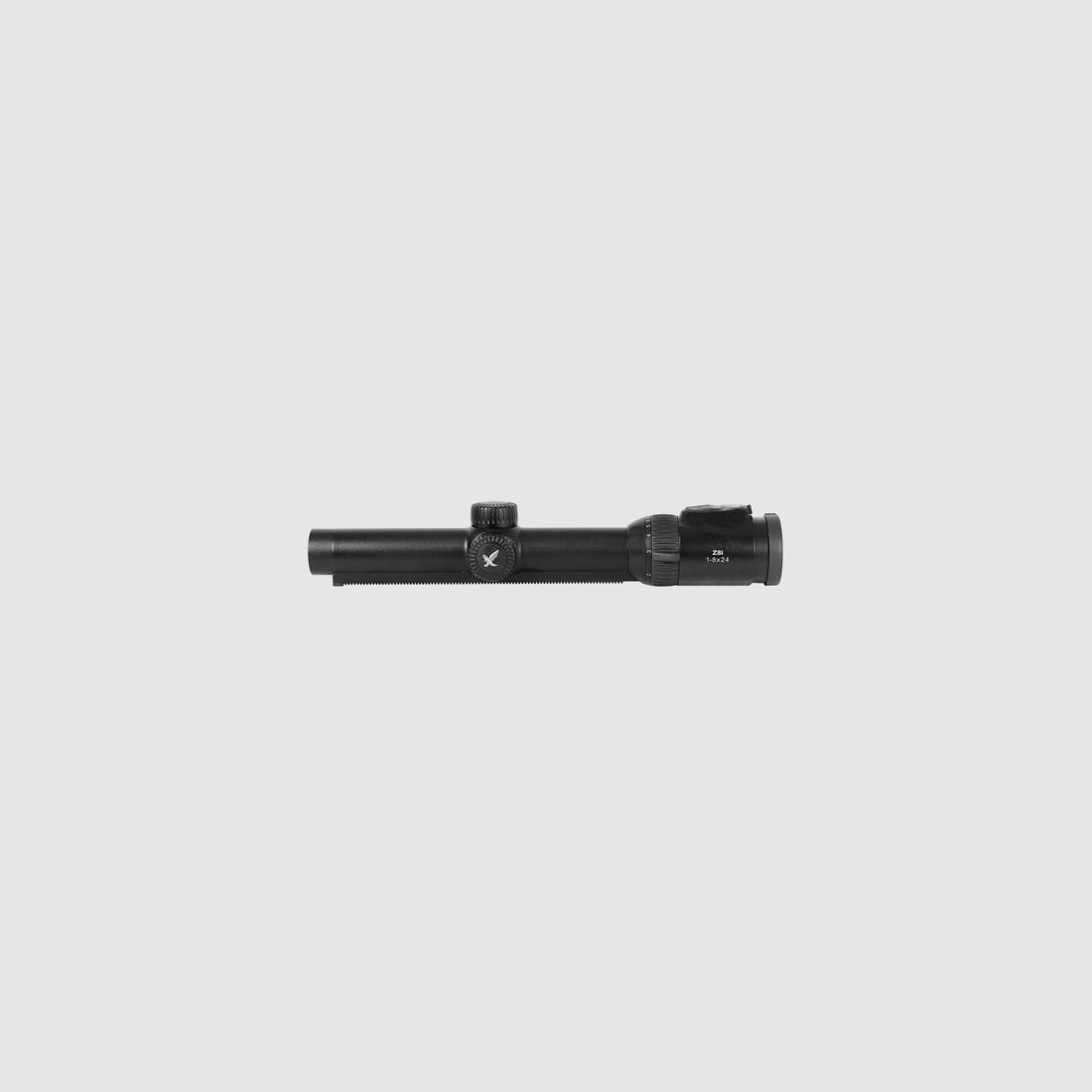

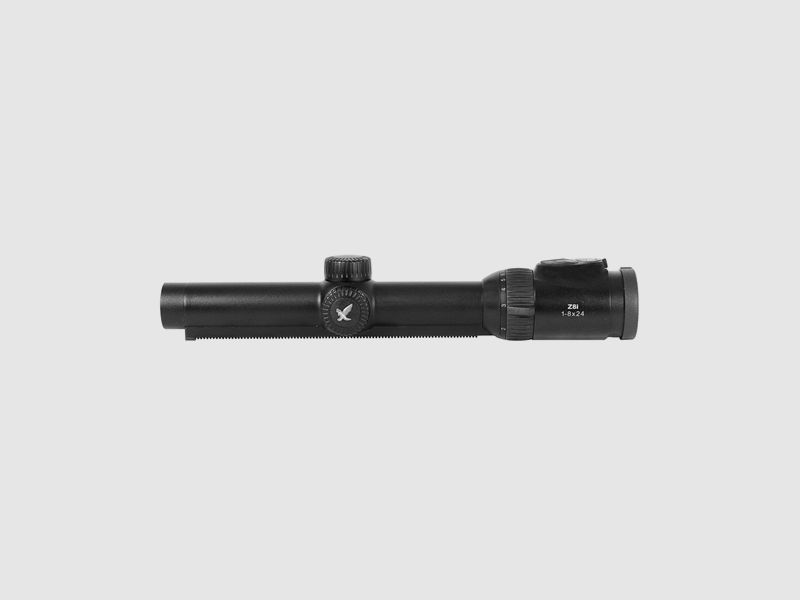

Z8i 1-8x24 SR The illuminated Z8i 1-8x24 SR offers an impressive field of view of 42.5 m at 1x magnification for maximum overview of the hunting situation, allowing for the right decision to be made even in rapidly changing circumstances. For secure and quick mounting, this riflescope features a robust SR mounting rail. Technical Data Magnification 1-8x effective objective diameter (mm) 8.2-24 exit pupil diameter (mm) 8.1-3 exit pupil distance (mm) (eye relief) 95 field of view (m/100 m) 42.5-5.3 field of view (degrees) 24.0-3.0 eye-side field of view (degrees) 24 diopter adjustment (dpt) -3 to +2 light transmission (%) 93 twilight number according to ISO 14132-1 2.9-13.9 impact point correction / click (mm/100 m) 10 max. adjustment range for elevation/windage (m/100 m) 2 filter thread objective side M 27x0.75 Length (mm) 301 Weight (g) 535 main tube diameter (mm) 30 operating temperature -20 °C / +55 °C storage temperature -30 °C / +70 °C waterproofness 4 m water depth (filled with noble gas) Illumination unit Brightness levels Night: 0 - 32 / Day: 33 - 64 Operating time (h) Night mode at medium brightness: 1,400; Day mode at medium brightness: 180
(Show description in original language)
Z8i 1-8x24 SR Das beleuchtete Z8i 1-8x24 SR bietet bei 1facher Vergrößerung ein beachtliches Sehfeld von 42,5 m für maximalen Überblick über das Jagdgeschehen, um auch in sich rasch ändernden Situationen die richtige Entscheidung zu fällen. Für die sichere und schnelle Montage verfügt dieses Zielfernrohr über eine robuste SR Montageschiene. Technische Daten Vergrößerung 1-8x wirksamer Objektiv-ø (mm) 8,2-24 Austrittspupillen-ø (mm) 8,1-3 Austrittspupillenabstand (mm) (Augenabstand) 95 Sehfeld (m/100 m) 42,5-5,3 Sehfeld (Grad) 24,0-3,0 augenseitiges Sehfeld (Grad) 24 Dioptrieausgleich (dpt) -3 bis +2 Lichttransmission (%) 93 Dämmerungszahl nach ISO 14132-1 2,9-13,9 Treffpunktkorr. / Klick (mm/100 m) 10 max. Stellweg nach Höhe/Seite (m/100 m) 2 Filtergewinde objektivseitig M 27x0,75 Länge (mm) 301 Gewicht (g) 535 Mittelrohrdurchmesser (mm) 30 Funktionstemperatur -20 °C / +55 °C Lagertemperatur -30 °C / +70 °C Dichtheit 4 m Wassertiefe (edelgasgefüllt) Beleuchtungseinheit Helligkeitsstufen Nacht: 0 - 32 / Tag: 33 - 64 Betriebsdauer (h) Nachtbereich bei mittlerer Helligkeit: 1.400; Tagbereich bei mittlerer Helligkeit: 180
