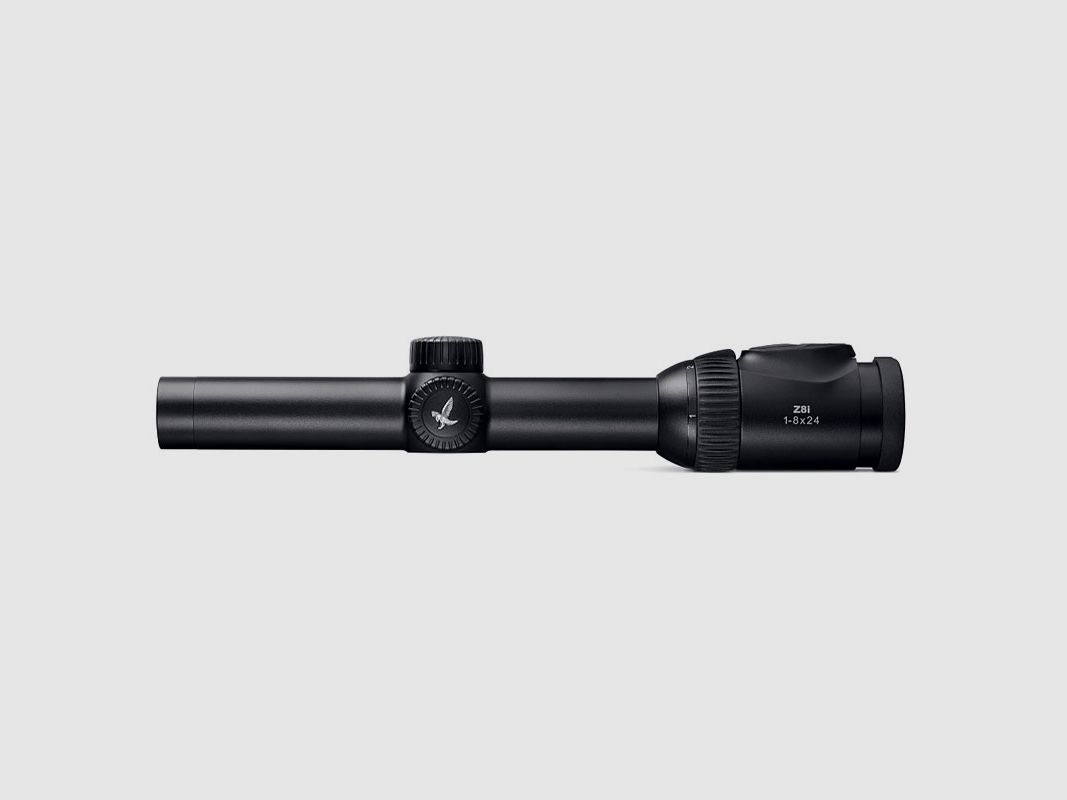

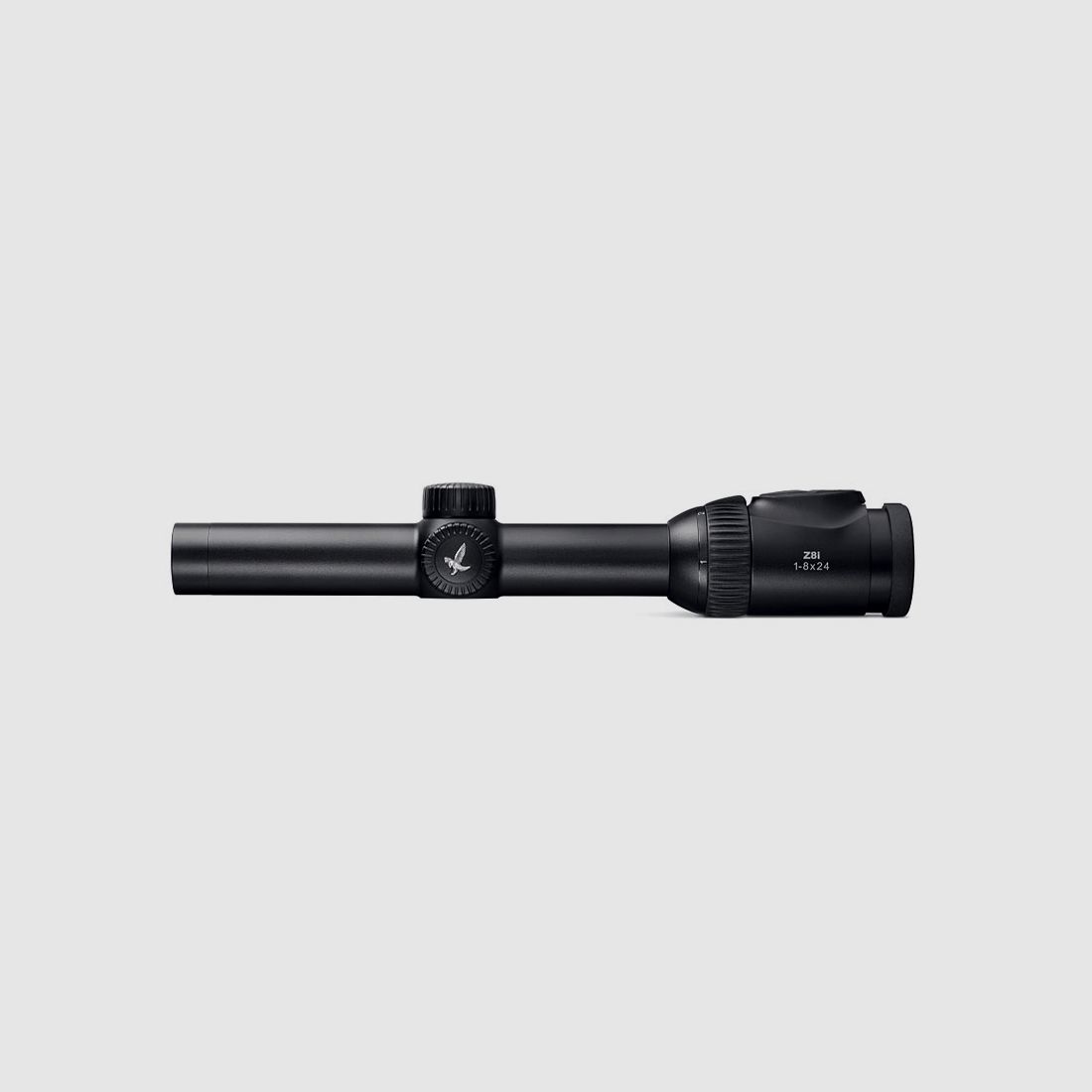

The illuminated Z8i 1-8x24 L offers a remarkable field of view of 42.5 m at 1x magnification for maximum overview of the hunting situation, allowing for the right decision to be made even in rapidly changing circumstances.
Length (mm) 301
Weight (g) 515
Main tube diameter (mm) 30
Operating temperature -20 °C / +55 °C
Storage temperature -30 °C / +70 °C
Water resistance 4 m depth (filled with noble gas)
Night range at medium brightness: 1,400; Day range at medium brightness: 180
Illumination unit
Brightness levels Night: 0 - 32 / Day: 33 - 64
Operating time (h)
Magnification 1-8x
Effective objective diameter (mm) 8.2-24
Exit pupil diameter (mm) 8.1-3
Exit pupil distance (mm) (eye relief) 95
Field of view (m/100 m) 42.5-5.3
Field of view (degrees) 24.0-3.0
Eye-side field of view (degrees) 24
Diopter adjustment (dpt) -3 to +2
Light transmission (%) 93
Twilight number according to ISO 14132-1 2.9-13.9
Impact point correction / click (mm/100 m) 10
Max. adjustment range for elevation/windage (m/100 m) 2
Filter thread on objective side M 27x0.75
(Show description in original language)
Das beleuchtete Z8i 1-8x24 L bietet bei 1facher Vergrößerung ein beachtliches Sehfeld von 42,5 m für maximalen Überblick über das Jagdgeschehen, um auch in sich rasch ändernden Situationen die richtige Entscheidung zu fällen. Länge (mm) 301 Gewicht (g) 515 Mittelrohrdurchmesser (mm) 30 Funktionstemperatur -20 °C / +55 °C Lagertemperatur -30 °C / +70 °C Dichtheit 4 m Wassertiefe (edelgasgefüllt) Nachtbereich bei mittlerer Helligkeit: 1.400; Tagbereich bei mittlerer Helligkeit: 180 Beleuchtungseinheit Helligkeitsstufen Nacht: 0 - 32 / Tag: 33 - 64 Betriebsdauer (h) Vergrößerung 1-8x wirksamer Objektiv-ø (mm) 8,2-24 Austrittspupillen-ø (mm) 8,1-3 Austrittspupillenabstand (mm) (Augenabstand) 95 Sehfeld (m/100 m) 42,5-5,3 Sehfeld (Grad) 24,0-3,0 augenseitiges Sehfeld (Grad) 24 Dioptrieausgleich (dpt) -3 bis +2 Lichttransmission (%) 93 Dämmerungszahl nach ISO 14132-1 2,9-13,9 Treffpunktkorr. / Klick (mm/100 m) 10 max. Stellweg nach Höhe/Seite (m/100 m) 2 Filtergewinde objektivseitig M 27x0,75
