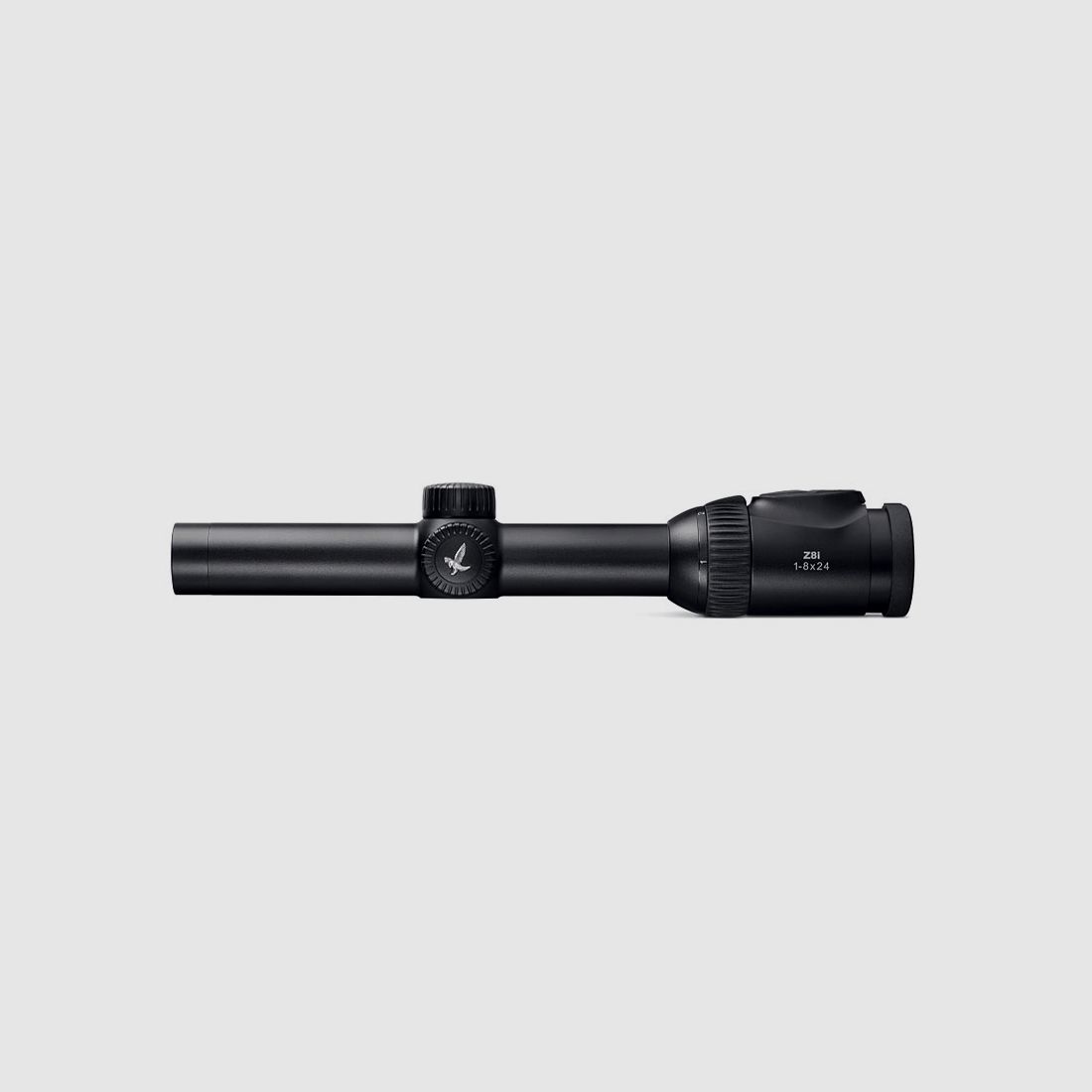

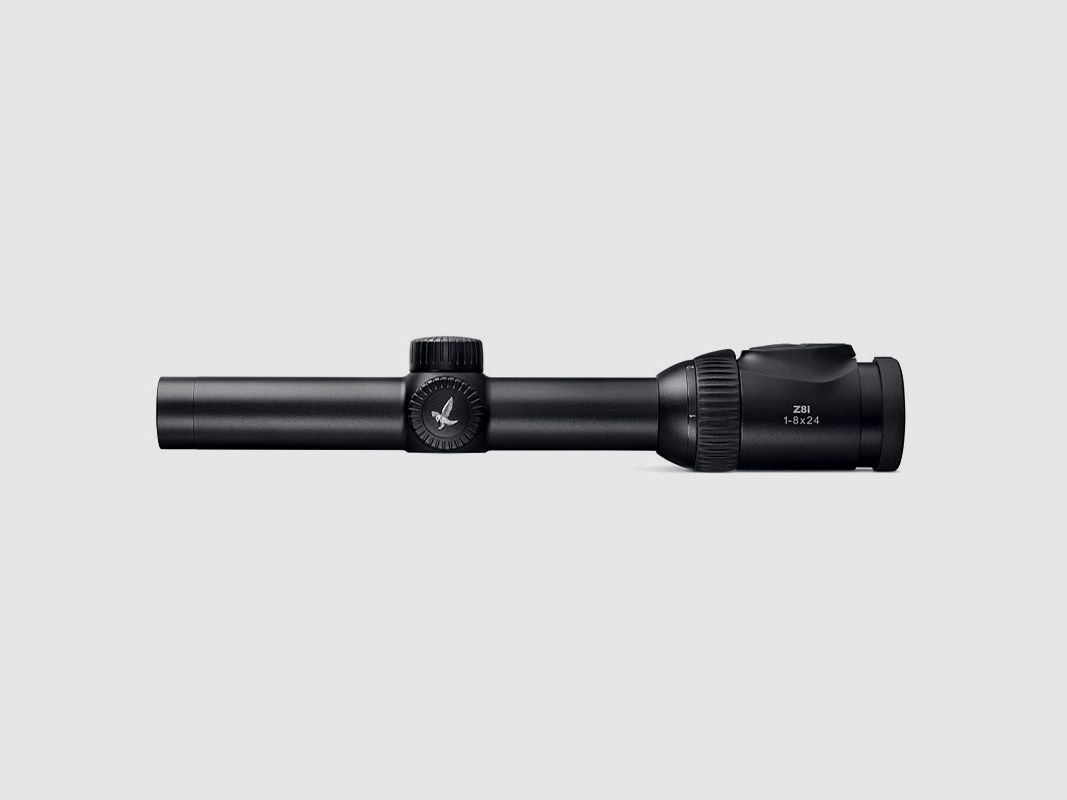

The illuminated Z8i 1-8x24 L offers an impressive field of view of 42.5 m at 1x magnification for maximum overview of the hunting situation, allowing for the right decision to be made even in rapidly changing situations.
Length (mm) 301 Weight (g) 515 Main tube diameter (mm) 30 Operating temperature -20 °C / +55 °C Storage temperature -30 °C / +70 °C Waterproofness 4 m water depth (filled with noble gas) Night range at medium brightness: 1,400; Day range at medium brightness: 180 Illumination unit Brightness levels Night: 0 - 32 / Day: 33 - 64 Operating time (h)
Magnification 1-8x Effective objective ø (mm) 8.2-24 Exit pupil ø (mm) 8.1-3 Exit pupil distance (mm) (eye relief) 95 Field of view (m/100 m) 42.5-5.3 Field of view (degrees) 24.0-3.0 Eye-side field of view (degrees) 24 Diopter adjustment (dpt) -3 to +2 Light transmission (%) 93 Twilight number according to ISO 14132-1 2.9-13.9 Impact point correction / click (mm/100 m) 10 max. adjustment range for height/side (m/100 m) 2 Filter thread objective side M 27x0.75
(Show description in original language)
Das beleuchtete Z8i 1-8x24 L bietet bei 1facher Vergrößerung ein beachtliches Sehfeld von 42,5 m für maximalen Überblick über das Jagdgeschehen, um auch in sich rasch ändernden Situationen die richtige Entscheidung zu fällen. Länge (mm) 301 Gewicht (g) 515 Mittelrohrdurchmesser (mm) 30 Funktionstemperatur -20 °C / +55 °C Lagertemperatur -30 °C / +70 °C Dichtheit 4 m Wassertiefe (edelgasgefüllt) Nachtbereich bei mittlerer Helligkeit: 1.400; Tagbereich bei mittlerer Helligkeit: 180 Beleuchtungseinheit Helligkeitsstufen Nacht: 0 - 32 / Tag: 33 - 64 Betriebsdauer (h) Vergrößerung 1-8x wirksamer Objektiv-ø (mm) 8,2-24 Austrittspupillen-ø (mm) 8,1-3 Austrittspupillenabstand (mm) (Augenabstand) 95 Sehfeld (m/100 m) 42,5-5,3 Sehfeld (Grad) 24,0-3,0 augenseitiges Sehfeld (Grad) 24 Dioptrieausgleich (dpt) -3 bis +2 Lichttransmission (%) 93 Dämmerungszahl nach ISO 14132-1 2,9-13,9 Treffpunktkorr. / Klick (mm/100 m) 10 max. Stellweg nach Höhe/Seite (m/100 m) 2 Filtergewinde objektivseitig M 27x0,75
