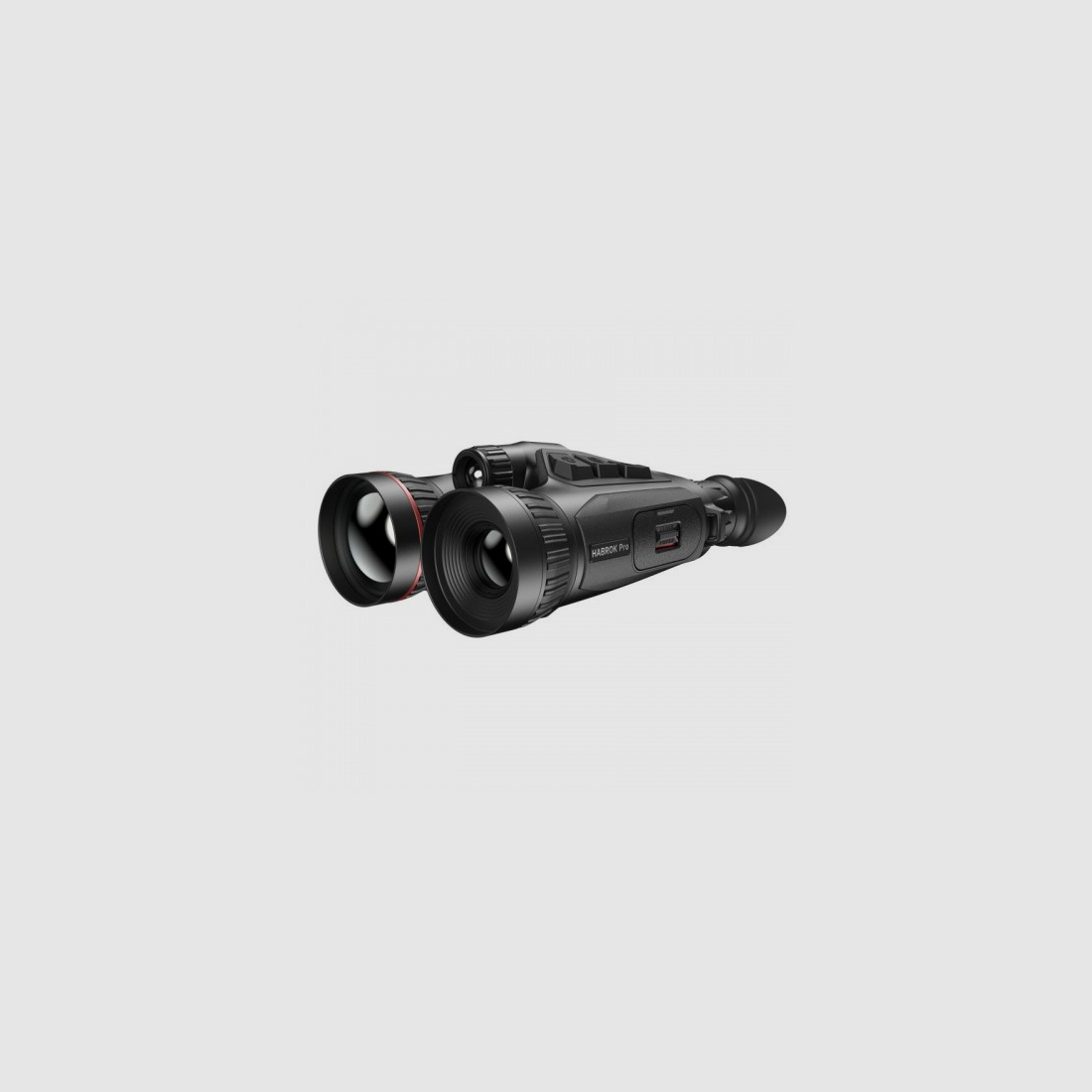

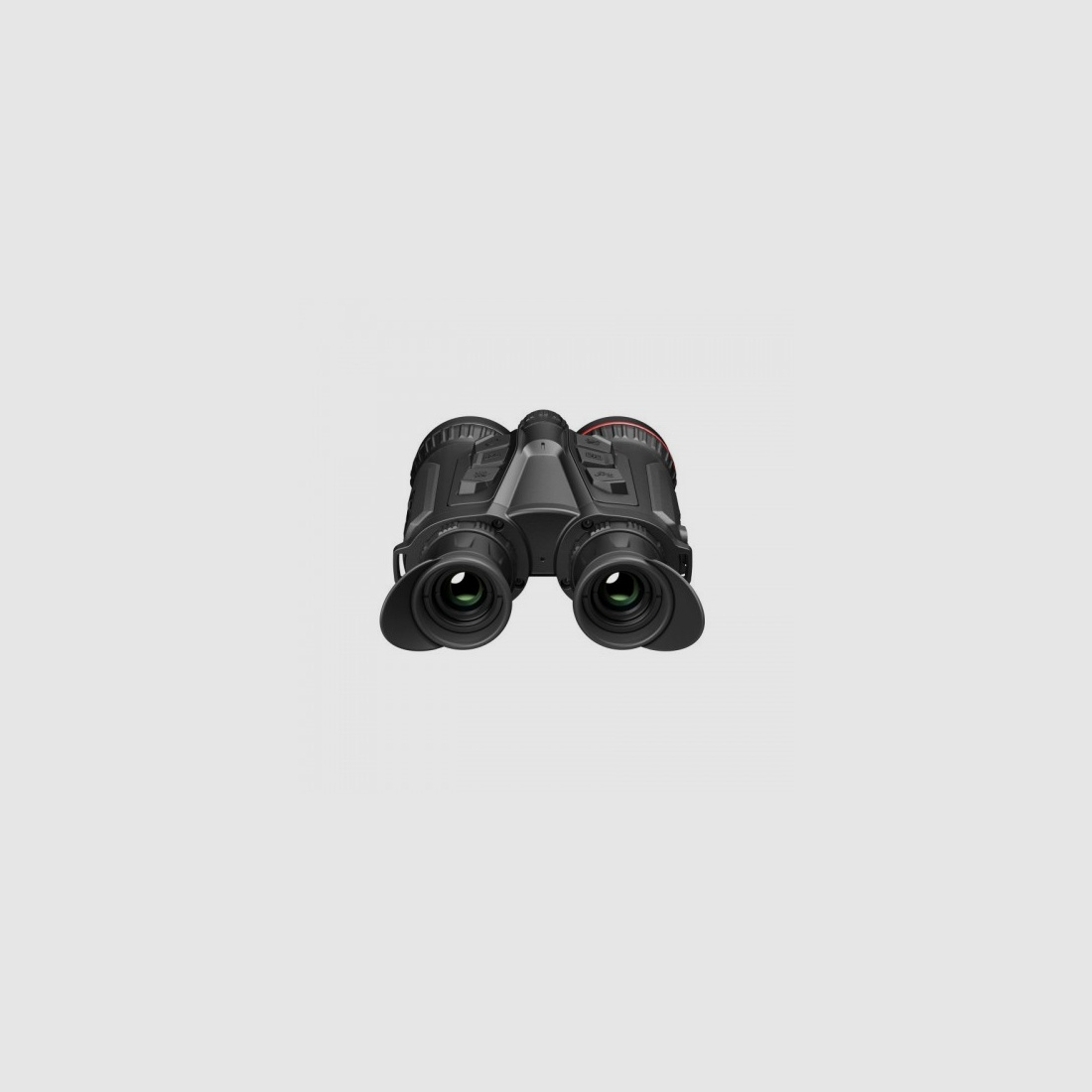

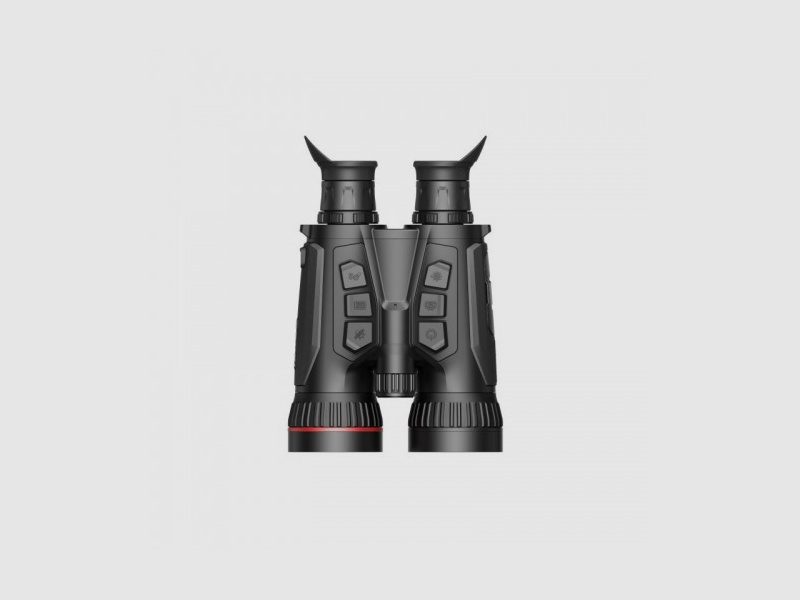

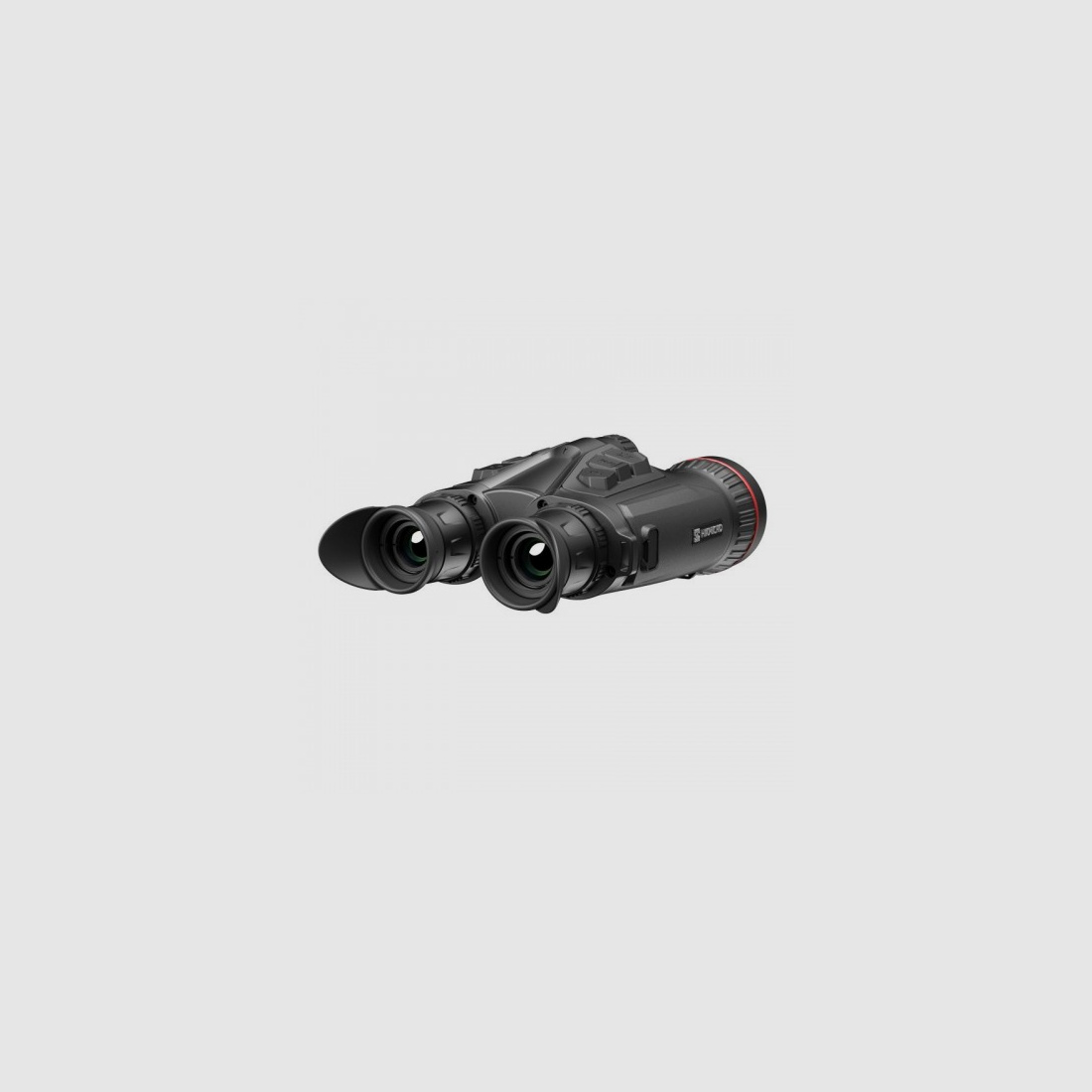

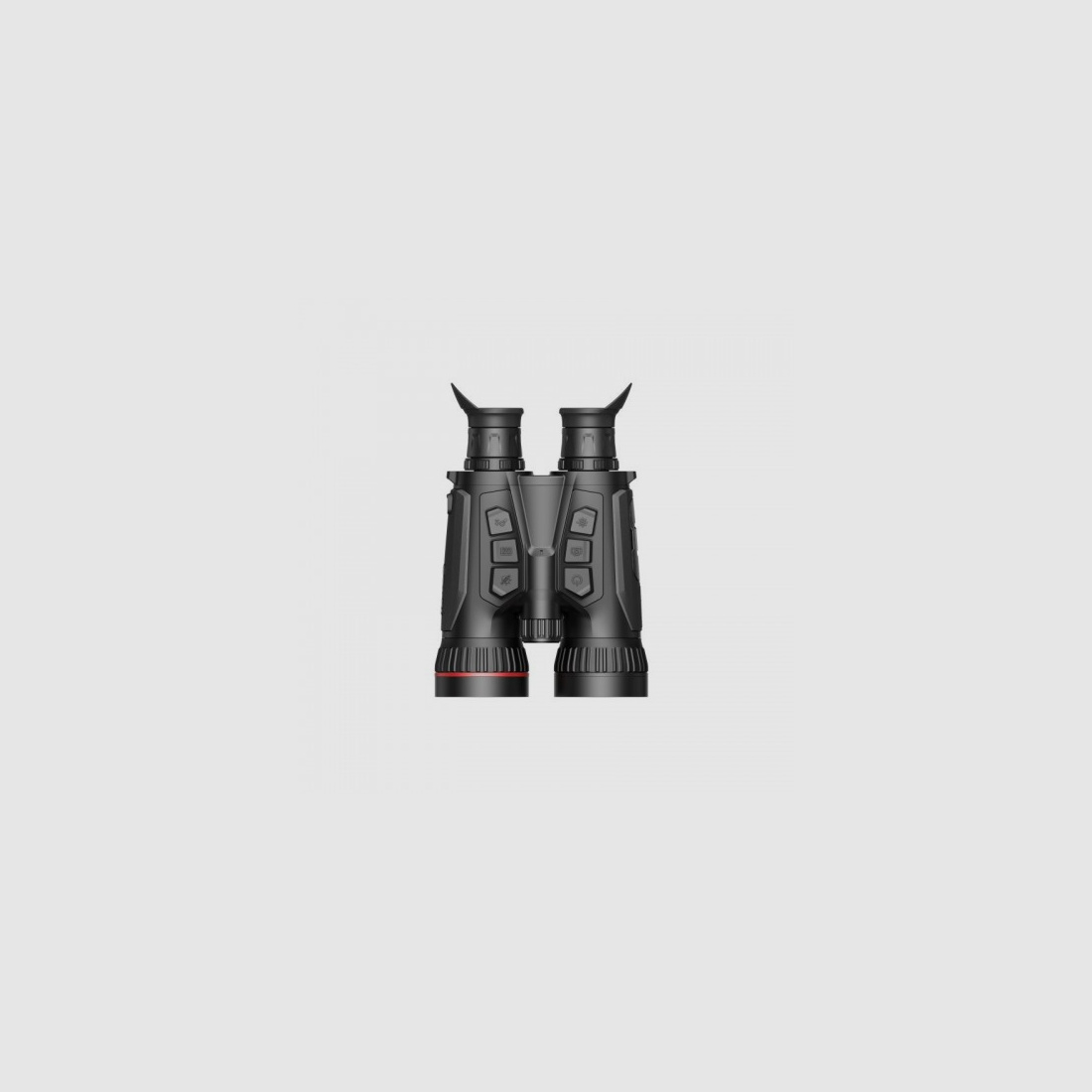

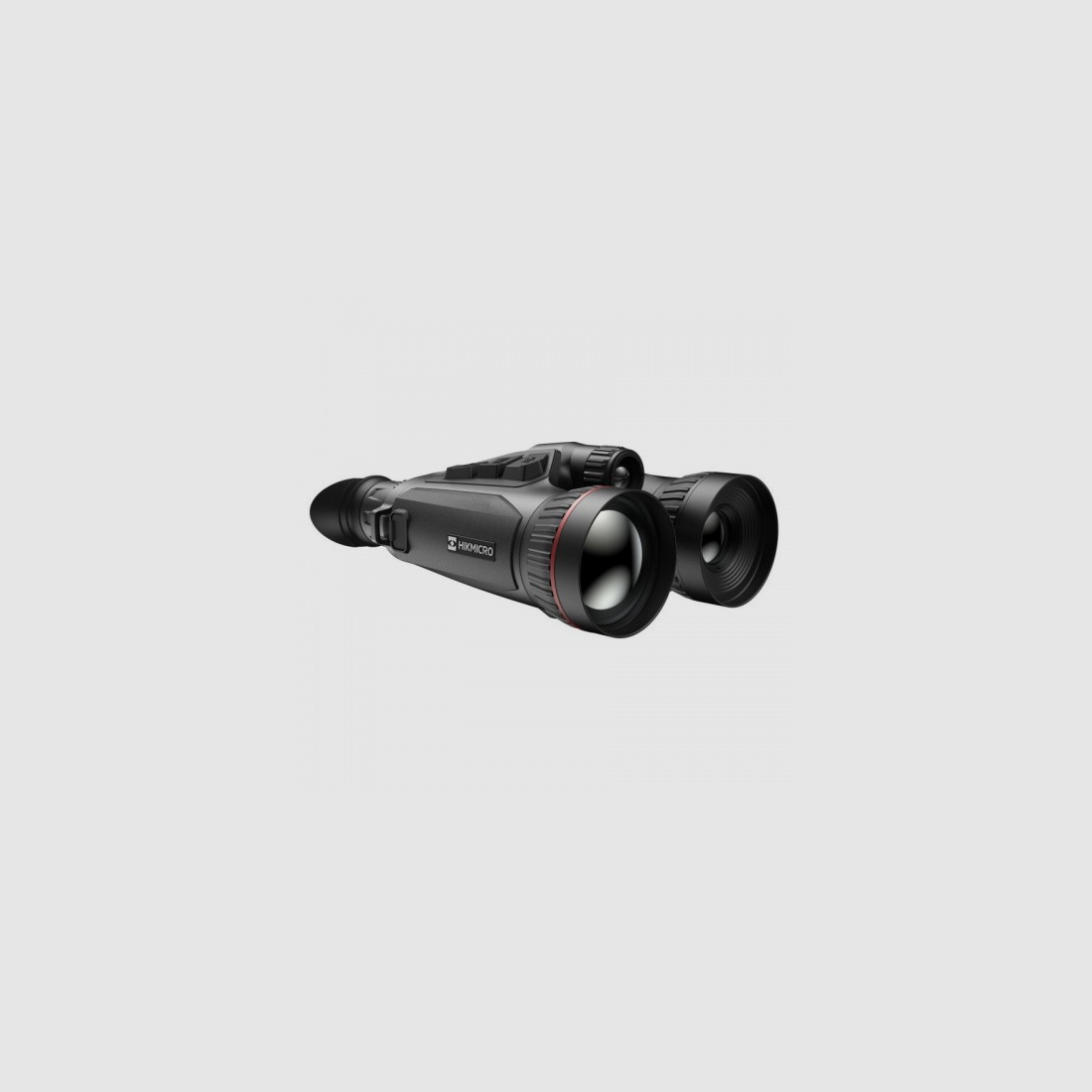

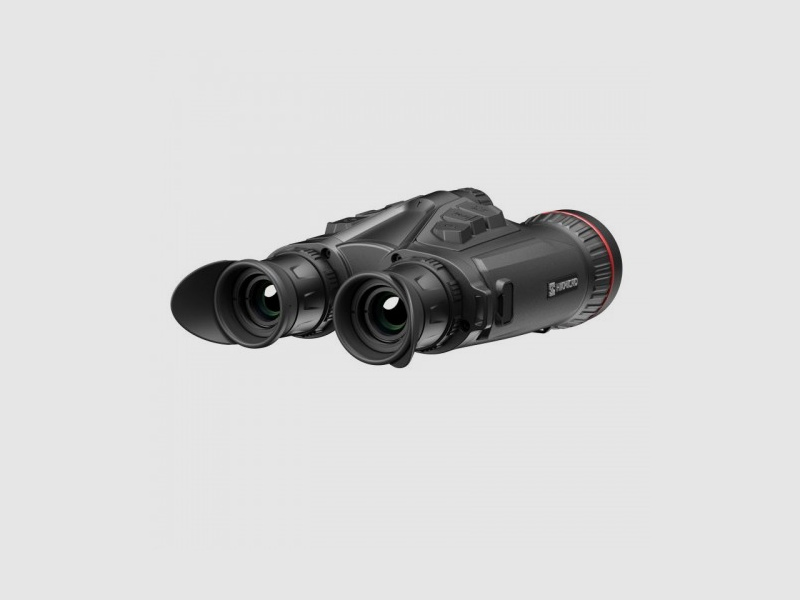

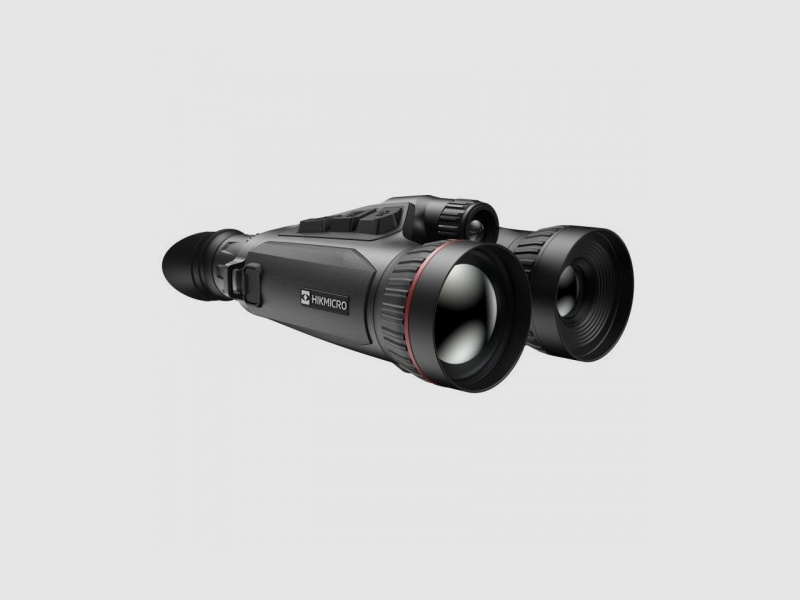

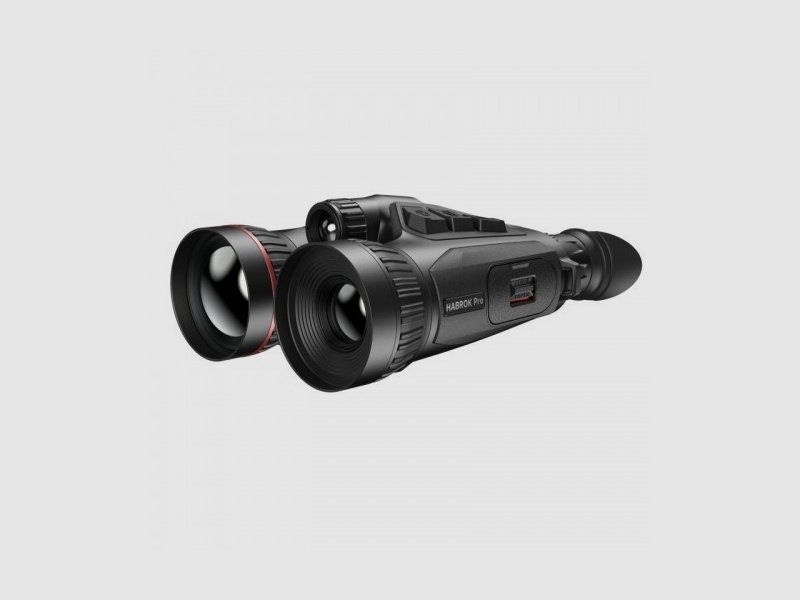

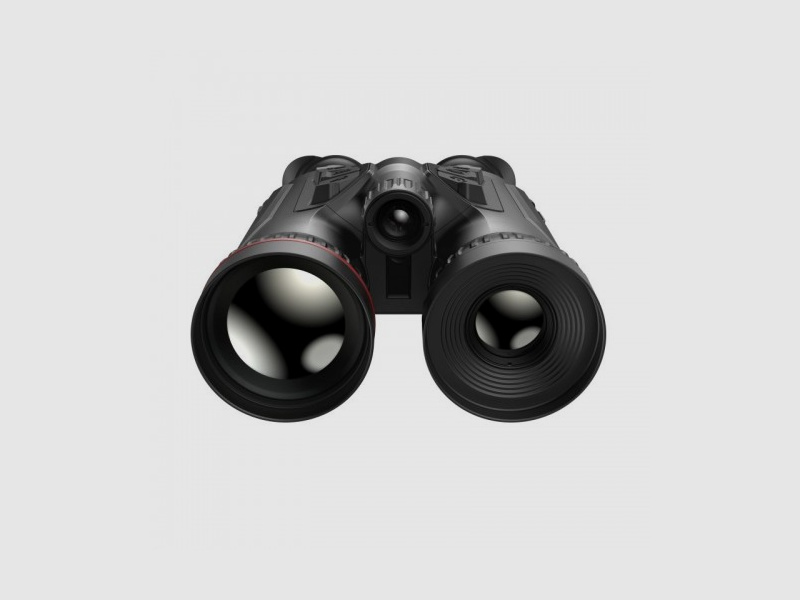

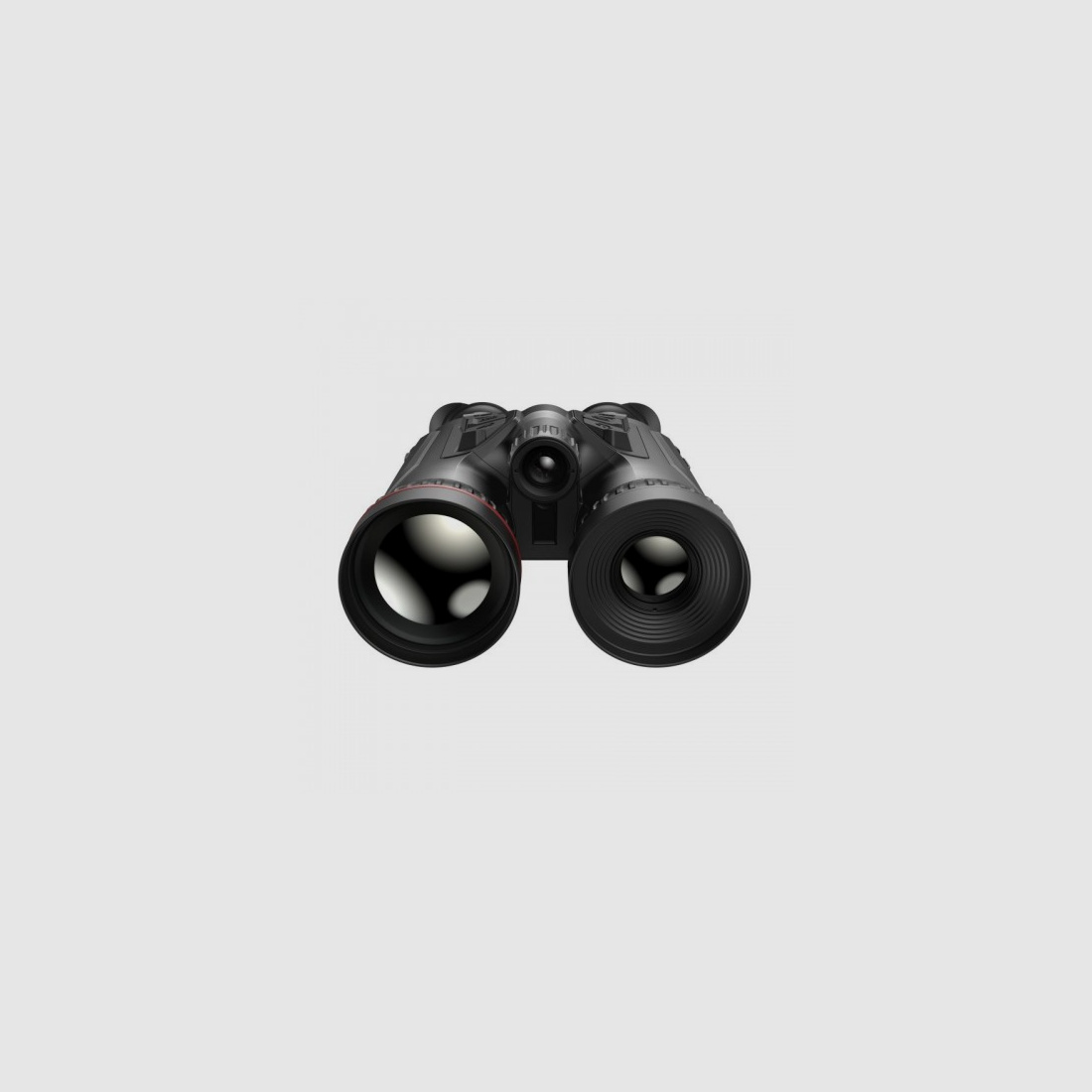

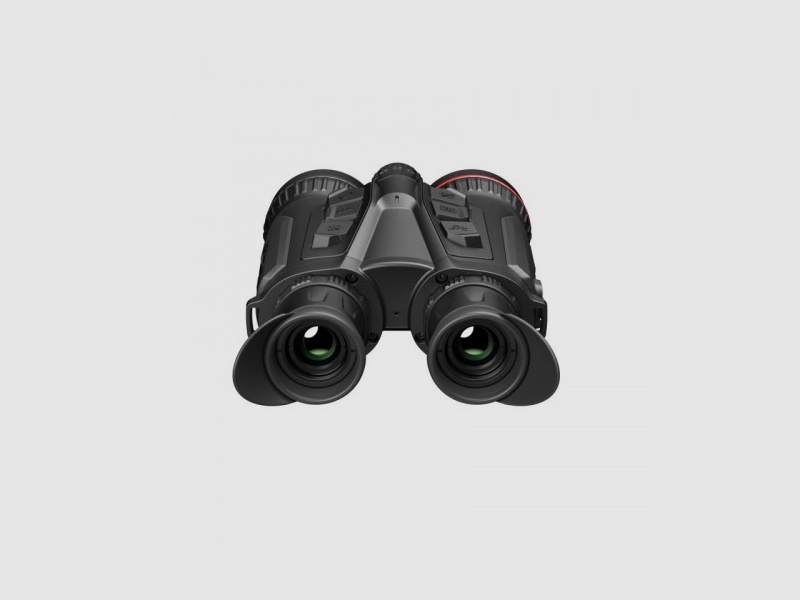

HIKMICRO HABROK Pro HX60LN – Advanced Multi-Spectrum Binoculars for Precise Observations

The HIKMICRO HABROK Pro HX60LN multi-spectrum binoculars offer an advanced combination of thermal imaging and optical technologies to ensure the highest image quality and detail accuracy under all conditions. With a high-resolution 1280 × 1024 thermal imaging detector with a NETD of < 18 mK and a 60 mm F1.0 lens, the HX60LN provides an impressive thermal detection range of up to 3100 meters. The 4K ultra-high-resolution CMOS detector delivers crystal-clear images day and night, while the integrated 1000 m laser rangefinder and interchangeable 940 nm IR illuminator emphasize the versatility and precision of this binocular.

The HX60LN is ideal for forest and field hunting, bird watching, wildlife tracking, rescue operations, and maritime applications.

Main Features:

• Thermal Imaging Detector: 1280 × 1024 resolution at 12 μm with a sensitivity of NETD < 18 mK (@25°C, F# = 1.0)


• Thermal Lens: 60 mm F1.0 with a detection range of up to 3100 m


• Optical Detector: 4K ultra-high-resolution CMOS detector


• Display: 1920 × 1080 OLED with 0.49 inches for sharp images


• Laser Rangefinder: Integrated with a range of up to 1000 m and ±1 m measurement accuracy


• Integrated IR Illuminator: 940 nm wavelength with a night visibility range of up to 350 m


• Battery Life: Rechargeable and replaceable Li-Ion battery with a runtime of up to 7 hours


• Ergonomic Design: Lightweight (1050 g) and compact for comfortable use

Thermal Module:

• Image Sensor: VOx Uncooled Focal Plane Arrays


• Maximum Resolution: 1280 × 1024


• Frame Rate: 25 Hz


• Pixel Pitch: 12 μm


• Response Wavelength: 8 μm to 14 μm


• Focus Mode: Focus ring


• Detection Range: 3100 m


• Minimum Focus Distance: 3 m


• Magnification: 2.6× to 20× (7.7×)


• Field of View: 14.6° × 8.8° / 25.6 m × 15.4 m @ 100 m

Optical Module:

• Image Sensor: 1.88“ Progressive Scan CMOS


• Maximum Resolution: 3840 × 2160


• Focal Length: 60 mm F2.2


• Minimum Working Distance: 3 m


• Focus Mode: Focus ring


• Magnification: 5.5× to 22.0× (4×)


• Field of View: 7.3° × 4.1° / 12.6 m × 7.2 m @ 100 m

Image Display:

• Display: 0.49 inches, OLED, 1920 × 1080


• Palettes: Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto


• Brightness Adjustment: Yes


• Contrast Adjustment: Cold, Warm


• Zoom Pro: Yes


• Image Pro 2.0: Yes

System Functions:

• Video Recording: Yes


• Snapshot: Yes


• Audio Recorder: Yes


• Standby Mode: Yes


• Storage: Integrated EMMC (64 GB)


• PIP (Picture-in-Picture): Yes


• Hotspot: Yes


• Hot Track: Yes


• Digital Magnetic Compass: Yes


• GPS: Yes


• Local Album: Yes

Power Supply:

• Battery Type: Replaceable and rechargeable Li-Ion battery


• Operating Time: Up to 7 hours at -20°C (Hotspot off, LRF and Zoom Pro on)


• Type-C Power Supply: 5 V DC/2 A


• Supports External Power Supply: Yes

General Information:

• Protection Class: IP67


• Dimensions: 152.8 mm × 81.95 mm × 231.5 mm (6.0″ × 3.2″ × 9.1″)


• Weight: 1050 g with battery


• Operating Temperature: -30°C to 55°C


• Interpupillary Distance: 60 mm to 74 mm


• Mounting Adapter: 1/4“-20-UNC

Laser Rangefinder:

• Laser Class: Class 1


• Wavelength: 905 nm


• Maximum Measurement Range: 1000 m


• Measurement Accuracy: ±1 m


• Minimum Measurement Range: 10 m

Available Models:

HM-TSAC-60S2G/W1LVN-HX60LN

Delivery Contents:

• 1x HIKMICRO HABROK Pro HX60LN


• 2x Rechargeable Li-Ion Battery


• 1x USB-C Cable


• 1x User Manual


• 1x Neck Strap


• 1x Cleaning Cloth


• 1x Tripod Adapter


• 1x Binocular Case


• 1x Battery Charging Station

Note: Please observe the legal regulations when mounting attachments or devices on weapons!
