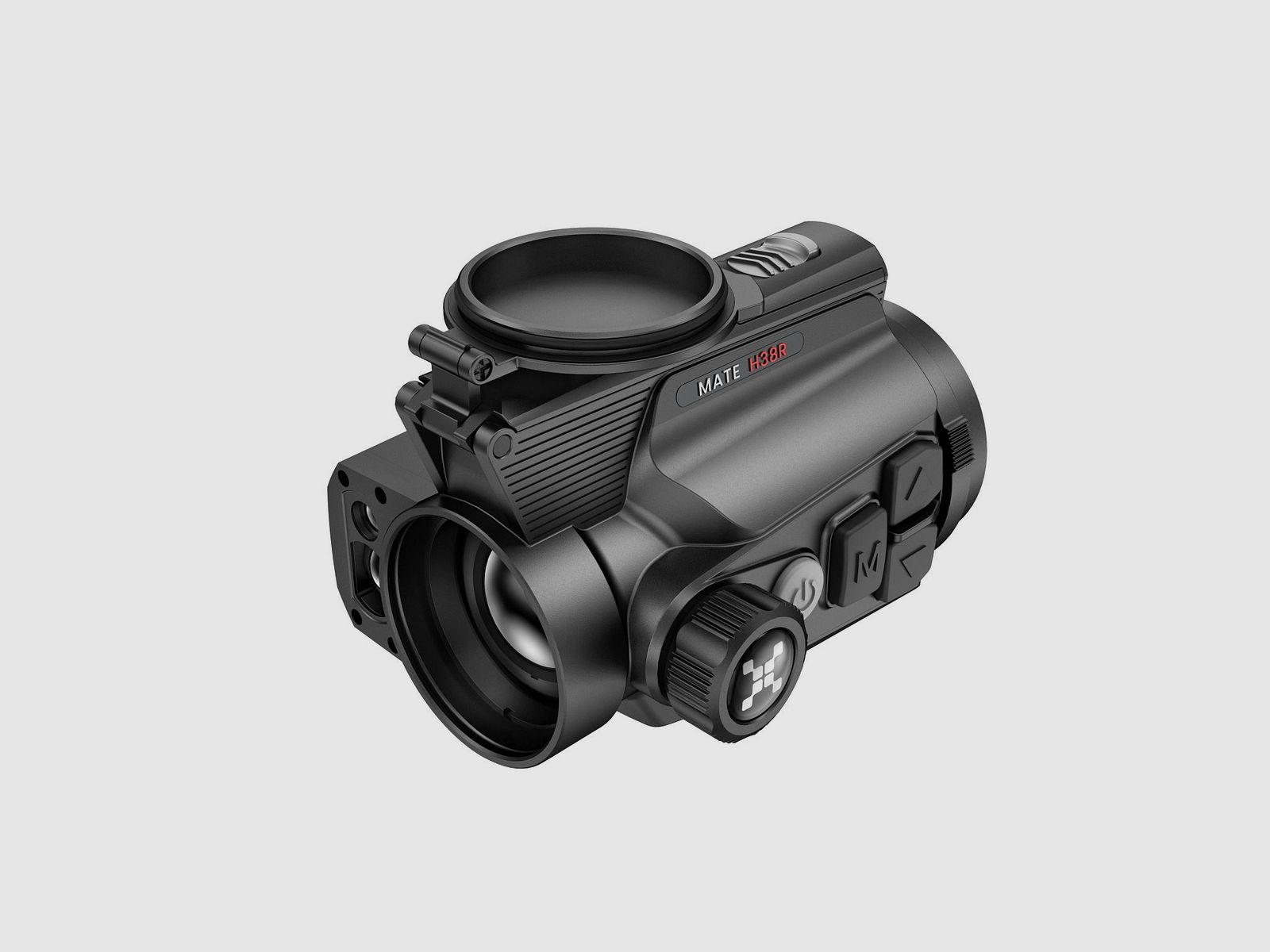

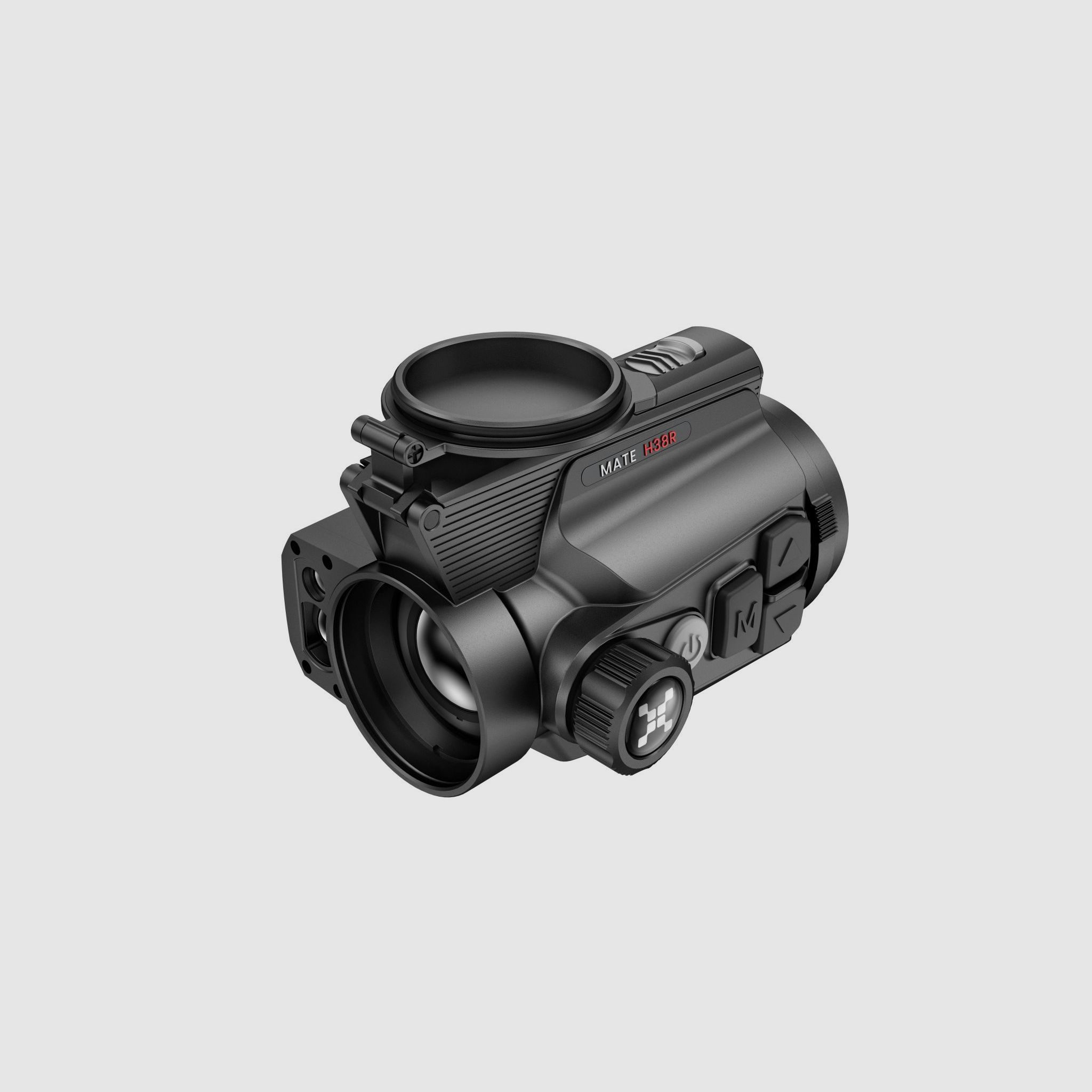

Nocpix Mate H38R thermal imaging camera

Nocpix Mate H38R Thermal Imaging Attachment

The Nocpix Mate H38R sets new standards in thermal imaging technology for attachments. It combines state-of-the-art sensor technology, innovative features, and a robust, lightweight housing designed for users who expect the highest precision and image quality.

Key Features

• High-resolution VOx sensor with 640 × 512 pixels @12 µm
• NETD = 15 mK detailed representation even in difficult conditions
• 38 mm F1.0 lens with up to 1,950 m detection range
• 1920 × 1080 AMOLED display with smooth 60 Hz
• Shutterless Image System for uninterrupted display
• Integrated laser rangefinder up to 1,200 m
• Ballistic calculator for automatic reticle adjustment
• Robust magnesium housing, 457 g lightweight, shockproof up to 7,000 J
• Replaceable 18650 battery with up to 4 hours of runtime

Detailed Product Description

With its 640 × 512 pixel VOx sensor and a thermal sensitivity of = 15 mK, the Mate H38R delivers high-contrast thermal images even in fog, rain, or minimal temperature differences. The series is also available with a 1280 × 1024 pixel sensor as an option.

The bright 38 mm F1.0 lens allows for a detection range of up to 1,950 m. The large AMOLED display with 1920 × 1080 pixels, combined with a 60 Hz refresh rate, ensures brilliant, smooth representation.

Through the Magic Zoom function, the thermal image is automatically adjusted to the magnification of the daylight optics. The integrated R+ AI technology optimizes scaling and ensures clear images at all times.

The built-in laser rangefinder (up to 1,200 m) works in conjunction with the integrated ballistics calculator and automatically adjusts the reticle to the determined distance. This facilitates quick and precise target acquisition.

With its two-part magnesium housing, the Mate H38R is lighter and more stable than conventional constructions. Despite its low weight of only 457 g, precision remains reliably maintained even with heavy calibers.

The 18650 battery system offers flexibility through replaceable, rechargeable batteries with a runtime of up to 4 hours. Ideal for extended operations.

Technical Specifications

Scope of Delivery

• Nocpix Mate H38R
• Accessories for remote control
• Magic Zoom
• 3 × 18650 battery
• Battery charger
• Type-C cable
• 10 × heat pads
• Lens cloth
• Quick start guide
• Carrying case

Discover now: The Nocpix Mate H38R offers state-of-the-art thermal imaging technology in a compact design. Order today and benefit from the highest precision and reliability.
