At the peak of perfection.
The EL Range combines the best of optical performance and ergonomics. Crystal-clear images with precise distance and angle measurement, along with the perfectly balanced weight for steady handling, speak for this masterful binocular. With the FieldPro package, the quick switch between straps and accessories and the new, clearly defined measurement button are now also among the advantages of the EL Range.

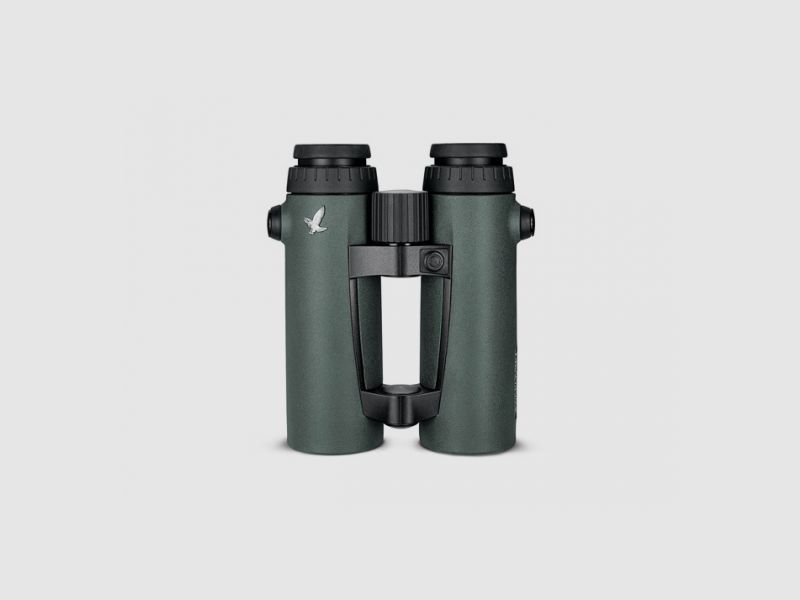

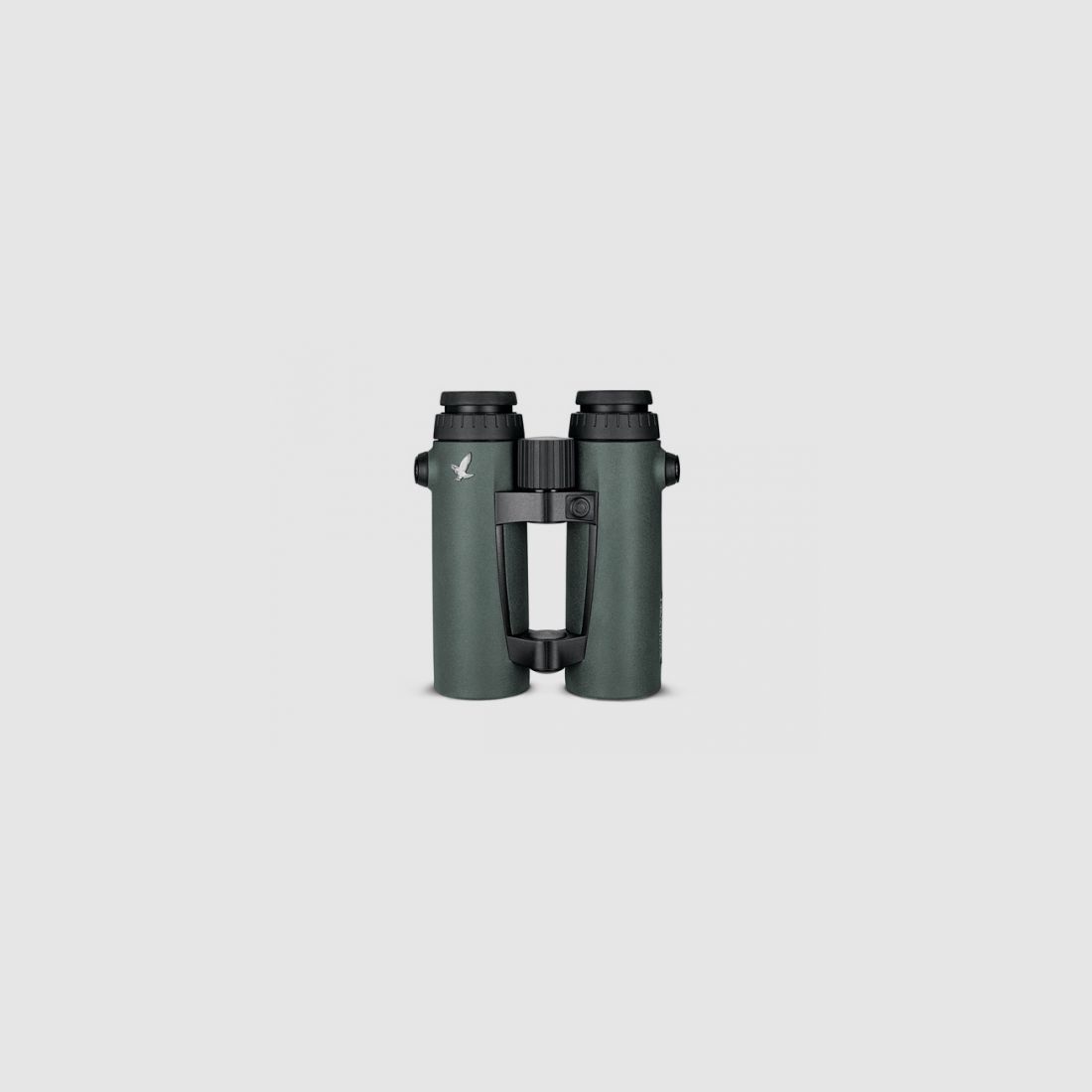

EL Range 10x42 W B
Observe without compromise. The EL Range 10x42 binocular reveals the exact details at long distances with its 10x magnification. With the new FieldPro package, the EL Range 10x42 also impresses with its advanced strap connection, integrated objective and eyepiece protection caps, as well as the new, distinctive measurement button for even more precise operation.
Included
Comfort carrying strap Pro with pockets for spare battery made of new, improved material for increased carrying comfort, Field Bag Pro, eyepiece protection cap, objective protection cap
Technical specifications:
- Magnification: 10x
- Effective objective diameter (mm): 42
- Exit pupil diameter (mm): 4.2
- Exit pupil distance (mm) (eye relief): 17.3
- Field of view (m/1000 m): 110
- Field of view (degrees): 6.3
- Field of view for eyeglass wearers (degrees): 6.3
- Eye-side field of view (degrees): 61
- Shortest focusing distance (m): 5
- Diopter adjustment (dpt): +5
- Light transmission (%): 91
- Pupillary distance (mm): 56 - 74
- Twilight number according to DIN 58388: 20.5
- Length approx. (mm)*: 160
- Width approx. (mm)**: 137
- Height approx. (mm)**: 81
- Weight approx. without battery (g): 880
- Operating temperature (mechanical / electronic): -25 °C/+55 °C / -10 °C/+55 °C
- * Value with eyecup lowered: -
- ** Dimensions at 64 mm pupillary distance: -
- Measurement range (m): 30 - 1,375
- Measurement accuracy (m): ± 1
- Measurement duration (sec): ≤ 1
- Angle measurement (degrees): ± 90
- Laser: Class 1 EN/FDA
- Switching: Yard / Meter
- Battery: CR2
- Lifespan: 1,000 measurements
(Show description in original language)
Am Gipfel der Perfektion.
Im EL Range ist das Beste aus Fernoptik und Ergonomie vereint. Gestochen scharfe Bilder mit präziser Entfernungs- und Winkelmessung und das perfekt ausbalancierte Gewicht für ruhige Handhabung sprechen für dieses meisterhafte Fernglas. Mit dem FieldPro Paket zählen nun auch der schnelle Wechsel zwischen Riemen und Zubehör und die neue, klar definierte Messtaste zu den Vorzügen des EL Range.
EL Range 10x42 W B
Beobachten ohne Kompromisse. Das EL Range 10x42 Fernglas zeigt mit seiner 10fachen Vergrößerung die genauen Details beim Ansprechen auf große Distanzen. Mit dem neuen FieldPro Paket überzeugt das EL Range 10x42 auch mit seiner weiterentwickelten Riemenanbindung, integrierten Objektiv- und Okularschutzdeckeln sowie mit der neuen, markanten Messtaste für noch präziseres Bedienen.
Inbegriffen
Komforttrageriemen Pro mit Taschen für Ersatzbatterie aus neuem, verbessertem Material für erhöhten Tragekomfort, Field Bag Pro, Okularschutzdeckel, Objektivschutzdeckel
Technische Daten:
Vergrößerung: 10x
wirksamer Objektiv-Ø (mm): 42
Austrittspupillen-Ø (mm): 4,2
Austrittspupillenabstand (mm) (Augenabstand): 17,3
Sehfeld (m/1000 m): 110
Sehfeld (Grad): 6,3
Sehfeld für Brillenträger (Grad): 6,3
augenseitiges Sehfeld (Grad): 61
kürzeste Einstellentfernung (m): 5
Dioptrienausgleich (dpt): +5
Lichttransmission (%): 91
Pupillendistanz (mm): 56 - 74
Dämmerungszahl nach DIN 58388: 20,5
Länge ca. (mm)*: 160
Breite ca. (mm)**: 137
Höhe ca. (mm)**: 81
Gewicht ca. ohne Batterie (g): 880
Funktionstemperatur (mechanisch / elektronisch): -25 °C/+55 °C / -10 °C/+55 °C
* Wert bei gesenkter Augenmuschel: -
** Abmessungen bei 64-mm-Pupillendistanz: -
Messbereich (m): 30 - 1.375
Messgenauigkeit (m): ± 1
Messdauer (sec): ≤ 1
Winkelmessung (Grad): ± 90
Laser: Klasse 1 EN/FDA
Umschaltung: Yard / Meter
Batterie: CR2
Lebensdauer: 1.000 Messungen
