The compensator was developed together with one of the best IPSC shooters in the Nordic region (Kenneth Salen) to achieve a maximum reduction of recoil and muzzle rise. The compensator is manufactured using 3D laser sintering, allowing for precise gas control through unique geometric elements – something that is not achievable with conventional manufacturing methods.
The TE-TITAN offers an unprecedented ratio of performance to weight in the market. Made from titanium grade 5, the compensator is both light and extremely robust. In the front chamber, there are two holes designed for the AR-15 platform. These can be drilled if necessary to fine-tune the muzzle movement individually. This allows the compensator to be precisely adjusted to any weapon platform, ammunition, and type of use. The TE-TITAN gives you full control over the recoil.
The Gen3 models feature an enlarged first expansion chamber to provide more gas volume for the ports, enabling an even flatter shooting behavior. Additional material in the first outer baffle and reinforcement ribs in ports 1 and 3 increase the stability of the entire baffle stack and significantly extend its lifespan.
Technical Data
________________

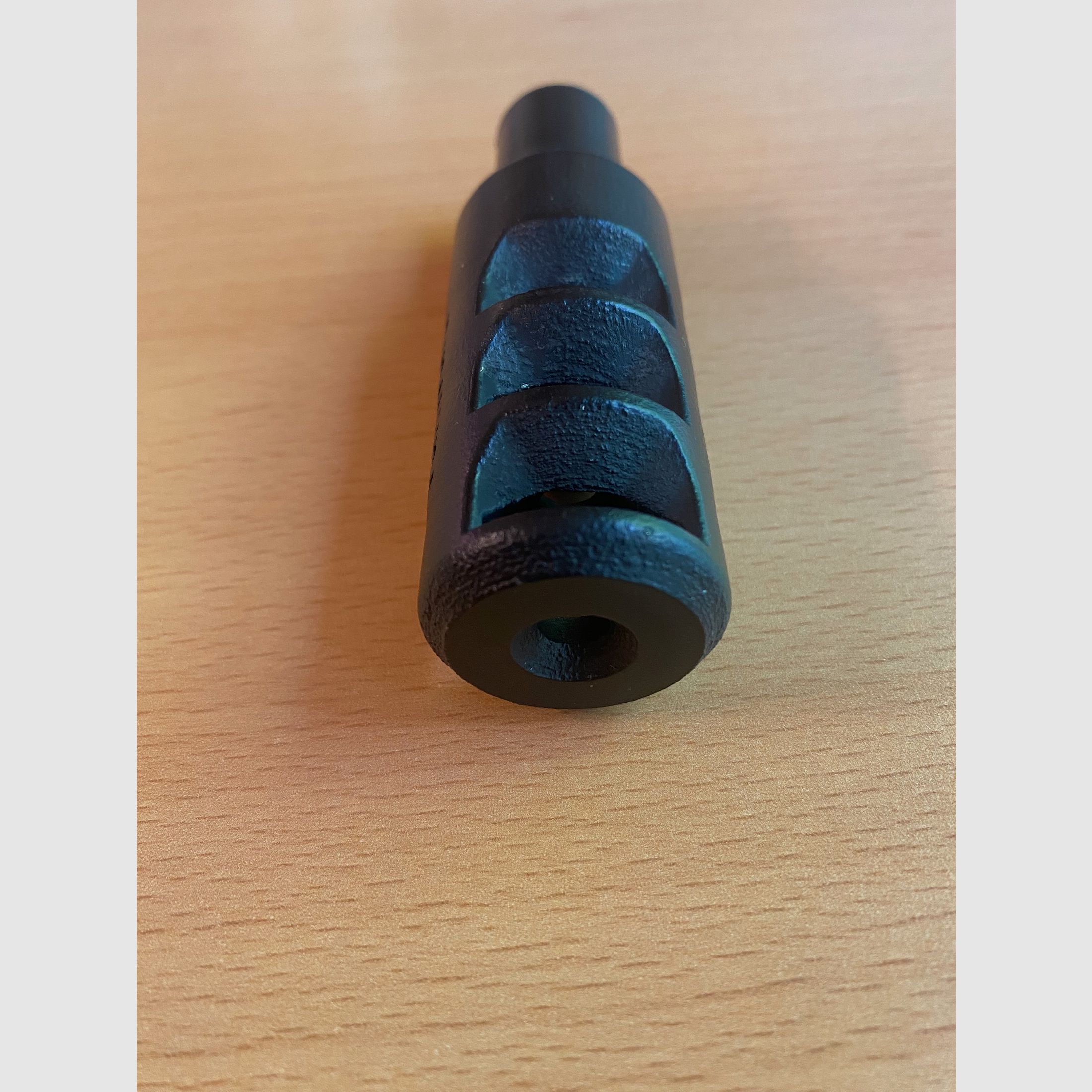

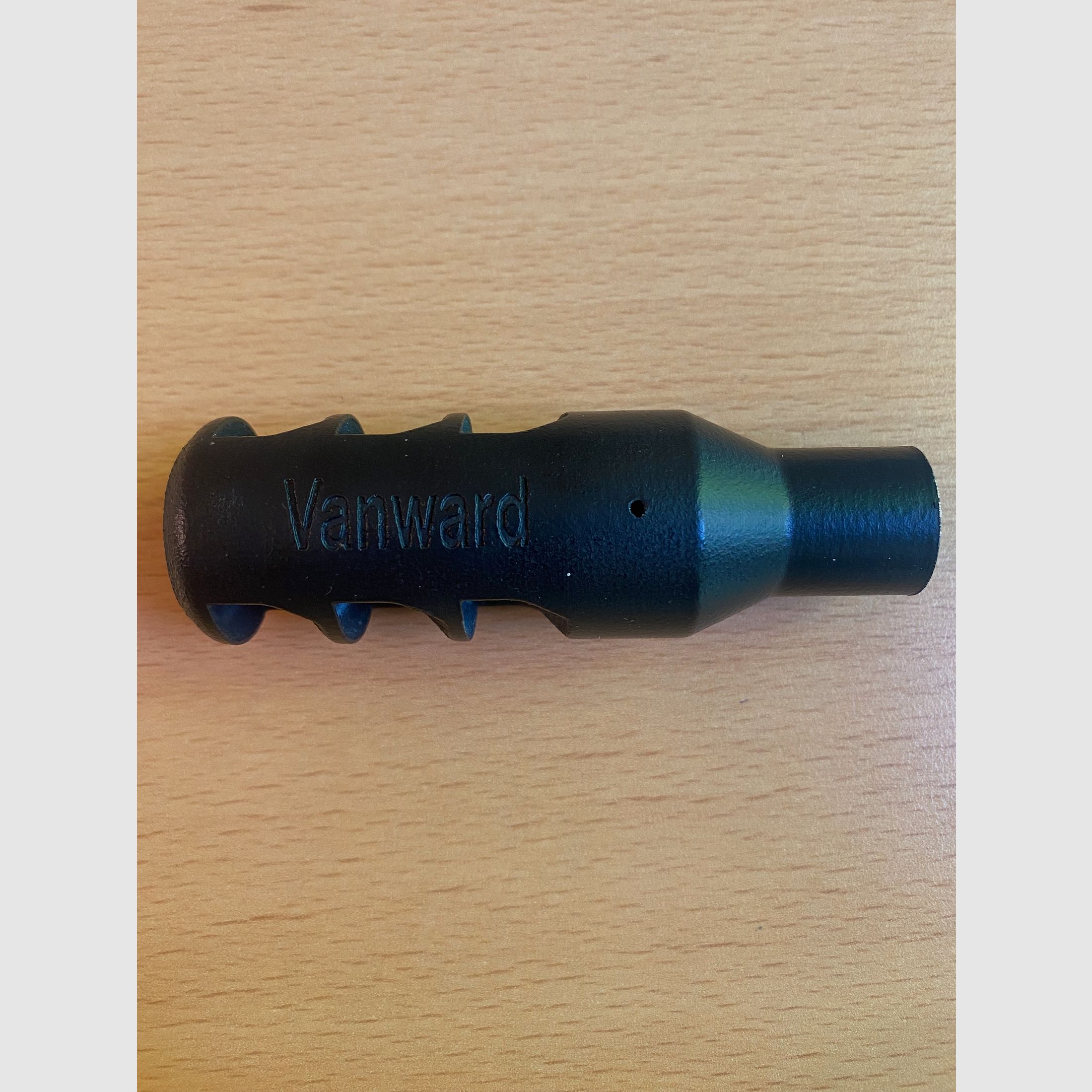

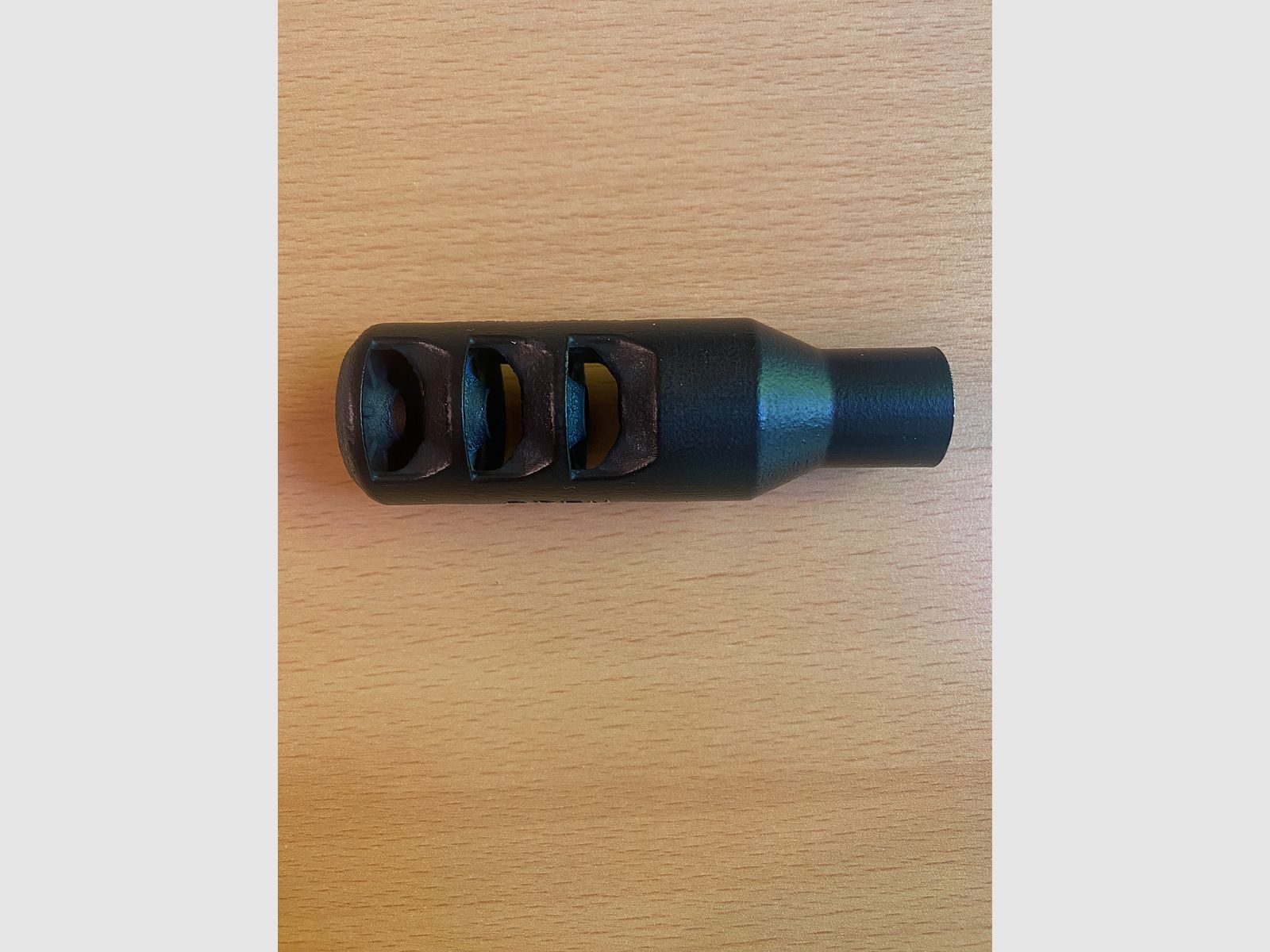

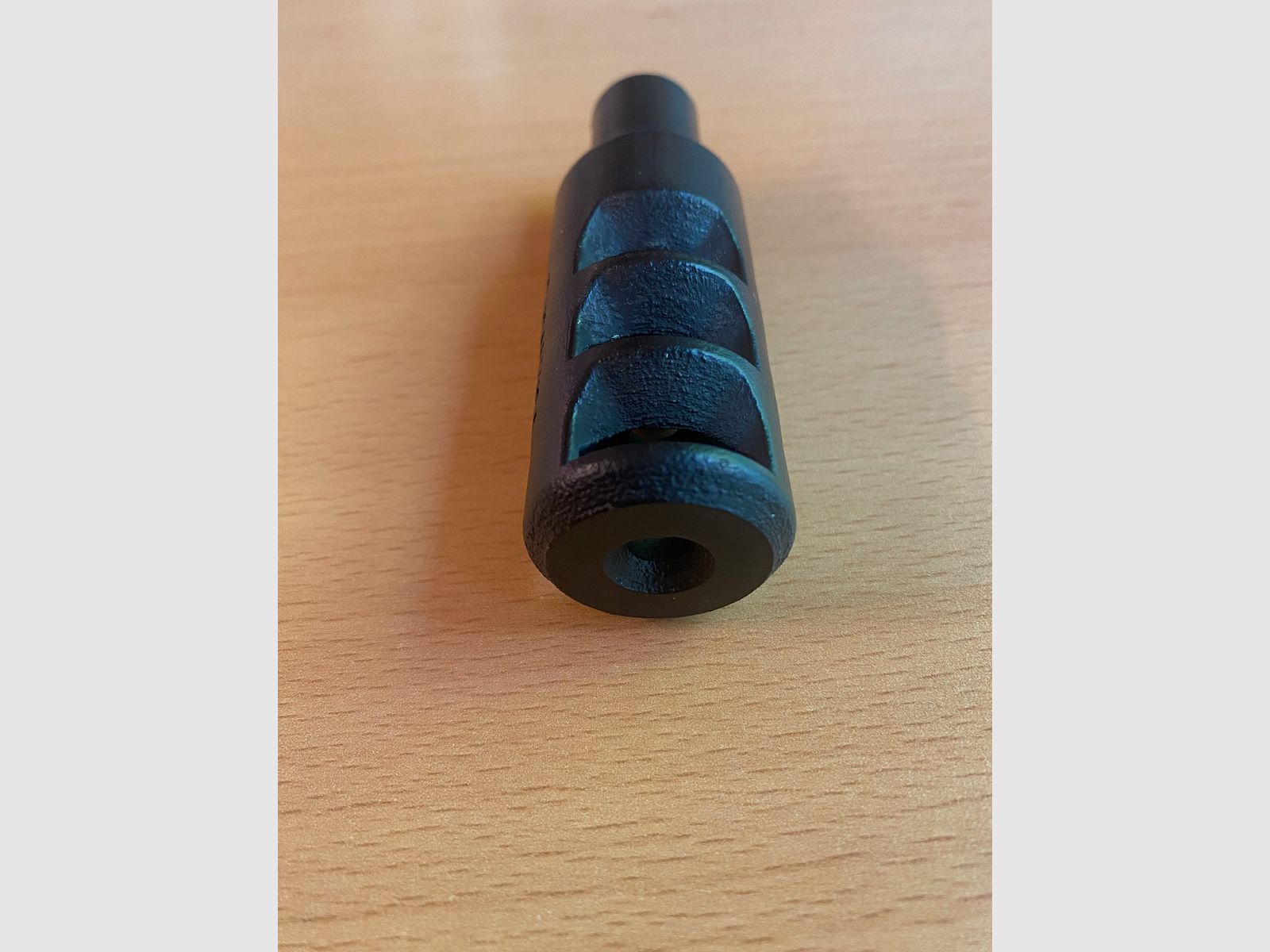

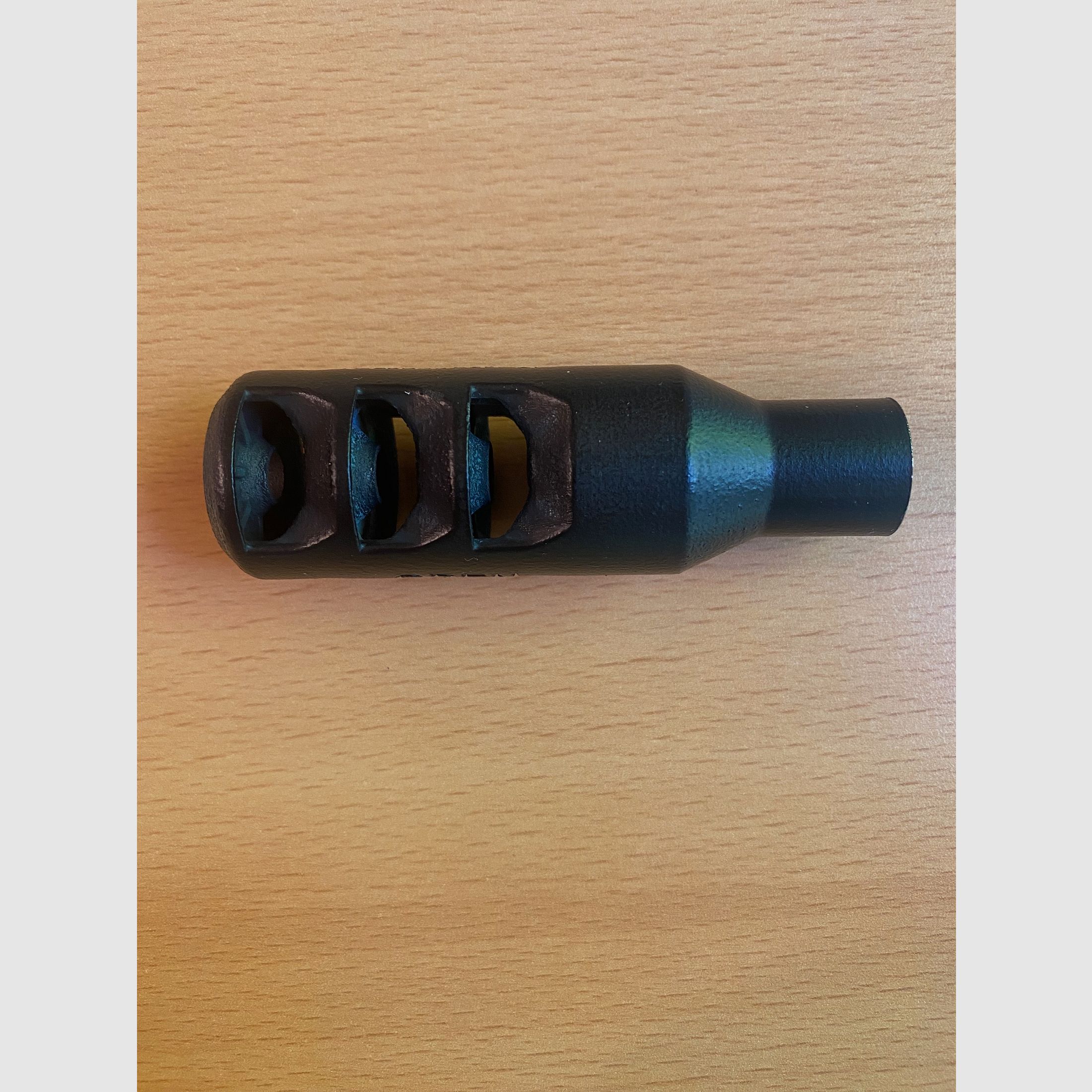

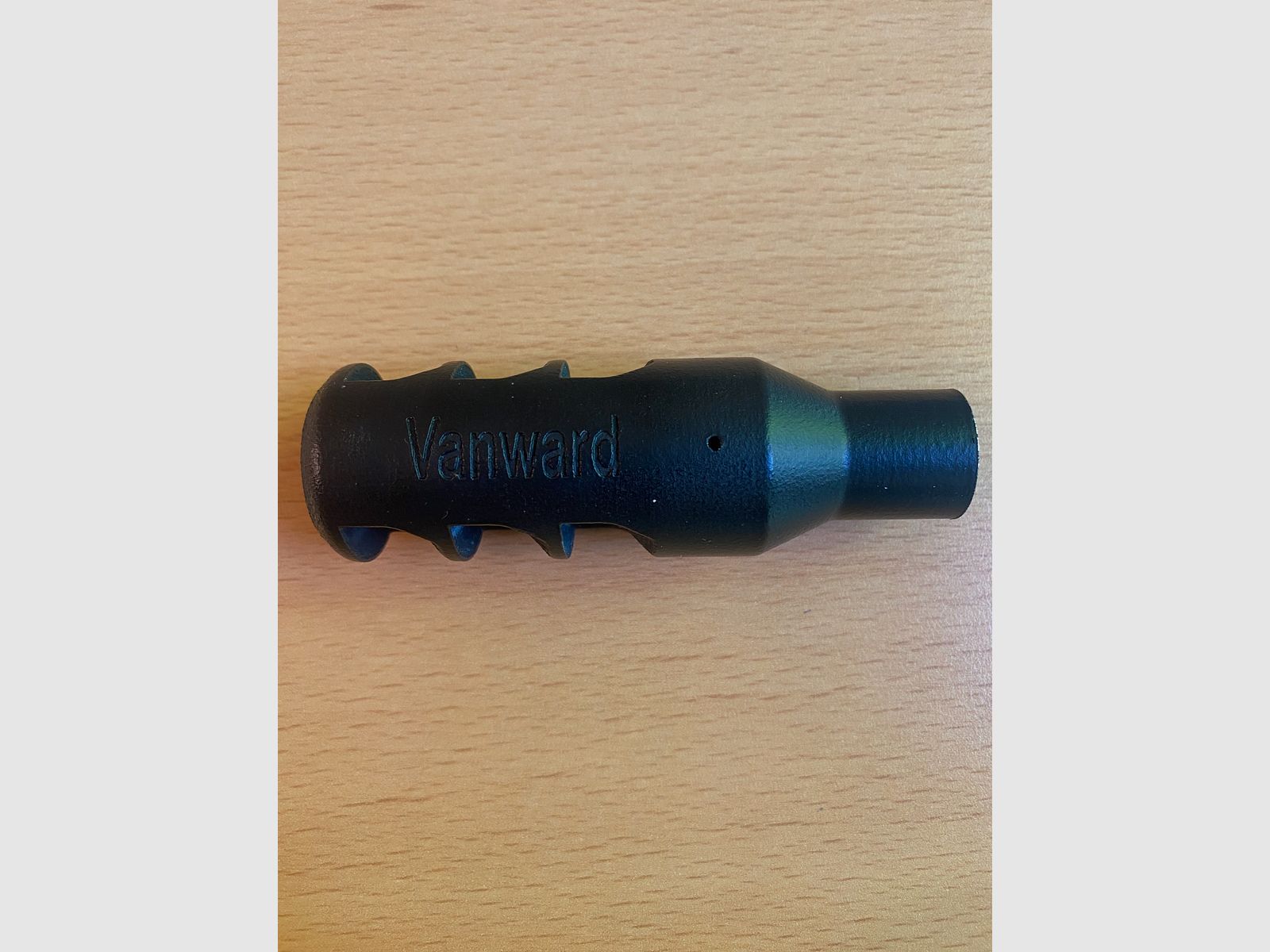

Compensator VANWARD TE-TITAN OPEN .223 Gen3 Black
The compensator is designed for IPSC together with one of the best shooters in the Nordic region (Kenneth Salen) to provide a maximum reduction of recoil and muzzle flip. The compensator is 3D laser sintered to provide a control of the gases with unique geometrical elements, which is not possible with traditional production methods. The TE-TITAN provides a superior ratio of performance and weight, that is simply unachieved in the market. Consists of titanium grade 5, which makes the compensator light and strong. There are two holes in the front chamber, dimensioned for the AR 15 platform. The holes can be drilled to fine tune muzzle movement on demand. This allows the compensator to be adjusted precisely to any weapon platform, ammunition and use. The TE-Titan compensator gives you full control of the recoil.
The Gen3 models provide a larger first chamber to increase gas amount for the ports to provide the ultimate flat shooting experience. Added material in the first outer baffle plus sterns in port 1 and 3 add strength to the whole baffle stack and increase lifetime.
Caliber: .223Rem
Weight: 102 gr
Total length: 92.6 mm
Build length: 74.0 mm
Comp diameter: 29.9 mm
Barrel diameter: 19mm
Barrel thread: 1/2"-28 UNEF
Color: Titanium Grey / Graphite Black
Der Kompensator wurde gemeinsam mit einem der besten IPSC-Schützen im nordischen Raum (Kenneth Salen) entwickelt, um eine maximale Reduzierung von Rückstoß und Mündungsanstieg zu erreichen. Der Kompensator wird im 3D-Lasersinterverfahren gefertigt, wodurch eine präzise Gasführung mittels einzigartiger geometrischer Elemente möglich ist – etwas, das mit herkömmlichen Fertigungsmethoden nicht realisierbar wäre.
Der TE-TITAN bietet ein auf dem Markt bislang unerreichtes Verhältnis von Leistung zu Gewicht. Gefertigt aus Titan Grade 5, wodurch der Kompensator gleichzeitig besonders leicht und extrem robust ist. In der vorderen Kammer befinden sich zwei Bohrungen, abgestimmt auf die AR-15 Plattform. Diese können bei Bedarf aufgebohrt werden, um die Mündungsbewegung individuell feinzujustieren. Dadurch lässt sich der Kompensator präzise auf jede Waffenplattform, Munition und Einsatzart abstimmen.Der TE-TITAN gibt Ihnen die volle Kontrolle über den Rückstoß.
Die Gen3-Modelle verfügen über eine vergrößerte erste Expansionskammer, um mehr Gasvolumen für die Ports bereitzustellen und so ein noch flacheres Schussverhalten zu ermöglichen. Zusätzliches Material an der ersten äußeren Baffle sowie Verstärkungsstege in Port 1 und 3 erhöhen die Stabilität des gesamten Baffle-Stacks und verlängern die Lebensdauer deutlich.
Technische Daten
________________
Compensator VANWARD TE-TITAN OPEN .223 Gen3 Black
The compensator is designed for IPSC together with one of the best shooters in the Nordic region (Kenneth Salen) to provide a maximum reduction of recoil and múzzle flip. The compensator is 3D laser sintered to provide a control of the gases with unique geometrical elements, which is not possible with traditional production methods. The TE-TITAN provides a superior ratio of performance and weight, that is simply unachieved in the market. Consists of titanium grade 5, which makes the compensator light and strong. There are two holes in the front chamber, dimensioned for the AR 15 platform. The holes can be drilled to fine tune muzzle movement on demand. This allows the compensator to be be adjusted precisely to any weapon platform, ammunition and use. The TE-Titan compensator gives you full control of the recoil.
The Gen3 models provide a larger first chamber to increase gas amount for the ports to provide the ultimate flat shooting experience. Added material in the first outer baffle plus sterns in port 1 and 3 add strength to the whole baffle stack and increase lifetime.
Caliber: .223Rem
Weight: 102 gr
Total length: 92.6 mm
Build length: 74.0 mm
Comp diameter: 29.9 mm
Barrel diameter: 19mm
Barrel thread: 1/2"-28 UNEF
Color: Titanium Grey / Graphite Black
