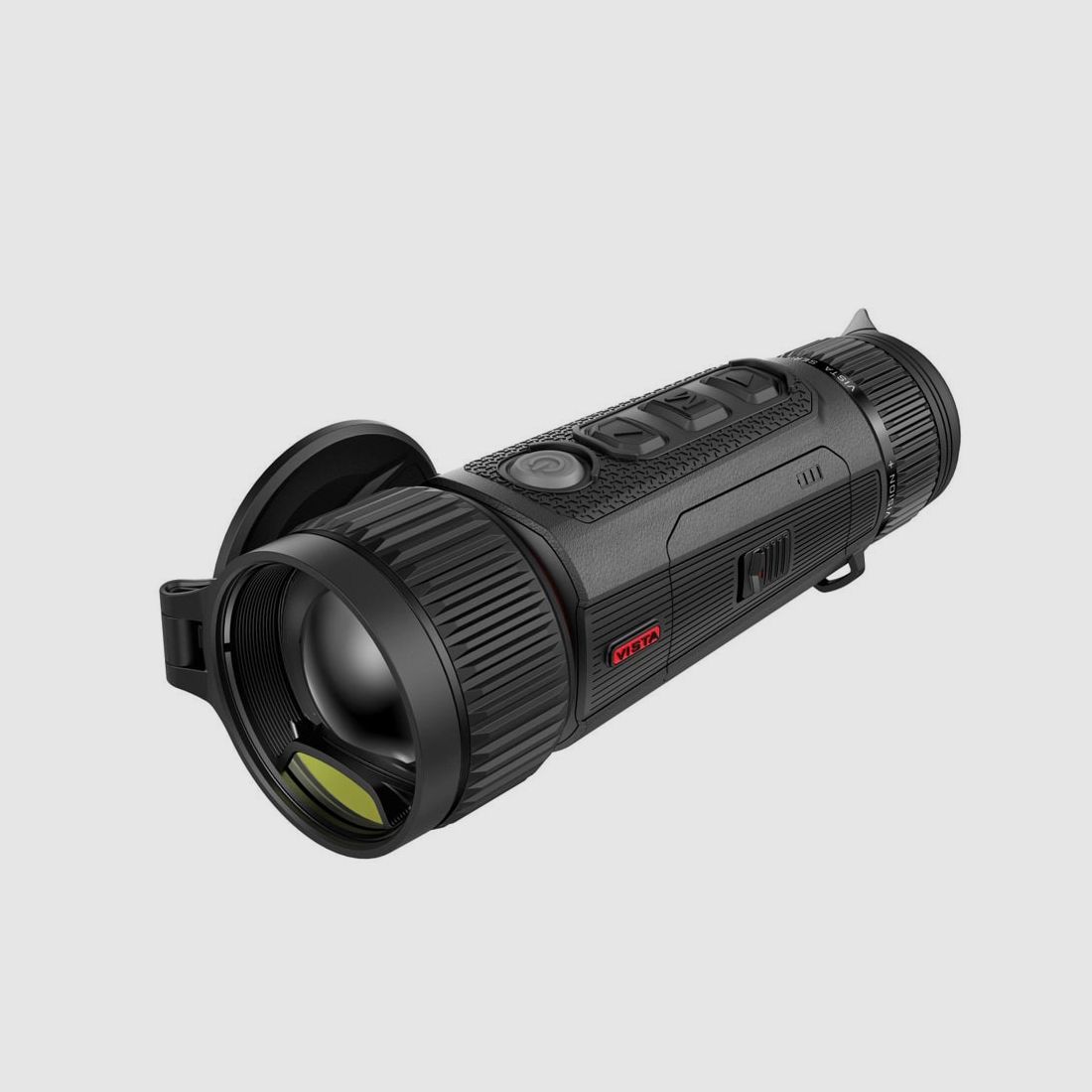

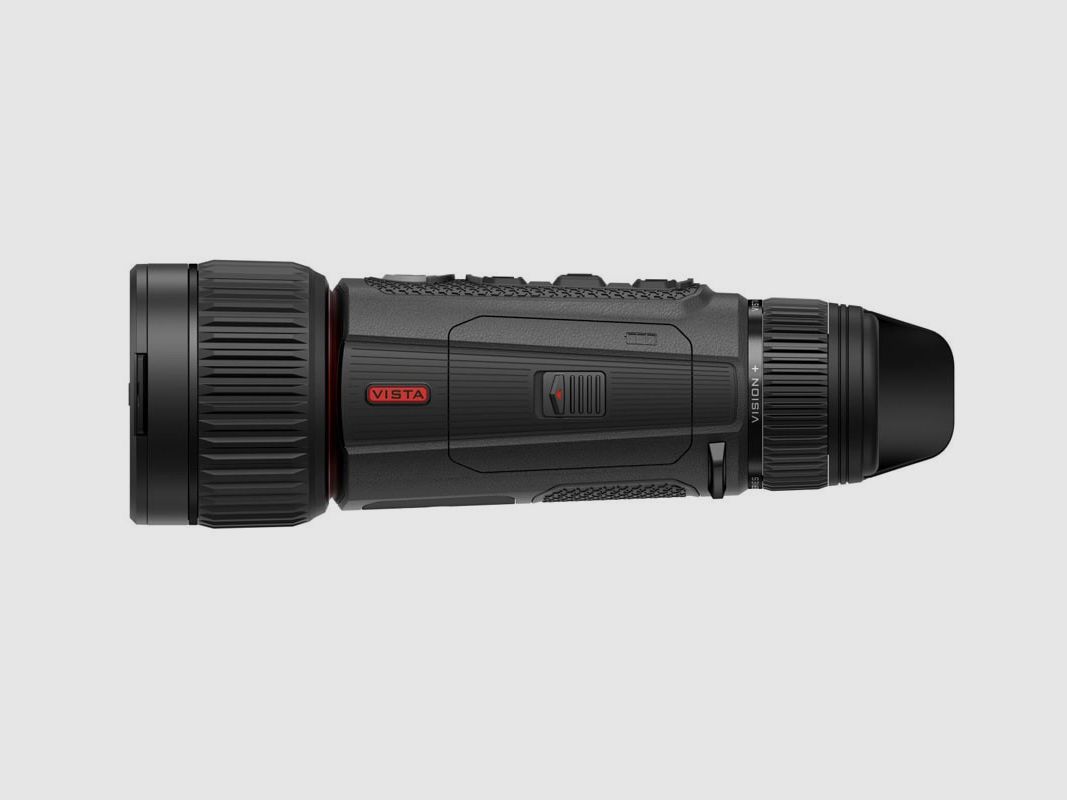

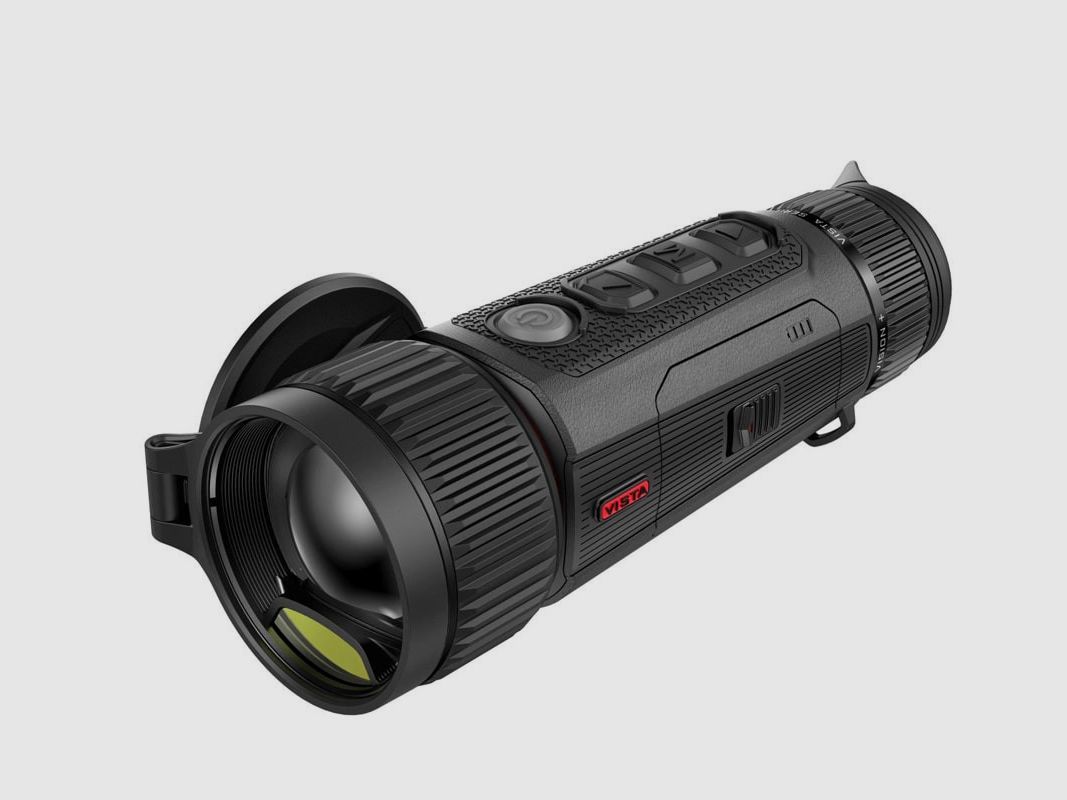

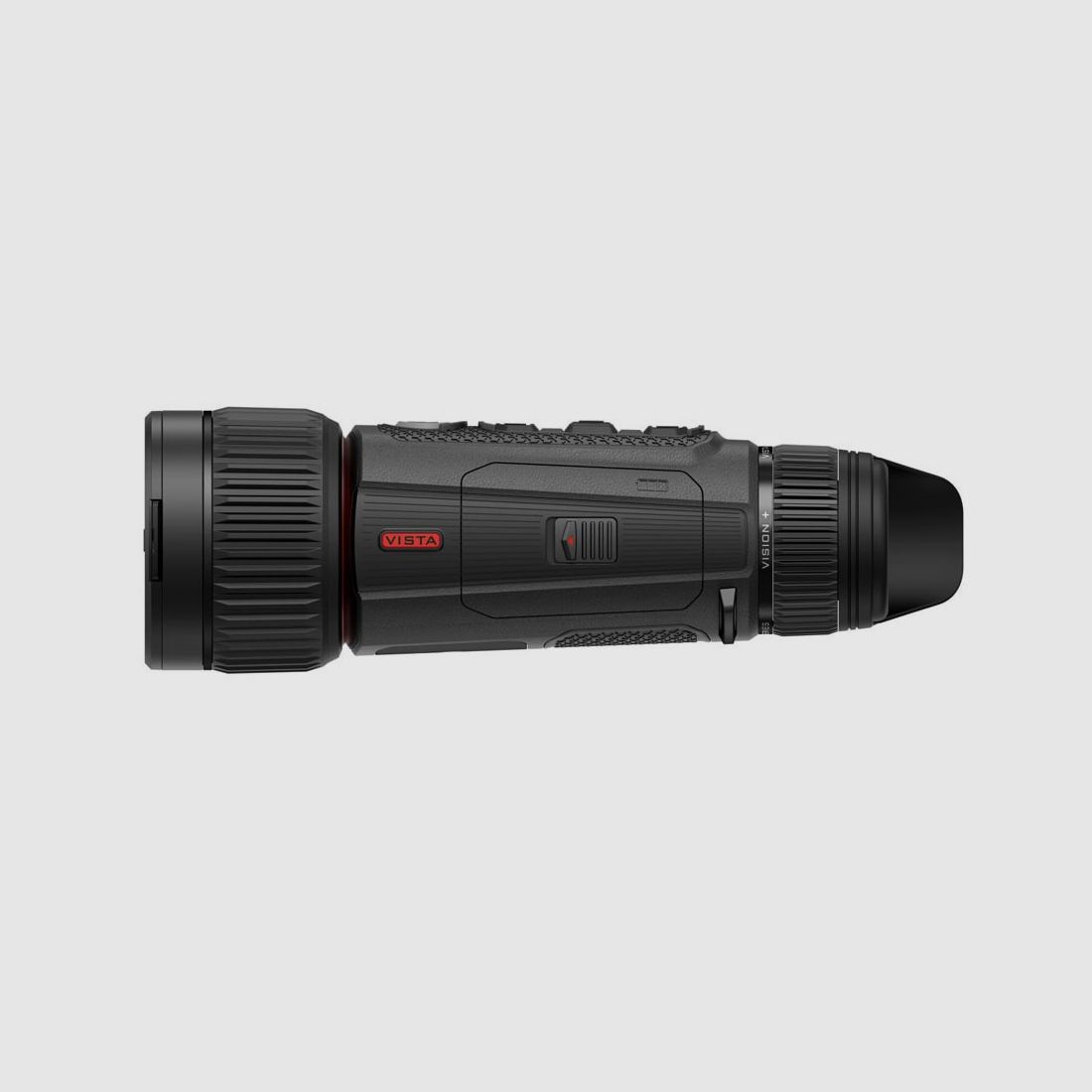

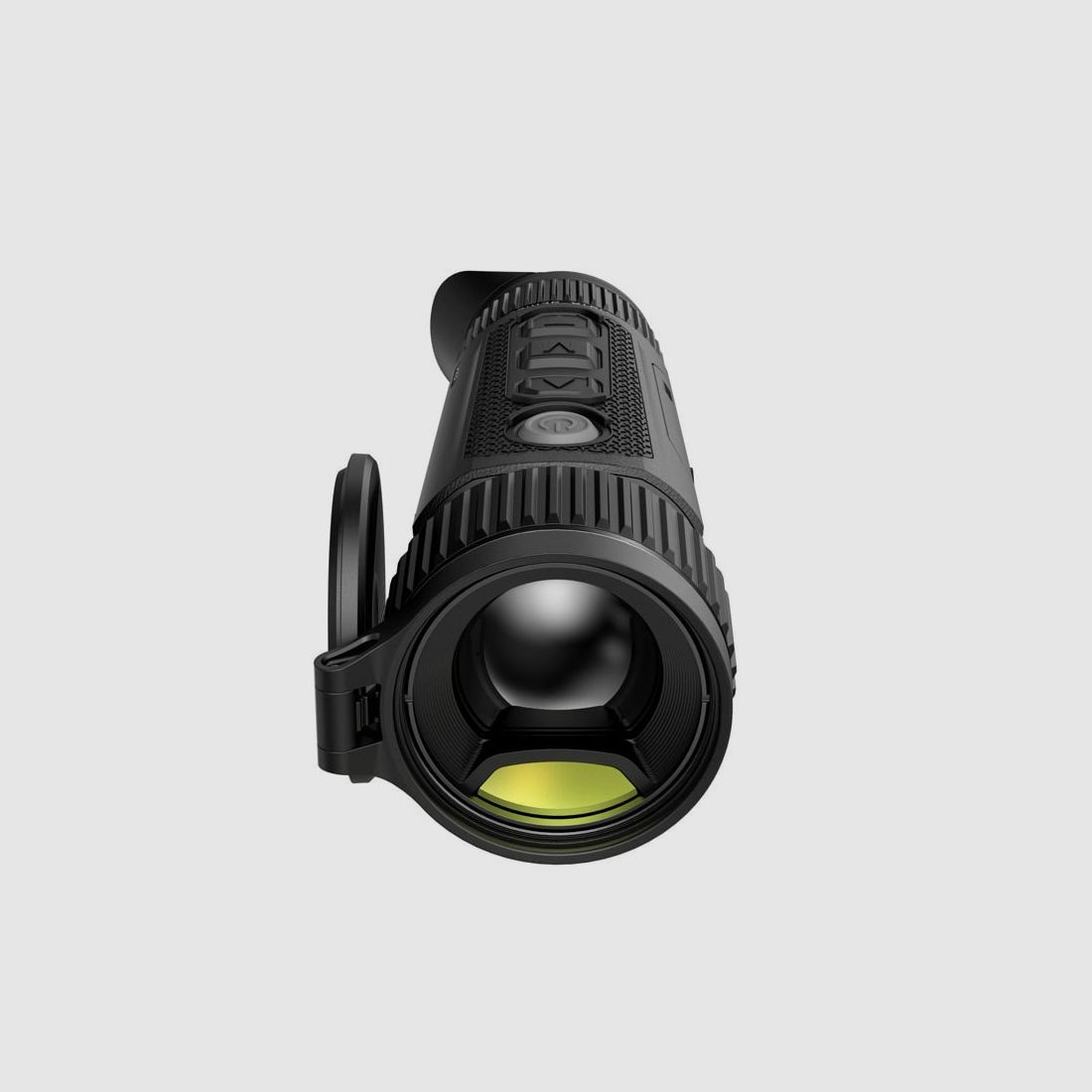

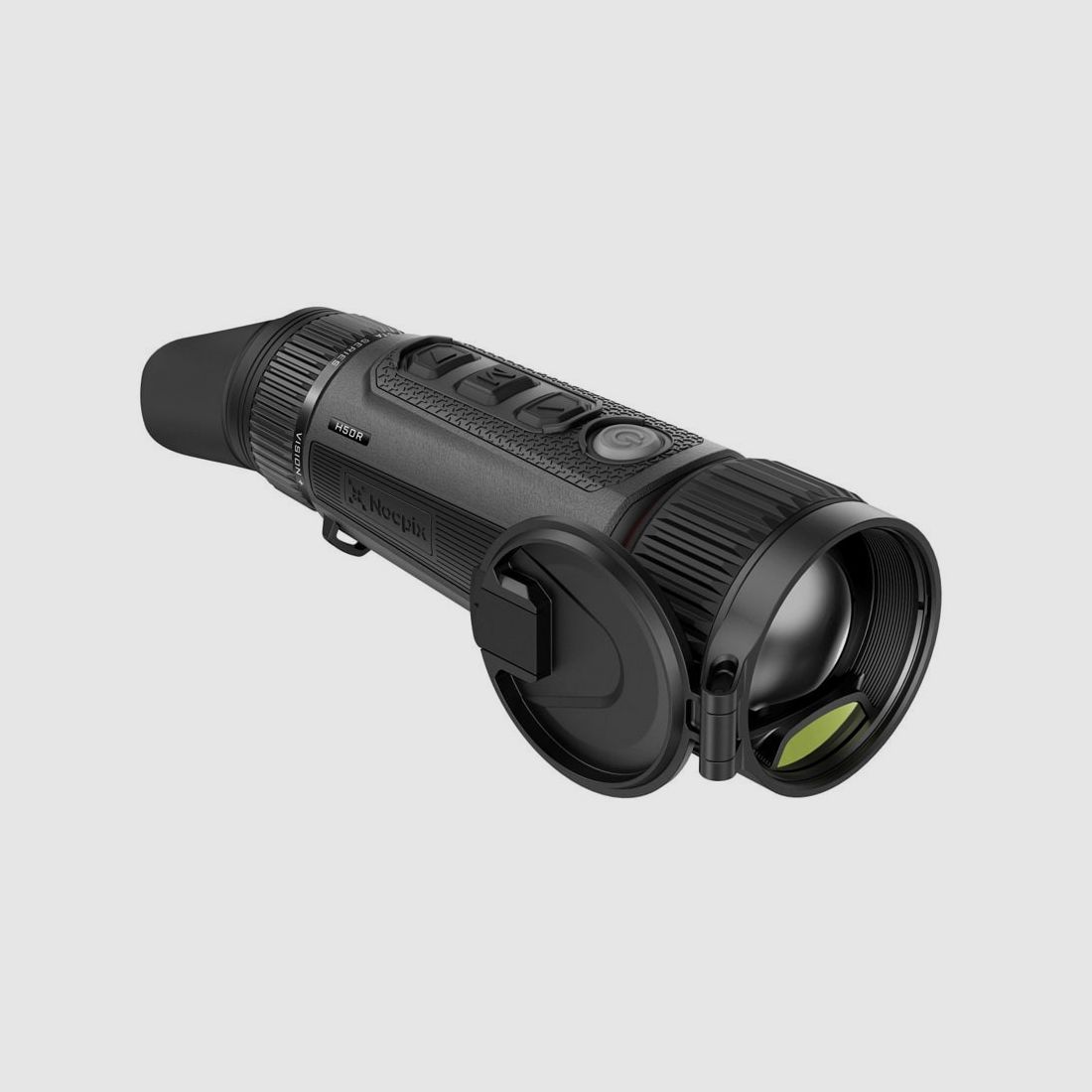

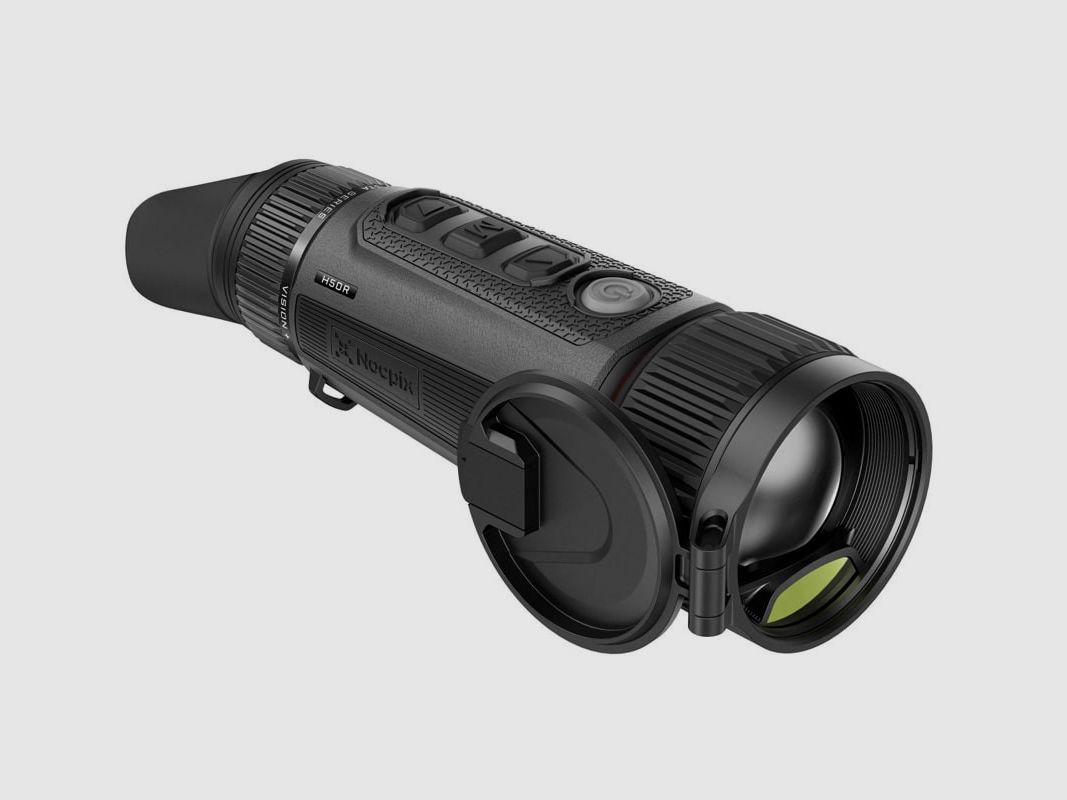

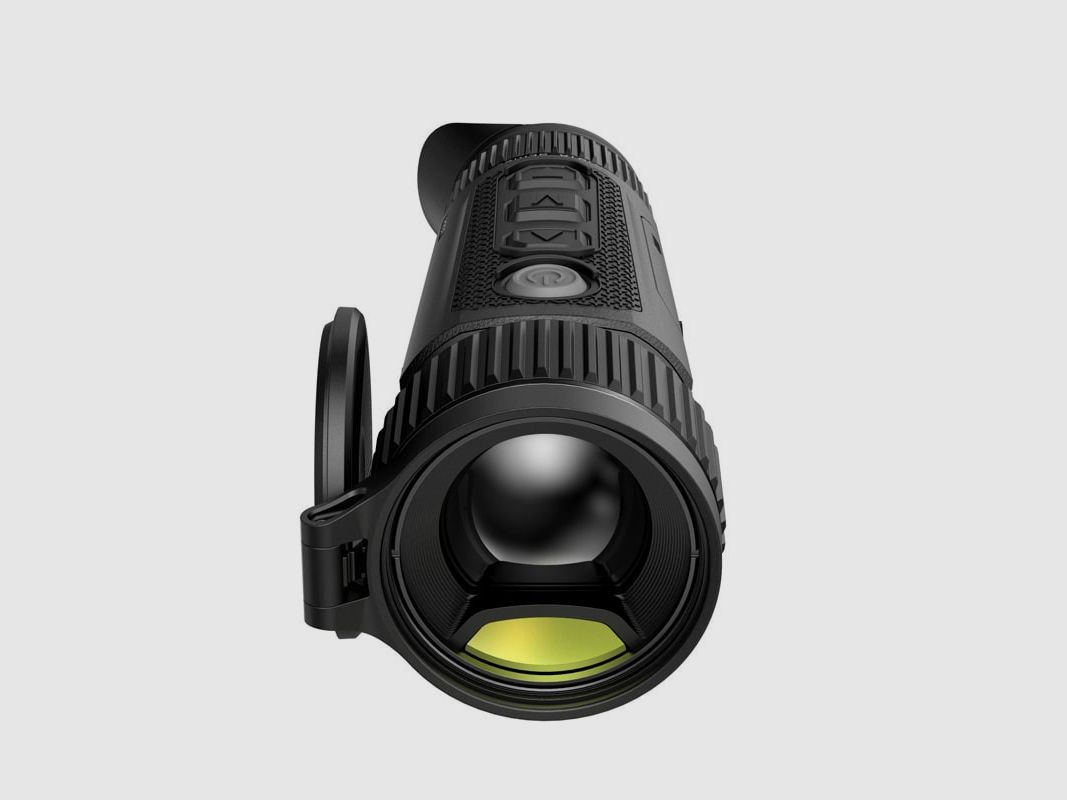

The Nocpix VISTA H50R thermal imaging device impresses with a variety of useful features and a thoughtful design. It is extremely compact, making it perfect for mobile use. Particularly pleasing is the silent lens cover, which opens and closes quietly. The Nocpix VISTA H50R also convinces with outstanding quality and high precision. It combines many advanced features in a high-quality and user-friendly design, setting new standards in thermal imaging technology. With a high base magnification and crystal-clear visibility, even at long distances, this device is ideal for field use. Thanks to an MK value (NEDT value) of ≤15 mK, the device delivers excellent thermal sensitivity, allowing for sharp and detailed images even in adverse weather conditions. With an IP67 protection class, the Nocpix VISTA H50R is also protected against dust and water, making it particularly robust and resilient – ideal for use in challenging conditions.
Technical specifications of the Nocpix VISTA H50R:
- Sensor resolution: 640 × 512 pixels
- Sensor pitch: 12 µm
- Sensor sensitivity: ≤ 15 mK (NETD)
- Frame rate: 60 Hz
- Lens: 50 mm
- Aperture: F0.9
- Display type: AMOLED
- Display resolution: 2560 × 2560 pixels
- Field of view: 8.8° × 7.0° (H×V)
- Field of view width (100 m): 15.39 m
- Optical magnification: 4x
- Digital zoom: 4x – 40x (10x)
- Diopter adjustment: -4D ~ +6D
- Rangefinder: max. 1200 m ±1
- Detection range: 2600 m
- Internal storage: 64 GB
- Photo / video recording: yes / yes (audio: supported)
- Wi-Fi: yes
- USB: Type-C
- IP protection: IP67
- Battery type: Li-Ion, replaceable battery, IBP-7
- Operating time: max. 5.5 h
- Dimensions: 194 × 70 × 82 mm
- Weight: 650 g
(Show description in original language)
Das Nocpix VISTA H50R Wärmebildgerät beeindruckt mit einer Vielzahl nützlicher Funktionen und einem durchdachten Design. Es ist äußerst kompakt und eignet sich daher perfekt für den mobilen Einsatz. Besonders erfreulich ist der geräuschlose Objektivdeckel, der sich leise öffnen und schließen lässt. Ebenso überzeugt das Nocpix VISTA H50R durch herausragende Qualität und hohe Präzision. Hierbei kombiniert es viele fortschrittliche Funktionen in einem hochwertigen und benutzerfreundlichen Design und setzt neue Maßstäbe in der Wärmebildtechnik. Mit einer hohen Grundvergrößerung und kristallklarer Sicht, selbst auf große Distanzen, ist dieses Gerät ideal für den Einsatz im Feld. Dank eines MK-Werts (NEDT-Wert) von ≤15 mK liefert das Gerät eine exzellente thermische Empfindlichkeit, sodass auch bei widrigen Wetterbedingungen scharfe und detaillierte Bilder erzeugt werden. Durch die IP67-Schutzklasse ist das Nocpix VISTA H50R zudem gegen Staub und Wasser geschützt, was es besonders robust und widerstandsfähig macht – ideal für den Einsatz unter schwierigen Bedingungen.
Technische Daten des Nocpix VISTA H50R:
Sensorauflösung: 640 × 512 Pixel
Sensor-Pitch: 12 µm
Sensor-Sensitivität: ≤ 15 mK (NETD)
Bildfrequenz: 60 Hz
Objektiv: 50 mm
Blende: F0.9
Displaytyp: AMOLED
Displayauflösung: 2560 × 2560 Pixel
Sichtfeld: 8.8° × 7.0° (H×V)
Sichtfeldbreite (100 m): 15,39 m
Optische Vergrößerung: 4x
Digitalzoom: 4x – 40x (10x)
Dioptrienverstellung: -4D ~ +6D
Entfernungsmesser: max. 1200 m ±1
Detektionsbereich: 2600 m
Interner Speicher: 64 GB
Foto- / Videoaufzeichnung: ja / ja (Ton: unterstützt)
Wi-Fi: ja
USB: Typ-C
IP-Schutz: IP67
Akkutyp: Li-Ion, Wechsel-Akku, IBP-7
Betriebsdauer: max. 5.5 h
Maße: 194 × 70 × 82 mm
Gewicht: 650 g
