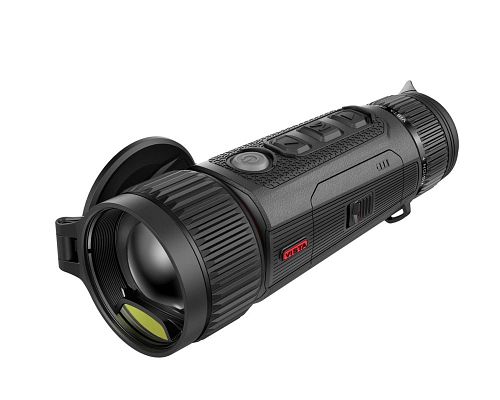

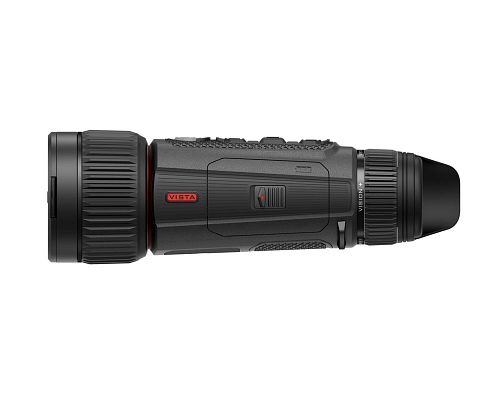

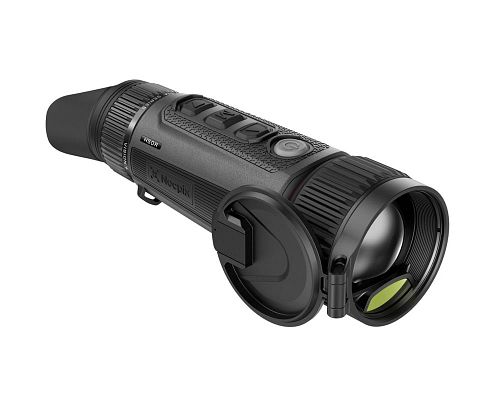

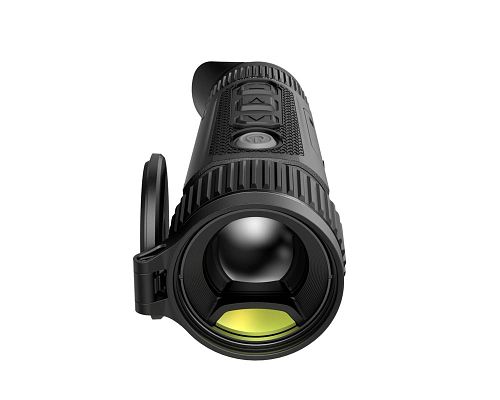

Nocpix Vista H50R

The Nocpix VISTA H50R thermal imaging device impresses with a variety of useful features and a thoughtful design. It is extremely compact, making it perfect for mobile use. Particularly pleasing is the silent lens cover, which opens and closes quietly. The Nocpix VISTA H50R also convinces with outstanding quality and high precision. It combines many advanced features in a high-quality and user-friendly design, setting new standards in thermal imaging technology. With a high base magnification and crystal-clear visibility, even at long distances, this device is ideal for field use. Thanks to an MK value (NEDT value) of ≤15 mK, the device delivers excellent thermal sensitivity, allowing for sharp and detailed images even in adverse weather conditions. With an IP67 protection class, the Nocpix VISTA H50R is also protected against dust and water, making it particularly robust and resilient – ideal for use in challenging conditions.

Technical specifications of the Nocpix VISTA H50R:

  Sensor resolution: 640 × 512 pixels Sensor pitch: 12 µm Sensor sensitivity: ≤ 15 mK (NETD) Frame rate: 60 Hz Lens: 50 mm Aperture: F0.9 Display type: AMOLED Display resolution: 2560 × 2560 pixels Field of view: 8.8° × 7.0° (H×V) Field of view width (100 m): 15.39 m Optical magnification: 4x Digital zoom: 4x – 40x (10x) Diopter adjustment: -4D ~ +6D Rangefinder: max. 1200 m ±1 Detection range: 2600 m Internal storage: 64 GB Photo / video recording: yes / yes (audio: supported) Wi-Fi: yes USB: Type-C IP protection: IP67 Battery type: Li-Ion, replaceable battery, IBP-7 Operating time: max. 5.5 h Dimensions: 194 × 70 × 82 mm Weight: 650 g
