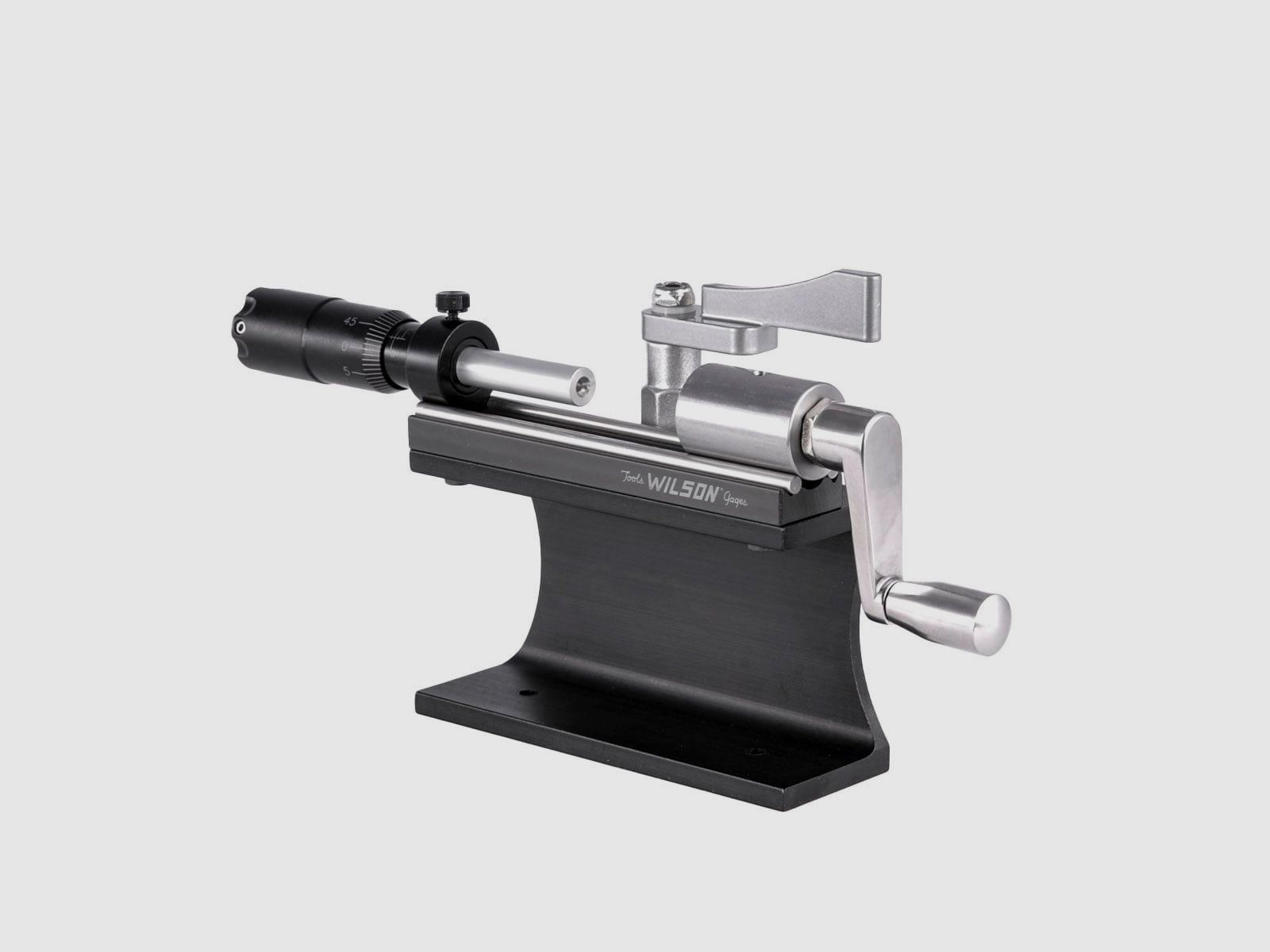

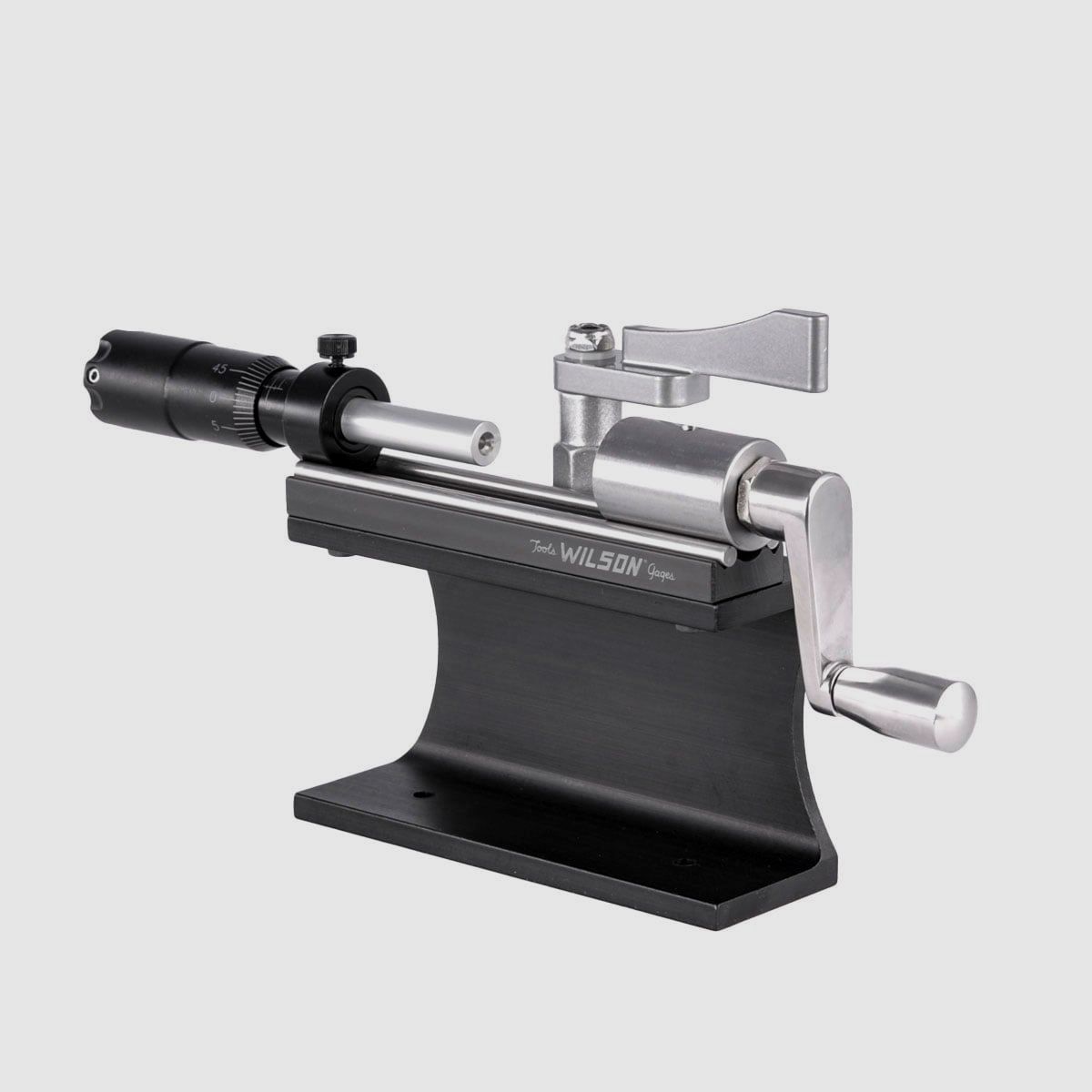

SINCLAIR / L.E. WILSON · Ultimate Stainless Trimmer
Repeatable case length – with micrometer instead of adjusting by feel
The Ultimate Stainless Case Trimmer combines the L.E.-Wilson stainless steel trimmer with Sinclair micrometer head, mounting stand, and shark-fin clamp. The system aligns case, holder, and cutting tool flush and allows length adjustment in 0.001″ increments.
Fits well if …
you want to process batches of cases with reproducible target length, read settings directly on the micrometer, and select the matching L.E.-Wilson case holder separately for your caliber.
Less suitable if …
you expect a ready-to-use complete set for any caliber right away. Case holders and other accessories are explicitly not included.
The precision principle
In the L.E.-Wilson system, the case does not sit on a universal pilot or in a collet. A cartridge-specific case holder guides it on the body taper and aligns flush with the cutter housing and micrometer stop. This keeps the case square to the cutter during trimming.
The Sinclair micrometer head shows the actual case length, can be locked after setting, and offers an adjustment range of more than 2″. This is especially interesting if a defined trim length is to be reproducibly maintained over a whole batch or later specifically readjusted.
The most important purchase note
Without the matching L.E.-Wilson trimmer case holder, the system is not ready for use with your cartridge. The holders are sold separately and must fit exactly the case family. For cases under 1.3″ length – including many pistol cases – Sinclair additionally requires the spacer with Brownells no. 749-002-094.
Correctly classify compatibility
Manufacturer range
Sinclair specifies a working range from .22 Hornet to .416 Rigby. This describes the basic capacity of the trimmer, not the automatic suitability without the matching case holder.
Case holder
Fü
For each cartridge to be processed or compatible case family, the appropriate L.E.-Wilson trimmer holder is required. Before ordering, check holder designation and case specification.
Short cases
For case lengths under 1.3″, the separate spacer 749-002-094 is needed. Without it, the advertised use of short cases is not fully possible.
No pilot/collet logic
The Wilson concept works without a pilot and collet. Accessories from other trimmer systems are therefore not automatically compatible.
What the Shark-Fin stand brings to the process
The supplied mounting stand creates a stable working base. The Shark-Fin clamp moves in a swivel arm motion and presses the case head of the inserted holder against the micrometer head. This makes insertion and removal easier and is intended to support a fast, precise cut without chatter.
Trainer tip: Reference case instead of memory value
Create a cleanly measured reference case and a setup sheet for each case family. After changing the case holder, first confirm the target value with calipers or a suitable length measuring device, trim a small test series, and only then process the batch. The 0.001″ scale does not replace the final check.
Safe workflow
- Determine permissible trim length from reliable load data or case specification.
- Select the appropriate L.E.-Wilson case holder; for cases under 1.3″, insert the required spacer.
- Set up trimmer and stand firmly, cleanly, and without damage; wear safety glasses.
- Fully insert the case into the holder and guide it cleanly to the micrometer stop with the Shark-Fin clamp.
- Set and lock the micrometer to the desired actual case length.
- Cut with even feed, without force or tilting.
- Measure the first cases; then regularly perform spot checks.
- After trimming, properly deburr the inside and outside edges and check the case again.
Purchase and usage limits
- No case holder included: This must be purchased separately and be cartridge-specific.
- No universal holder: The range from .22 Hornet to .416 Rigby requires suitable Wilson accessories for each.
- Spacer for short cases: Under 1.3″, 749-002-094 is additionally required.
- Not a complete case processing system: Deburrers, measuring tools, and further steps are not automatically included.
- Do not guess trim length: Too short cases cannot be lengthened again; always work according to reliable specifications.
- Shipping weight is not net weight: The Brownells figure of 1.111 kg describes the shipment and is not given as product weight.
Scope of delivery
- Sinclair / L.E. Wilson Ultimate Stainless Case Trimmer
- Sinclair micrometer head with 0.001″ graduation and locking
- Sinclair mounting stand
- Shark-Fin clamp
Separately required: suitable L.E.-Wilson trimmer case holder. Depending on case length, spacer 749-002-094 additionally. Further case processing and measuring accessories are not guaranteed.
Technical core data
Identity
Brownells 749101020 · UPC 050806110892 · SINCLAIR INTERNATIONAL / L.E. WILSON.
Adjustment
Micrometer in 0.001″ increments, over 2″ adjustment range, reading of actual case length.
Working range
.22 Hornet to .416 Rigby according to provider; suitable holder and spacer if applicable required.
Construction
Stainless steel trimmer, aligned Wilson holder system, mounting stand and Shark-Fin clamp; Made in USA.
FAQ
Is the trimmer ready to use for my caliber right out of the box? Only if you already own the matching L.E.-Wilson trimmer case holder. This is not included and must fit the specific case.
Which cases can the system process? The basic range according to Sinclair is from .22 Ho
rnet up to .416 Rigby. The crucial parts remain the matching case holder and, for cases under 1.3″, the additional spacer.
Is the spacer 749-002-094 included? No. It is separate accessory and needed for cases shorter than 1.3″.
How fine is the length adjustment? The micrometer head is adjustable in 0.001″ increments, offers over 2″ of adjustment range, and can be locked after setting.
Do I need pilots or collets? No. The L.E.-Wilson system uses cartridge-specific case holders that guide the case at the body taper.
Are the stand and shark-fin clamp included? Yes. Both are part of this “with Stand” version. The trimmer case holders remain separate.
Do I need to deburr after trimming? Yes. After shortening, the inside and outside edges should be properly deburred and the case inspected. Deburring tools are not confirmed as included in this set.
Suitable ranges at Black Raptor
You can find more case processing and measuring tools under Wiederladen. Accessories and other products of the brand are bundled in the SINCLAIR-INTERNATIONAL collection.
(Show description in original language)
.br-product-v3{--br-ink:#17201c;--br-muted:#54615b;--br-line:#d9e0dc;--br-soft:#f5f7f5;--br-deep:#10271d;--br-gold:#f2d58e;color:var(--br-ink);font-size:16px;line-height:1.68;max-width:1040px;margin:0 auto;overflow-wrap:anywhere}.br-product-v3 *{box-sizing:border-box}.br-product-v3 p{margin:0 0 12px}.br-product-v3 ul{margin:8px 0 0;padding-left:20px}.br-product-v3 li{margin:6px 0}.br-product-v3 a{color:#195e43;text-decoration-thickness:1px;text-underline-offset:3px}.br-product-v3 .br-hero-v3,.br-product-v3 .br-final{background:var(--br-deep);border-radius:18px;padding:clamp(24px,5vw,48px);margin:0 0 28px}.br-product-v3 .br-hero-v3,.br-product-v3 .br-hero-v3 p,.br-product-v3 .br-hero-v3 strong,.br-product-v3 .br-hero-v3 span,.br-product-v3 .br-final,.br-product-v3 .br-final p,.br-product-v3 .br-final strong,.br-product-v3 .br-final span{color:#fff!important}.br-product-v3 .br-eyebrow{font-size:.78rem;line-height:1.3;letter-spacing:.12em;text-transform:uppercase;font-weight:800;margin-bottom:10px;color:var(--br-gold)!important}.br-product-v3 .br-hero-title{display:block;font-size:clamp(1.65rem,4vw,2.55rem);line-height:1.13;margin-bottom:14px;font-weight:850}.br-product-v3 .br-section-title{display:block;font-size:clamp(1.18rem,2.5vw,1.42rem);line-height:1.25;font-weight:850;margin:30px 0 13px;color:var(--br-ink)}.br-product-v3 .br-box{background:var(--br-soft);border:1px solid var(--br-line);border-radius:14px;padding:20px;margin:0 0 18px}.br-product-v3 .br-grid{display:grid;grid-template-columns:repeat(2,minmax(0,1fr));gap:14px;margin:0 0 18px}.br-product-v3 .br-card{border:1px solid var(--br-line);border-radius:14px;padding:18px;background:#fff;min-width:0}.br-product-v3 .br-card-title{display:block;font-size:1rem;line-height:1.35;font-weight:850;margin-bottom:8px;color:var(--br-ink)}.br-product-v3 details{border:1px solid var(--br-line);border-radius:12px;background:#fff;padding:0 16px;margin:10px 0}.br-product-v3 summary{cursor:pointer;font-weight:800;padding:14px 0;color:var(--br-ink)}.br-product-v3 details p{padding:0 0 14px;color:var(--br-ink)}.br-product-v3 .br-note{border-left:4px solid #b78c2c}.br-product-v3 .br-safe{border-left:4px solid #8a2e2e}@media(max-width:640px){.br-product-v3{font-size:15.8px;line-height:1.62}.br-product-v3 .br-grid{grid-template-columns:1fr}.br-product-v3 .br-hero-v3,.br-product-v3 .br-final{padding:24px 20px;border-radius:14px}.br-product-v3 .br-box,.br-product-v3 .br-card{padding:16px}}
SINCLAIR / L.E. Wilson · Edelstahl · Mikrometereinstellung
Präzises Trimmersystem mit Ständer – aber nur komplett mit passendem Hülsenhalter
Der SINCLAIR Ultimate Stainless Case Trimmer kombiniert einen L.E.-Wilson-Edelstahltrimmer mit Mikrometerkopf, Montageständer und Shark-Fin-Klemme. Der entscheidende Vorteil ist die fein ablesbare, arretierbare Längeneinstellung im Wilson-System.
Wichtig vor dem Kauf: Ein patronenspezifischer L.E.-Wilson-Hülsenhalter ist nicht enthalten und bleibt für die Nutzung erforderlich.
Unsere ehrliche Einordnung
Das Set ist für Anwender interessant, die bereits bewusst im L.E.-Wilson-System arbeiten oder dort einsteigen möchten und eine stabile Tischlösung mit Mikrometer bevorzugen. Es ist kein universelles Komplettset für beliebige Hülsen: Die eigentliche Passung entsteht erst durch den richtigen Hülsenhalter und gegebenenfalls weiteres Systemzubehör.
Passt gut, wenn …
du eine feste, präzise Tischlösung mit Ständer suchst,
du im L.E.-Wilson-Hülsenhaltersystem arbeitest,
dir eine fein ablesbare und arretierbare Einstellung wichtig ist.
Passt eher nicht, wenn …
du ein vollständig kaliberfertiges Set ohne weiteres Zubehör erwartest,
du einen Universalhalter für viele Patronen suchst,
du nur gelegentlich kürzt und ein deutlich einfacheres System ausreicht.
Kompatibilität und Variantenlogik
L.E.-Wilson-Hülsenhalter erforderlich Die Hülse wird über einen passenden Wilson-Halter geführt. Dieser ist nicht im Lieferumfang und muss zur konkreten Hülsenfamilie passen.
Arbeitsbereich Die vorhandenen Produktdaten nennen einen grundsätzlichen Bereich von .22 Hornet bis .416 Rigby. Das ist keine automatische Kaliberfreigabe ohne passenden Halter.
Kurze Hülsen Für Hülsen unter 1,3 Zoll ist laut vorhandenen Shopdaten zusätzlich der passende Spacer erforderlich.
Eigenes Systemprinzip Wilson arbeitet mit patronenspezifischen Hülsenhaltern statt mit beliebigen Piloten oder Spannzangen anderer Trimmersysteme.
Merkmale mit Praxiswirkung
Mikrometerkopf 0,001-Zoll-Teilung und Arretierung erleichtern das reproduzierbare Wiederfinden einer gewünschten Einstellung.
Edelstahltrimmer Robuste, korrosionsarme Basis für einen dauerhaft eingerichteten Arbeitsplatz.
Montageständer Schafft eine definierte, feste Arbeitsposition statt eines lose gehaltenen Trimmers.
Shark-Fin-Klemme Unterstützt das sichere Positionieren des eingesetzten Hülsenhalters im Trimmersystem.
Grenzen, Nachteile und typische Fehlkäufe
Kein Hülsenhalter enthalten: Ohne den passenden L.E.-Wilson-Halter ist das System für die gewünschte Hülsenfamilie nicht einsatzbereit.
Kein Universaltrimmer: Der große genannte Kaliberbereich setzt jeweils passendes Zubehör voraus.
Kurze Hülsen benötigen Zusatzteil: Unter 1,3 Zoll ist laut vorhandener Zuordnung ein Spacer nötig.
Mikrometerskala ersetzt keine unabhängige Kontrolle: Der Einstellwert ist nicht mit einer fertigen Qualitätsprüfung gleichzusetzen.
Mehr Präzision bedeutet mehr Systembindung: Wer häufig völlig unterschiedliche Plattformen nutzt, muss die Zubehörlogik berücksichtigen.
Technische Daten mit Praxisdeutung
Einstellung Mikrometer mit 0,001-Zoll-Teilung und Arretierung – für fein nachvollziehbare Änderungen.
Verstellweg Vorhandene Produktdaten nennen mehr als 2 Zoll Verstellweg.
Arbeitsbereich .22 Hornet bis .416 Rigby als Systembereich; kompatibler Hülsenhalter bleibt Voraussetzung.
Konstruktion Edelstahltrimmer mit Montageständer und Shark-Fin-Klemme; für festen Werkstatteinsatz konzipiert.
Dezente Kennung laut Shopdaten: Brownells 749101020 · UPC 050806110892.
Lieferumfang
SINCLAIR / L.E.-Wilson Ultimate Stainless Case Trimmer
Sinclair-Mikrometerkopf
Montageständer
Shark-Fin-Klemme
Nicht enthalten: patronenspezifischer L.E.-Wilson-Hülsenhalter; je nach Hülsenlänge weiteres Zubehör wie der passende Spacer sowie Mess- und Nachbearbeitungswerkzeuge.
Sichere Nutzung
Nur nach Herstelleranleitung und mit zum System passenden Komponenten einsetzen. Vor jeder Nutzung festen Sitz, freien Lauf und unbeschädigte Werkzeuge prüfen. Die tatsächliche Endabmessung unabhängig kontrollieren und ungeeignete oder beschädigte Hülsen beziehungsweise Zubehörteile nicht weiterverwenden.
FAQ
Ist der passende Hülsenhalter dabei? Nein. Der L.E.-Wilson-Hülsenhalter muss separat passend zur Hülsenfamilie gewählt werden.
Ist das System für alle Kaliber zwischen .22 Hornet und .416 Rigby sofort einsatzbereit? Nein. Der Bereich beschreibt die Systemkapazität; der konkrete Hülsenhalter und gegebenenfalls weiteres Zubehör müssen passen.
Sind Ständer und Shark-Fin-Klemme enthalten? Ja. Beide gehören zu dieser Ausführung mit Ständer.
Was ist bei sehr kurzen Hülsen zu beachten? Für Hülsen unter 1,3 Zoll ist laut vorhandenen Produktdaten zusätzlich ein passender Spacer erforderlich.
Ersetzt das Mikrometer eine unabhängige Maßkontrolle? Nein. Es verbessert die Einstellung und Wiederholbarkeit; die tatsächliche Endabmessung sollte separat kontrolliert werden.
Black Raptor Kaufberatung
Starkes Präzisionssystem – wenn du die Wilson-Zubehörlogik bewusst mitkaufst.
Der Ultimate Stainless Case Trimmer überzeugt durch stabile Tischbasis, Mikrometereinstellung und klare Systemführung. Der häufigste Fehlkauf wäre, ihn als kaliberfertiges Komplettset zu verstehen: Der passende Hülsenhalter bleibt der entscheidende zusätzliche Baustein.
