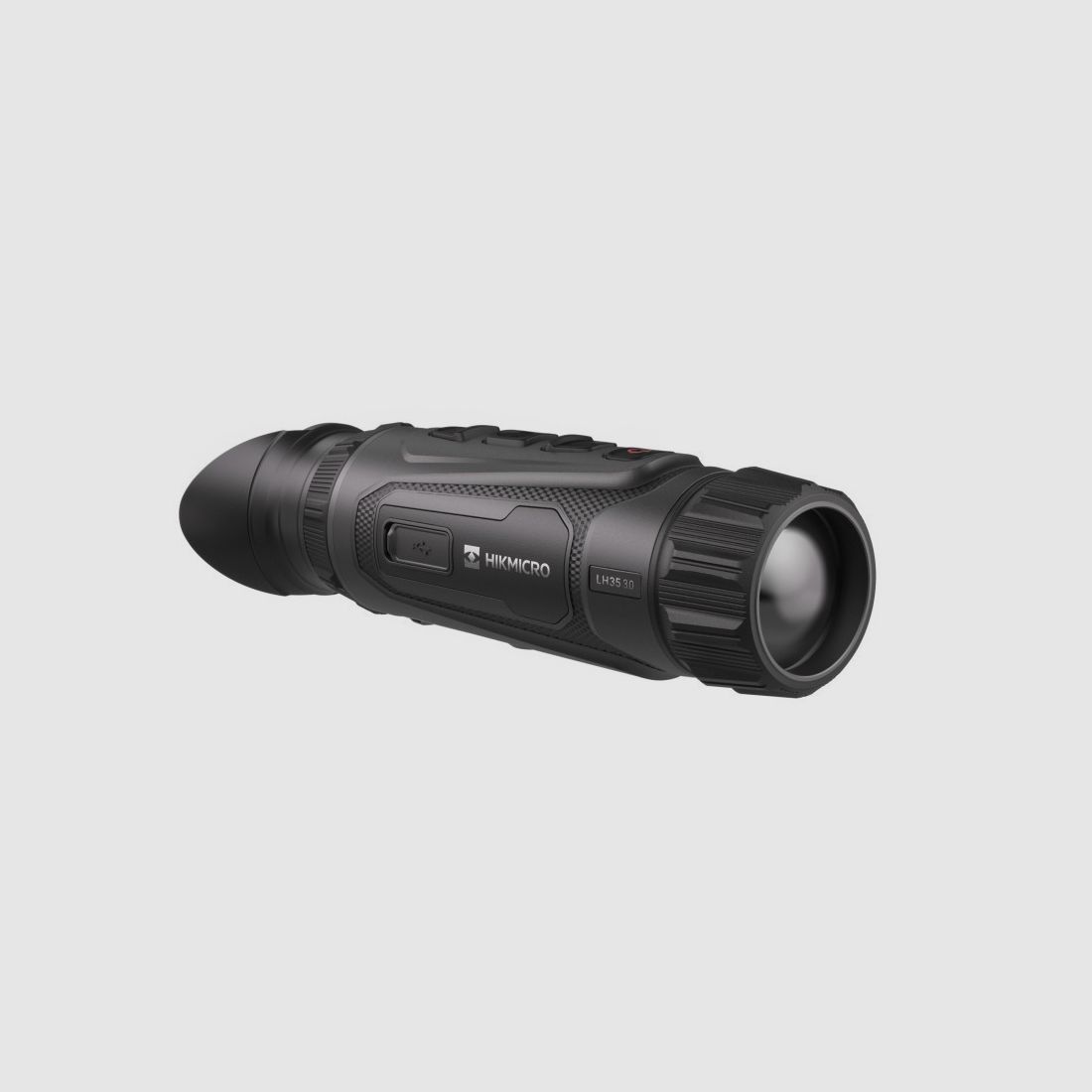

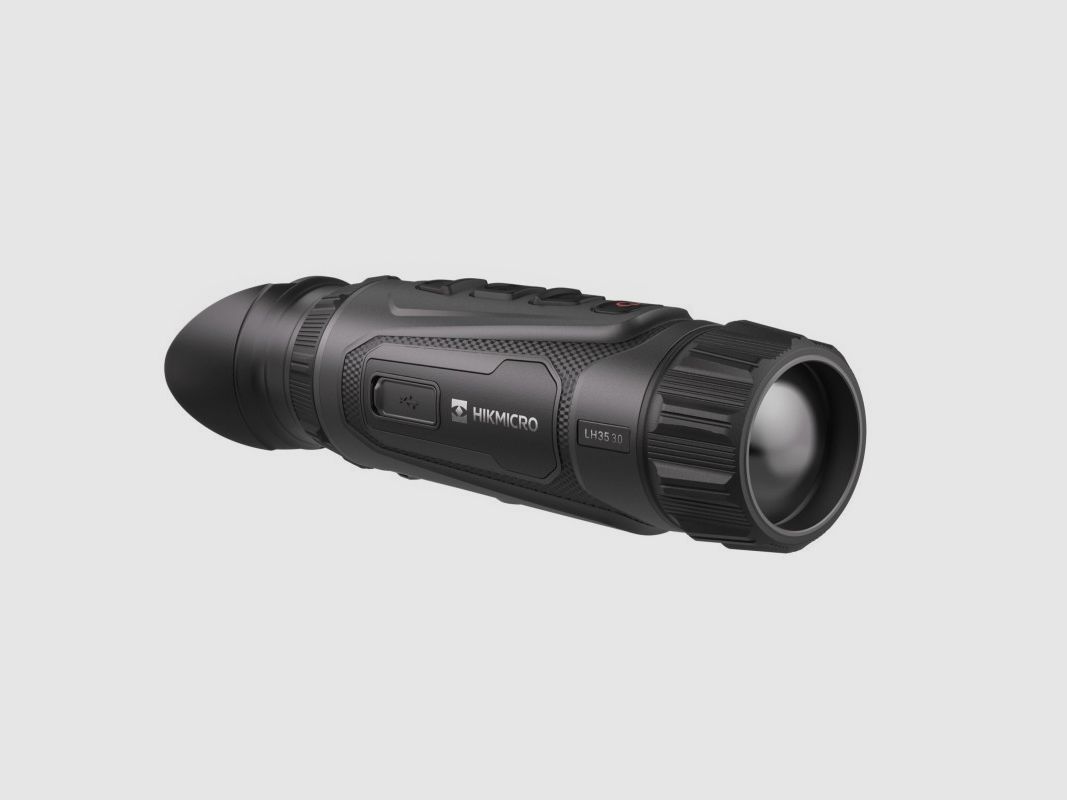

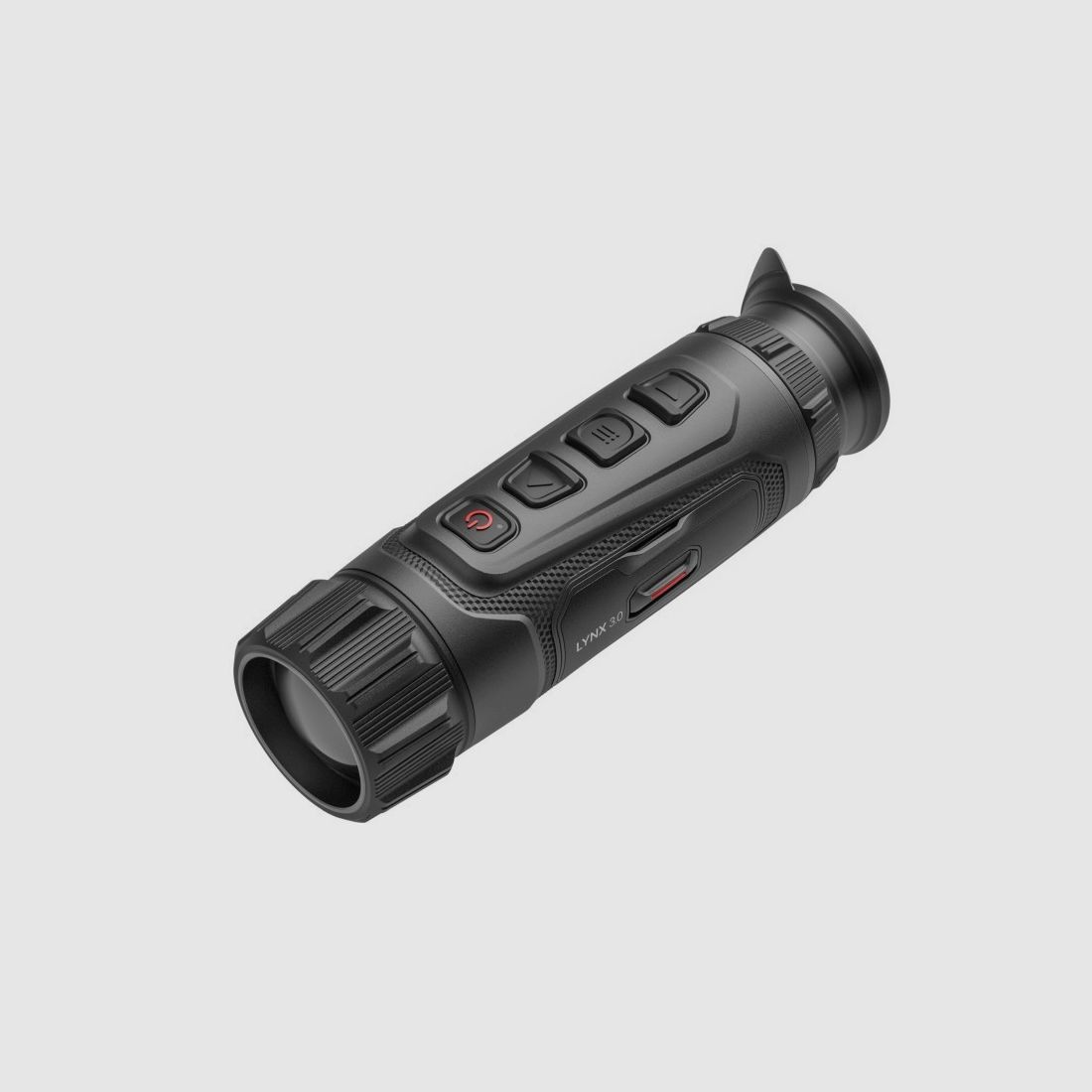

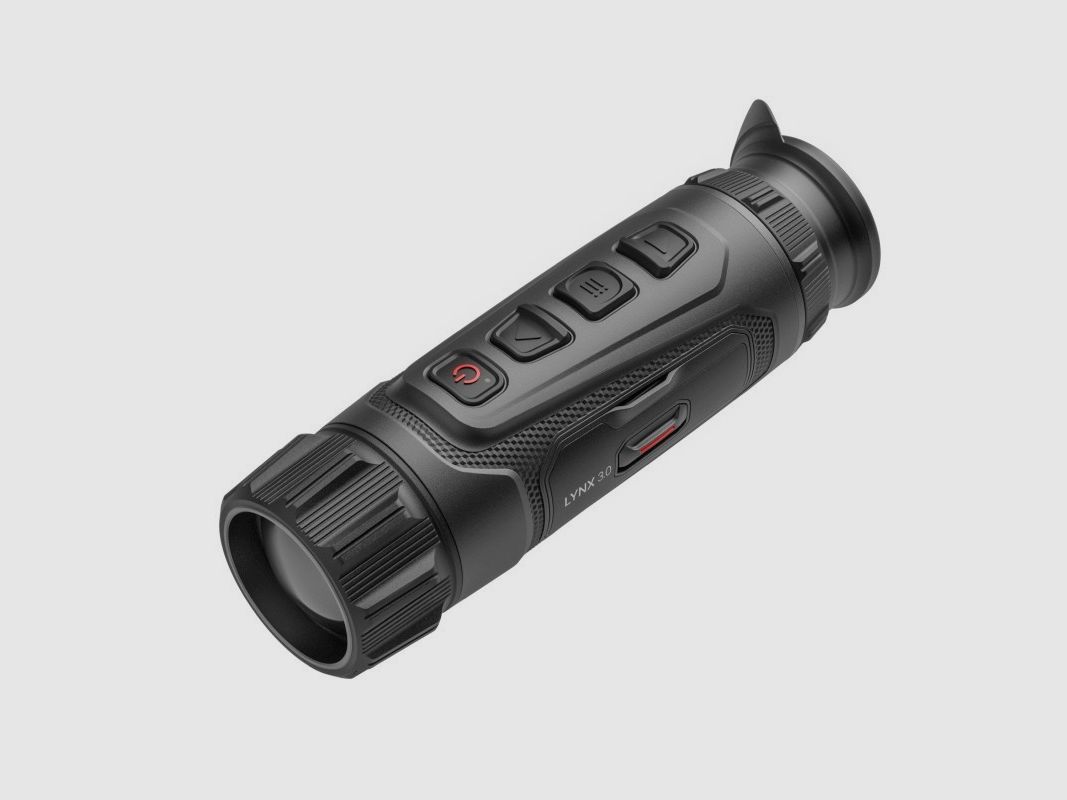

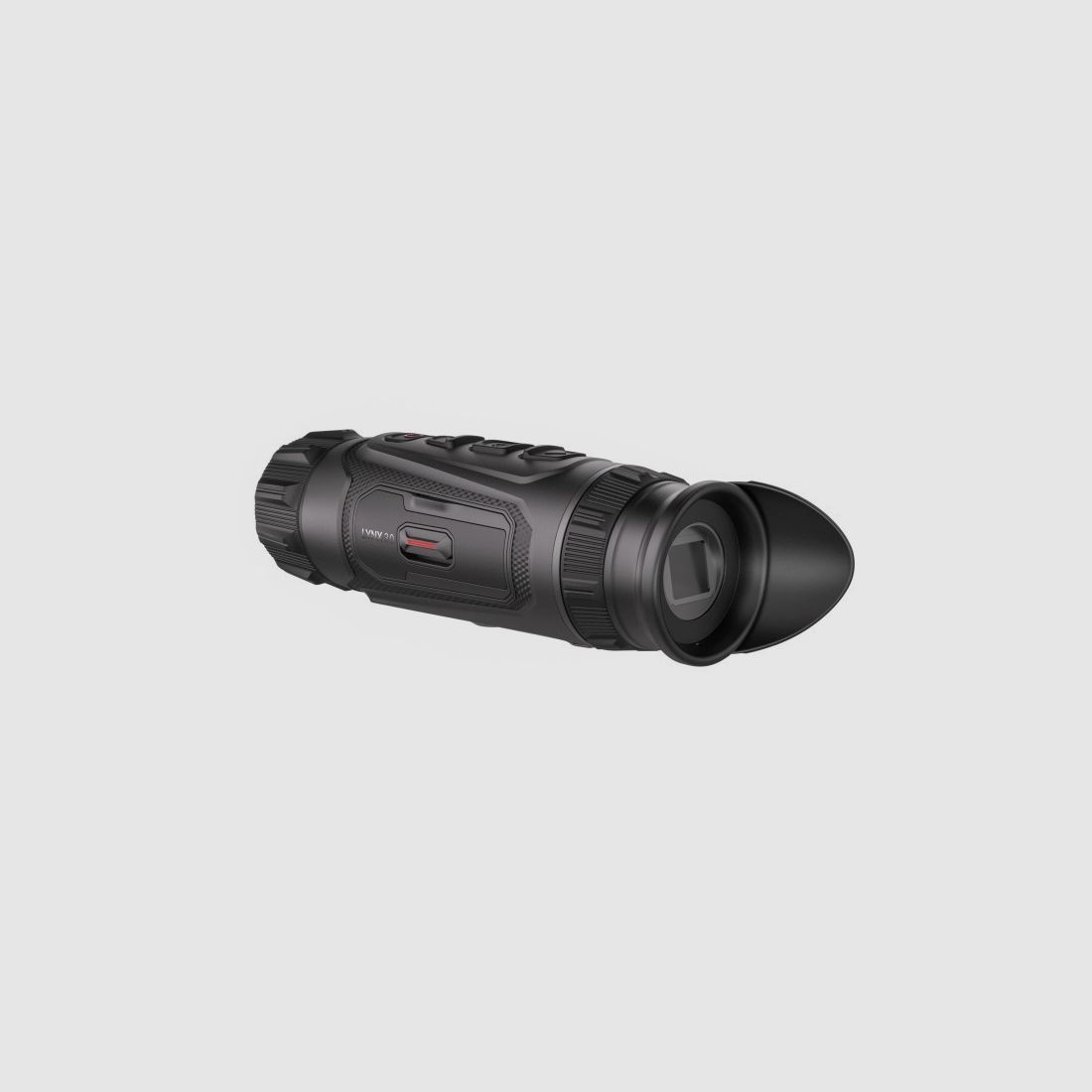

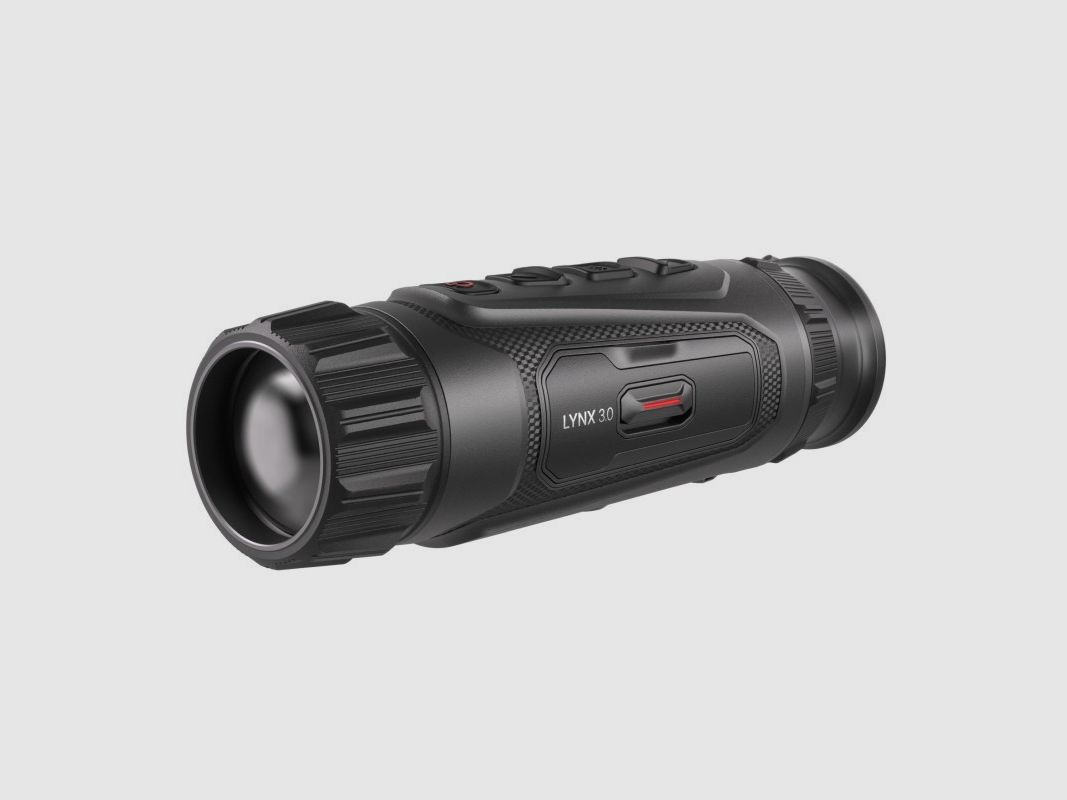

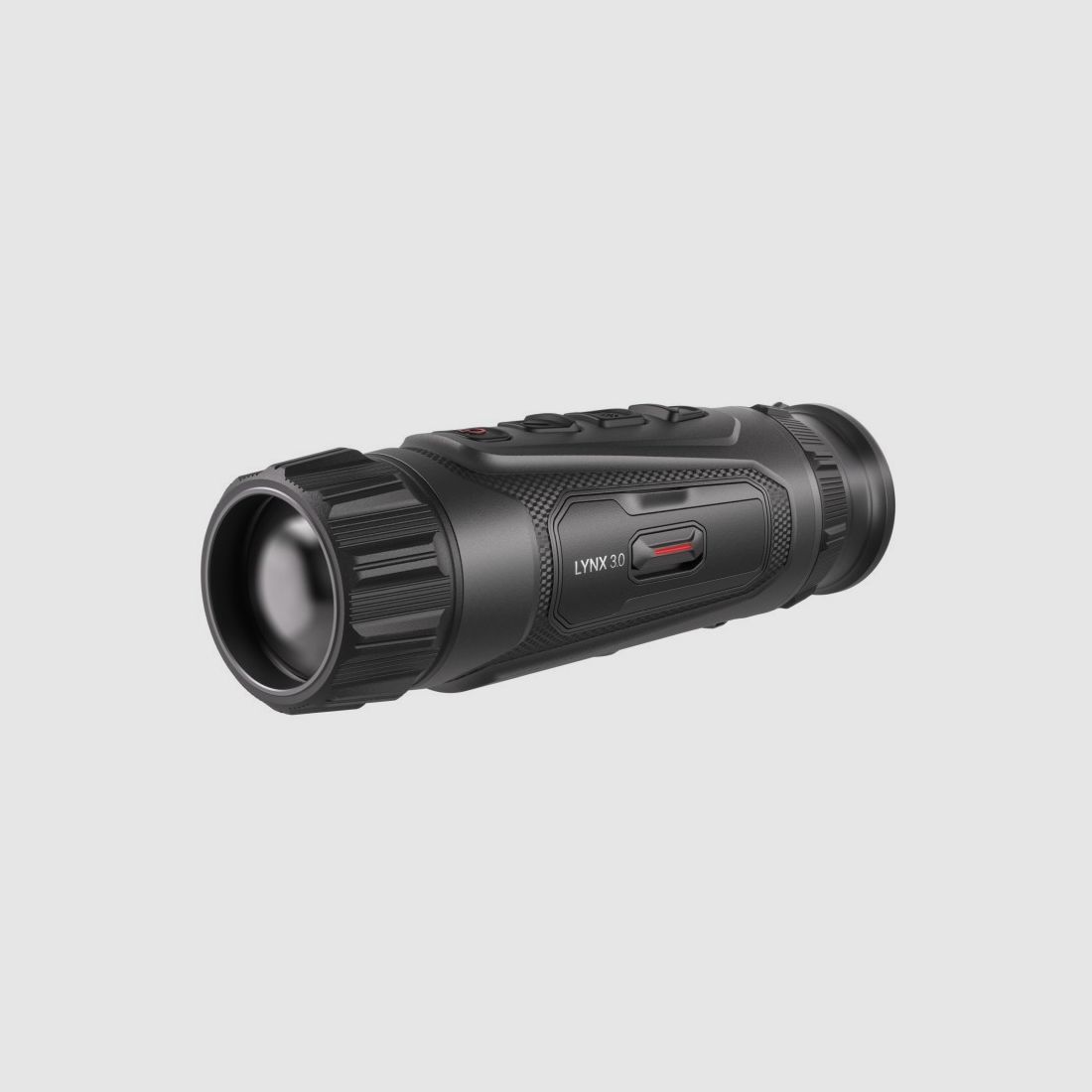

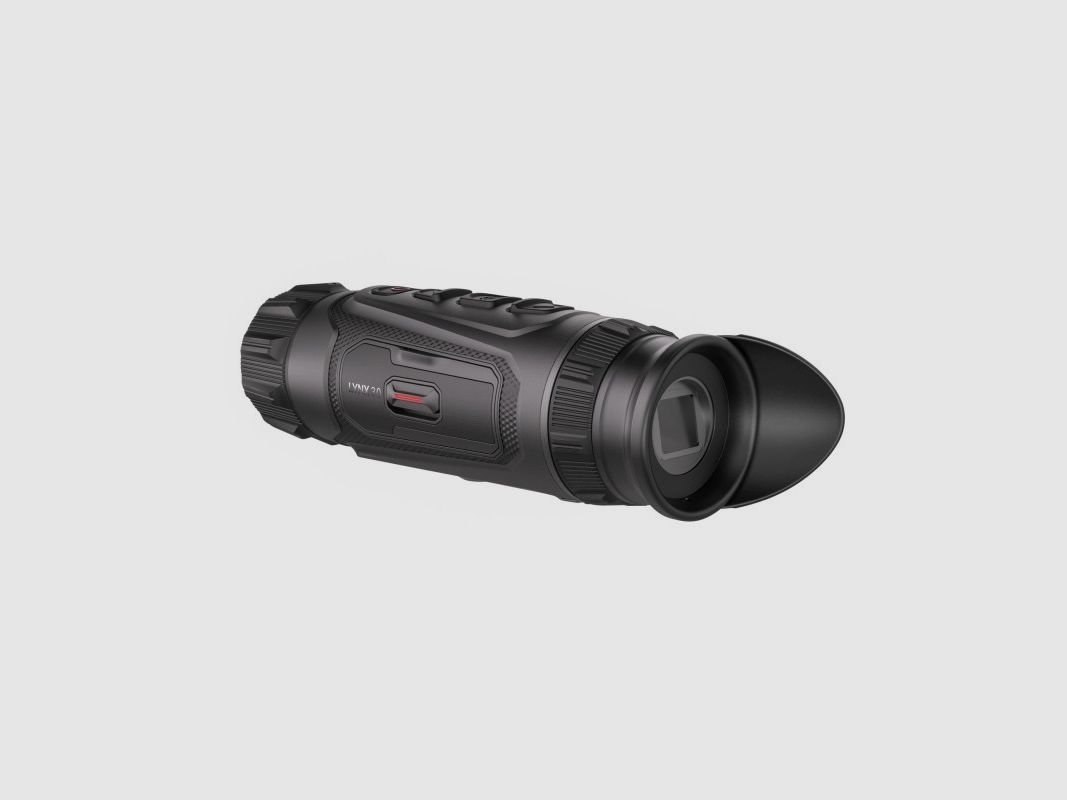

Hikmicro Lynx LH 35 3.0

HIKMICRO Monocular Lynx LH35 3.0 – Premium thermal imaging monocular for long distances



The HIKMICRO Lynx LH35 3.0 is the high-end model of the series and has been specifically designed for professional hunters and demanding users who require the highest level of detail at medium to long distances. With a 384 × 288 pixel VOx thermal imaging sensor, a fast 35 mm F1.0 lens, and a base magnification of 3.4×, it offers a particularly narrow field of view of 7.5° (13.1 m at 100 m) and an impressive detection range of up to 1800 m.

The 0.49″ AMOLED display with 1920 × 1080 pixels delivers sharp, high-contrast images, while the HIKMICRO Shutterless Image System (HSIS) ensures silent, uninterrupted observation. Supported by Image Pro 3.0 and Zoom Pro, even the smallest temperature differences are clearly displayed.

With its robust, IP67-certified housing, a weight of only 354.5 g, and a battery life of up to 5 hours, the LH35 3.0 is the perfect choice for use in open landscapes, for professional wildlife observation, and for users who value maximum range and image quality.



Main features:

• 384 × 288 @ 12 μm VOx thermal imaging sensor for the highest detail fidelity
• NETD < 15 mK for excellent performance even in bad weather
• 35 mm F1.0 lens with up to 1800 m detection range
• 3.4× base magnification, perfect for medium to long distances
• 0.49″ AMOLED display with 1920 × 1080 pixels
• HIKMICRO Shutterless Image System (HSIS) for silent calibration
• Image Pro 3.0 & Zoom Pro for optimized image sharpness
• 64 GB internal storage for photo and video recordings
• Up to 5 hours of runtime with replaceable 18650 battery
• Robust IP67 housing, only 354.5 g light



Technical specifications:

Thermal imaging module:
• Sensor: VOx Uncooled Focal Plane Arrays
• Resolution: 384 × 288 pixels
• Frame rate: 50 Hz
• Pixel pitch: 12 μm
• Spectral range: 8 – 14 μm
• NETD: < 15 mK (@ 25 °C, F#=1.0)
• Lens: 35 mm, F1.0, focus via focus wheel
• Minimum focus distance: 3.5 m
• Magnification: 3.4× – 27.2× (8× digital)
• Field of view: 7.5° × 4.6° (13.1 × 8.0 m @ 100 m)
• Detection range: 1800 m

Display & functions:
• Display: 0.49″ AMOLED, 1920 × 1080 pixels
• Palettes: Black Hot, White Hot, Red Hot, Fusion, Red & Green monochrome
• Image optimization: Image Pro 3.0, Zoom Pro, HSIS
• Functions: PIP, Hot Track, distance measurement, video & audio recording, snapshot
• Storage: Internal 64 GB EMMC storage
• Connectivity: 2.4 / 5 GHz WiFi hotspot

Battery & runtime:
• Battery: Replaceable 18650 Li-Ion battery
• Operating time: ≥ 5 h (at 25 °C, WiFi on) / ≥ 4.5 h (at −20 °C, WiFi on)
• Charging: Type-C connection (5 V DC, 2 A), supports external power supply

Housing & protection:
• Protection class: IP67 (dust and waterproof)
• Operating temperature: −30 °C to +45 °C
• Dimensions: 169.6 × 53.6 × 49.5 mm (≈ 17.0 × 5.4 × 5.0 cm)
• Weight: 354.5 g (including battery)
