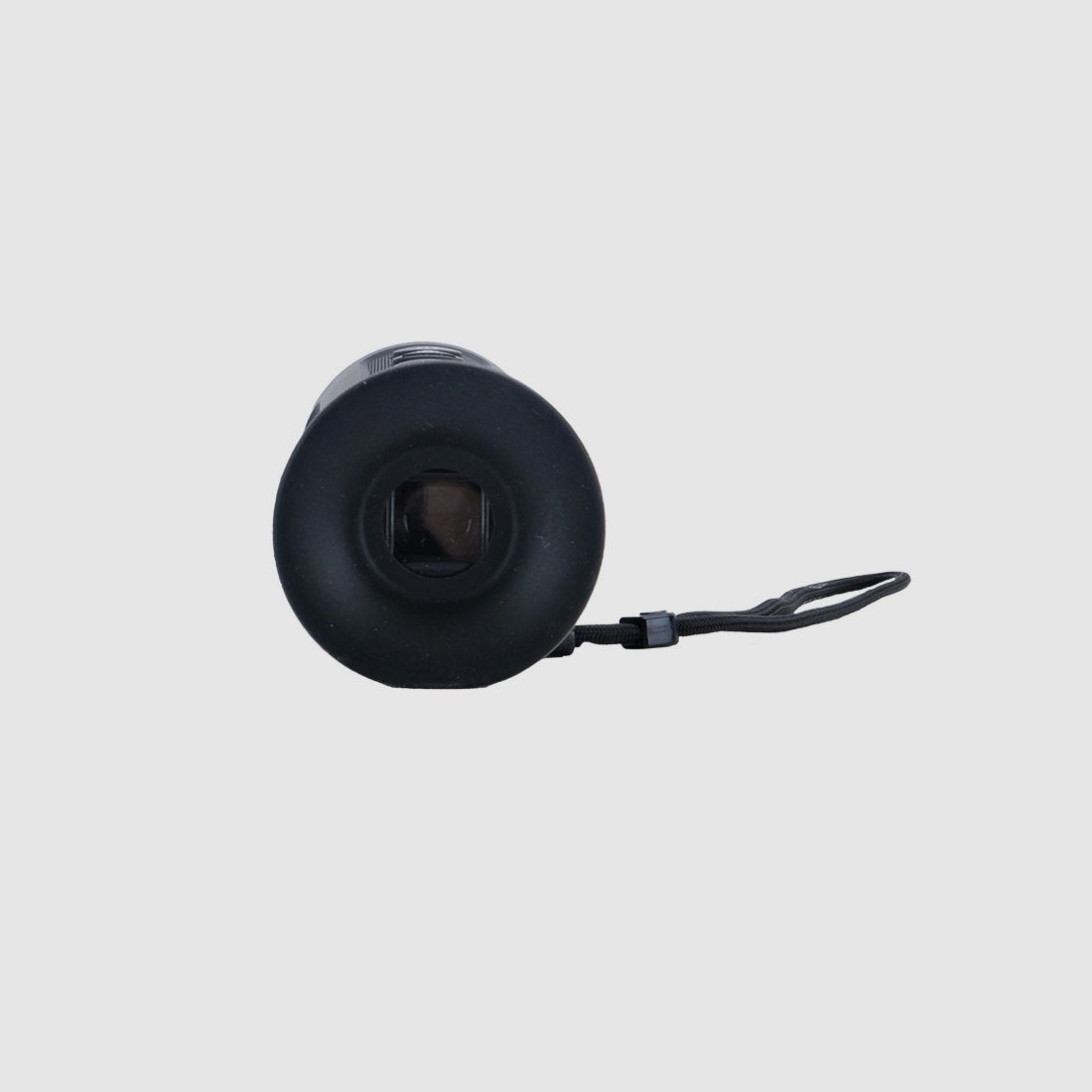

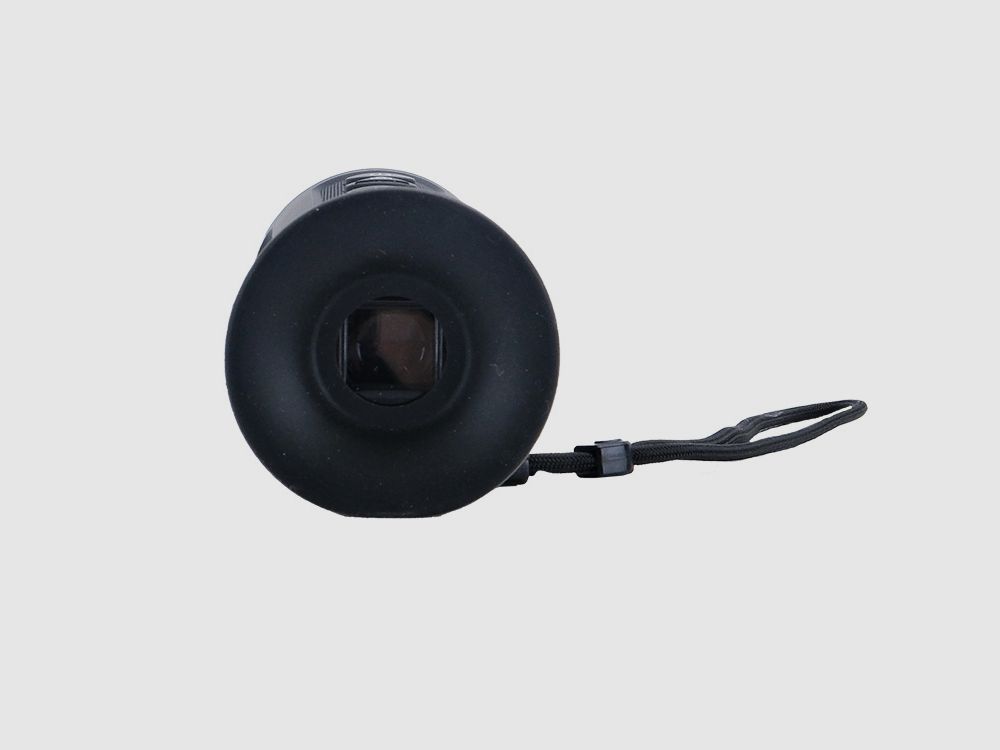

HIK-Micro thermal imaging technology Lynx Pro LH25 thermal imaging camera

Description & Features

• The Lynx Pro LH25 is a compact thermal imaging monocular, ideal for wildlife observation, hunting, and also security/outdoor operations.

• It uses a highly sensitive VOx sensor with a resolution of 384 × 288 pixels.

• Frame rate: 50 Hz.

• Thermal sensitivity (NETD): < 35 mK at 25 °C (F# = 1.0).

• Objective: 25 mm, with aperture F = 1.0.

• Field of view: 10.5° × 7.9°.

• Magnification: Optical ~2.45×, digital up to 8× (1×, 2×, 4×, 8×).

• Display: 0.4? LCOS (1280 × 960 pixels) – relatively high resolution.

• Color palettes: Black Hot, White Hot, Red Hot, Fusion.

• Features:

  • Stadiametric rangefinder (distance estimation)

  • Hot spot marking (detection of the hottest point)

  • Video and photo recording to internal memory (8 GB)

  • Wi-Fi function (among other things, to stream images/videos to a smartphone or tablet)

Physical & Operational Data

• Battery: Rechargeable lithium battery.

• Battery life: Up to 7.5 hours (in power-saving mode, with Wi-Fi turned off).

• Charging / Connection: USB-C port.

• Operating temperature range: from –20 °C to +55 °C.

• Protection class: IP67 (dust and waterproof).

• Shock / Drop resistance: according to the dealer up to certain heights (e.g., at MilitaryRange up to 1.5 m)

• Dimensions: approx. 171 × 61 × 57 mm.

• Weight: about 300 g.

Range / Detection

• Detection range (human): approx. 1,180 m according to some dealers.

• In other specifications, "Vehicle / larger heat source detection" is stated to be up to 2,778 m (depending on source / measurement method).

Additional Features & Technology

• 3D-DNR technology (Digital Noise Reduction) to reduce image noise in darkness / poor visibility.

• Automatic, manual, or external correction (Flat Field Correction, FFC) for optimal image quality.

• Diopter adjustment available for glasses wearers.

• Tripod thread (1/4") available.
