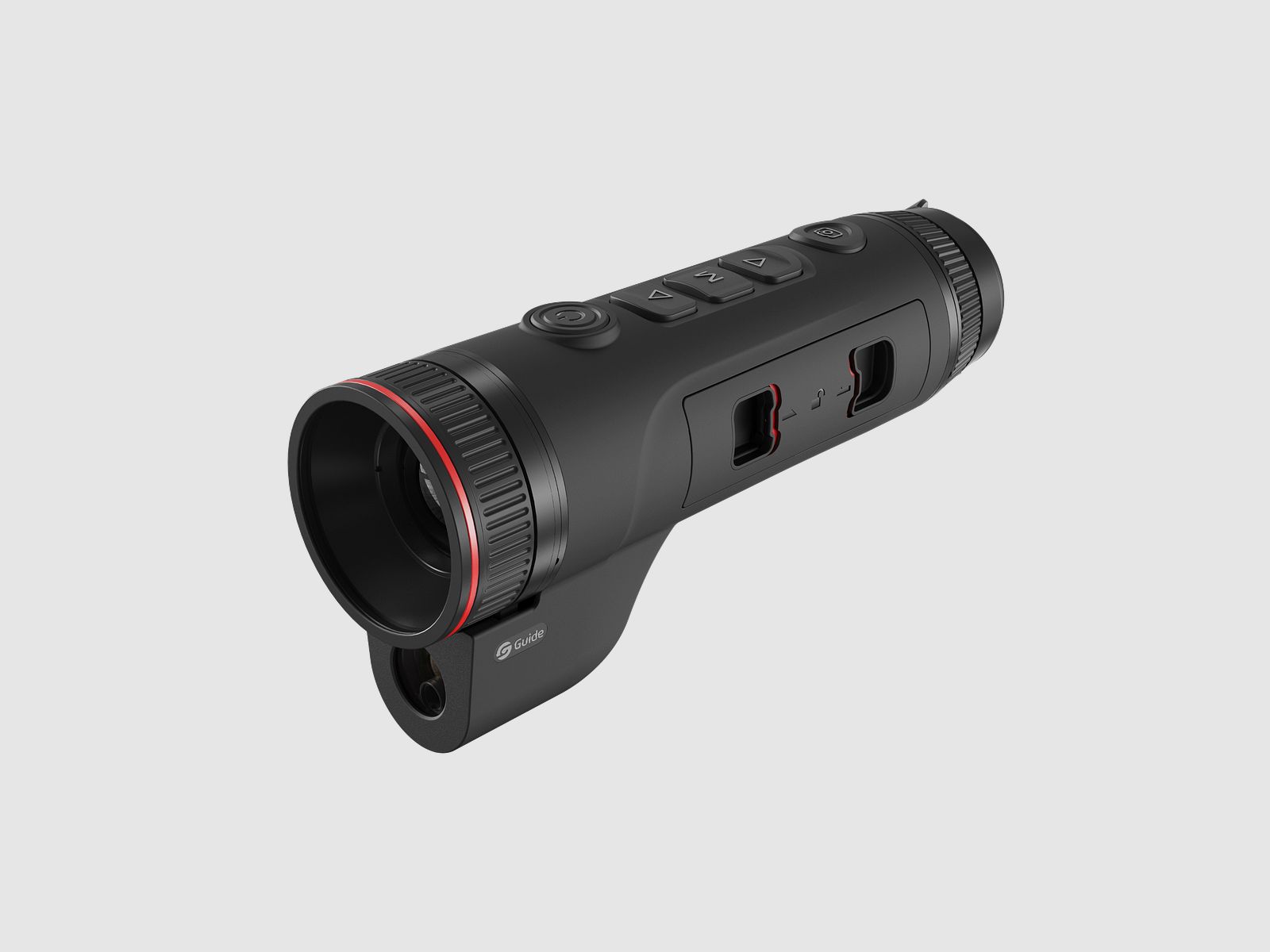

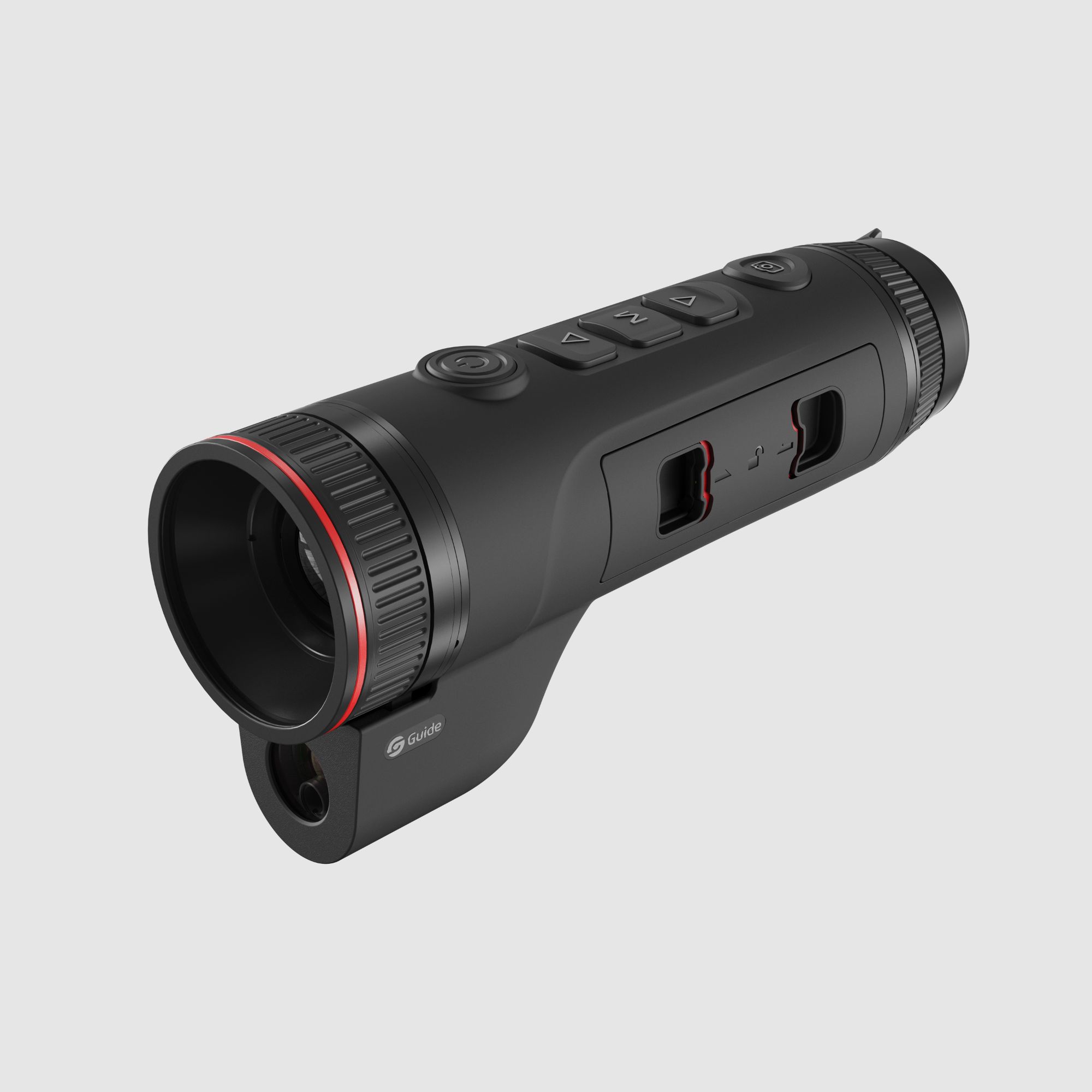

High-Precision Thermal Imaging Monocular with Laser Rangefinder – Guide TJ630L
Maximum visibility & precision for hunters & outdoor adventurers
The Guide TJ630L is a top-class thermal imaging monocular with a 1000m laser rangefinder, ideal for hunters and nature observers. The 640 × 512 pixel infrared sensor and the NETD sensitivity of <20 mK ensure outstanding image quality, even in challenging lighting conditions.
Highly Sensitive 12μm Thermal Imaging Sensor
The powerful 12μm infrared sensor enables highly precise temperature detection. The 35mm F1.0 lens provides a field of view of 22 × 17° at 100 meters and allows for detailed representation.
1920 × 1080 AMOLED display for brilliant images
The Full HD AMOLED display offers a clear, high-contrast, and eye-friendly representation, making longer viewing sessions more enjoyable.
1000m Laser Distance Meter for Accurate Measurements
The integrated Laser Distance Meter measures distances of up to 1000 meters and enhances the capture of distant targets – perfect for hunting, surveillance, and outdoor activities.
Versatile Focal Length Options
With the choice of 25mm, 35mm, and 50mm focal lengths, the device adapts flexibly to different environments. The 50mm F1.0 lens allows for object detection at up to 2000 meters.
10 hours of battery life for extended observations
With a battery life of up to 10 hours and replaceable 18650 batteries, the device ensures continuous outdoor use.
Robust construction with IP67 protection
The IP67 certification protects the device from dust and water, ensuring it operates reliably even under extreme weather conditions.
Technical Data
Property |
Details |
|---|
Sensor |
640 × 512 infrared sensor |
Pixel Size |
12 µm |
Frame Rate |
50 Hz |
Spectral Range |
8–14 µm |
NETD |
< 20 mK |
Display |
1920 × 1080 AMOLED |
Lens |
35 mm |
Field of View |
22 × 17° at 100 m |
Digital Zoom |
18x |
Laser Rangefinder |
Yes, up to 1000 m |
WiFi & App |
Yes |
Battery Life |
Up to 10 hours |
Battery Type |
Replaceable 18650 batteries |
Weight |
502 g |
Scope of Delivery |
Charger, USB-C cable, 2x battery, hand strap, quick guide, warranty card, 5V2A adapter |
