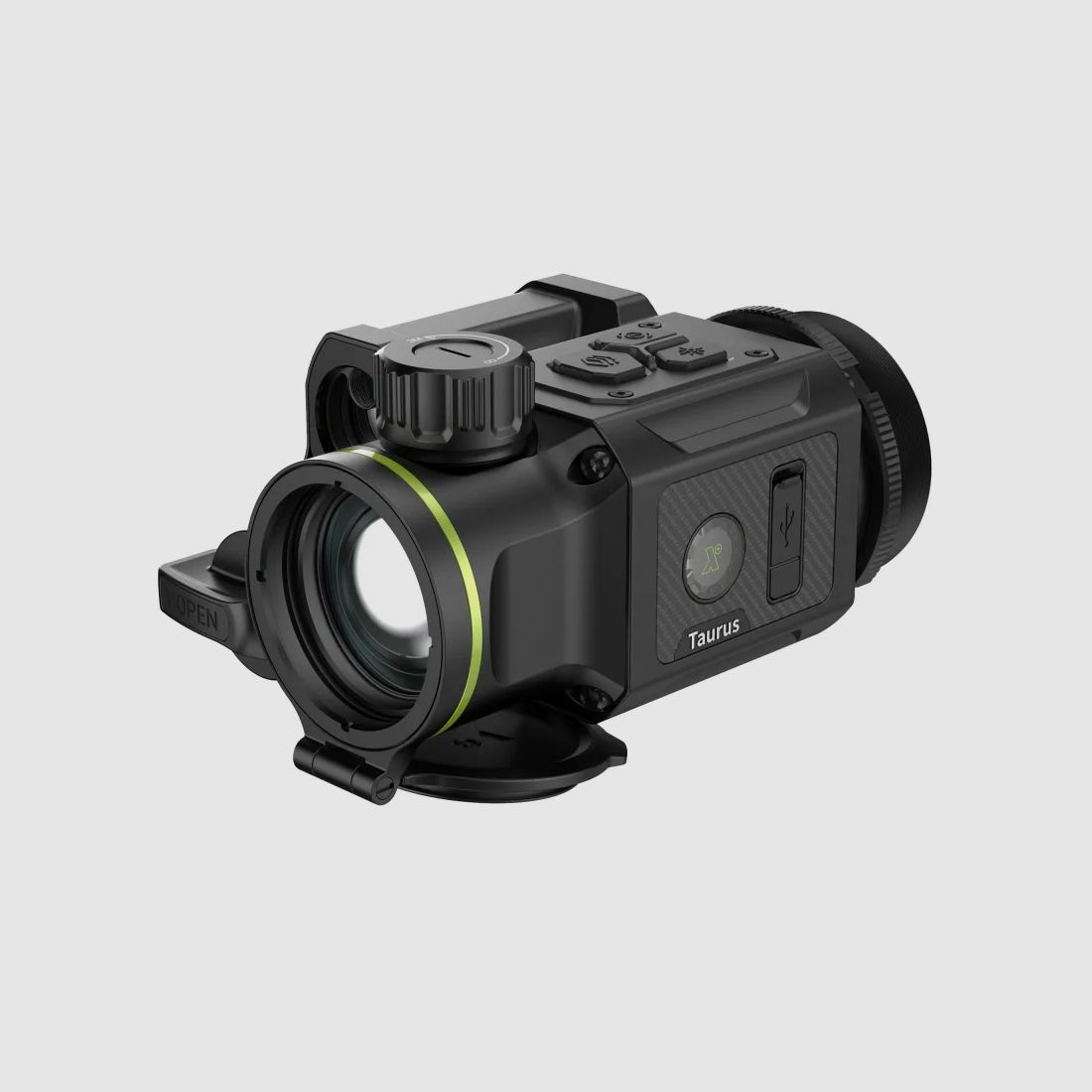

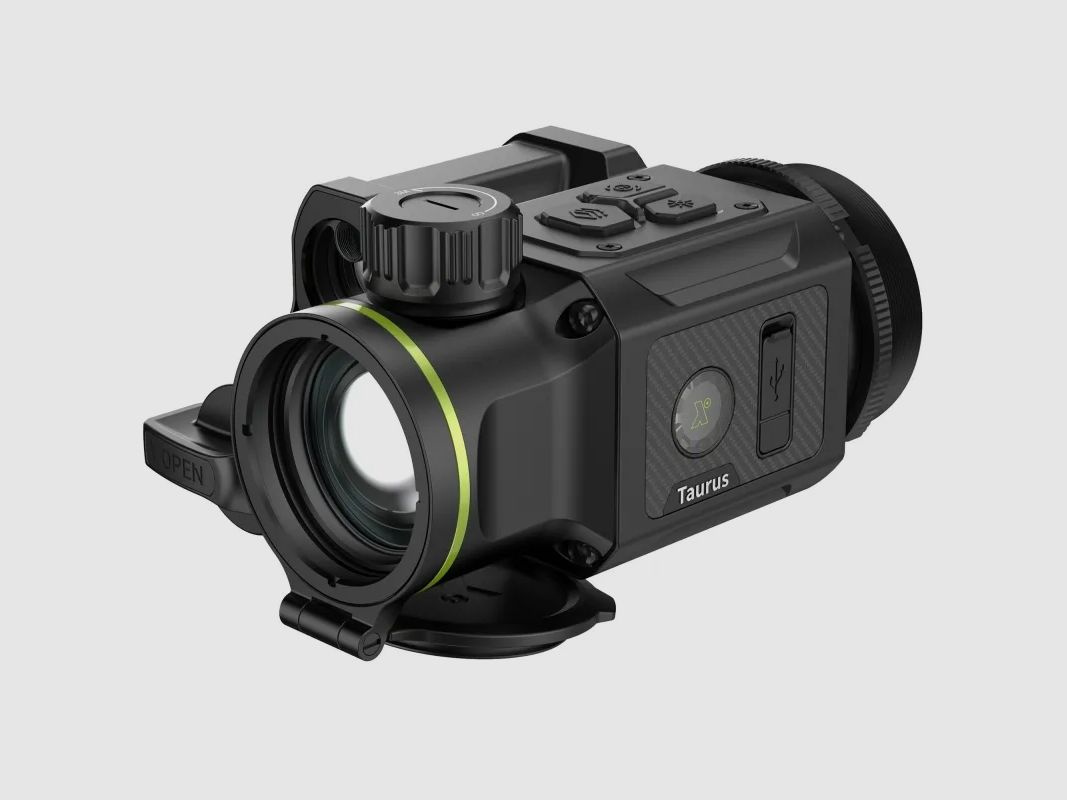

PIXFRA Taurus T635 LRF – High-Resolution Thermal Imaging Device with Integrated Rangefinder (LRF)

The PIXFRA Taurus T635 LRF combines high-resolution thermal imaging technology with a lightweight, handy design. Equipped with a VOx 640 × 512 sensor, 12 µm pixel size, and a sensitivity of < 18 mK, it delivers detailed and high-contrast images. The f1.0 35-mm lens and the brilliant 1920 × 1080 OLED display enable reliable detection of heat signatures up to 1800 meters – all while maintaining a compact and robust build.

Integrated Rangefinder (LRF)

The device features a precise rangefinder that accurately determines distances up to 1000 meters. The function is seamlessly integrated and remains completely unobtrusive to the surroundings.

Sub-Pixel Technology for High Precision

The Sub-Pixel Zeroing technology allows for precise adjustment with an ultra-fine click value of 0.9 cm at 100 meters, ensuring repeatable accuracy even after prolonged use.

Wide Field of View at High Resolution

With a field of view of 22 meters at 100 meters and a detection distance of up to 1800 meters, the Taurus T635 LRF offers the ideal combination of overview and detail accuracy – particularly suitable for medium distances.

Optimized Image Representation with PIPS 2.0

The latest PIPS 2.0 firmware (Pixfra Imaging Processing System) ensures even sharper images through optimized zoom, effective noise reduction, and precise edge sharpening.

AI-Powered Calibration

Thanks to AI-powered Adaptive Image Calibration (AAIC), the device automatically adjusts to changing conditions and improves image quality with each use.

Flexible Color Modes

Six color palettes – White-hot, Black-hot, Rainbow, Red-hot, Green-hot, and Sepia – allow for individual adaptation to the environment and preferences.

Long Operating Time

A replaceable battery provides up to 6 hours of continuous operation. With two batteries included, uninterrupted use over longer periods is easily achievable.

Robust and Reliable

The lightweight magnesium housing is IP67 certified, dustproof, and waterproof, protecting the technology even in extreme temperatures from -30 °C to +55 °C.

Connectivity and Storage

The Taurus T635 LRF offers Wi-Fi functionality for simultaneous connection with up to four devices. Additionally, 32 GB of internal storage is available for photo and video recordings.

Intuitive Operation

An ergonomic 3-button layout, a smooth focusing wheel, and the Bluetooth remote control with magnetic holder make operation simple and comfortable.

Conclusion on the PIXFRA Taurus T635 LRF

The PIXFRA Taurus T635 LRF is a compact and powerful thermal imaging dual-use device with an integrated rangefinder. With VOx sensor, OLED display, AI-powered calibration, and PIPS 2.0, it delivers high-resolution thermal images, great range, and flexible functions – robust, reliable, and versatile.

Scope of Delivery:

• PIXFRA Taurus T635 LRF thermal imaging device


• 2x battery


• Remote control with magnetic holder


• USB-C cable


• Carrying strap


• 5x heat pads


• Mounting key


• Operating manual in German (in customer account)
