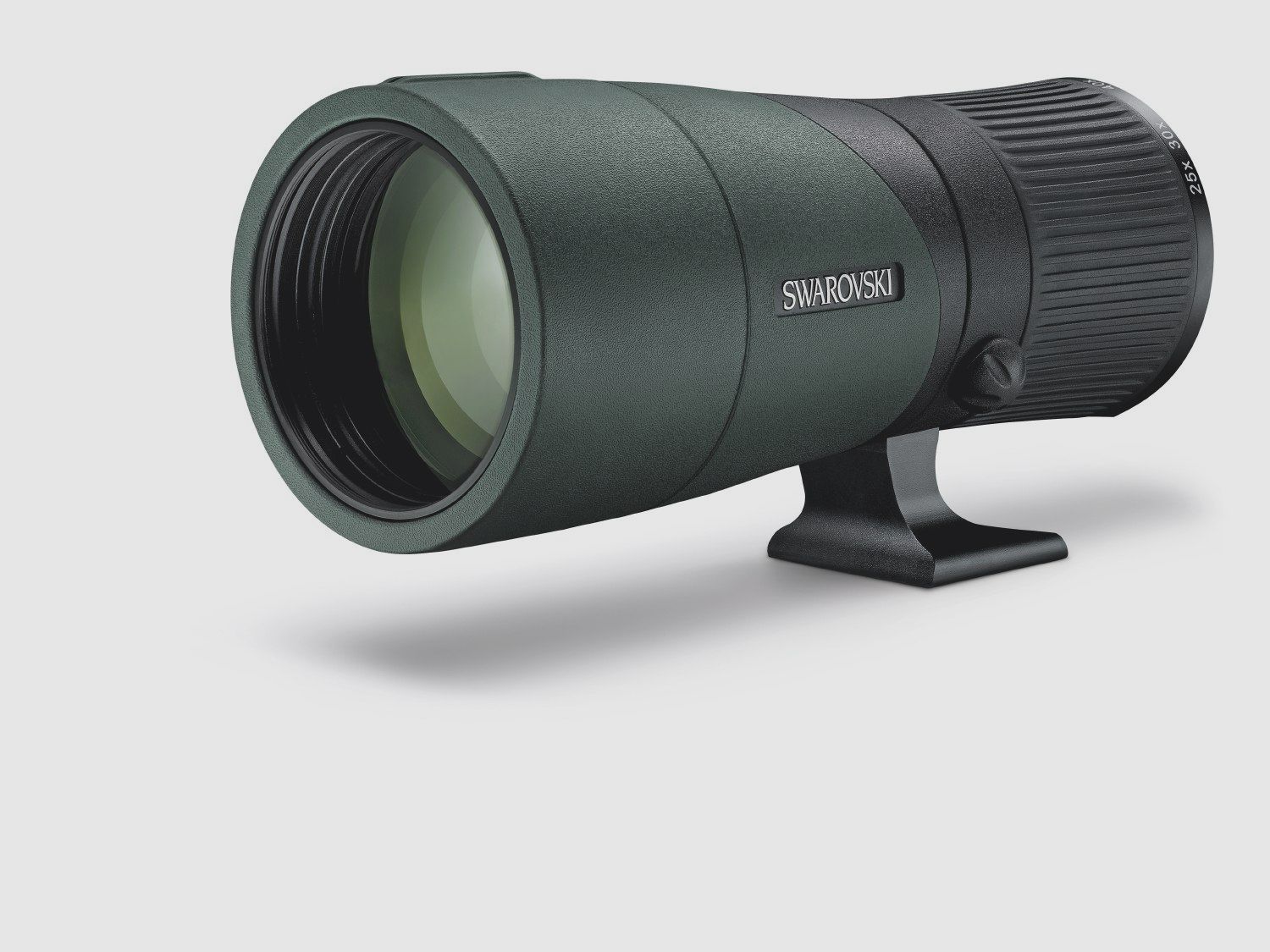

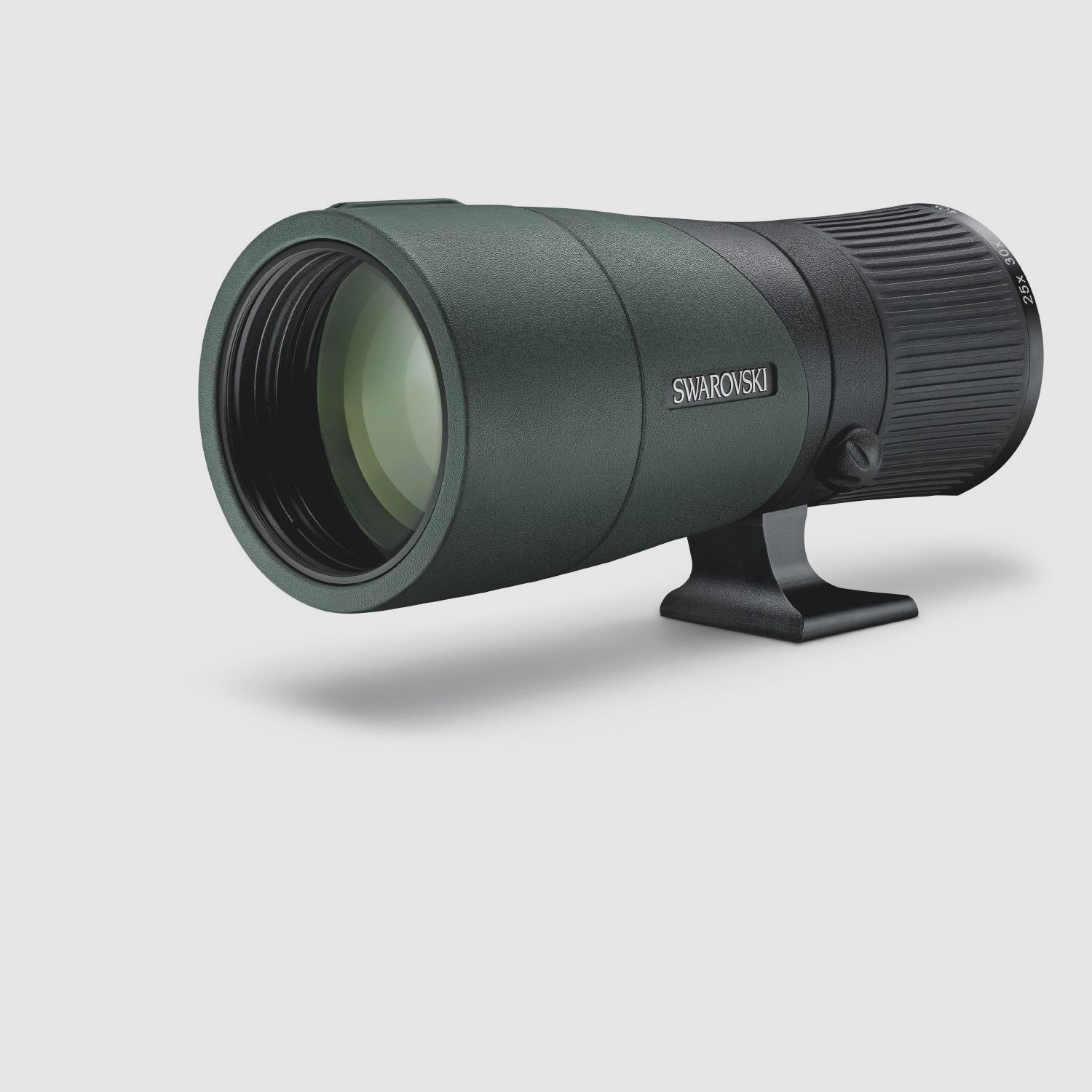

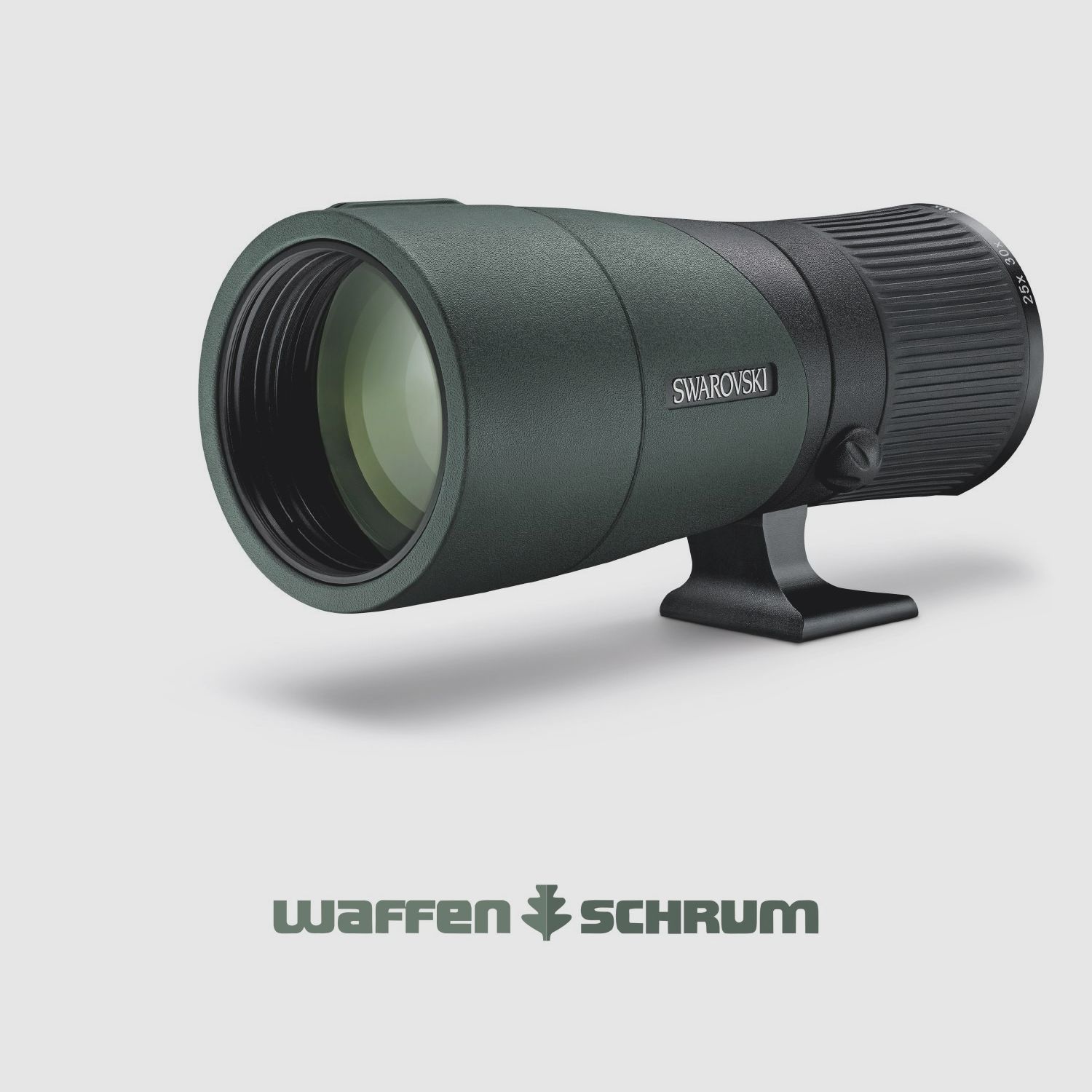

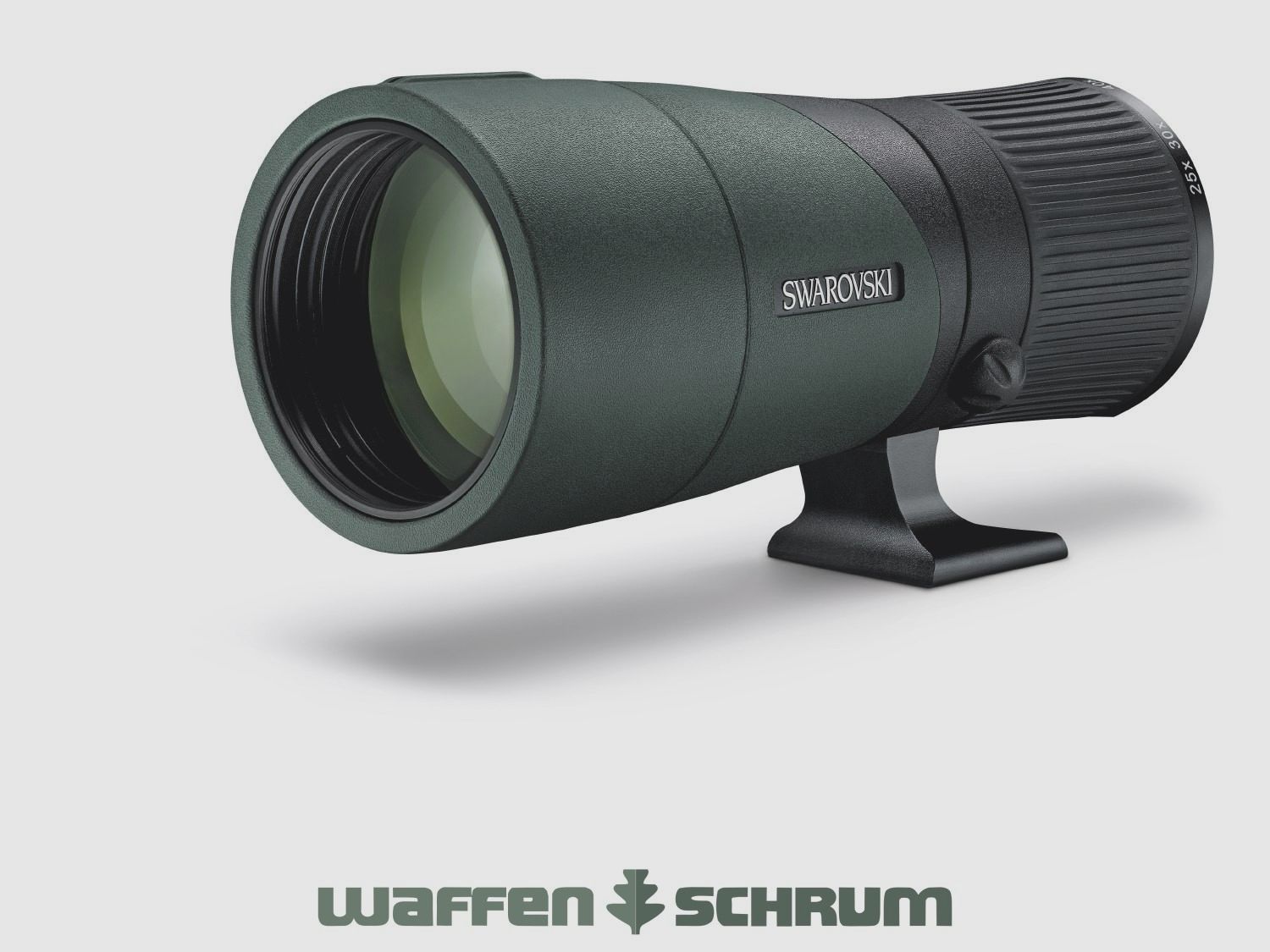

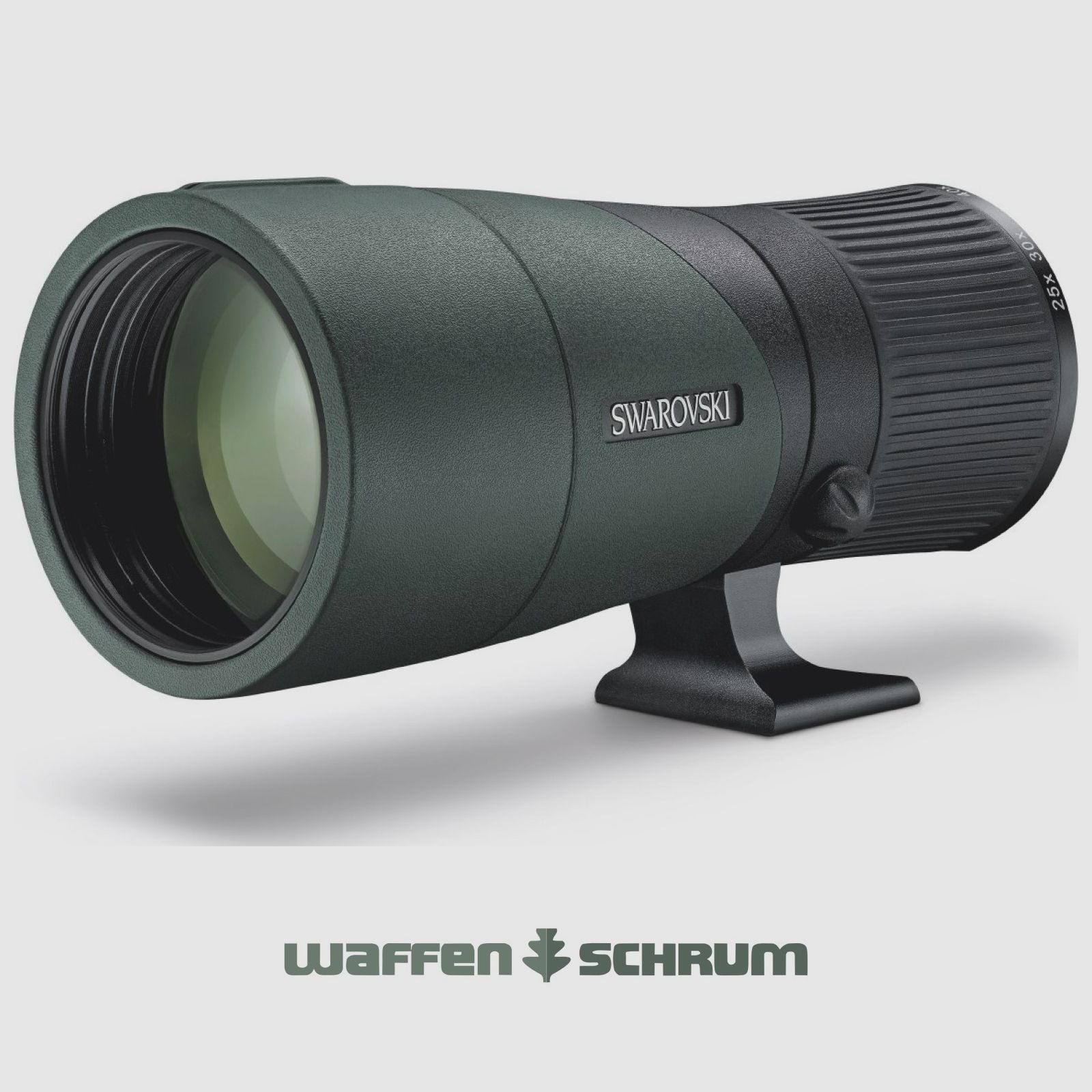

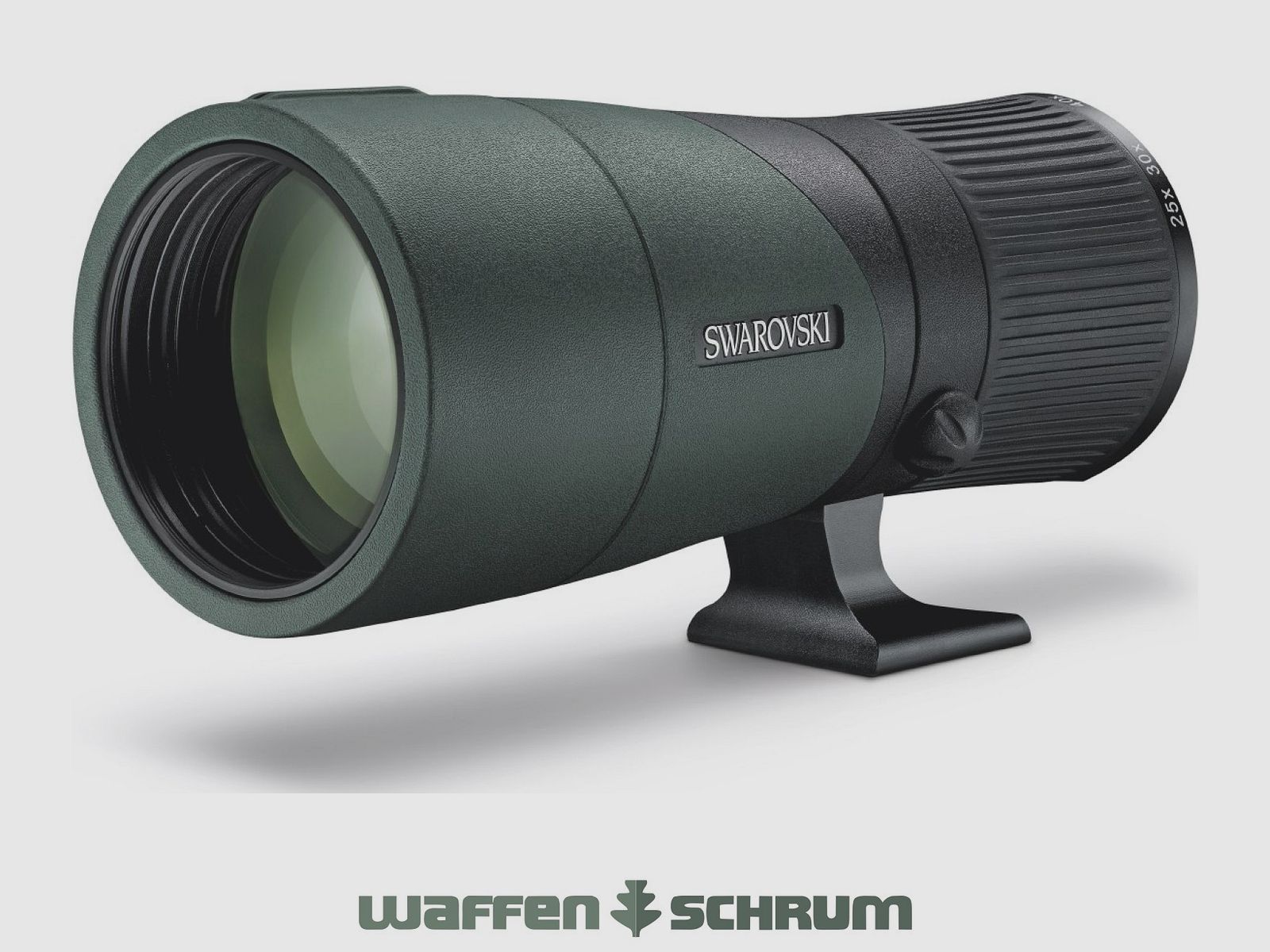

Swarovski ATX/STX/BTX objective module 65mm

In the models of the ATX/STX and BTX series, Swarovski deviates from the product philosophy of other spotting scope providers. The Tyrolean company offers these telescopes not separately as spotting scope body and eyepiece, but

• the reversing system, which is otherwise located in the spotting scope body, firmly connected with the eyepiece as a module and
• the pure objective as a changeable module.

This allows you to acquire different objectives for various observation situations for your eyepiece module, depending on your individual needs or financial possibilities, or to switch between them.


Light and with a Large Field of View
The compact 65-mm objective module offers a 25-60x magnification in combination with the ATX/STX eyepiece module and a 25x magnification with the BTX eyepiece module. A large field of view and good close focusing are additional advantages of this module. With a length of 207 mm and a weight of 775 g, the 65-mm version is ideal for carrying during longer hunts.


High-Quality Material Processing
The lenses of the 65-mm objective module are coated with the proven Swarovision technologies. They are also protected on the side towards the eyepiece module with a protective glass, so that no dirt enters the objective body when changing the eyepiece module. The housing is robust, and the green rubber armoring effectively protects the objective module from impacts. It is pressure-waterproof up to a water depth of 4 m. It is filled with nitrogen to prevent internal fogging. You can also use it in extreme temperatures.


Technical Data

• Objective: 65 mm
• Filter thread: M67x0.75
• Nitrogen filling
• Operating temperature: -25 °C to 55 °C
• Storage temperature: -30 °C to 70 °C
• Waterproofness: up to 4 m water depth
• Length: 207 mm
• Weight: 775 g
