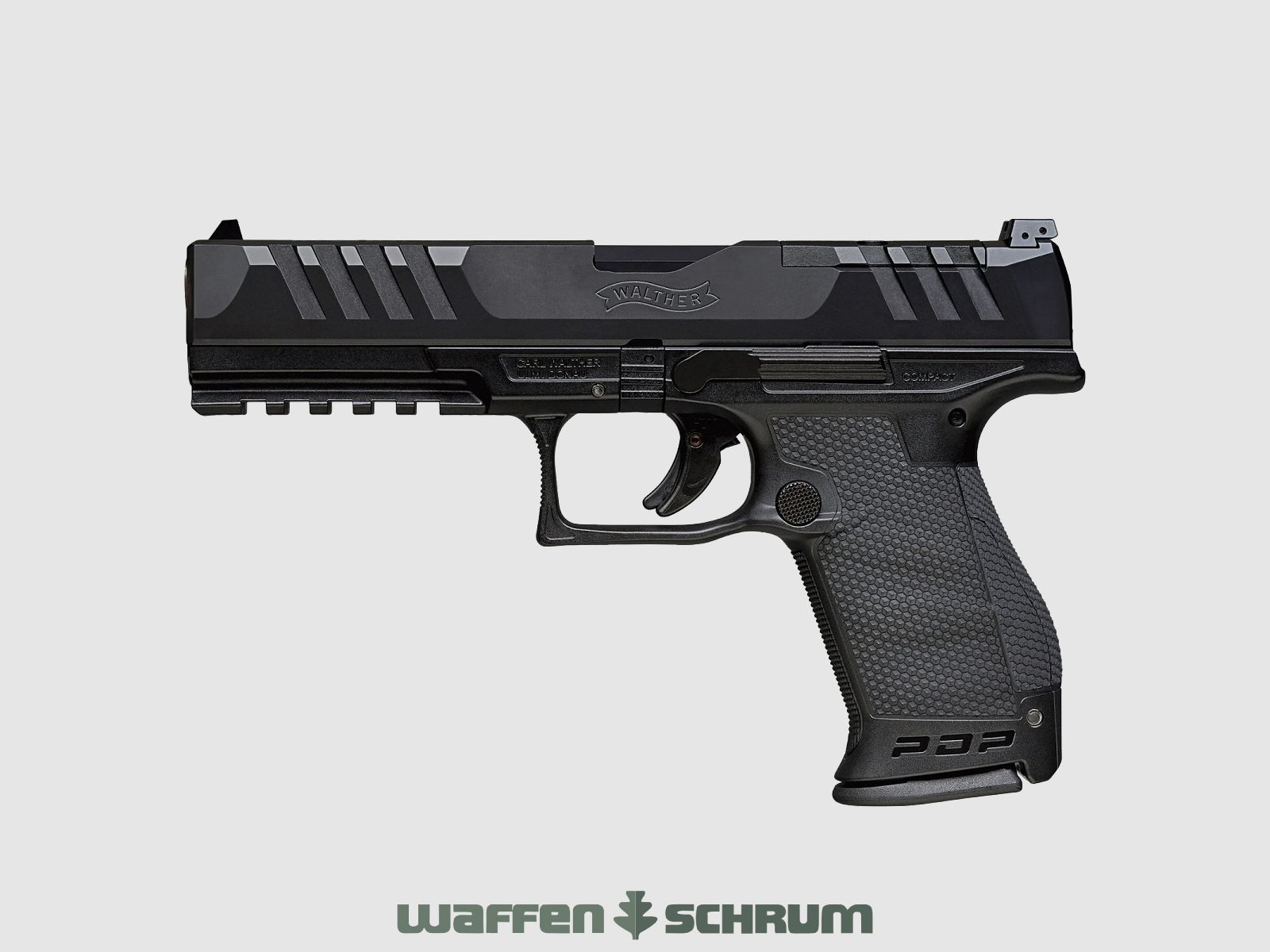

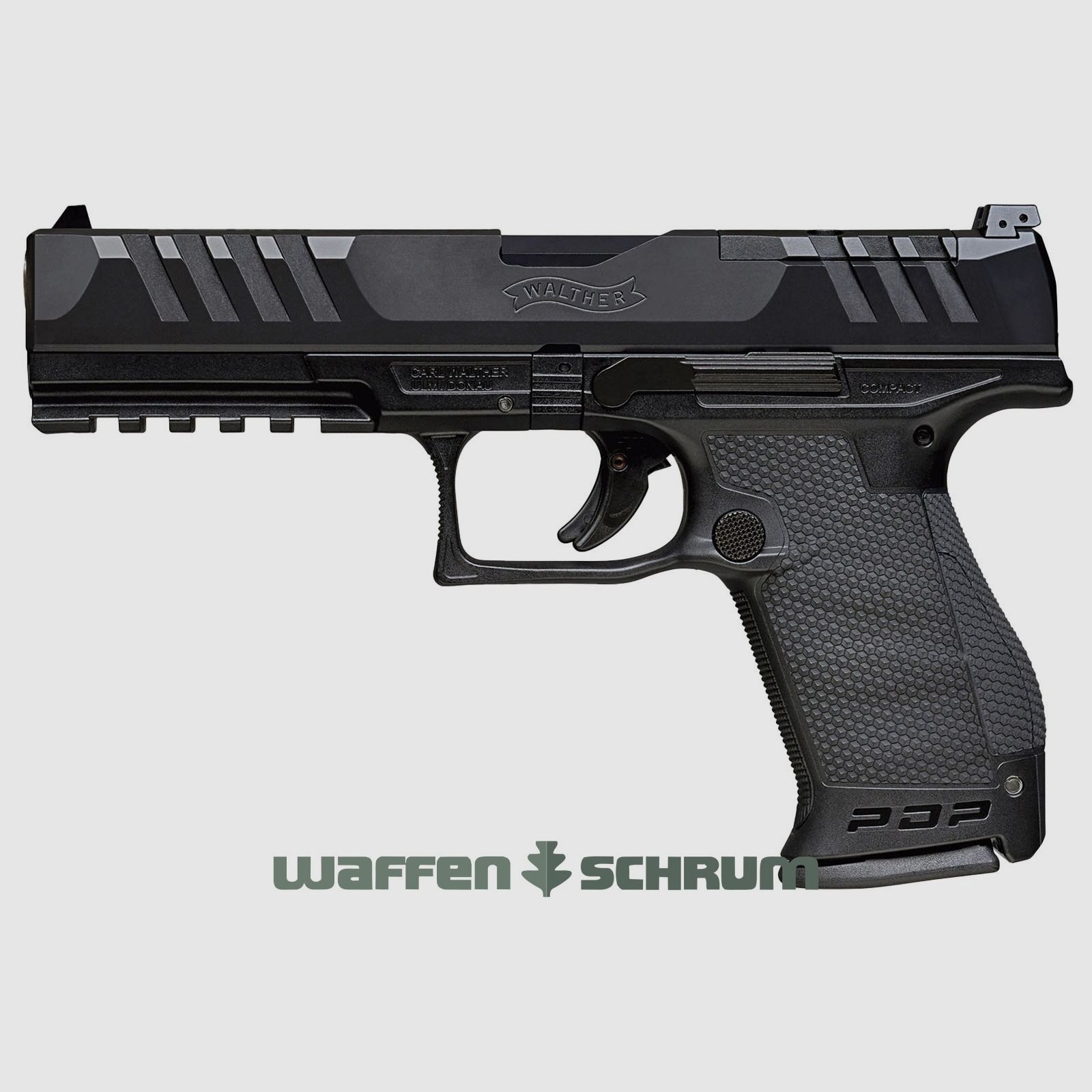

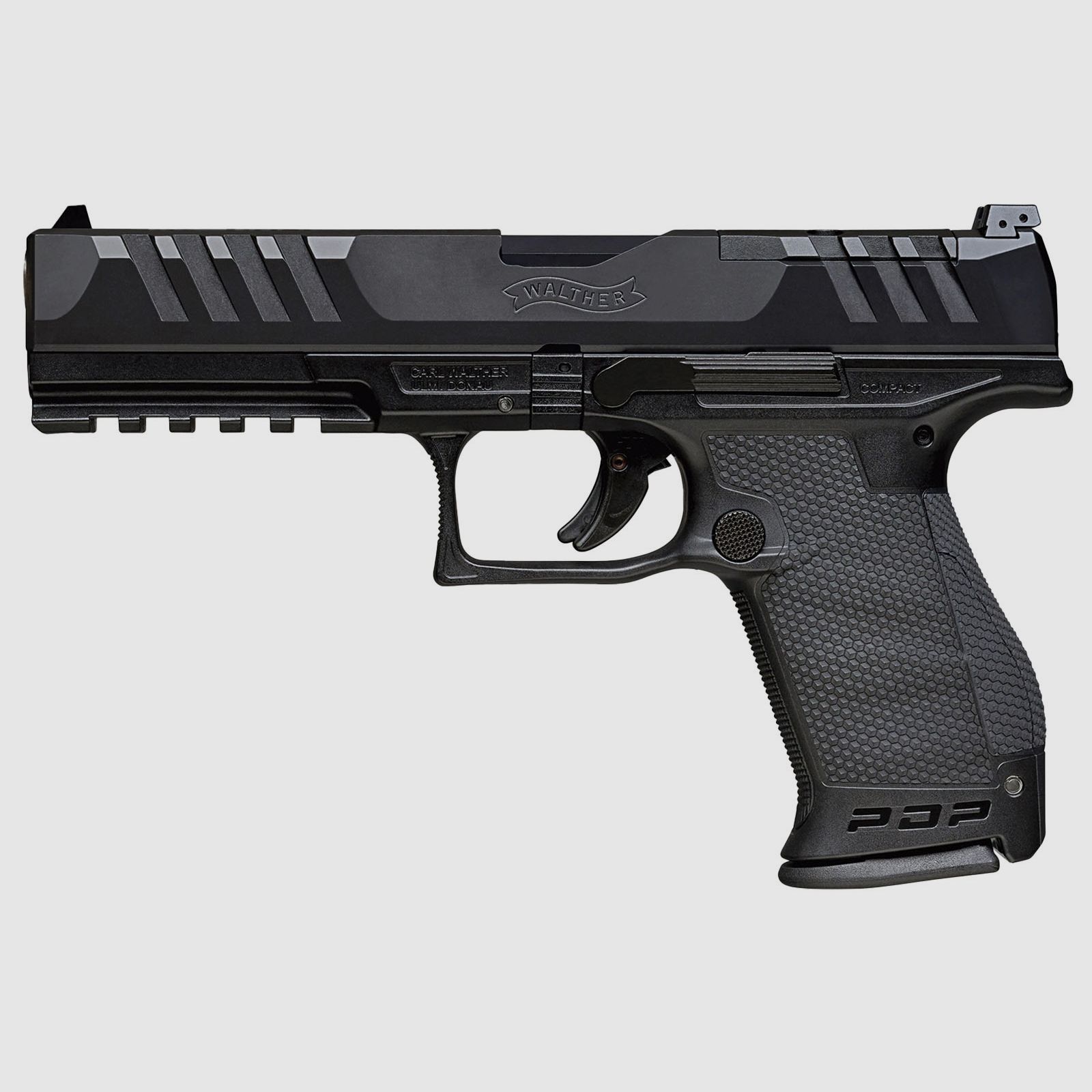

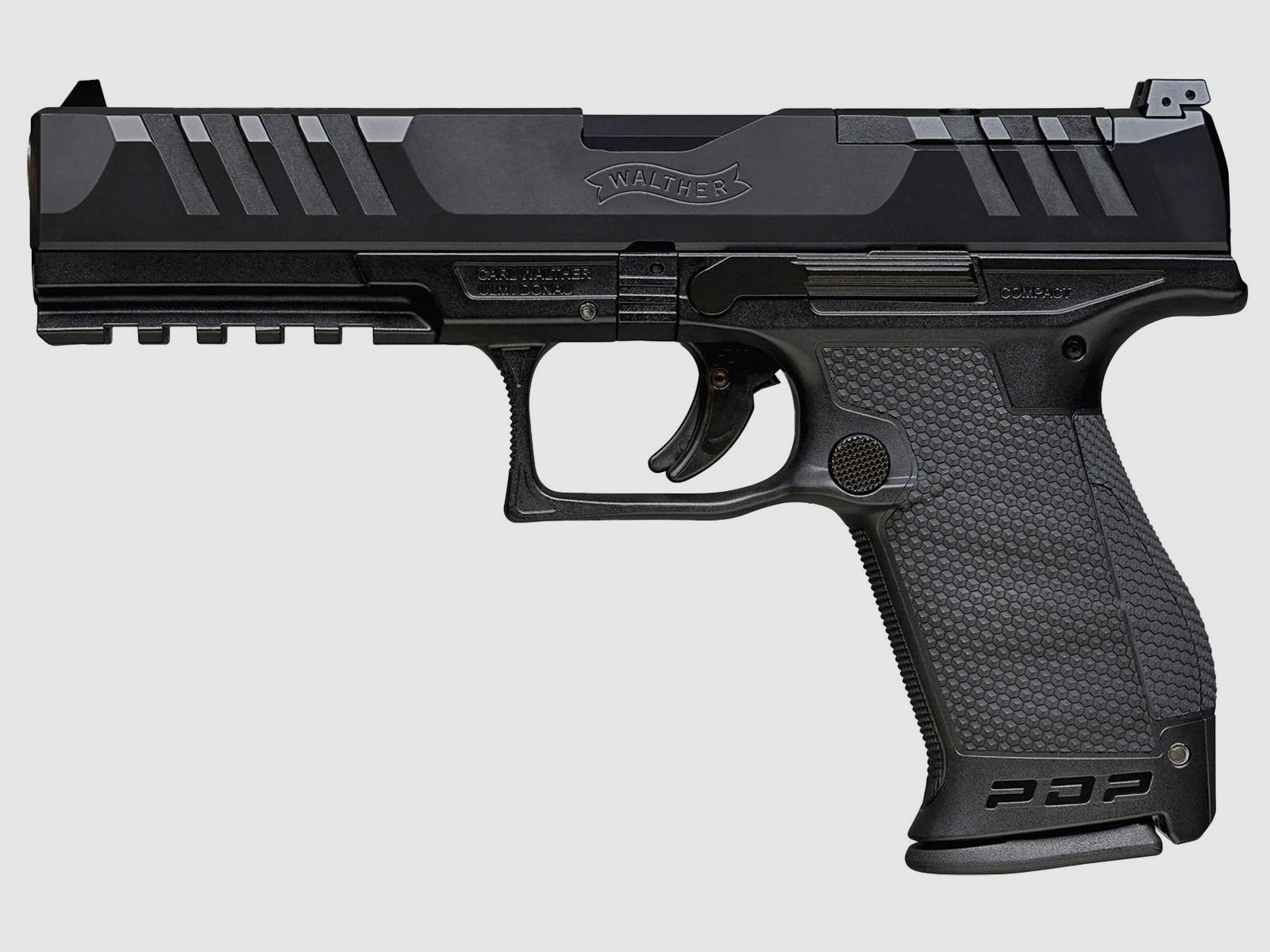

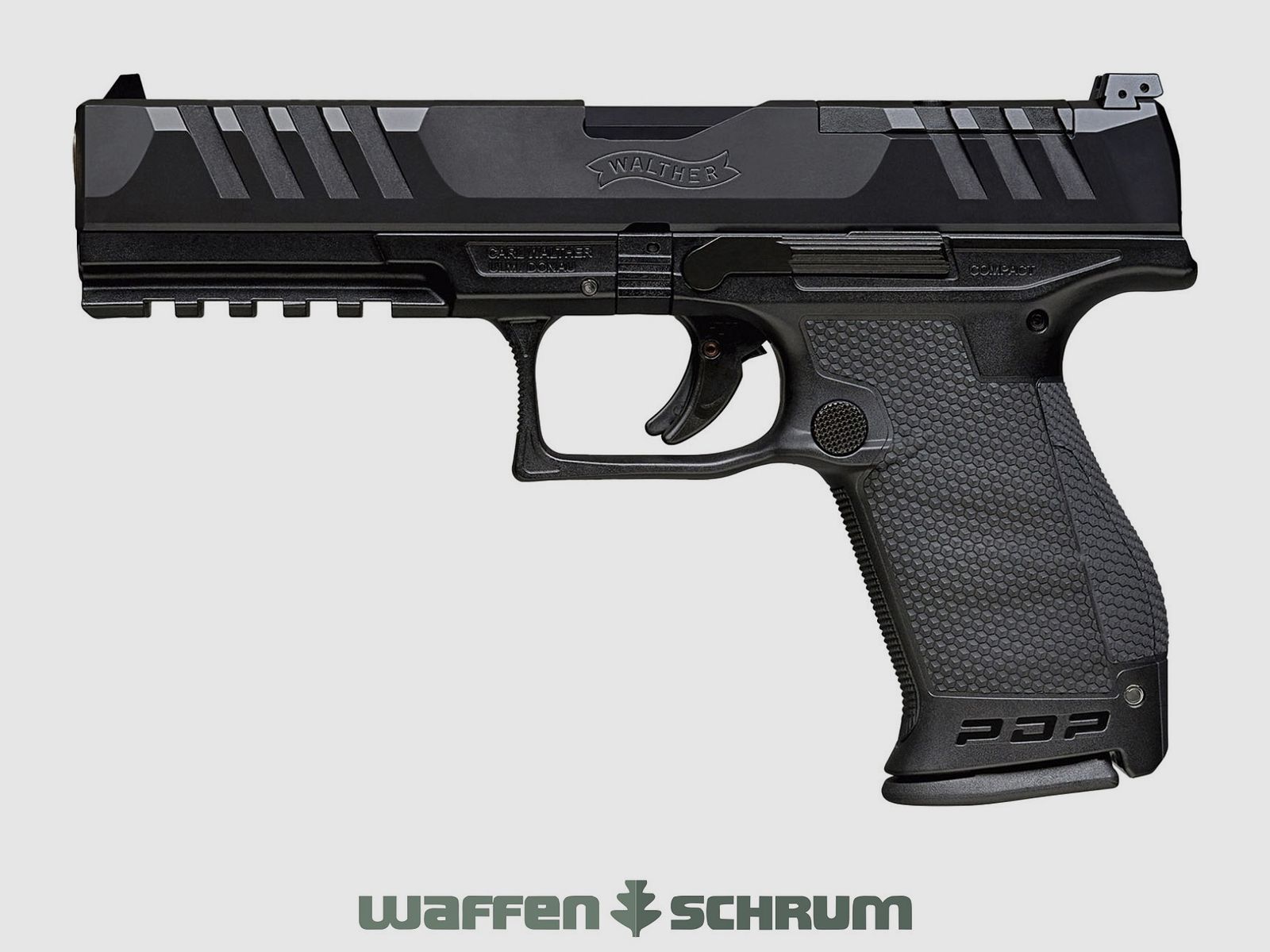

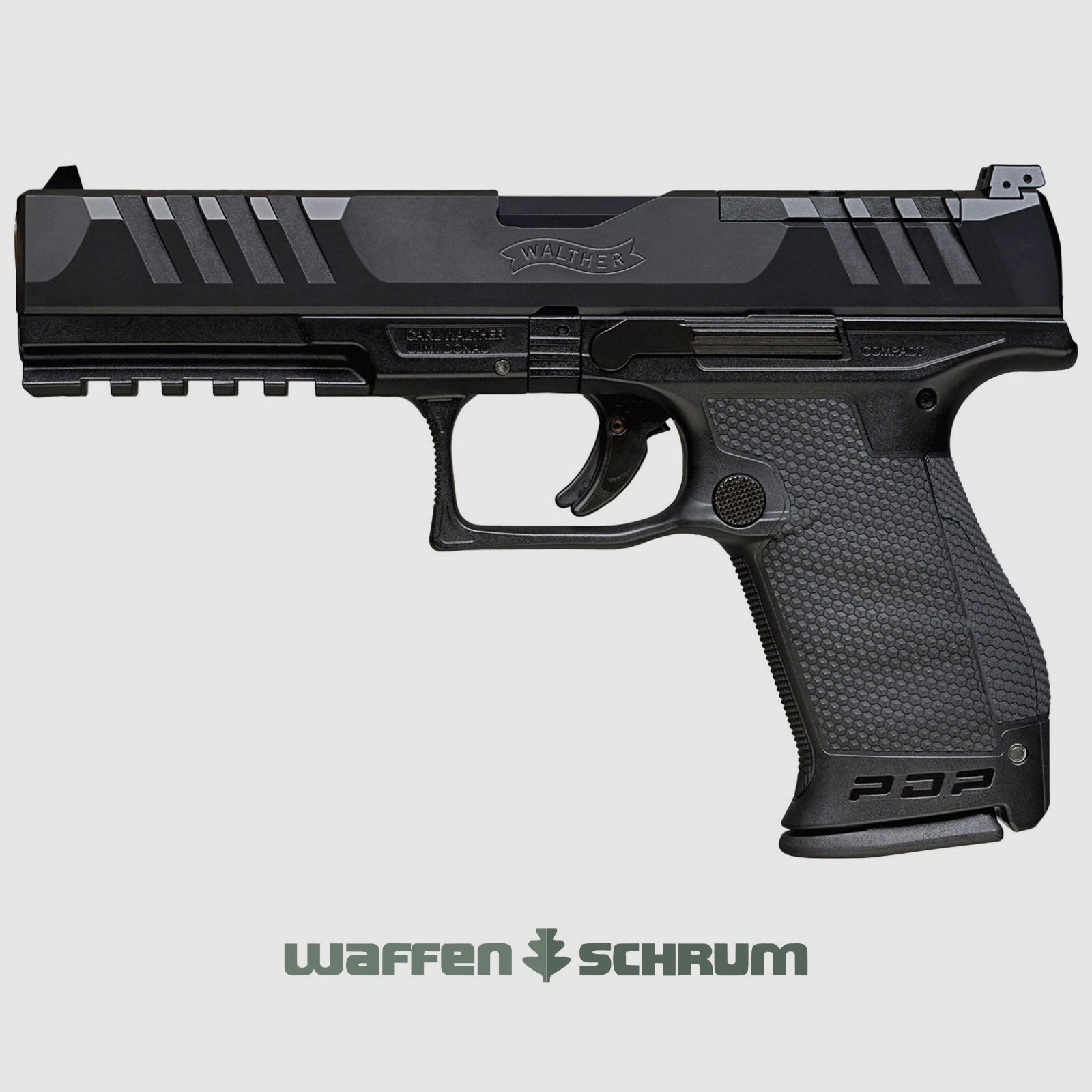

With a barrel length of 127 mm, the service pistol Walther PDP Compact OR 5“ is the largest version in the Compact series in terms of dimensions and weight. However, this does not detract from its well-proportioned shape. The 25 mm longer sight line and the reduced muzzle rise due to more mass at the muzzle guarantee greater precision. The grip circumference at trigger height is 148 mm. The PDP Compact OR 5“ is robust and always functions reliably, under harsh conditions as well as during relaxed use at the shooting range.
The HapticsWhen it comes to handling the Walther PDP Compact OR 5“, two factory-developed technologies from Walther are worth mentioning: “SuperTerrain Serrations” refers to the raised grip grooves at the front and back of the slide. Even in wet weather, fingers do not slip while reloading. “Performance Duty Texture” refers to the surface of the grip, which, with its tetrahedral structure, does not irritate the skin even during long, firm gripping and allows the hand to become one with the pistol haptically. The arrangement of the elements allows for intuitive operation of the pistol, enabling you to concentrate fully on your target. Even when used with gloves, the PDP Compact OR 5“ is reliable and precise.
The Ergonomic DesignIn addition to its surface, the shape of the grip of the PDP Compact OR 5“ has been modified. The end of the grip is designed to provide support for the little finger. This, along with the grip angle, automatically leads to optimal trigger behavior. The sight line, with a length of 188 mm, is positioned low for quick target acquisition. This is accompanied by the optimization of the position, travel, and pressure point of the trigger, a “Performance Duty Trigger.” The trigger is intuitive and controlled, reachable with the finger in 70 mm. The pressure point is at 25 N, and the crystal-clear break increases accuracy. The ergonomics of the PDP Compact OR 5“ also ensure that the red dot of the popular Walther sights is captured ad hoc.
The MagazineThe magazine of the PDP Compact OR 5“ holds 15 cartridges. The staggered cartridge chamber allows for reliable feeding of the casing, which provides the PDP with more muzzle energy and reduces residue in the pistol. A loaded indicator signals whether it is chambered. The PDP has trigger, firing pin, and safety (disconnector) safeties.
Extended Sight Optics
If you want to equip your Walther PDP F 4" with a sight optic, this is possible without much effort. If you do not wish to use it, a cover plate for the interface is included in the delivery.
Scope of Delivery- Walther PDP Compact OR 5“
- Pistol case in PDP design
- Grip back in sizes S, M, and L
- Cover plate for interface
- 2 magazines
- Magazine loading aid
- Ambidextrous slide stop lever
- Side-swappable magazine holder
Technical Data- Caliber: 9 mm Luger
- Barrel: Polygonal barrel
- Barrel length: 127 mm (5“)
- Sights: height and windage adjustable 3-dot polymer sights
- Sight line: 188 mm
- Optics: optional optics ready
- Trigger: Performance Duty Trigger
- Trigger weight: 2,500 g
- Safety: Loaded indicator and 3 automatic safeties – trigger, firing pin, safety (disconnector)
- Magazine capacity: 15 cartridges
- Dimensions (LxHxB): 210x135x34 mm
- Weight: 740 g
Auch mit dem 5-Zoll-Lauf bleibt die Walther PDP Compact OR 5“ so, wie ihr Name verspricht: äußerst kompakt
Mit ihrer Lauflänge von 127 mm ist die Dienstpistole Walther PDP Compact OR 5“ von Maßen und Gewicht her die größte Ausführung in der Compact-Reihe. Das tut jedoch ihrer wohlproportionierten Form keinen Abbruch. Die 25 mm längere Visierlinie und das reduzierte Hochschlagen der Pistole durch mehr Masse an der Mündung garantieren auch mehr Präzision. Der Griffumfang auf Abzugshöhe beträgt 148 mm. Die PDP Compact OR 5“ ist robust und funktioniert stets zuverlässig, unter harten Einsatzbedingungen ebenso wie beim entspannten Gebrauch am Schießstand.
Die HaptikWenn es um das Handling der Walther PDP Compact OR 5“ geht, sind zwei von Walther werkseitig entwickelte Technologien zu nennen: „SuperTerrain Serrations“ meint die erhobenen Greifrillen vorne und hinten am Verschluss. Auch bei nassem Wetter rutschen die Finger beim Durchladen nicht ab. „Performance Duty Texture“ bezieht sich auf die Oberfläche des Griffs, die mit ihrer Tetraeder-Struktur auch bei langem festem Zupacken die Haut nicht reizt und die Hand haptisch mit der Pistole eins werden lässt. Die Anordnung der Elemente erlaubt ein intuitives Bedienen der Pistole, Sie können sich vollkommen auf Ihr Ziel konzentrieren. Auch im Einsatz mit Handschuhen ist die PDP Compact OR 5“ zuverlässig und präzise.
Die ergonomische KonstruktionNeben seiner Oberfläche wurde auch die Form des Griffes der PDP Compact OR 5“ modifiziert. Das Ende des Griffs ist so angelegt, dass es dem kleinen Finger Halt gibt. Dies und der Griffwinkel führen automatisch zu einem optimalen Deutverhalten. Die Visierlinie mit einer Länge von 188 mm liegt für eine rasche Zielaufnahme tief. Damit einher geht die Optimierung von Position, Weg und Druckpunkt des Abzugs, ein „Performance Duty Trigger“. Der Abzug ist intuitiv und kontrolliert zugleich in 70 mm mit dem Finger zu erreichen. Der Druckpunkt liegt bei 25 N, das glasklare Brechen erhöht die Treffsicherheit. Die Ergonomie der PDP Compact OR 5“ bringt auch mit sich, dass der Rotpunkt der beliebten Walther-Visiere ad hoc erfasst wird.
Das MagazinDas Magazin der PDP Compact OR 5“ fasst 15 Patronen. Das gestufte Patronenlager ermöglicht eine zuverlässige Liderung der Hülse, was der PDP mehr Mündungsenergie beschert und den Schmauch in der Pistole reduziert. Eine Geladenanzeige meldet, ob durchgeladen ist. An Sicherungen hat die PDP Abzugs-, Schlagbolzen- und Schützensicherung (Unterbrecher).
Erweiterte Zieloptik
Wenn Sie Ihre Walther PDP F 4" mit einer Zieloptik bestücken möchten, ist dies ohne großen Aufwand möglich. Möchten Sie diese nicht einsetzen, ist im Lieferumfang eine Abdeckplatte für die Schnittstelle enthalten.
Lieferumfang- Walther PDP Compact OR 5“
- Pistolenkoffer im PDP-Design
- Griffrücken in den Größen S, M und L
- Abdeckplatte für Schnittstelle
- 2 Magazine
- Magazin-Ladehilfe
- beidseitiger Verschlussfanghebel
- seitlich wechselbarer Magazinhalter
Technische Daten- Kaliber: 9 mm Luger
- Lauf: Polygonlauf
- Lauflänge: 127 mm (5“)
- Visierung: höhen- und seitenverstellbare 3-Dot Polymervisierung
- Visierlinie: 188 mm
- Optik: optional optics ready
- Abzug: Performance Duty Trigger
- Abzugsgewicht: 2.500 g
- Sicherung: Geladenanzeige und 3 automatische Sicherungen – Abzugs-, Schlagbolzen-, Schützensicherung (Unterbrecher)
- Magazinkapazität: 15 Patronen
- Maße (LxHxB): 210x135x34 mm
- Gewicht: 740 g
