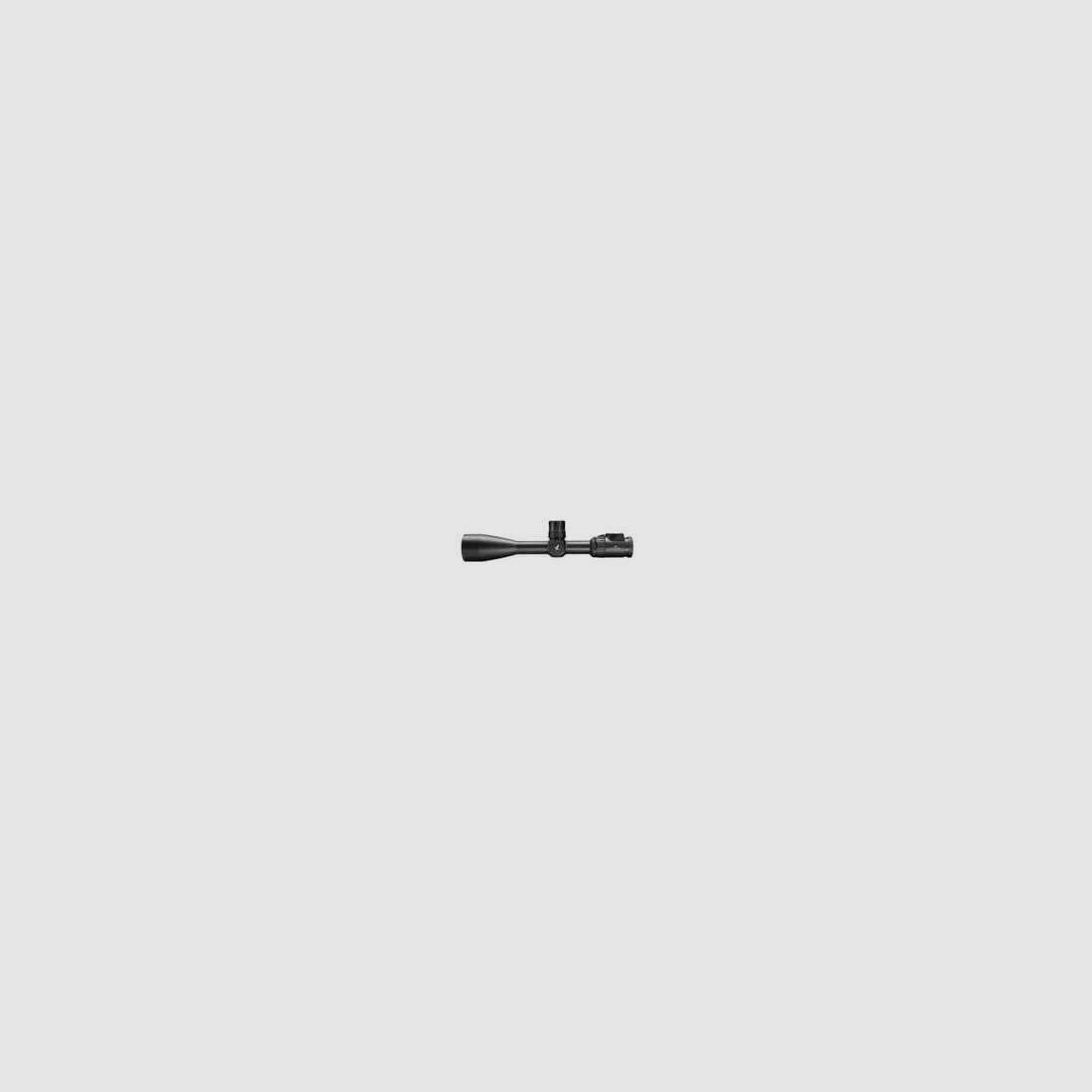

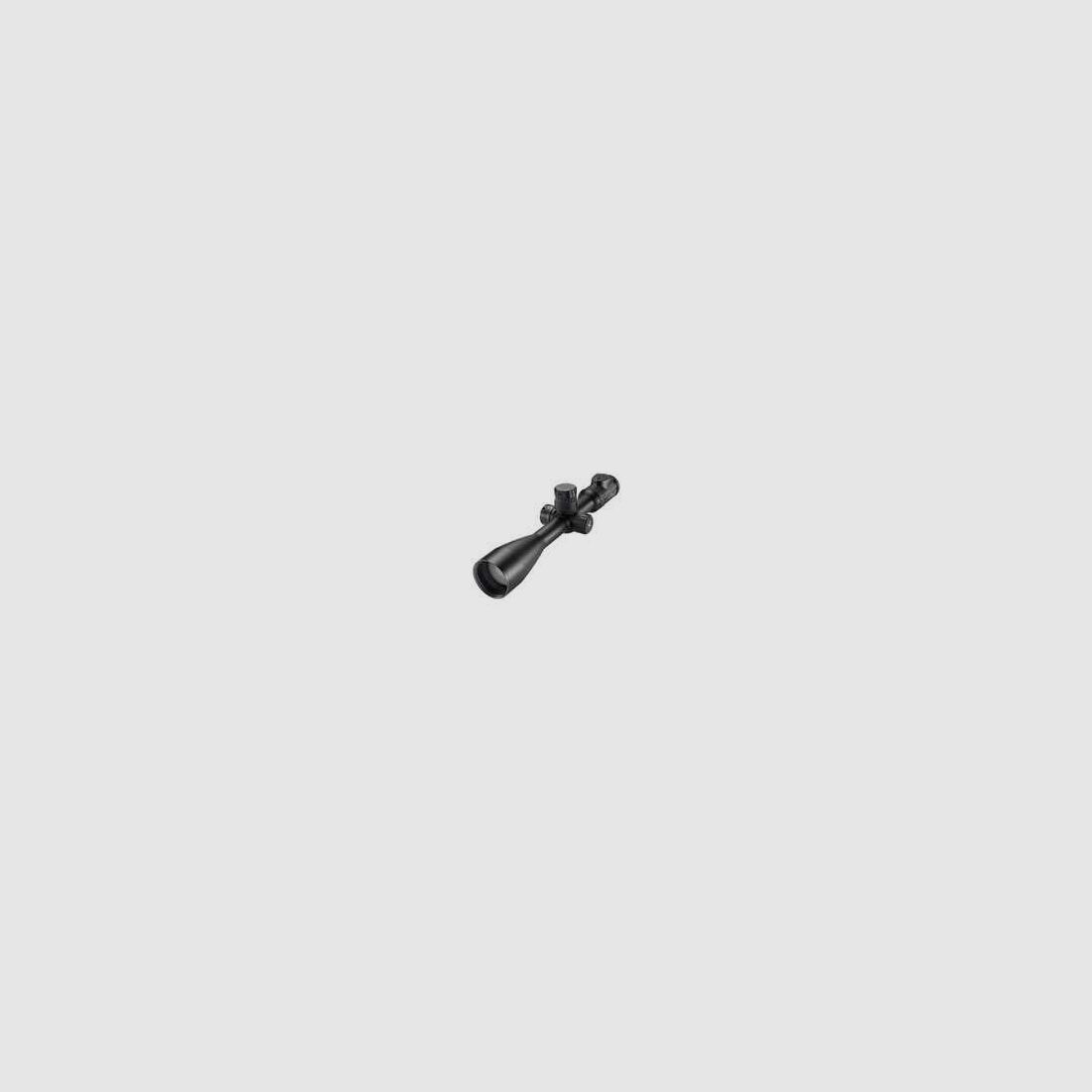

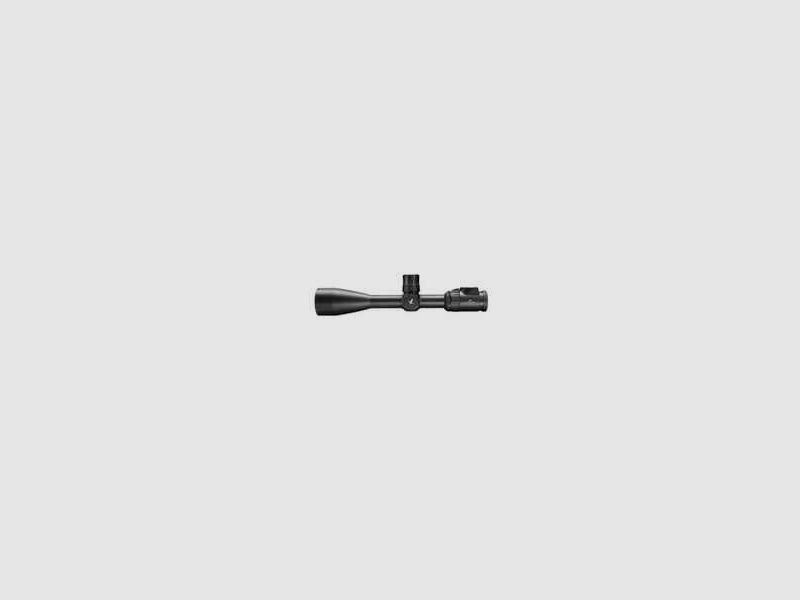

Righly estimate, wisely decide, hit exactly. Whether you are hunting over long distances or training your shooting skills: you always need the right tool by your side. The X5(i) from SWAROVSKI OPTIK redefines precision. Its new reset spring system and the turrets are part of the overall package for precision and provide you with exact point-of-impact correction over the entire adjustment range with 1/4 or 1/8 MOA for elevation and windage (X5/X5i 5-25x56 P) – even in the most extreme situations. To hit close targets accurately, the SUBZERO function allows you to fall below the dot shooting distance at any time. Thanks to the excellent optical performance, this riflescope is the ultimate professional for long-range shooting. The exact 1/8 MOA point-of-impact correction combined with the fine Plex reticle allows you to hit any target precisely even at great distances.

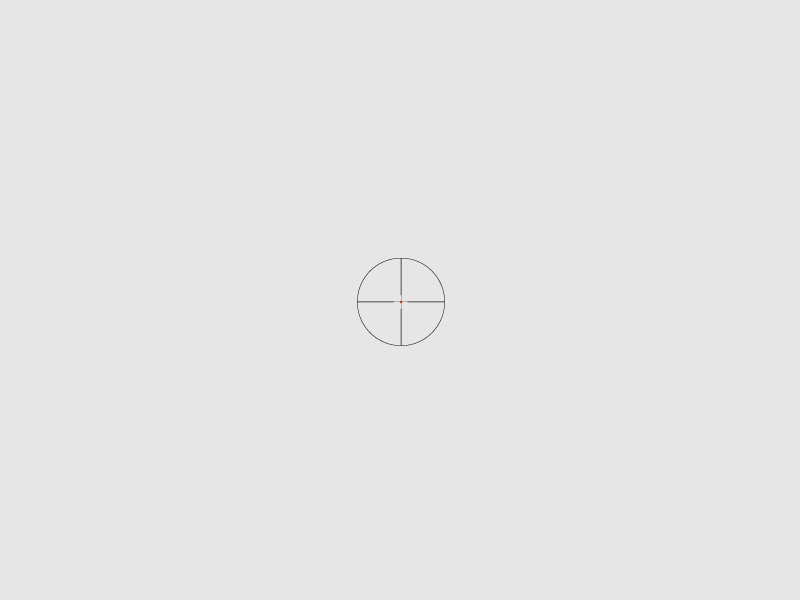

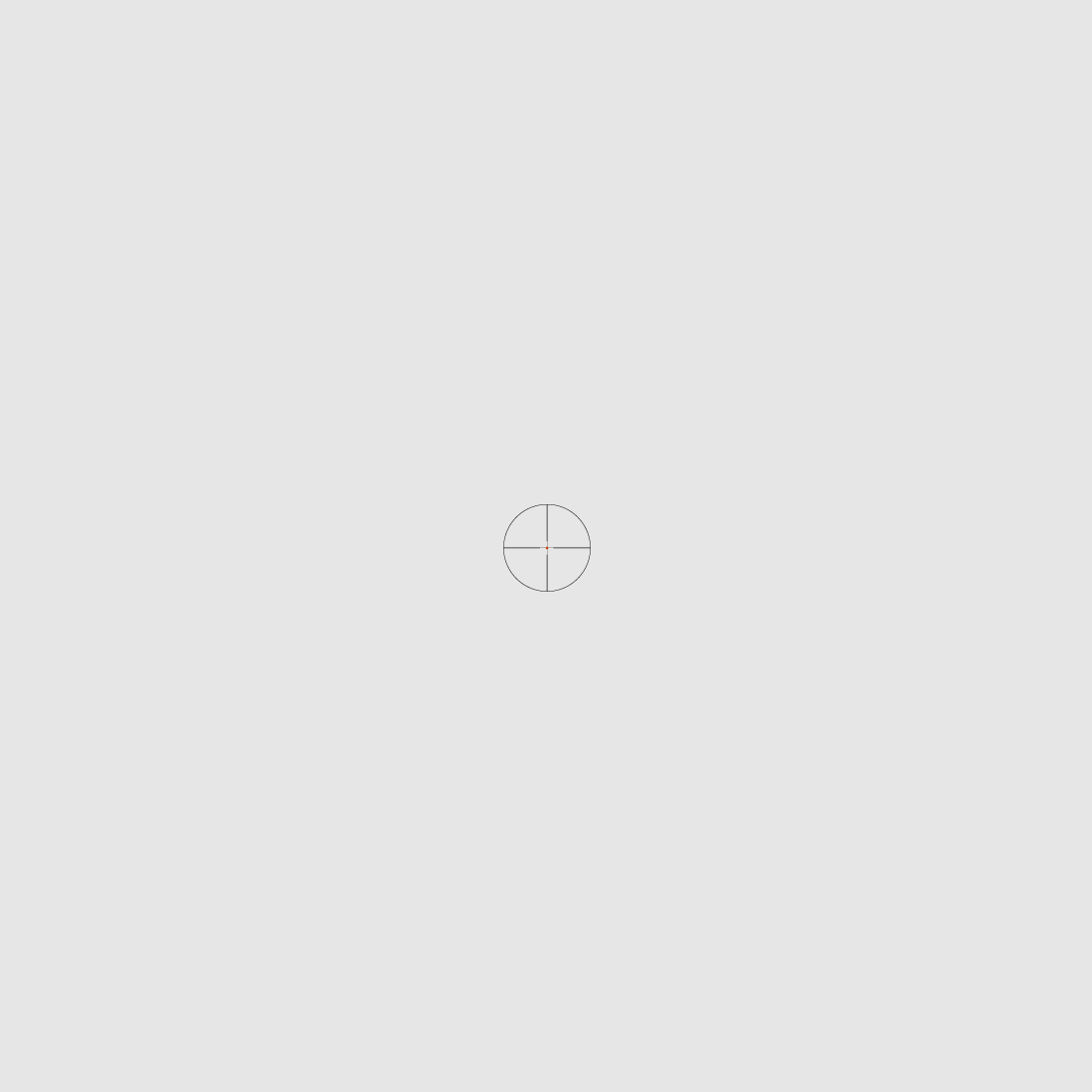

Reticle - PLEX-I + illuminated
Technical Data
Magnification 5-25x
Effective objective diameter (mm) 48.0-56
Exit pupil diameter (mm) 9.5-2.3
Exit pupil distance (mm) (eye relief) 95
Field of view (m/100 m) 7-1.5
Field of view (degrees) 4.0-0.8
Eye-side field of view (degrees) 21.1
Diopter adjustment (dpt) -3 to +2
Light transmission (%) 90
Twilight number according to DIN ISO 14490-1 15.5-37.4
Point-of-impact correction / click (mm/100 m) 3.6
Point-of-impact correction / click (MOA) 1/8
Max. adjustment range for elevation/windage (m/100 m) 2.4/1.5
Max. adjustment range for elevation/windage (MOA) 82/50
Point-of-impact correction per revolution elevation / windage (clicks) 100/90
Possible undershooting of the dot shooting distance SUBZERO (clicks) 80
Manual parallax adjustment (m) 50-8
Filter thread objective side M 58x0.75
Illumination unit
Brightness levels 10
Operating time approx. (h)* 260
Length (mm) 377
Weight (g) 910
Main tube diameter (mm) 30
Operating temperature -20 °C / +55 °C
Storage temperature -30 °C / +70 °C
Waterproofness 4 m water depth (filled with noble gas)
(Show description in original language)
Richtig abschätzen, klug entscheiden, exakt treffen. Egal, ob Sie über weite Distanzen jagen oder Ihre Schussfertigkeiten trainieren: Sie brauchen stets das richtige Werkzeug an Ihrer Seite. Das X5(i) von SWAROVSKI OPTIK definiert Präzision neu. Sein neues Rückstellfedersystem und die Türme sind Teil des Gesamtpakets für Präzision und bieten Ihnen über den gesamten Stellweg eine exakte Treffpunktkorrektur mit 1/4 oder 1/8 MOA zur Höhe und zur Seite (X5/X5i 5-25x56 P) – auch in extremsten Situationen. Um auf nahen Zielen exakt zu treffen, kann mit der SUBZERO-Funktion die Fleckschussentfernung jederzeit unterschritten werden. Dank der ausgezeichneten optischen Leistung ist dieses Zielfernrohr der ultimative Profi für den Weitschuss. Die exakte 1/8 MOA Treffpunktkorrektur in Verbindung mit dem feinen Plex-Absehen lässt Sie auch auf größte Entfernung jedes Ziel präzise Treffen. Absehen - PLEX-I + beleuchtet Technische Daten Vergrößerung 5-25x wirksamer Objektiv-ø (mm) 48,0-56 Austrittspupillen-ø (mm) 9,5-2,3 Austrittspupillenabstand (mm) (Augenabstand) 95 Sehfeld (m/100 m) 7-1,5 Sehfeld (Grad) 4,0-0,8 augenseitiges Sehfeld (Grad) 21,1 Dioptrieausgleich (dpt) -3 bis +2 Lichttransmission (%) 90 Dämmerungszahl nach DIN ISO 14490-1 15,5-37,4 Treffpunktkorr. / Klick (mm/100 m) 3,6 Treffpunktkorr. / Klick (MOA) 1/8 max. Stellweg nach Höhe/Seite (m/100 m) 2,4/1,5 max. Stellweg nach Höhe/Seite (MOA) 82/50 Treffpunktkorrektur je Umdrehung Höhe / Seite (Klicks) 100/90 Mögliche Unterschreitung der Fleckschussentfernung SUBZERO (Klicks) 80 manueller Parallaxenausgleich (m) 50-8 Filtergewinde objektivseitig M 58x0,75 Beleuchtungseinheit Helligkeitsstufen 10 Betriebsdauer ca. (h)* 260 Länge (mm) 377 Gewicht (g) 910 Mittelrohrdurchmesser (mm) 30 Funktionstemperatur -20 °C / +55 °C Lagertemperatur -30 °C / +70 °C Dichtheit 4 m Wassertiefe (edelgasgefüllt)
