Area 419 Arcalock clamp
119.95 €
No permit required (18+)
8244 Schäffern, Austria
0
ID: 10137937
This item is currently unavailable.
Shop safely with Gunfinder
Our AI-powered seller identity verification makes Gunfinder the safest marketplace online.
Learn more
Details
- Original language
- German
- Category
- Condition
- New
- Location
- 🇦🇹 8244 Schäffern, Austria
- Availability
- Out of stock
Freshness
This listing is based on a mirrored offer, where the listing data was synced to us from a shop, dealer, or external marketplace. Please note that temporary price discrepancies may occur due to possible delays in data transmission.
- Source
- Alpineoptics
- Last updated
- about one hour ago
Description
Note:
The item is located abroad. Please note that delivery conditions, shipping times, and/or the purchase process may differ.

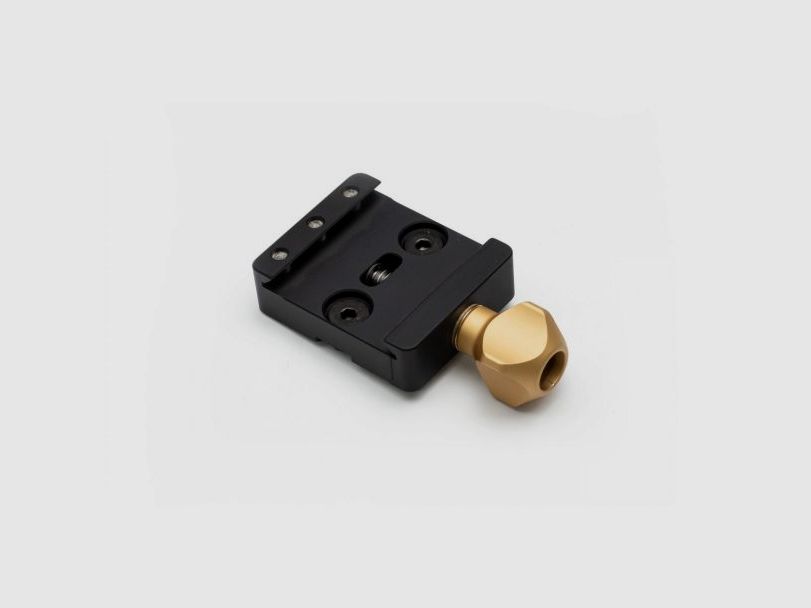

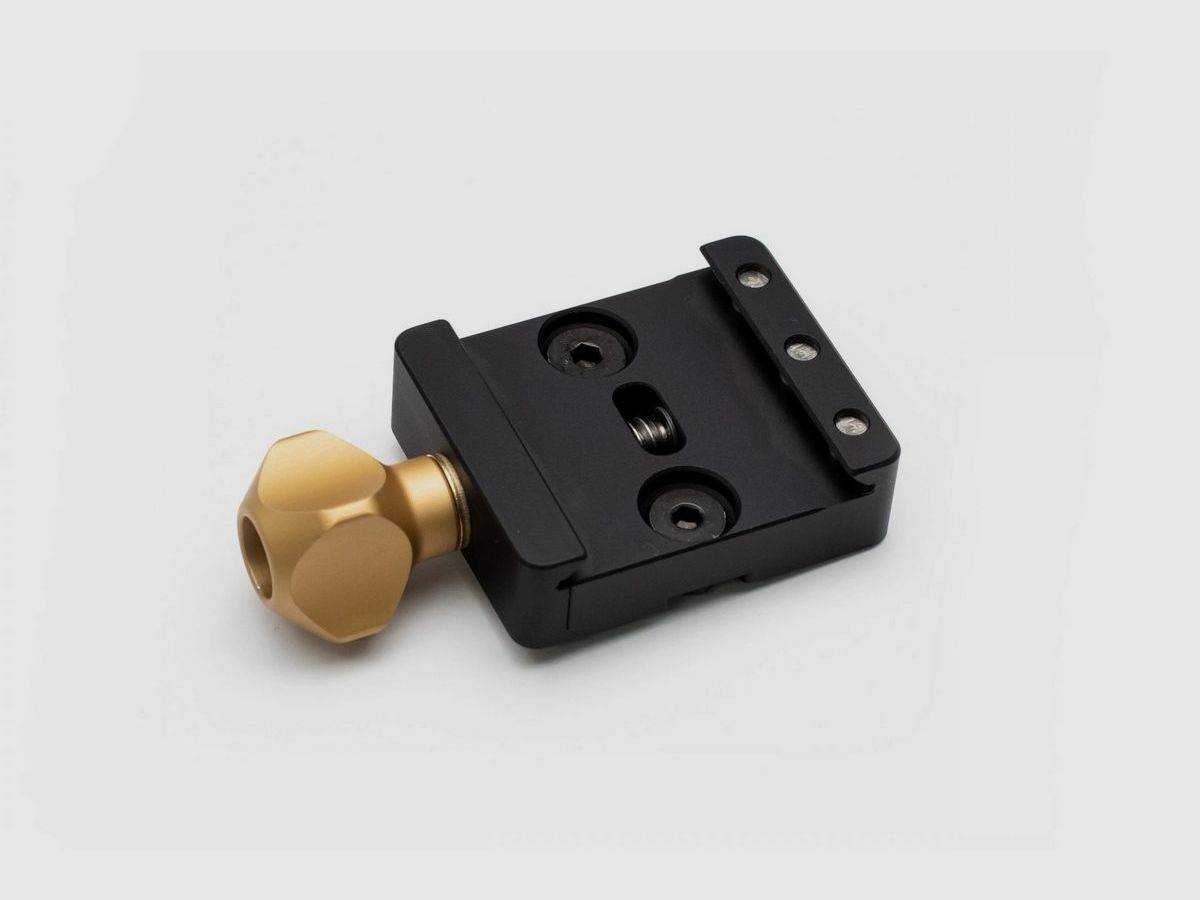

The ARCALOCK Clamp will bolt directly to any "NC" (No Clamp) style of Atlas Bipods (except the 5-H) using provided hardware. It has a two hole pattern of 1.100”.
It will also bolt directly to the Atlas BT20-B Bottom Picatinny Rail to utilize the quick detach lever on our "LW17" style of Atlas Bipods OR the 2-screw mount style of Atlas Bipods.
The ARCALOCK Clamp features a proprietary two-stage screw design. Both the Clamp and Knob are machined from 6061-T6 Aluminum with Type III Hardcoat black anodized Clamp and gold anodized Knob. The screw is turned from 303 stainless steel.
This clamp is manufactured by Area419 and can be used on Atlas V8, PSR, CAL and Super CAL models.
Weight: 72 grams / 2.5 oz.
Clamp features proprietary two-stage screw design:
Clamping screw features two different thread pitches. The coarse 16tpi is used when no tension is on clamp, allowing rapid movement of the clamp vs others on the market. With high speed comes low torque though, so to counteract this as soon as the clamp sees tension it will switch to the 32tpi threads in the knob to give you extra torque when not using on an ARCALOCK rail.
~1/4 Turn releases the clamp from the detents on the ARCALOCK rail for movement
One Turn releases clamp to be removed from rail
Clamp is backwards compatible with standard ARCA rails by removing the two pins, and will still work this way to give you infinite sliding adjustment on the ARCALOCK rail.
Moving side of clamp is dovetailed on both sides to prevent tilt
Knob/Screw design prevents the clamp from being able to fall apart if you loosen it too far
