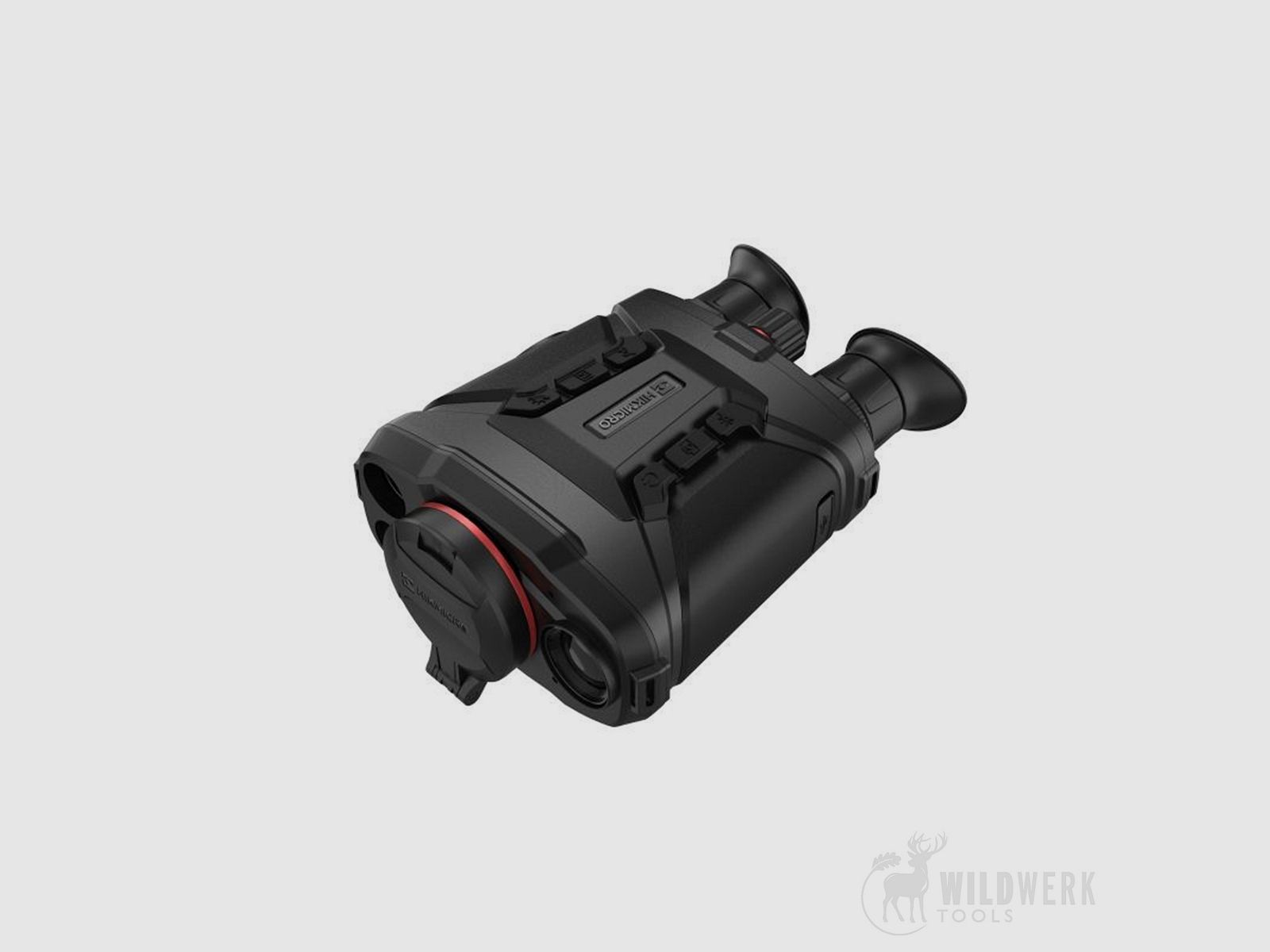

Hikmicro Binocular Raptor RH50LN Fusion Handheld

Hikmicro Binocular Raptor RQ50LN - Fusion Handheld Device



The Hikmicro Binocular Raptor RQ50LN is an advanced fusion handheld device that combines various technologies to offer an all-in-one solution for versatile observation purposes. Here are the key features in detail:



Thermal Imaging Camera:

•
  Highly sensitive thermal sensor with NETD<20mK



•
  Resolution up to 384x288 @12μm



•
  Large f/0.9 aperture for a 19% improvement in temperature detection



•
  Image Pro - proprietary image processing algorithm for optimal digital image enhancement



•
  Detection range up to 2600 m with a standard object height of 1.7 m



•
  Optical zoom from 5.7x to 91.2x (digital up to 16x)


Day & Night Camera:

•
  High-resolution sensor with 2560x1440 resolution for a bright image in daylight



•
  Supports low light conditions (0.001 Lux)



•
  Built-in IR illuminator (850nm or 940nm) for visibility in complete darkness



•
  Unique Defog mode for clear images on foggy days


Laser Rangefinder:

•
  Integrated laser rangefinder with a range of up to 1000 m



•
  Accuracy of ±1 m for precise distance measurements


Smart Features:

•
  Automatic display on/off when moving away from the eye



•
  GPS & DMC function for mapping location and target coordinates



•
  Smart IR automatically adjusts brightness to observation conditions



•
  Local album for quick viewing of photos and videos


Design:

•
  Designed by a Red Dot Award-winning designer



•
  Adjustable eye distance from 60 mm to 70 mm



•
  Supports diopter range from -5D to +3D



•
  Smart button layout for intuitive operation


Technical Data:



Thermal Module:

•
  Image sensor: VOx Uncooled Focal Plane Arrays



•
  Resolution: 384 x 288



•
  Frame rate: 25Hz



•
  Pixel pitch: 12µm



•
  NETD: less than 20 mK (@25°C), F#=1.0



•
  Focal length: 50 mm



•
  Detection range: 2,600 m



•
  Field of view: 5.3° × 4.0° / 9.3m x 7.0m (W × H)



•
  Aperture: F0.9



•
  Magnification: 5.7



•
  Minimum Focus Distance: 5 m



•
  Focus Mode: Manual


Optical Modules:

•
  Image Sensor: 1.88" Progressive Scan CMOS



•
  Maximum Resolution: 2560 x 1440



•
  Focal Length: 31 mm



•
  Aperture: F1.2



•
  Image Enhancement: Yes



•
  Minimum Illumination: 000.1 lux (F1.0, AGC On)



•
  Intelligent IR: Yes



•
  IR Wavelength: 940 nm



•
  Night Vision Range: 350 m


Image:

•
  Monitor: 0.39 inch, OLED, 1024 × 768



•
  Diopters: -5 to +3



•
  Palettes: Black Hot, White Hot, Red Hot, Fusion, Optical, Image Fusion



•
  FFC (Flat Field Correction): Automatic, manual, external correction



•
  Digital Zoom: 1 ×, 2 ×, 4 ×, 8x



•
  Image Pro: Yes



•
  Optical Modes: Day, Night, Automatic, Defog


Smart Function:

•
  Hot Track: Yes



•
  Hotspot: Yes



•
  Picture in Picture: Yes



•
  Standby Mode: Yes



•
  GPS: Yes



•
  Digital Magnetic Compass: Yes



•
  Proximity Sensor: Yes


System Function:

•
  Memory: Built-in Memory Module (64 GB)



•
  Video Recording: Integrated Video Recording, MP4, 1600 x 1200



•
  Audio Recording: Yes


Snapshot: Integrated Image Capture
