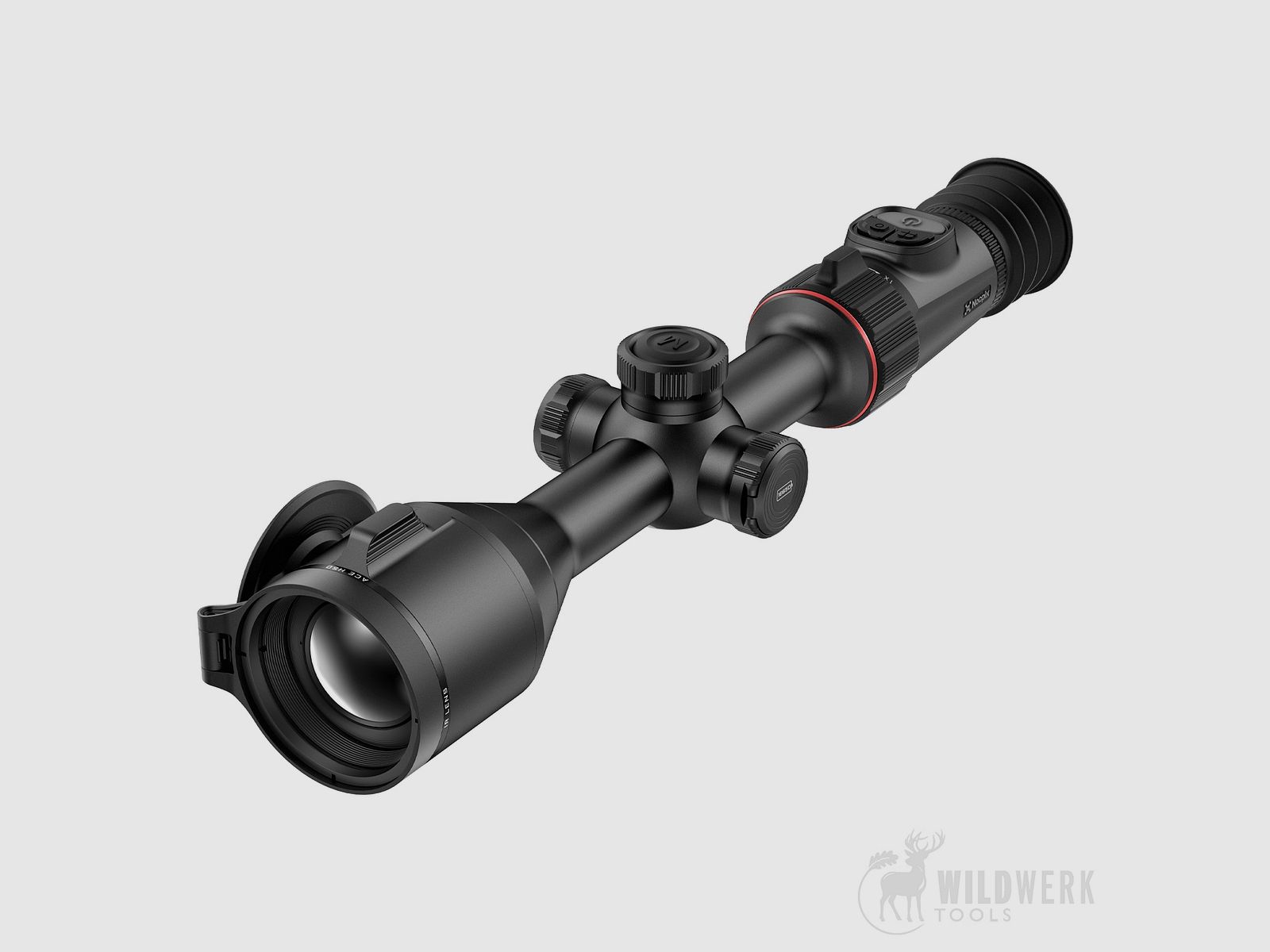

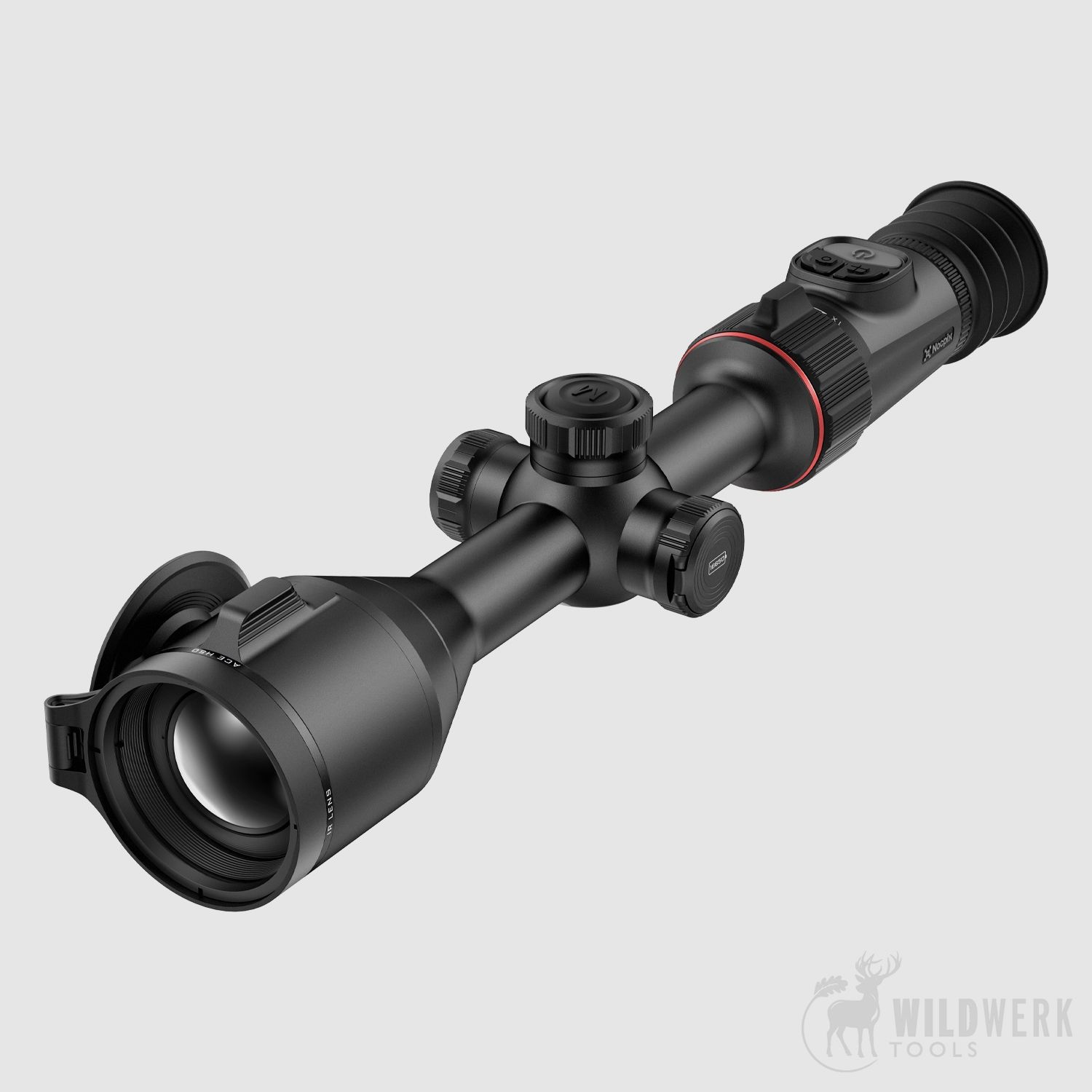

Nocpix ACE H50 Thermal Imaging Scope - Precision for Night Hunting



!!ATTENTION!!



This item is subject to strict sales regulations for domestic German distribution. For sales abroad, an export certificate is absolutely required, as well as proof that the device is legally permitted in the country to which it is to be exported.
If in doubt, please check with us personally before purchase.



The Nocpix ACE H50 thermal imaging scope is the ultimate choice for hunters who need the highest precision and reliability in darkness or poor visibility. Designed for use on bolt-action or semi-automatic rifles, this scope combines innovative thermal imaging technology with a classic design that feels like a traditional daylight scope. With its robust construction, user-friendly operation, and advanced features like Reality+ image processing, the ACE H50 is ideal for hunting wild boar, predators, or other demanding hunting scenarios.



The Nocpix ACE H50 impresses with its high image quality, achieved by a high-resolution 640×512 sensor with a thermal sensitivity of ≤15 mK. The 1.03-inch AMOLED display with 2560×2560 resolution delivers razor-sharp and high-contrast images, while the optical 1-3x eyepiece magnifier provides a clear view without distortion from digital zoom. Thanks to the dual battery system with a built-in battery and replaceable 18650 batteries, you can stay flexible in the field and extend operating time. The IP67 certification ensures resistance to dust and water, ideal for tough hunting conditions.



Technical Data:

•
  Thermal sensor: 640×512 pixels, 12 μm



•
  NETD: ≤15 mK for excellent detail detection



•
  Frame rate: 60 Hz for smooth, jitter-free images



•
  Objective lens: 50 mm, F0.9 for outstanding light gathering



•
  Field of view (H×V): 8.8°×7° / 15 m×12 m at 100 m



•
  Magnification: 3x optical, up to 8x digital



•
  Detection range: Up to 2,850 m (target size: 1.7 m × 0.5 m, P(n)=99%)



•
  Eye relief: 50 mm



•
  Diopter adjustment: -5 to +5 D, individually adjustable



•
  Display: 1.03-inch AMOLED, 2560×2560 resolution



•
  Battery type: Integrated battery and replaceable 18650 batteries



•
  Operating time: Over 7 hours (at 22 °C)



•
  Color schemes: White hot, Black hot, Red hot, Color, Violet, Crimson, Viridian



•
  Storage capacity: 64 GB for video and image recording



•
  Recording: Video, motion-activated video recording, images



•
  Wi-Fi connectivity: Supports image and video streaming via app



•
  Protection rating: IP67 (dust and waterproof)



•
  Operating temperature: -20 °C to +50 °C



•
  Weight: 1,092 g (38.5 oz) with battery



•
  Dimensions: 365 mm × 90 mm × 68 mm



•
  Mounting system: QD Picatinny, compatible with standard 30 mm rings



•
  Shock resistance: 1000 g/s² (suitable for .300 Win./7mm Mag)



•
  Material: T-6063 aluminum alloy



•
  Start-up time: <10 seconds, instant from standby



•
  Additional features: ballistic calculator, one-shot zero, user-updatable firmware


Why the Nocpix ACE H50?



The Nocpix ACE H50 is specially designed for hunters operating in demanding environments. The Reality+ image processing technology eliminates ambient temperature noise and provides clear, high-contrast images even in challenging conditions. Its easy operation and ergonomic design make it ideal for both experienced hunters and beginners. With features like the ballistic calculator, motion-activated video recording, and the ability to share images and videos via an app, the ACE H50 takes hunting to a new level. Compatibility with standard 30 mm mounting rings offers maximum flexibility for mounting on various rifles.



Scope of delivery:

•
  Nocpix ACE H50 thermal scope



•
  2x 18650 batteries



•
  battery charger



•
  USB-C charging cable



•
  eyepiece cover



•
  cleaning cloth



•
  user manual



•
  protective case


Conclusion:



The Nocpix ACE H50 thermal scope combines cutting-edge technology with practical handling and is the perfect choice for hunters who expect uncompromising performance even at night or in difficult visibility conditions. With its robust construction, long battery life, and high-resolution image quality, it sets new standards in night hunting. Order now and dominate the night!
