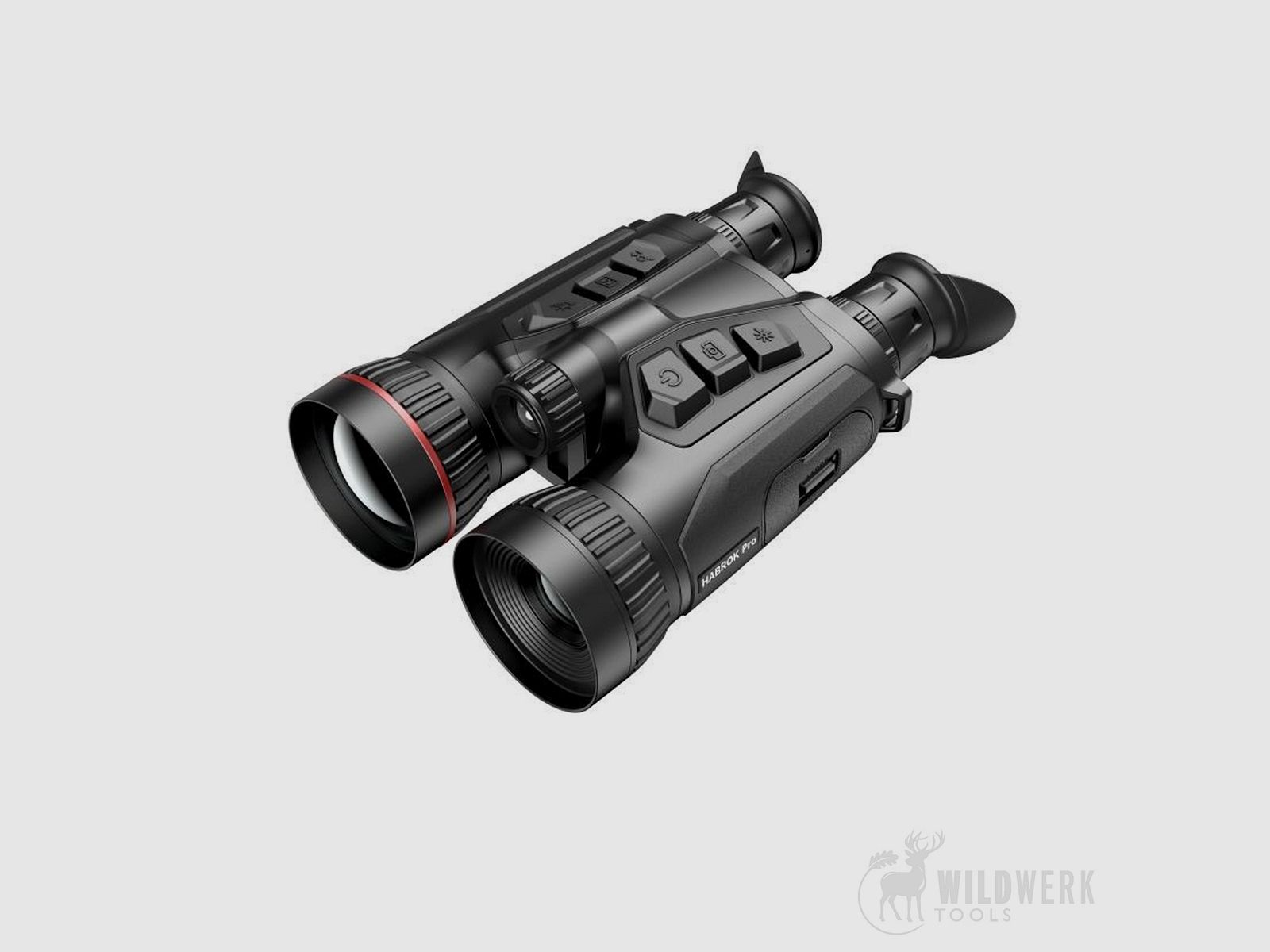

Hikmicro Habrok Pro HX60L

The HIKMICRO HABROK Pro HX60L sets new standards for digital binoculars with its multi-spectrum technology. It combines thermal imaging and optical imaging technologies, delivering razor-sharp images and high detail accuracy even in challenging conditions. The combination of a highly sensitive thermal detector with a resolution of 1280 × 1024 and a sensitivity of NETD < 18 mK, along with the 4K CMOS detector, enables precise detection at distances of up to 3100 meters.


For hunting, wildlife observation, rescue operations, or maritime applications, this binocular offers a reliable and versatile solution thanks to a 1000 m laser rangefinder and a replaceable 850 nm IR illuminator. The ergonomic design and light weight of 1050 g guarantee comfortable handling for the user.


Main features:

•
  Thermal detector: 1280 × 1024 resolution, NETD < 18 mK



•
  Thermal lens: 60 mm F1.0, range up to 3100 m



•
  Optical detector: 4K CMOS with 60 mm F2.2 lens for detailed images day and night



•
  Display: 0.49 inch OLED, 1920 × 1080 resolution



•
  Laser rangefinder: Up to 1000 m range, ±1 m accuracy



•
  Integrated IR illuminator: 850 nm, night visibility up to 400 m



•
  Battery life: Up to 7 hours operating time



•
  Ergonomics: Compact dimensions and low weight


Thermal module specifications:

•
  Image sensor: VOx uncooled focal plane arrays



•
  Frame rate: 25 Hz, pixel pitch: 12 μm



•
  Detection range: Up to 3100 m



•
  Magnification: 2.6× to 26.0×



•
  Field of view: 14.6° × 8.8° / 25.6 m × 15.4 m @ 100 m


Optical module:

•
  Image sensor: 1.88'' progressive scan CMOS



•
  Resolution: 3840 × 2160



•
  Focal length: 60 mm F2.2



•
  Magnification: 5.5× to 22.0×



•
  Field of view: 7.3° × 4.1° / 12.6 m × 7.2 m @ 100 m


Image display and system functions:

•
  Display modes: Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto



•
  PIP (picture-in-picture): Yes



•
  Hotspot and Hot Track function: Yes



•
  Digital magnetic compass & GPS: Yes



•
  Video recording and snapshot function: Yes, built-in 64 GB memory


Power supply and battery:

•
  Replaceable Li-Ion battery: Operating time up to 7 hours



•
  Type-C power supply: External power via USB possible


Technical Data and Protection Class:

•
  Protection class: IP67, waterproof and shockproof



•
  Operating temperature: -30°C to +55°C



•
  Weight and dimensions: 1050 g, 152.8 mm × 81.95 mm × 231.5 mm


Scope of delivery:

•
  HIKMICRO HABROK Pro HX60L binoculars



•
  Rechargeable Li-Ion battery



•
  USB-C cable



•
  User manual


The HIKMICRO HABROK Pro HX60L is a versatile and powerful binocular for professional use in extreme conditions. With its precise measurement and image processing functions, it is ideal for demanding users in hunting, wildlife observation, and rescue operations.
