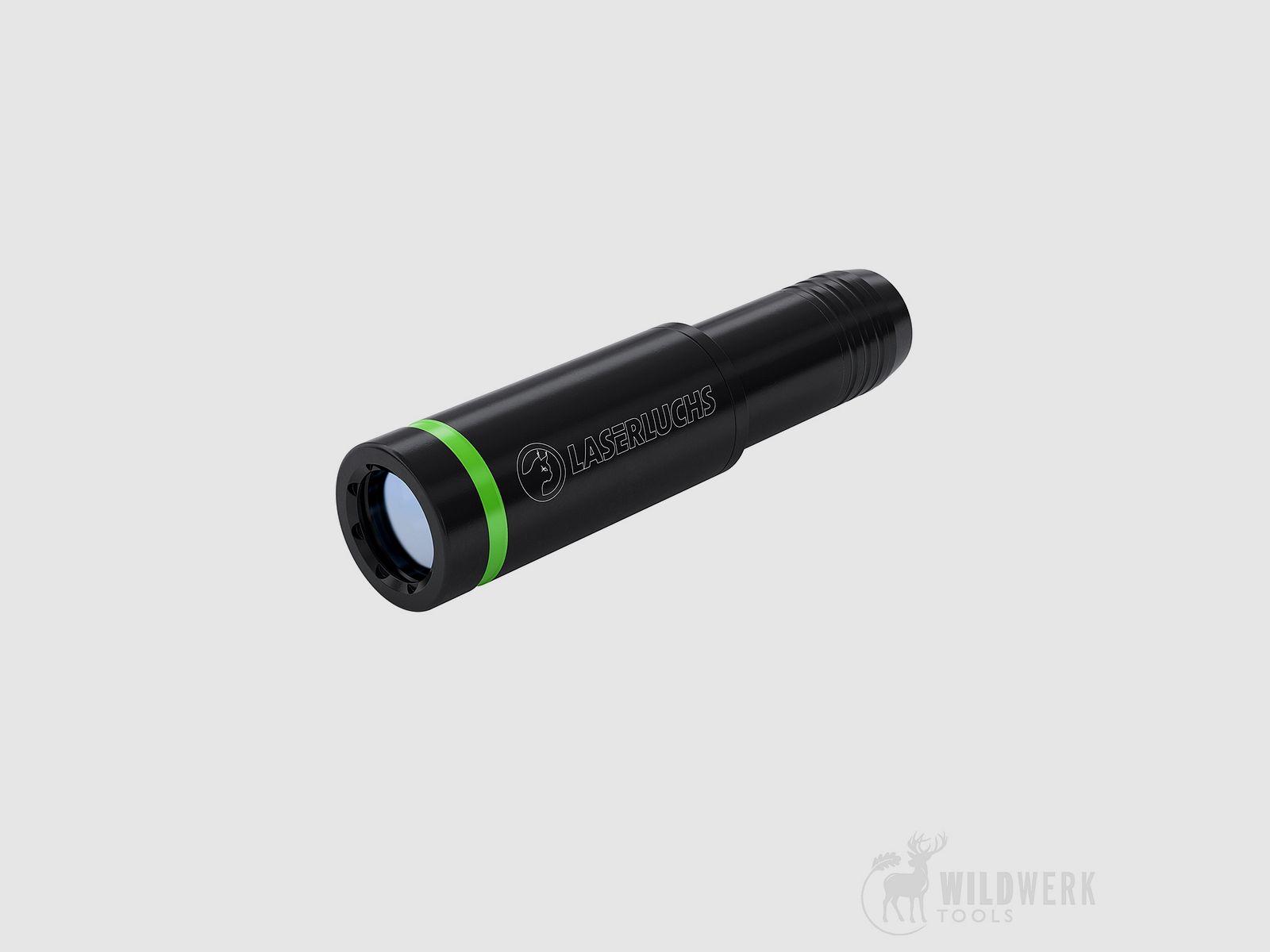

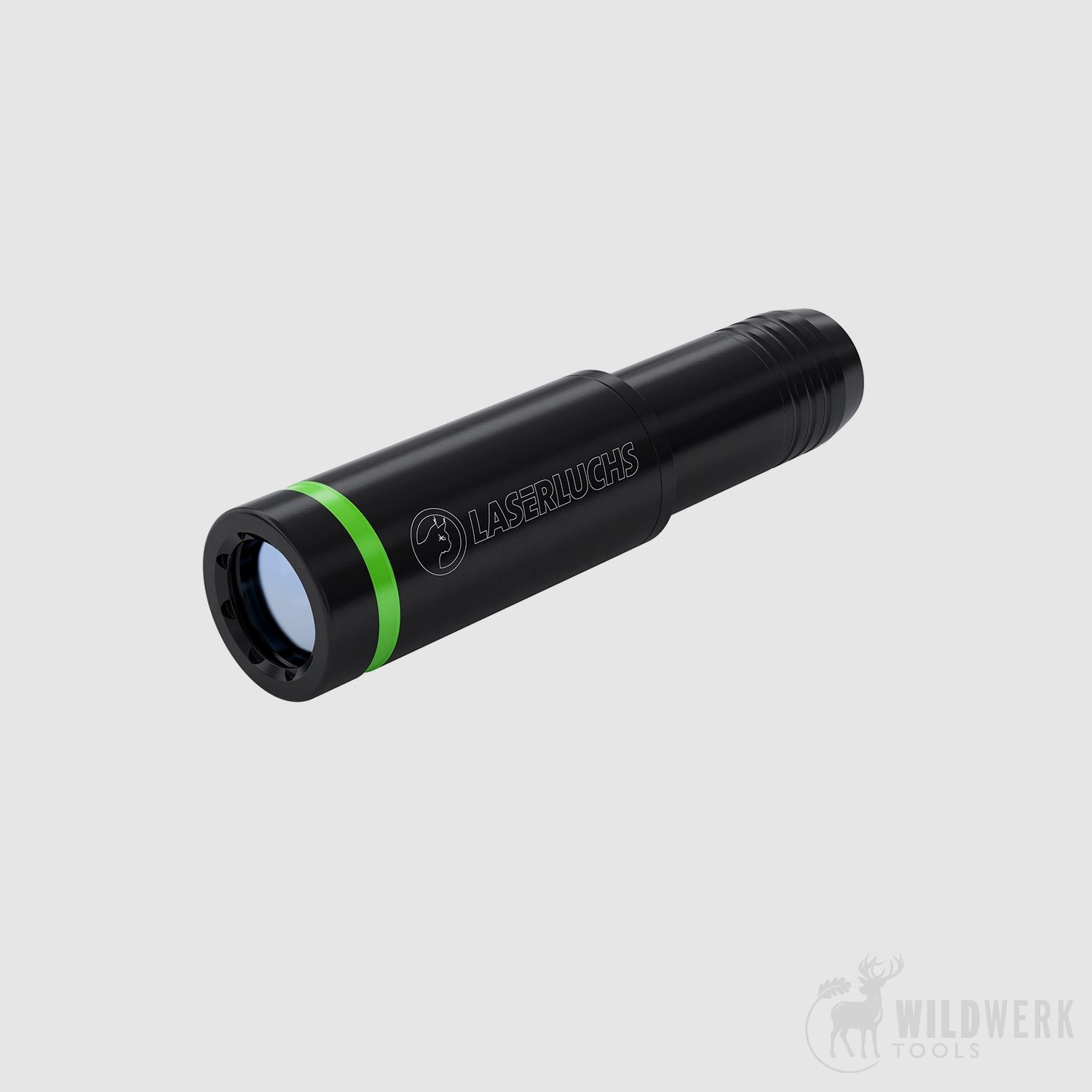

Laserluchs LA905-50-PRO II

The LA905-50-PRO II is the outstanding infrared laser illuminator, specially designed for night vision devices whose image intensifier tubes achieve optimal performance in the 905 nm wavelength range. These are ideally found in the current productions of the renowned company Photonis (Generation 2) as well as in image tubes of Generation 3 with GaAs photocathode. The wavelength of 905 nm remains invisible to sensitive wildlife such as red deer, while still achieving impressive ranges. Compared to the LA850-50-PRO, the range with Generation 3 GaAs is about 70% and with Generation 2 from Photonis about 80%. In contrast, night vision devices of Generation 2 from Russian production only reach 40-50% of this range. This makes the LA905-50-PRO II the optimal choice for hunting red deer.


Features at a glance:

•
  Suitable from 2nd Generation (Photonis), 3rd Generation + Digital



•
  Shockproof and splash-proof



•
  Toggle switch with power-on protection



•
  Reinforced focusing thread



•
  Continuously adjustable beam cone



•
  Patented optical collimator system



•
  100% eye-safe, laser class 1



•
  36 months manufacturer warranty


Included in delivery:

•
  LA905-50-PRO II



•
  Lens protective cap



•
  2x CR123A batteries



•
  User manual



•
  Embossed Laserluchs metal box with foam inlay


Technical data:

•
  Lifetime: > 10,000 h



•
  Operating temperature: -20°C - 50 °C



•
  Storage temperature: -40°C - 80 °C


Optical parameters:

•
  Beam shape: Expander



•
  Optical power: 50 mW



•
  Laser class: 1



•
  Beam diameter: 20 mm



•
  Optics: Anti-reflective coated glass lenses



•
  Laser technology: Single mode diode



•
  Focus: Adjustable


Electrical parameters:

•
  Housing potential: VDD(+)



•
  Operating voltage: 2.7 - 3.6, typ 3 V DC



•
  Operating current: 350 - 400, typ 300 mA



•
  Battery type: CR123A


Mechanical parameters:

•
  Dimensions: Ø30x143 mm



•
  Material: Aluminum



•
  Optics exit diameter: 20 mm



•
  Housing color: Black



•
  IP protection class: IP 67
