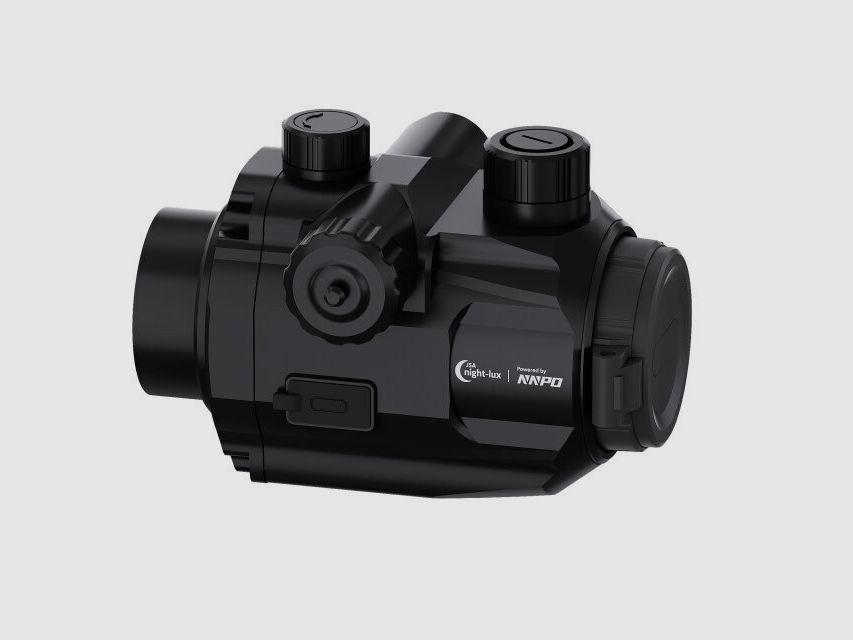

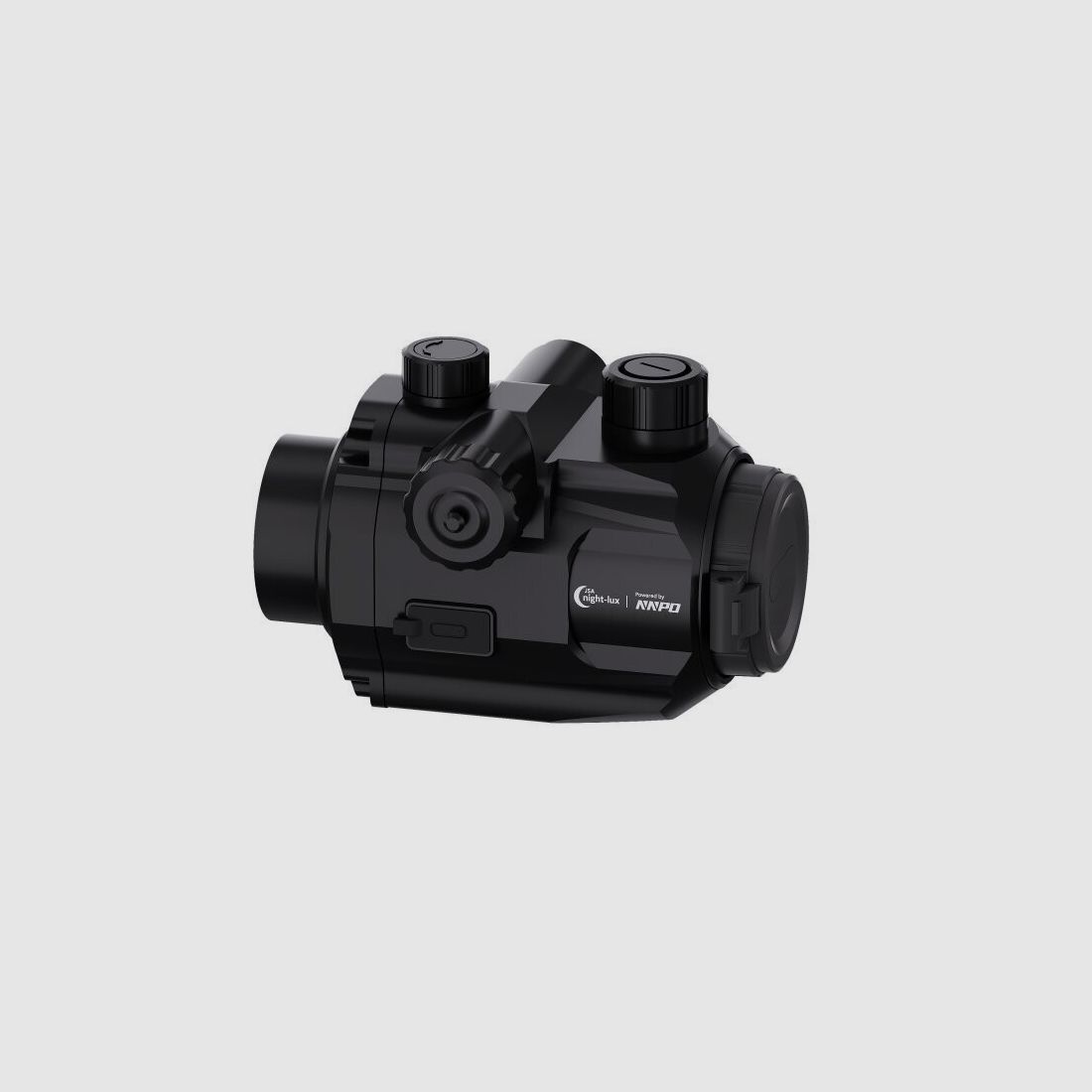

The HOGHUNTER Mini 635 LRF stands for maximum performance in the most compact format – now additionally with an integrated laser rangefinder up to 1,000 meters.

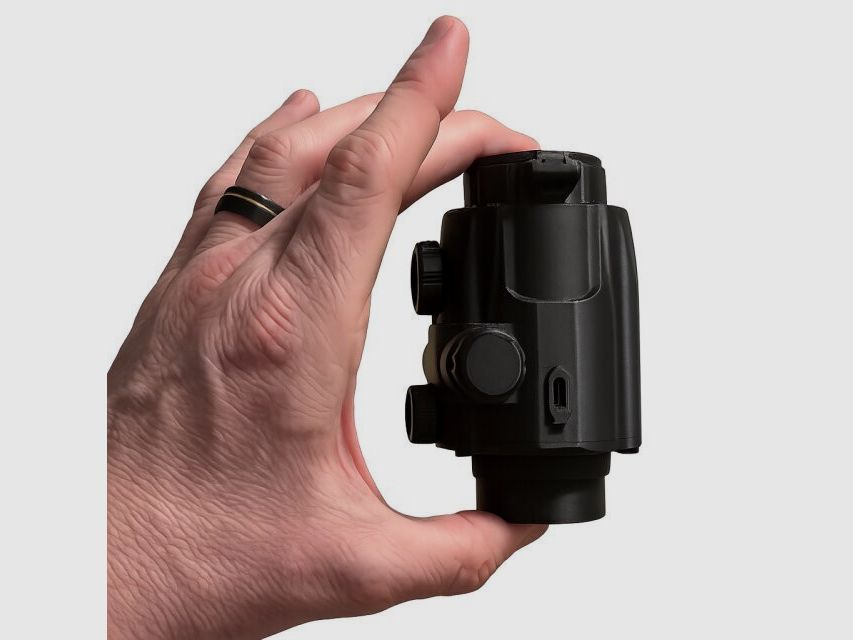

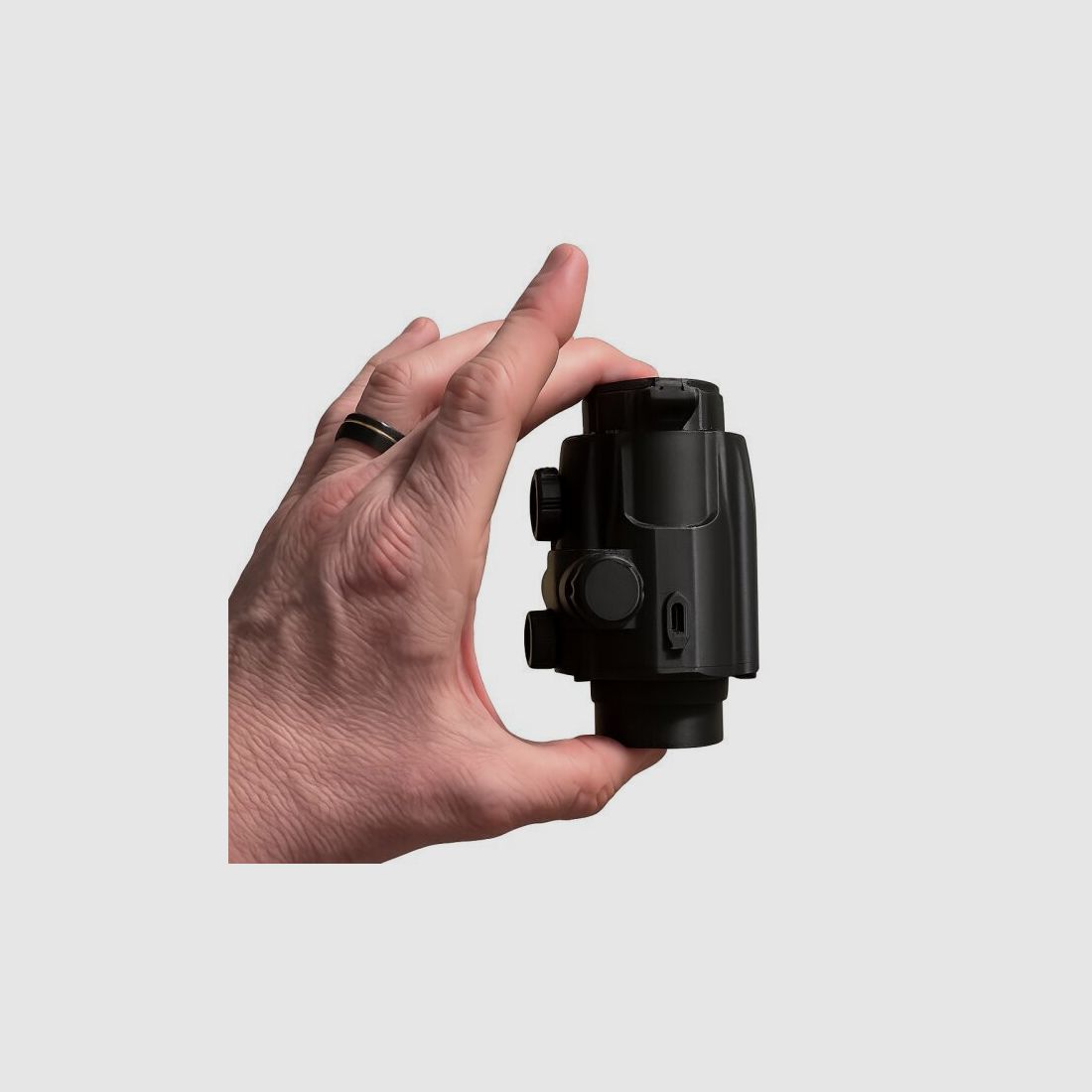

Designed for hunters looking for an especially lightweight and maneuverable attachment device, the HOGHUNTER Mini combines state-of-the-art thermal imaging technology with an exceptionally compact design. With the 35mm lens featuring "true" internal focusing, the HOGHUNTER Mini offers a balanced field of view and is excellent for use in the forest as well as at medium distances.
Highlights:
640x512 pixels IR resolution
VOx detector
12µ pitch pixel spacing
≤15mK NETD

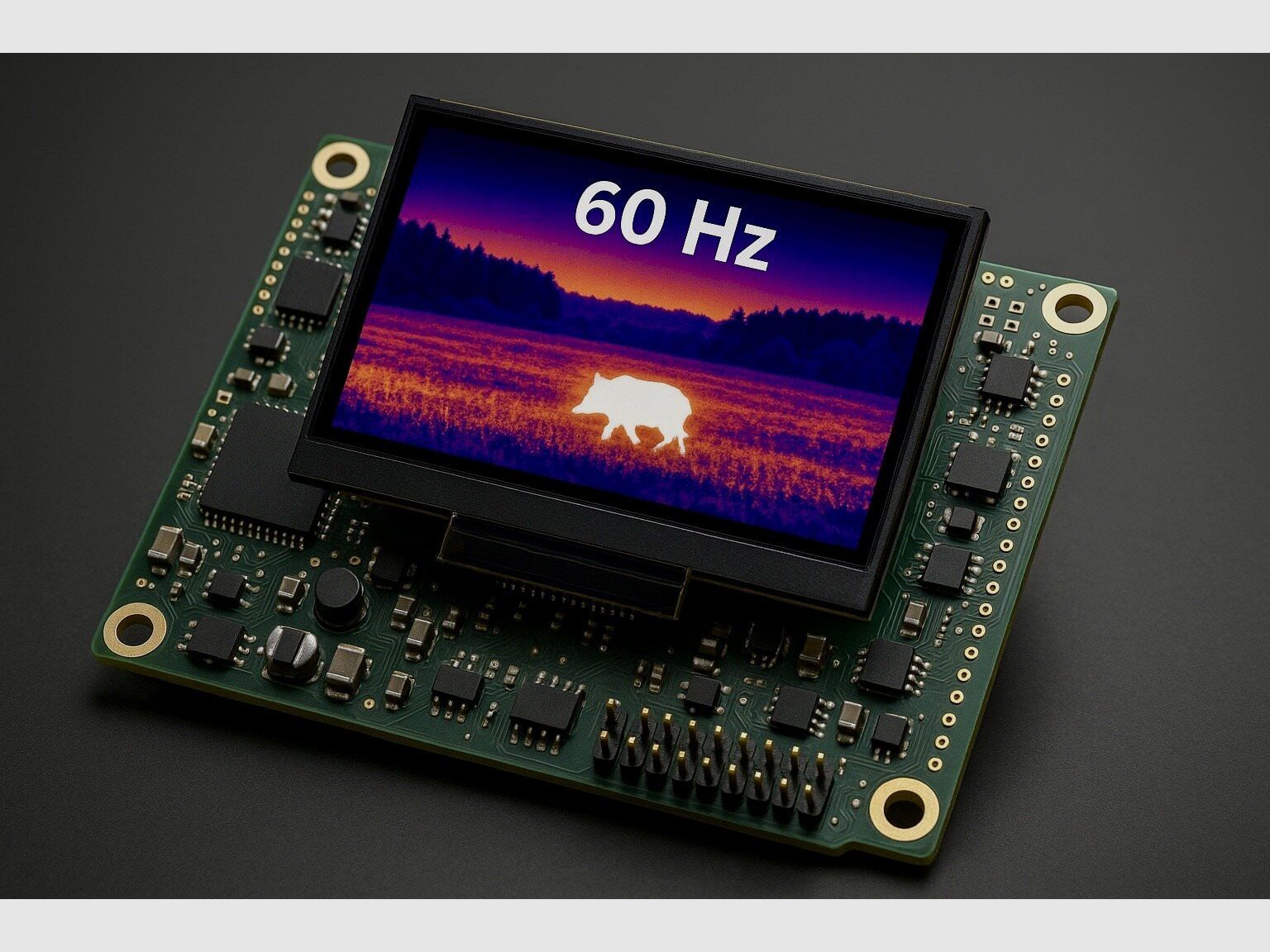

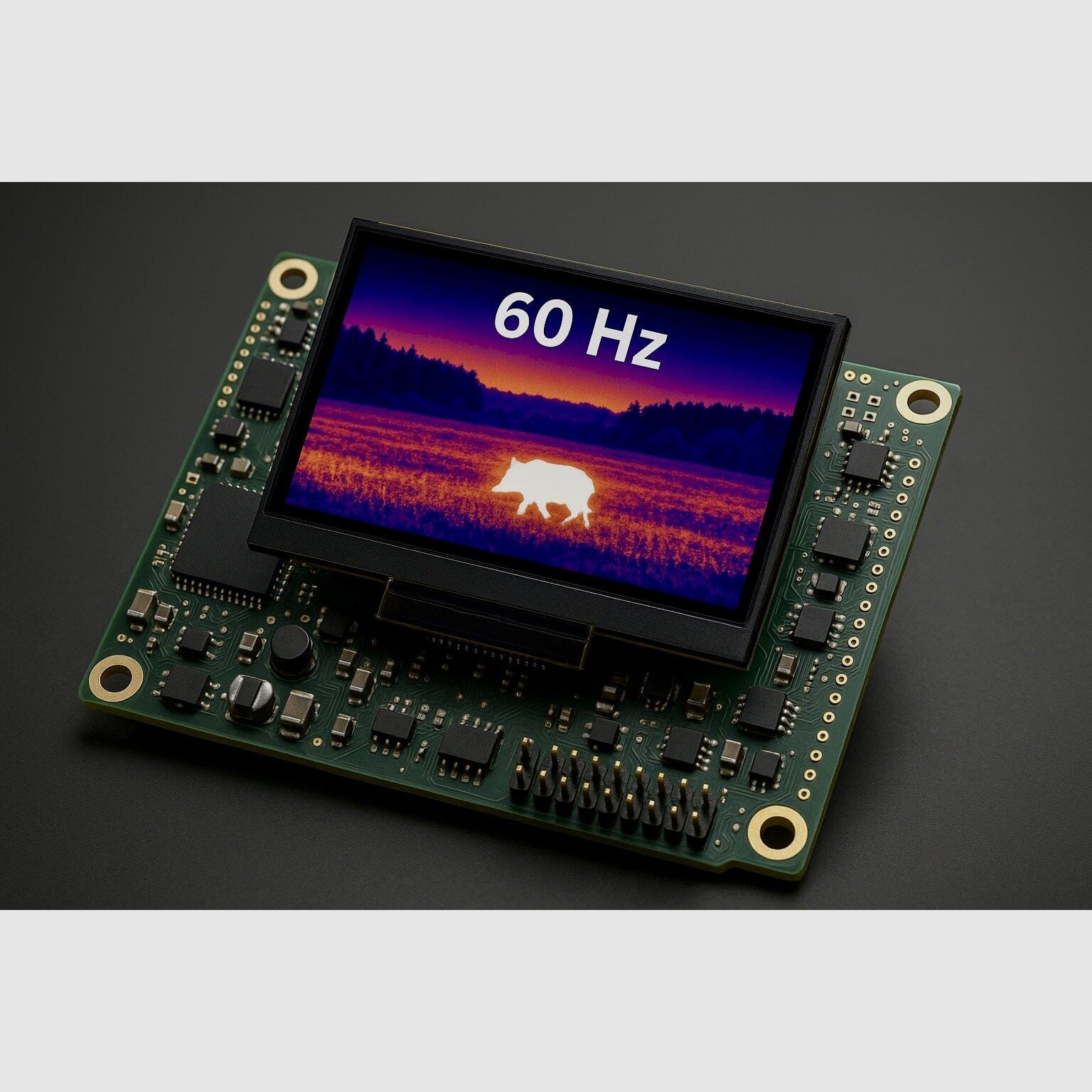

60Hz frame rate

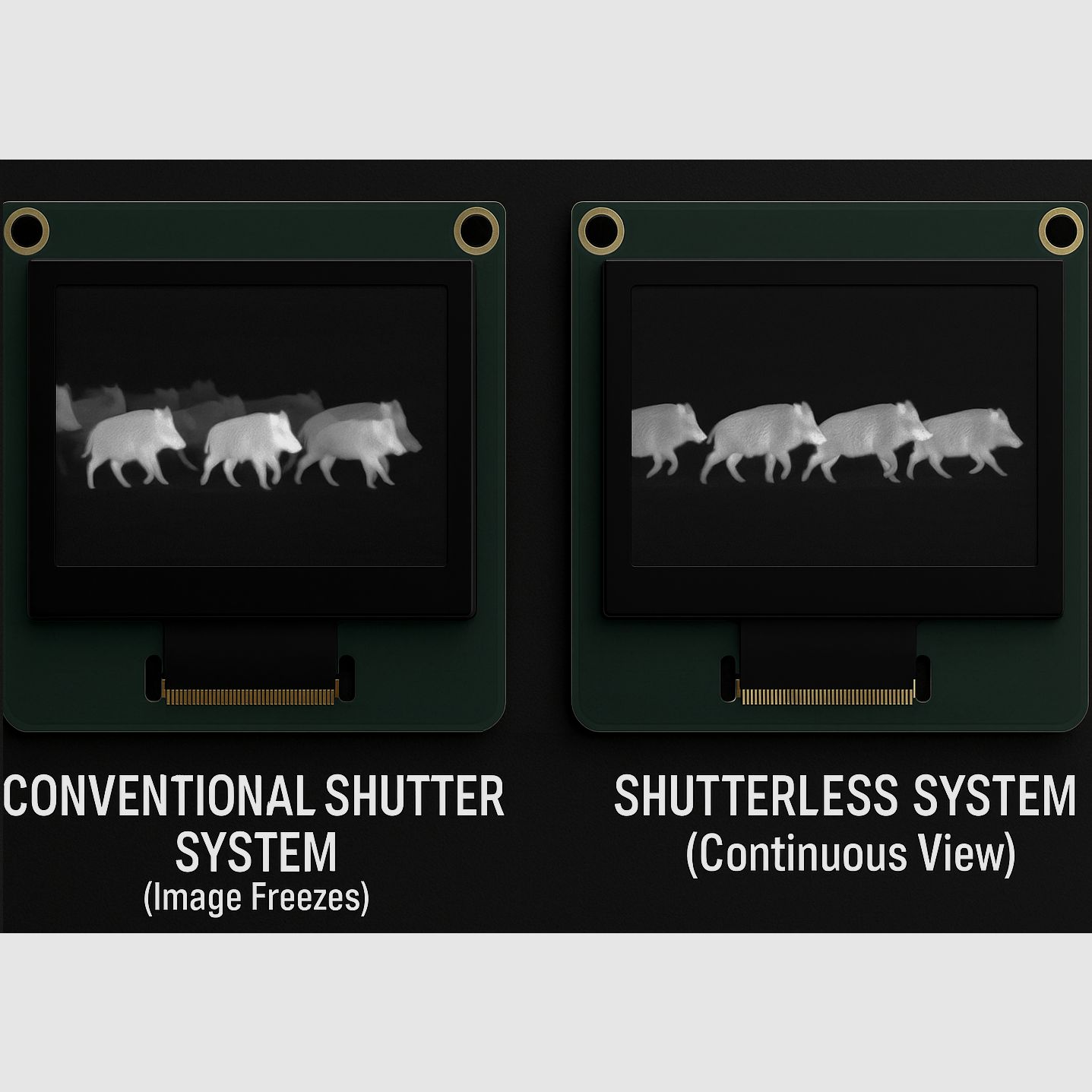

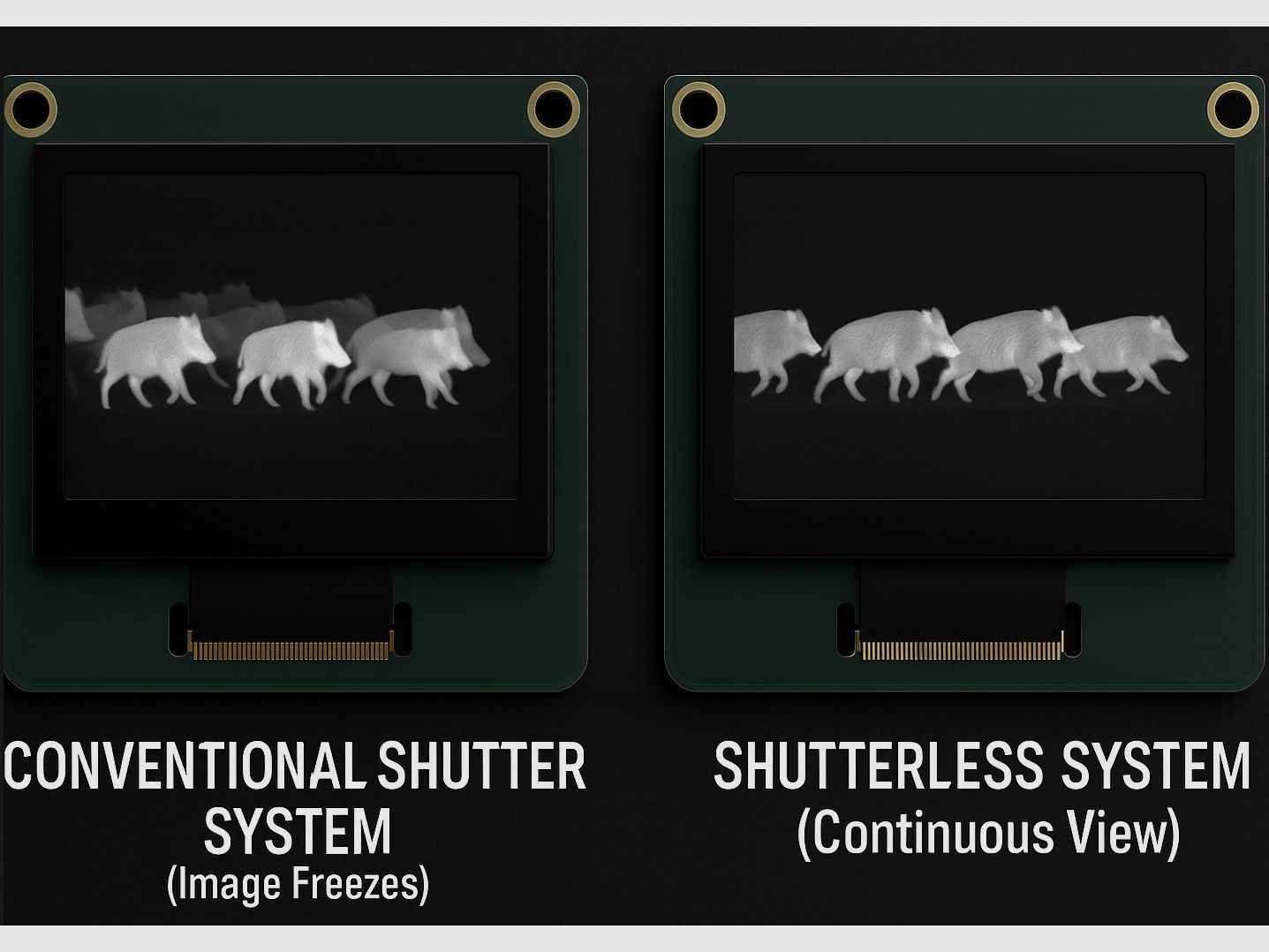

Shutterless system calibration

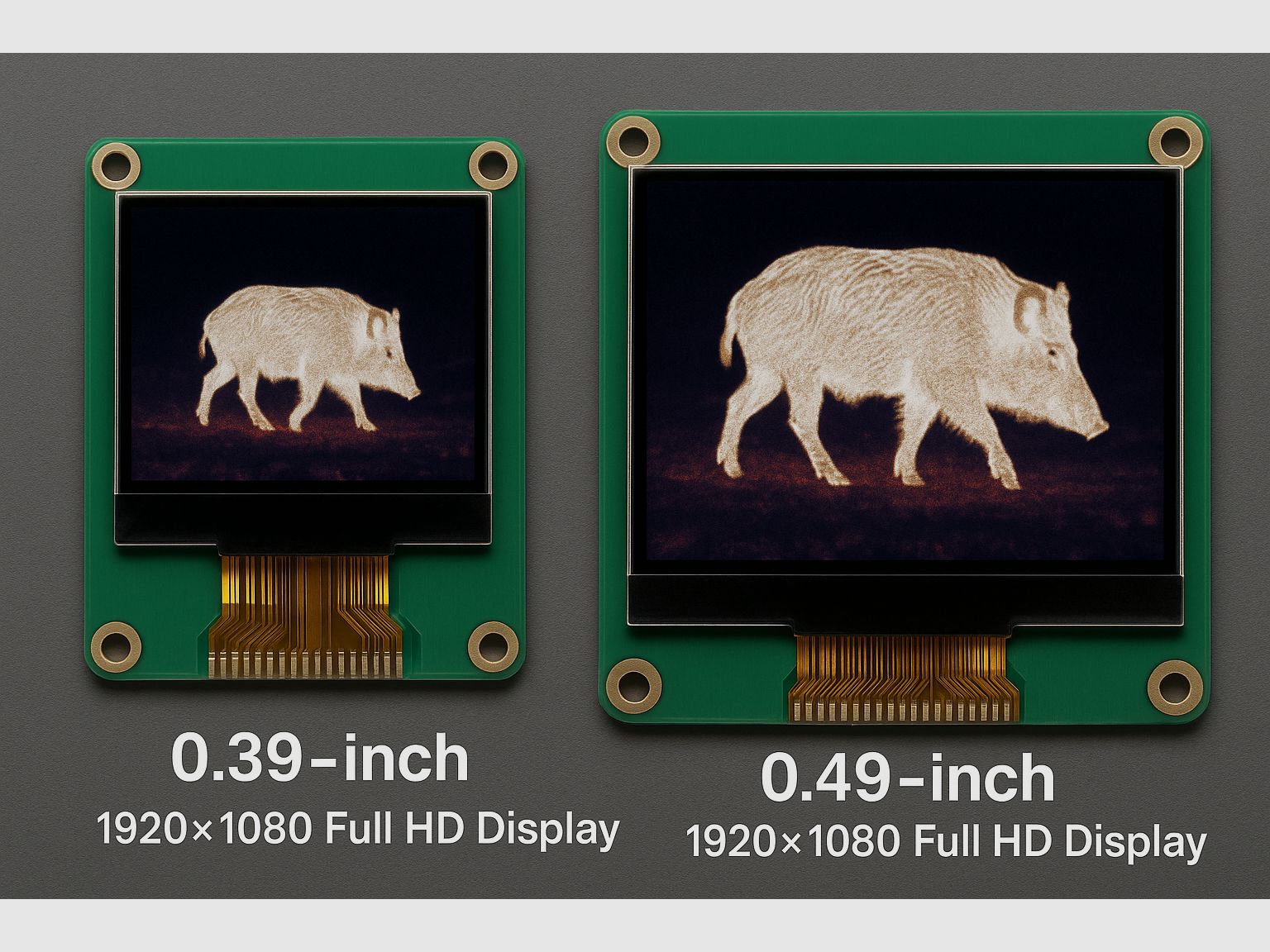

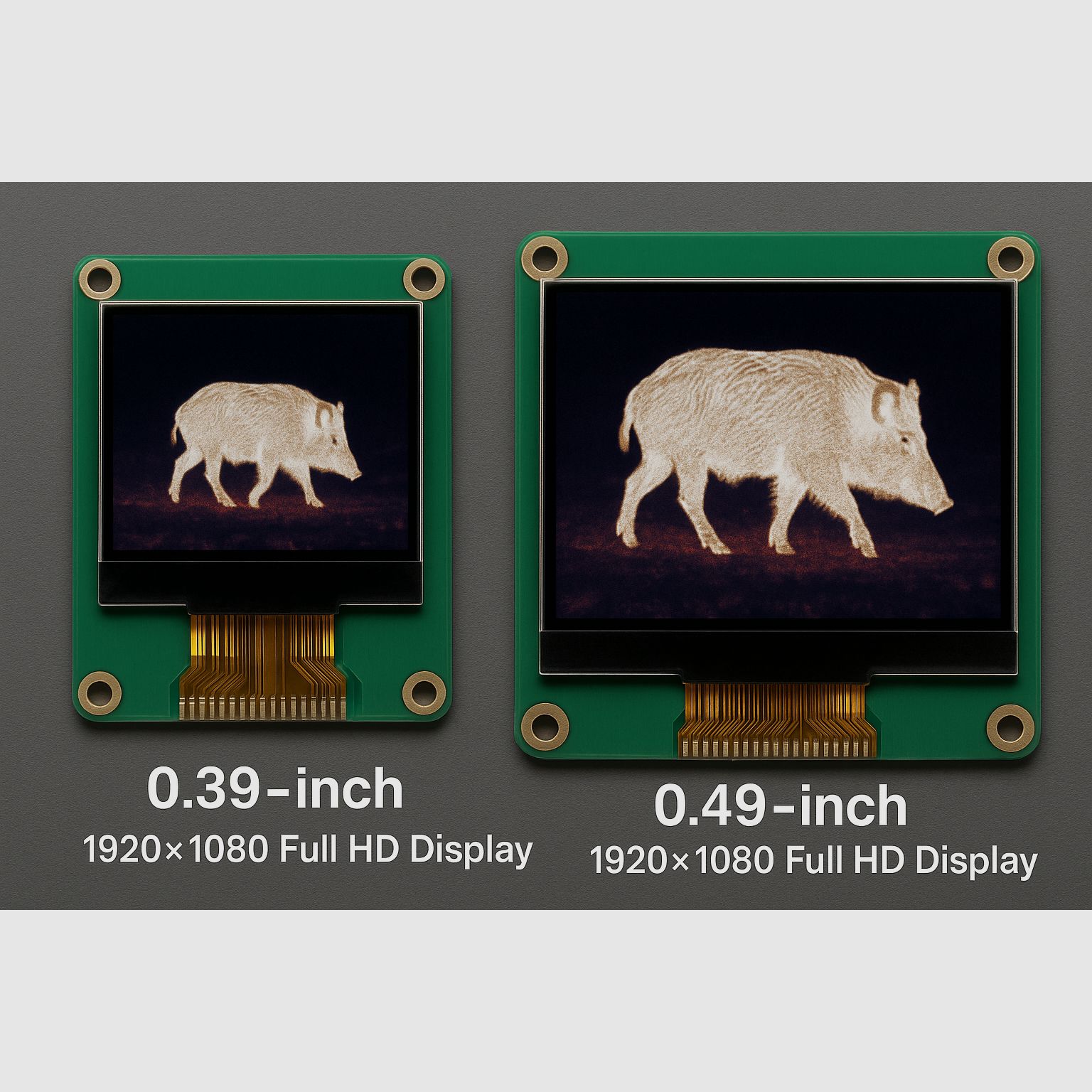

1920x1080 pixels 0.49 OLED display
35mm/F1.0 lens
30mm effective ocular diameter for optimal image quality
high-quality magnesium alloy minimal weight with maximum robustness
approx. 410 grams weight exact specification to follow
16mm click adjustment at 100m
5 memory slots
manual focusing
1x optical magnification
1-12x recommended scope magnification
21X17.5 meters field of view at 100m
115X74X70 size in mm L/W/H1,800m detection range

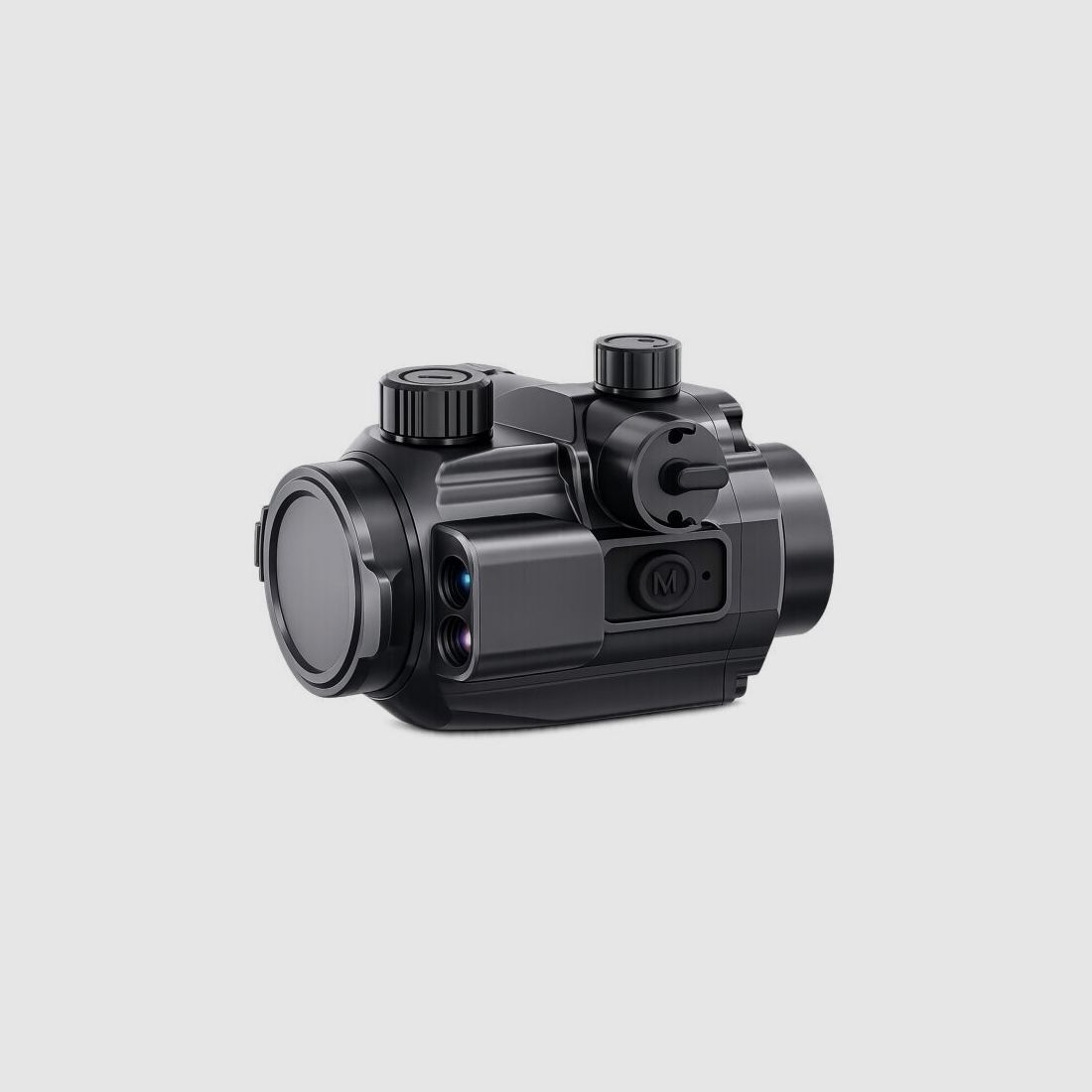

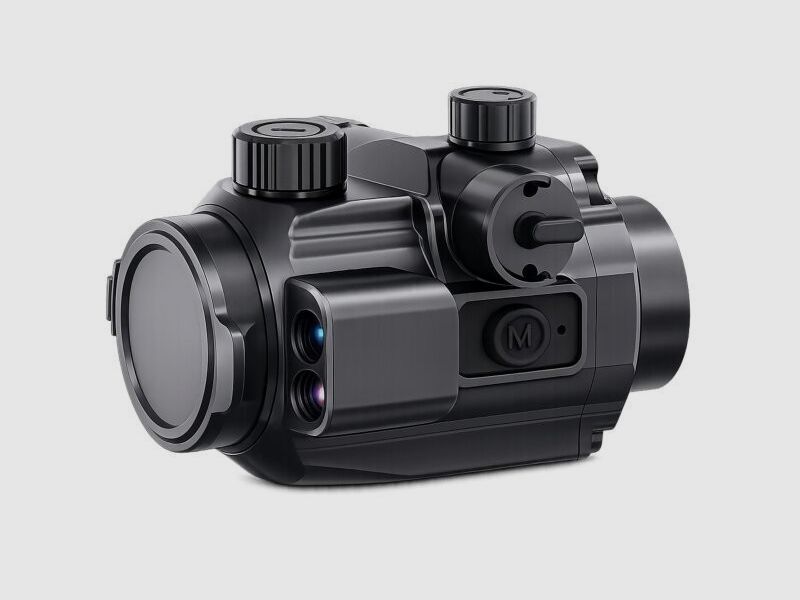

1,000m laser rangefinder
M40x0.75 thread connection (optional available from Rusan MAR/MCR system, Präzise Jagen, EP ARMS Rotoclip ProLock)
Replaceable battery 1x18500 or 1x 18650 for up to 3 or 5 hours of operating time

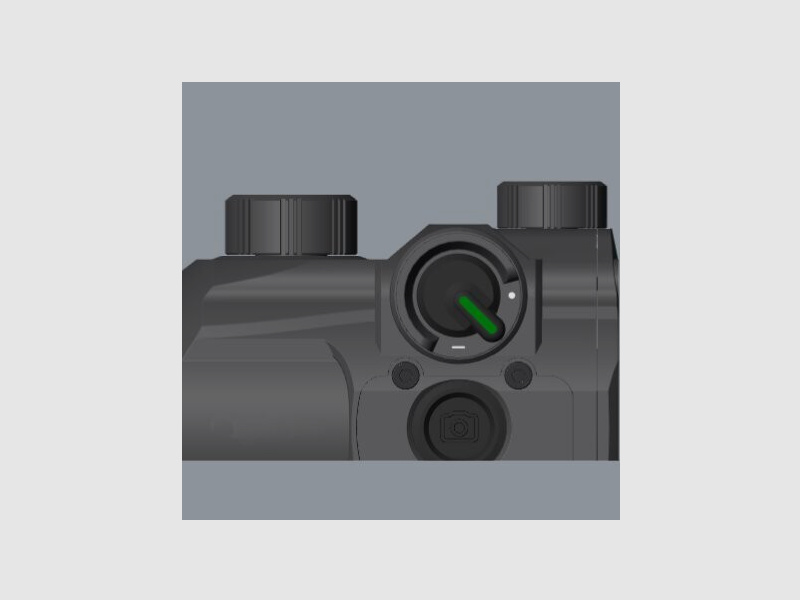

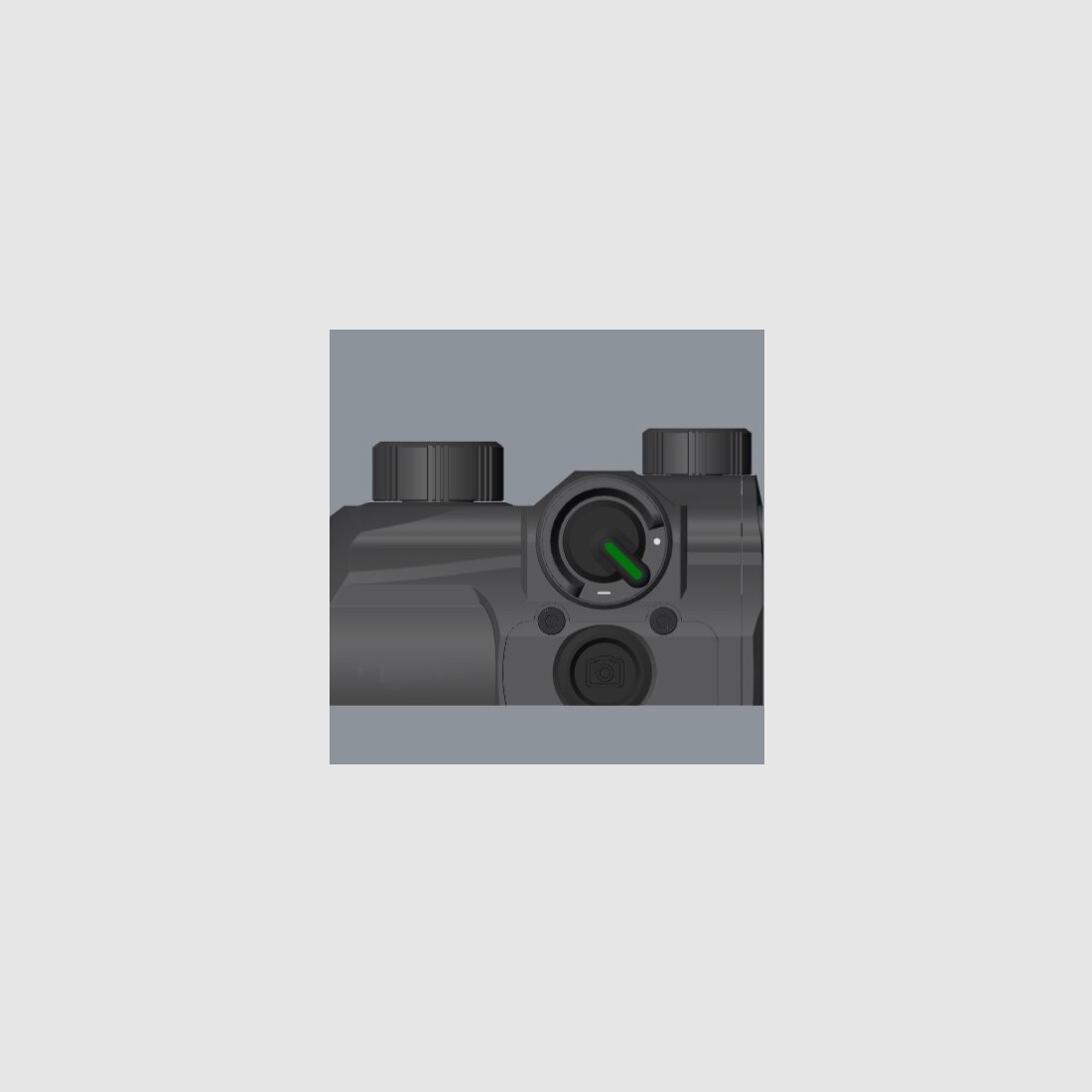

manual switch on/standby/off
WiFi yes
photo/video app + 64GB internal
software update via app
Protection class IP67
Shockproof 1,000 G / 6000 Joules
Manufacturer warranty 3 years on the device
Pre-adjusted all devices are precisely pre-adjusted from the factory. Only minimal or no readjustment on your own optics is necessary!
Service and repair We have an in-house service department and guarantee fast and reliable service
(Show description in original language)
Das HOGHUNTER Mini 635 LRF steht für maximale Leistung im kompaktesten Format – jetzt zusätzlich mit integriertem Laser-Entfernungsmesser bis 1.000 Meter.
Entwickelt für Jäger, die ein besonders leichtes und führiges Vorsatzgerät suchen, kombiniert das HOGHUNTER Mini modernste Wärmebildtechnik mit einer außergewöhnlich kompakten Bauweise. Durch das 35-mm-Objektiv mit „echter“ Innenfokussierung bietet der HOGHUNTER Mini ein ausgewogenes Sehfeld und eignet sich hervorragend für den Einsatz im Wald sowie auf mittleren Distanzen.
Highlights:
640x512 Pixel IR-Auflösung
VOx Detektor
12µ Pitch Pixel Abstand
≤15mK NETD
60Hz Bildwiederholrate
Shutterles-System Kalibrierung
1920x1080 Pixel 0,49 OLED Display
35mm/F1.0 Objektiv
30mm effektiver Okular Durchmesser für optimale Bildqualität
hochwertigen Magnesiumlegierung minimales Gewicht mit maximaler Robustheit
ca 410 Gram Gewicht genaue Angabe folgt
16mm Klickverstellung auf 100m
5 Speicherplätze
Manuelle Fokussierung
1x Optische Vergrößerung
1-12x empfohlene ZF Vergrößerung
21X17,5 Meter Sehfeld auf 100m
115X74X70 Größe in mm L/B/H1.800m Detektionsreichweite
1.000m Laserentfernungsmesser
M40x0,75 Gewindeanschluß ( optional verfügbar von Rusan MAR/MCR System, Präzise Jagen, EP ARMS Rotoclip ProLock)
Wechselakku 1x18500 oder 1x 18650 für bis zu 3 bzw. 5 Stunden Betriebsdauer
Manueller Schalter Ein/Standby/Aus
WiFi ja
Foto / Video App + 64GB intern
Softwareupdate via App
Schutzklasse IP67
Schockfest 1.000 G / 6000 Joule
Hersteller Garantie 3 Jahre auf das Gerät
Vorjustiert alle Geräte sind ab Werk präzise vorjustiert. Nur minimale oder keine Nachjustierung auf der eigenen Optik nötig!
Service und Reparatur Wir haben eine hauseigene Service-Abteilung und garantieren so schnellen und zuverlässigen Service
