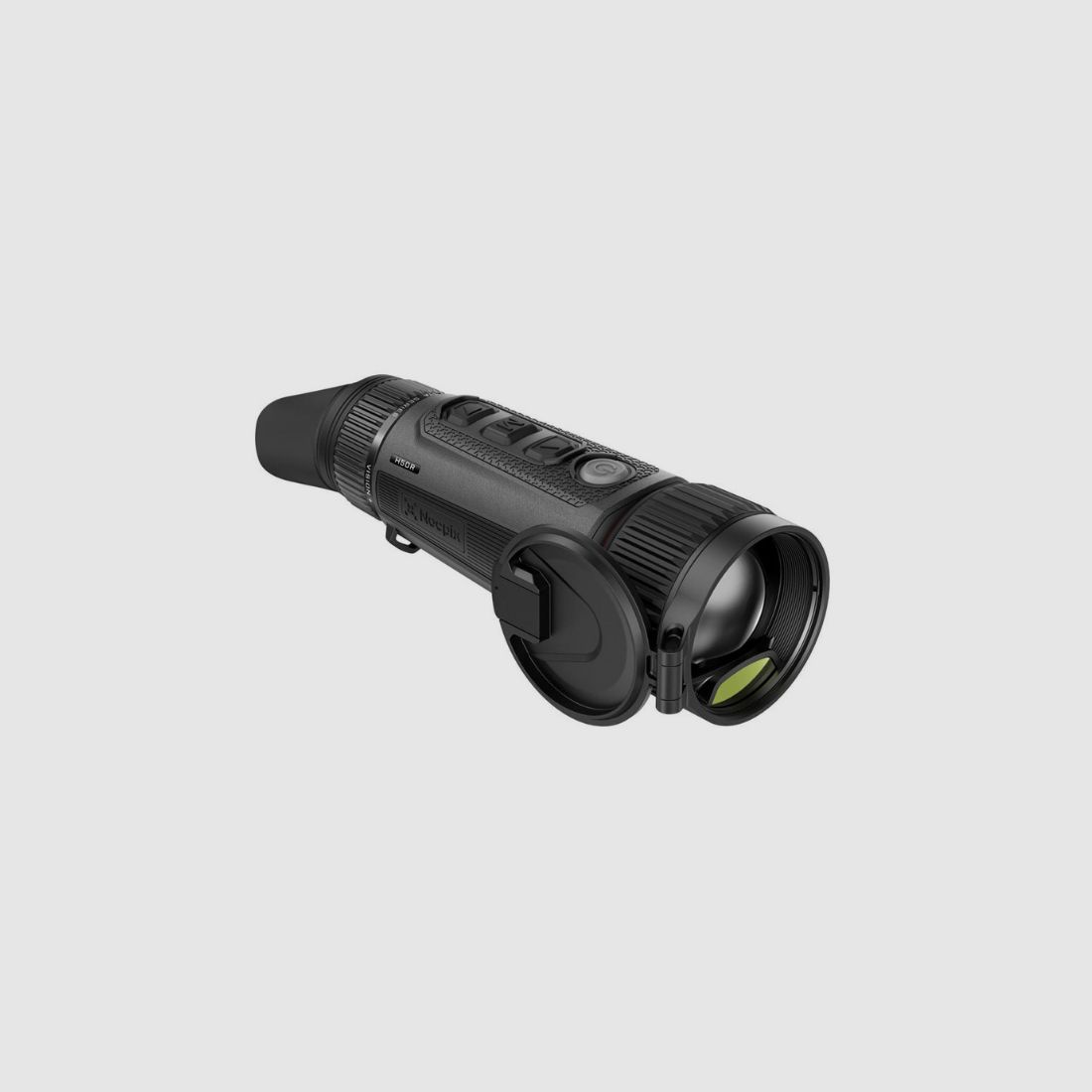

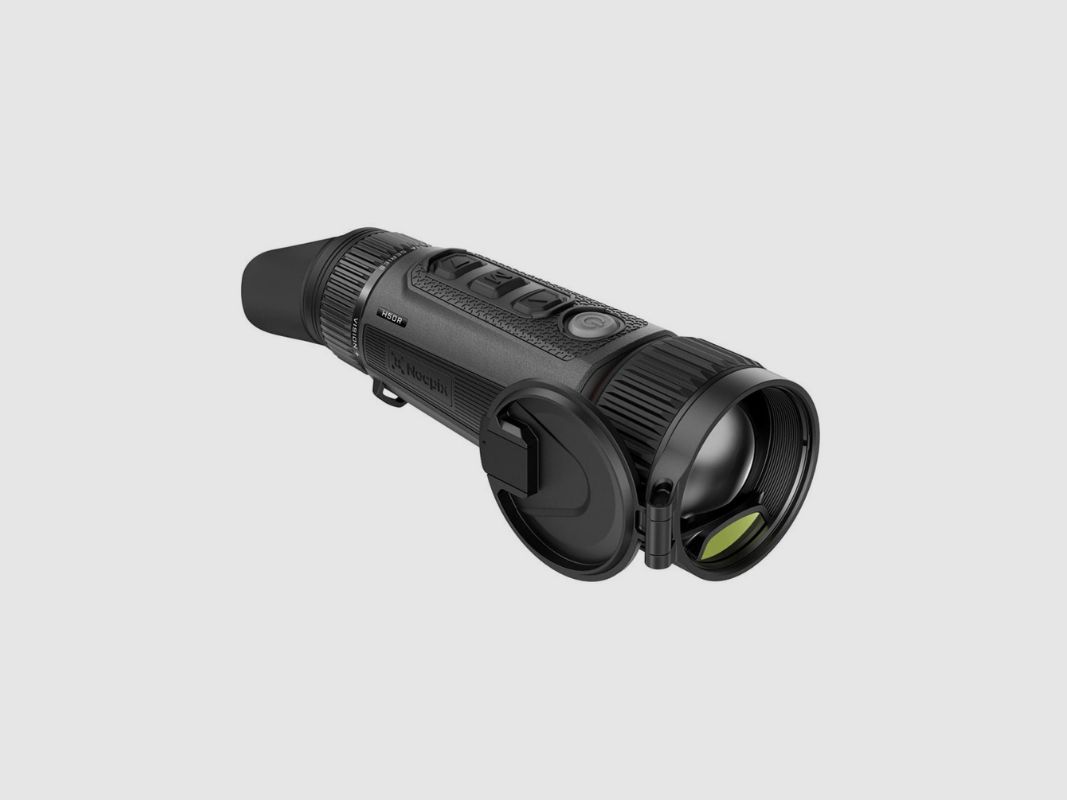

Technical Specifications of the Nocpix VISTA H50R:
- Sensor Resolution: 640 × 512 pixels
- Sensor Pitch: 12 µm
- Sensor Sensitivity: < 15 mk
- Frame Rate: 60 Hz
- Lens: 50 mm
- Aperture: F0.9
- Display Type: AMOLED
- Display Resolution: 2560 x 2560 pixels
- Field of View: 8.8 ° × 7.0 °
- Field of View: 15.39 m
- Optical Magnification: 4
- Digital Zoom: 4-40 (10x)
- Diopter Adjustment: -4D ~ +6D
- Laser Range: max. 1200 m ±1
- Detection Range: 2600 m
- Internal Memory: 64 GB
- Photo / Video Recording: yes / yes (Audio: supported)
- Wi-Fi: yes
- USB: Type-C
- IP Protection: IP67
- Battery Type: Li-Ion, replaceable battery, IBP-7
- Operating Time: max. 5.5 h
- Dimensions: 194 x 70 x 82 mm
- Weight: 650 g
Scope of delivery:
- Nocpix VISTA H50R thermal imaging handheld device
- Carrying case with shoulder strap
- 2x battery pack IBP-7
- Data cable
- Lens cleaning cloth
- Quick guide
(Show description in original language)
Technische Eigenschaften der Nocpix VISTA H50R: Sensorauflösung: 640 × 512 Pixel Sensor-Pitch: 12 µm Sensor-Sensitivität: < 15 mk Bildfrequenz: 60 Hz Objektiv: 50 mm Blende: F0.9 Displaytyp: AMOLED Displayauflösung: 2560 x 2560 Pixel Sichtfeld: 8,8 ° × 7,0 ° Sichtfeld: 15,39 m Optische Vergrößerung: 4 Digitalzoom: 4-40 (10x) Dioptrinverstellung: -4D ~ +6D Laserbereich: max. 1200 m ±1 Detektionsbereich: 2600 m Interner Speicher: 64 GB Foto- / Videoaufzeichnung: ja / ja (Ton: unterstützt) Wi-Fi: ja USB: Typ-C IP-Schutz: IP67 Akkutyp: Li-Ion, Wechsel-Akku, IBP-7 Betriebsdauer: max. 5.5 h Maße: 194 x 70 x 82 mm Gewicht: 650 g Lieferumfang : Nocpix VISTA H50R Wärmebild-Handgerät Tragetasche mit Tragegurt 2x Batteriepack IBP-7 Datenkabel Objektivreinigungstuch Kurzanleitung
