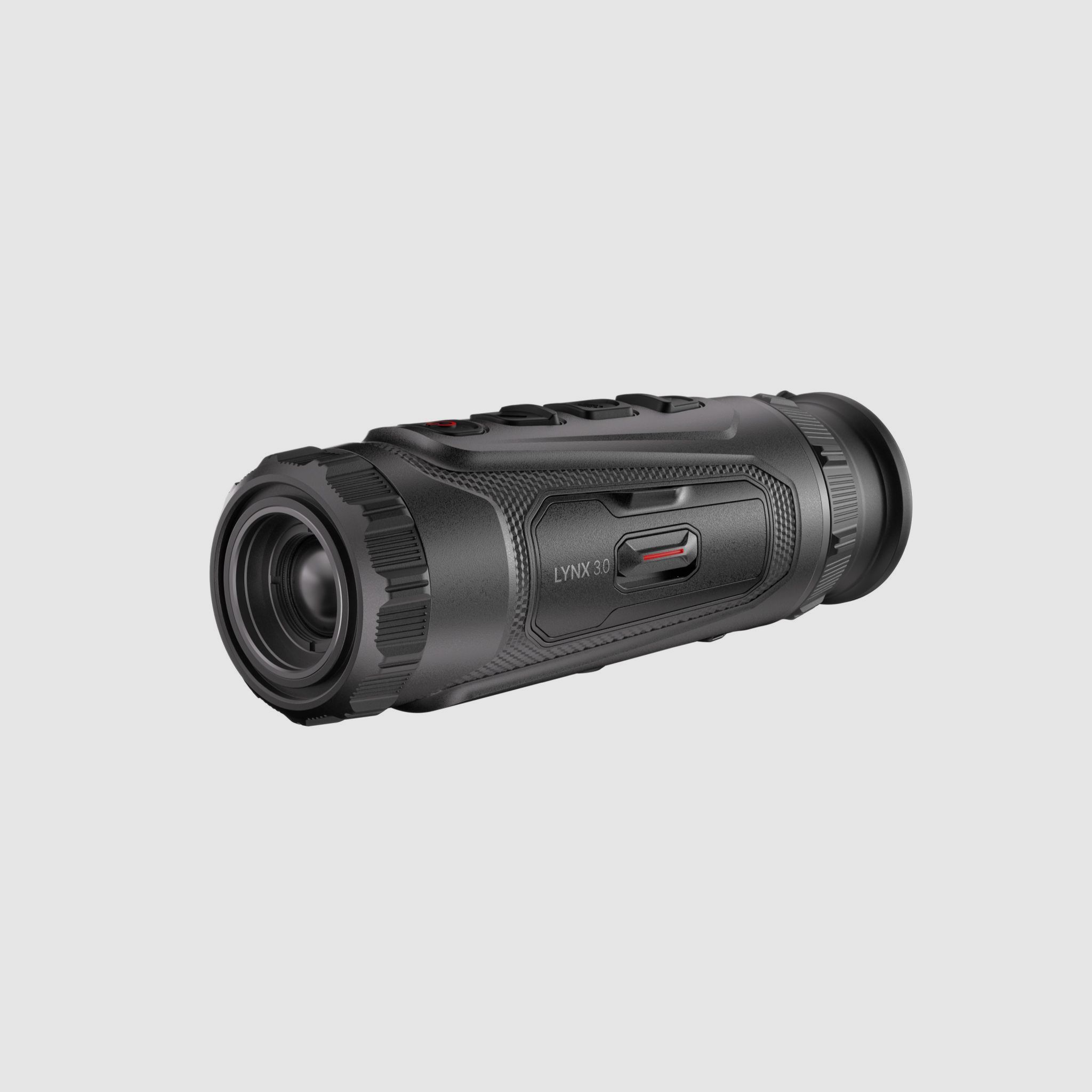

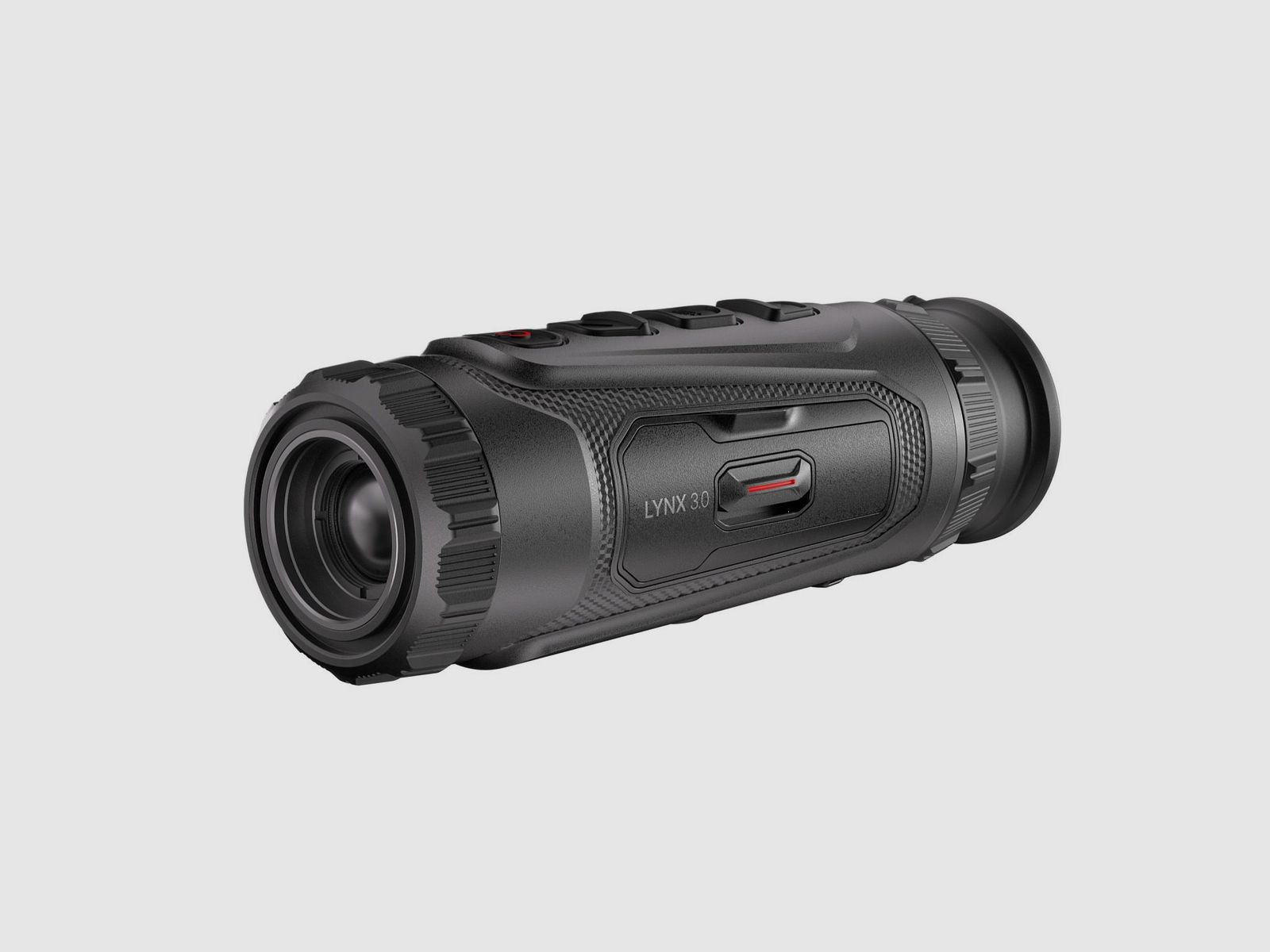

HIKMicro Lynx 3.0 LH19 thermal imaging camera

LYNX LH19 3.0 Powerful Thermal Imaging Handheld Device with Long Range

Product Description

The LYNX LH19 3.0 is a powerful thermal imaging device with a 384 × 288 pixel sensor and excellent thermal sensitivity. It enables detailed images during the day and night reliably and accurately.

Main Features

• Sensor 384 × 288 pixels, 12 µm pixel size

• NETD < 15 mK for highest image sharpness

• 0.49 inch AMOLED display (1920 × 1080 pixels)

• Image Pro 3.0 algorithm and shutterless system

• Replaceable 18650 batteries with up to 4.5 hours of runtime

• Weight 355 g, robust housing with rubberized focus ring

Technical Data

• Focal length 19 mm F1.0
• Base magnification 2.5×
• Field of view 10.5° × 6.4° (18.4 m × 11.2 m @100 m)
• Detection range up to 1200 m
• Protection class IP67
• Temperature range -30 °C to +55 °C.

Areas of Application

Nature and wildlife observation, security monitoring, technical inspections.

Conclusion

The LYNX LH19 3.0 combines long range, brilliant image quality, and robust construction – the ideal solution for demanding thermal imaging applications.
