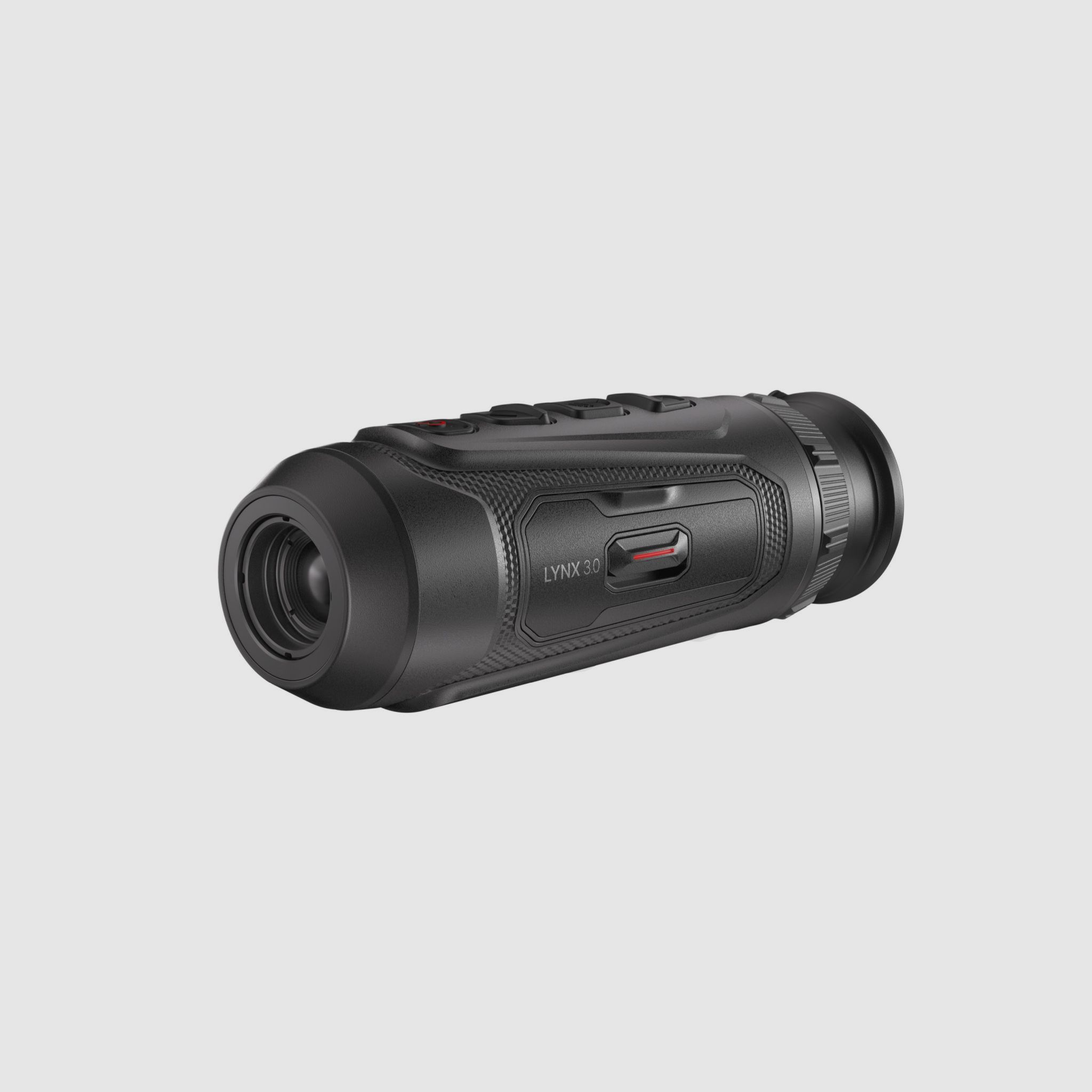

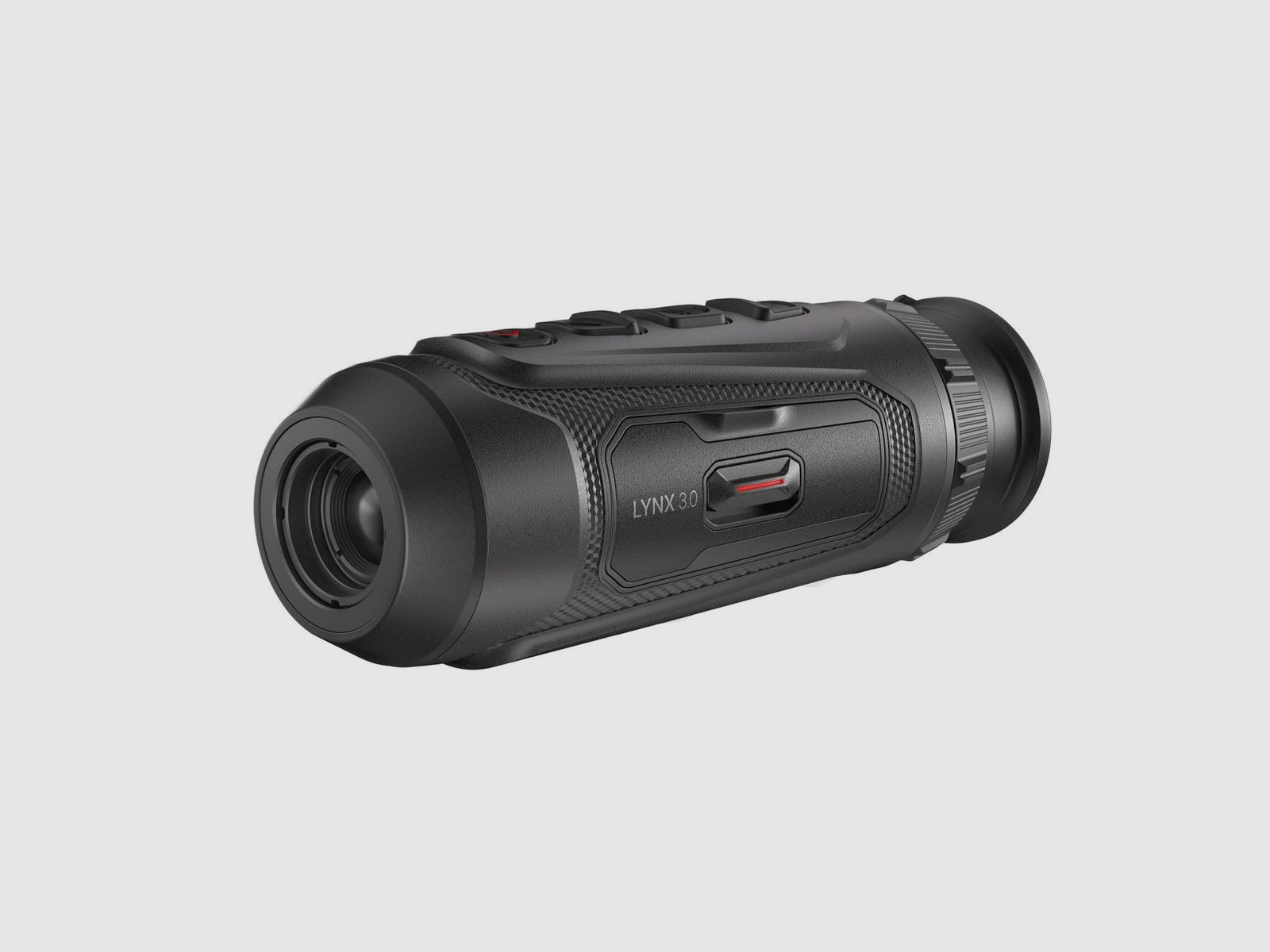

HIKMicro Lynx 3.0 LH15 thermal imaging camera

LYNX LH15 3.0 Thermal Imaging Device with High Sensitivity and Precision

Product Description

The LYNX LH15 3.0 offers state-of-the-art thermal imaging technology with a sensor resolution of 320 × 240 pixels and excellent thermal sensitivity. It delivers crystal clear images for professional applications.

Main Features

• Sensor 320 × 240 pixels, 12 µm pixel size

• NETD < 18 mK for excellent thermal sensitivity

• 0.49 inch AMOLED display (1920 × 1080 pixels)

• Image Pro 3.0 algorithm and shutterless system

• Ergonomic magnesium housing, replaceable 18650 batteries

• Runtime up to 4.5 hours, weight approx. 329 g

Technical Specifications

• Focal length 15 mm F1.0
• Base magnification 1.9×
• Field of view 13.8° × 8.4° (24.2 m × 14.7 m @100 m)
• Detection range up to 900 m
• Protection class IP67
• Temperature range -30 °C to +55 °C.

Areas of Application

Wildlife and nature observation, security, building diagnostics, technical inspections.

Conclusion

The LYNX LH15 3.0 delivers precise thermal images in a robust housing, perfect for users who desire professional performance and a compact design.
