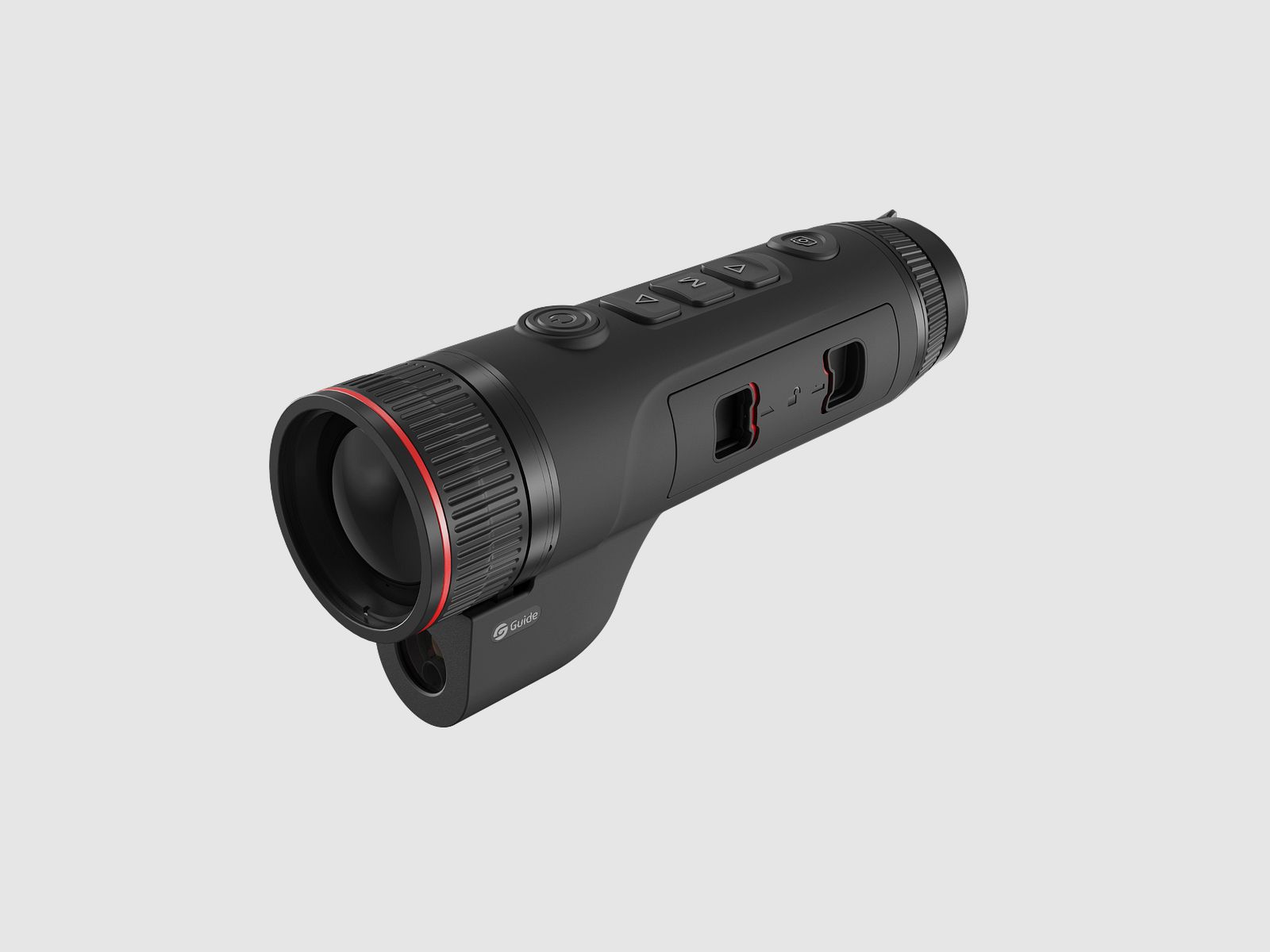

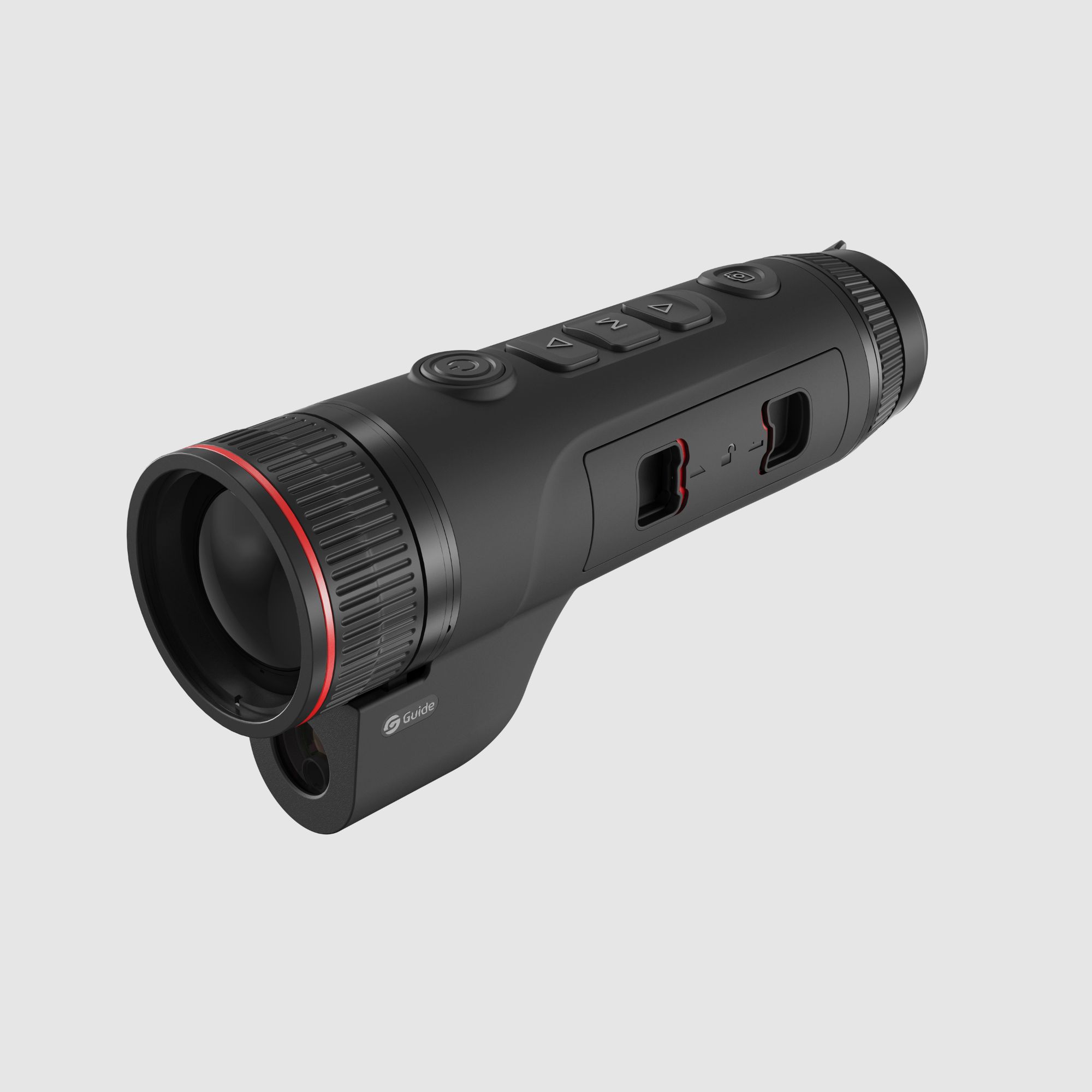

The Guide TJ650L is a high-end thermal imaging monocular with a 1000m laser rangefinder, designed for hunters and outdoor adventurers. The highly sensitive 12μm infrared sensor with a resolution of 640 × 512 pixels and a NETD sensitivity of <20 mK enables crystal clear thermal images, even with minimal temperature differences.
The advanced thermal imaging sensor with 50mm F1.0 lens provides optimal visibility with a field of view of 15 × 12° at 100 meters and allows for precise observations over long distances.
The high-resolution 1920 × 1080 AMOLED display ensures high-contrast and vibrant image representation, making longer observations particularly comfortable.
The integrated Laser Rangefinder measures distances of up to 1000 meters, ensuring accurate target acquisition. This is ideal for hunting, security monitoring, and wildlife observation.
The TJLRF series is equipped with 25mm, 35mm, and 50mm lenses to adapt to different environments. With the 50mm F1.0 lens, targets can be detected at up to 2000 meters.
With a battery life of up to 10 hours and replaceable 18650 batteries, the device offers long-lasting performance for extended observations.
The device is light and compact with a weight of only 546 g. It has been designed for comfortable two-handed operation and allows for intuitive control, even at night.
Thanks to the IP67 certification, the device is dust and waterproof and withstands even extreme weather conditions.
| Property | Details |
|---|---|
| Sensor | 640 × 512 infrared sensor |
| Pixel Size | 12 µm |
| Frame Rate | 50 Hz |
| Spectral Range | 8–14 µm |
| NETD | < 20 mK |
| Display | 1920 × 1080 AMOLED |
| Lens | 50 mm |
| Field of View | 15 × 12° at 100 m |
| Digital Zoom | 18x |
| Laser Rangefinder | Yes, up to 1000 m |
| WiFi & App | Yes |
| Battery Life | Up to 10 hours |
| Battery Type | Replaceable 18650 batteries |
| Weight | 546 g |
| Scope of Delivery | Charger, USB-C cable, 2x battery, hand strap, quick guide, warranty card, 5V2A adapter |
Das Guide TJ650L ist ein High-End-Wärmebild-Monokular mit 1000m Laser-Entfernungsmesser, entwickelt für Jäger und Outdoor-Abenteurer. Der hochsensible 12μm Infrarotsensor mit einer Auflösung von 640 × 512 Pixel und einer NETD-Empfindlichkeit von <20 mK ermöglicht gestochen scharfe Wärmebilder, selbst bei minimalen Temperaturunterschieden.
Der fortschrittliche Wärmebildsensor mit 50mm F1.0-Objektiv bietet eine optimale Sicht mit einem Sehfeld von 15 × 12° auf 100 Metern und erlaubt präzise Beobachtungen über große Entfernungen.
Das hochauflösende 1920 × 1080 AMOLED-Display sorgt für kontrastreiche und lebendige Bilddarstellung, wodurch längere Beobachtungen besonders komfortabel sind.
Der integrierte Laser-Entfernungsmesser misst Entfernungen von bis zu 1000 Metern und sorgt so für exakte Zielerfassung. Dies ist ideal für die Jagd, Sicherheitsüberwachung und Wildtierbeobachtung.
Die TJLRF-Serie ist mit 25mm, 35mm und 50mm Objektiven ausgestattet, um sich an verschiedene Umgebungen anzupassen. Mit der 50mm F1.0-Linse lassen sich Ziele auf bis zu 2000 Metern erkennen.
Mit einer Akkulaufzeit von bis zu 10 Stunden und wechselbaren 18650-Batterien bietet das Gerät eine langanhaltende Leistung für ausgedehnte Beobachtungen.
Das Gerät ist leicht und kompakt mit nur 546 g Gewicht. Es wurde für eine komfortable Zweihandbedienung konzipiert und ermöglicht intuitive Steuerung, auch bei Nacht.
Dank der IP67-Zertifizierung ist das Gerät staub- und wasserdicht und trotzt selbst extremen Witterungsbedingungen.
| Eigenschaft | Details |
|---|---|
| Sensor | 640 × 512 Infrarotsensor |
| Pixelgröße | 12 µm |
| Bildrate | 50 Hz |
| Spektralbereich | 8–14 µm |
| NETD | < 20 mK |
| Display | 1920 × 1080 AMOLED |
| Objektiv | 50 mm |
| Sehfeld | 15 × 12° auf 100 m |
| Digitalzoom | 18x |
| Laserentfernungsmesser | Ja, bis 1000 m |
| WiFi & App | Ja |
| Akkulaufzeit | Bis zu 10 Stunden |
| Akku-Typ | Wechselbare 18650-Batterien |
| Gewicht | 546 g |
| Lieferumfang | Ladegerät, USB-C-Kabel, 2x Batterie, Handschlaufe, Kurzanleitung, Garantiekarte, 5V2A-Adapter |
