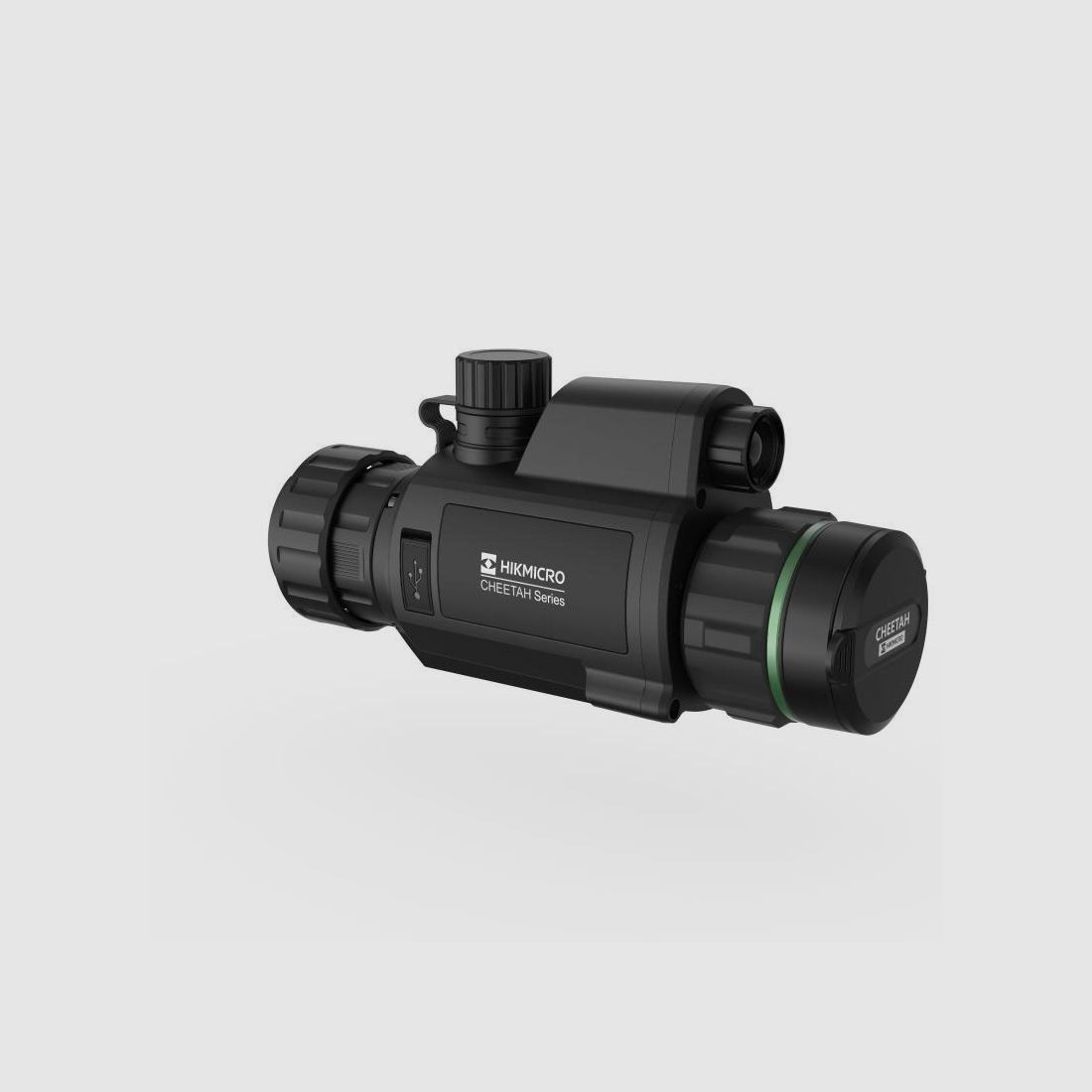

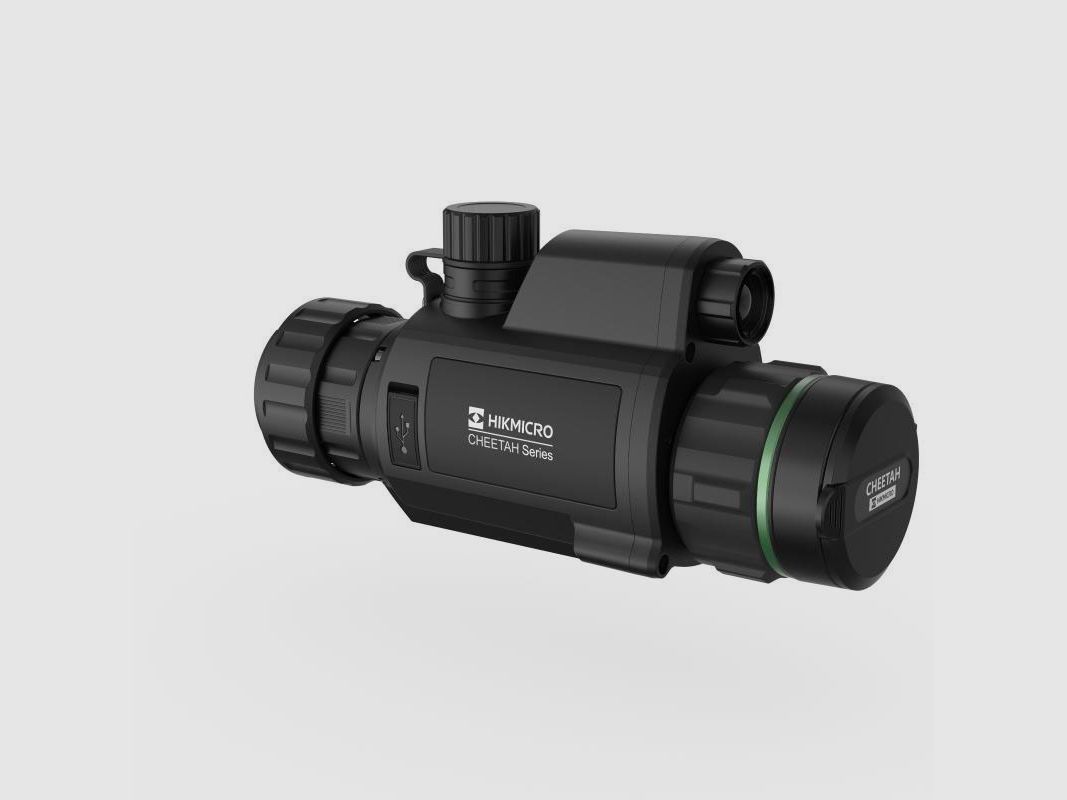

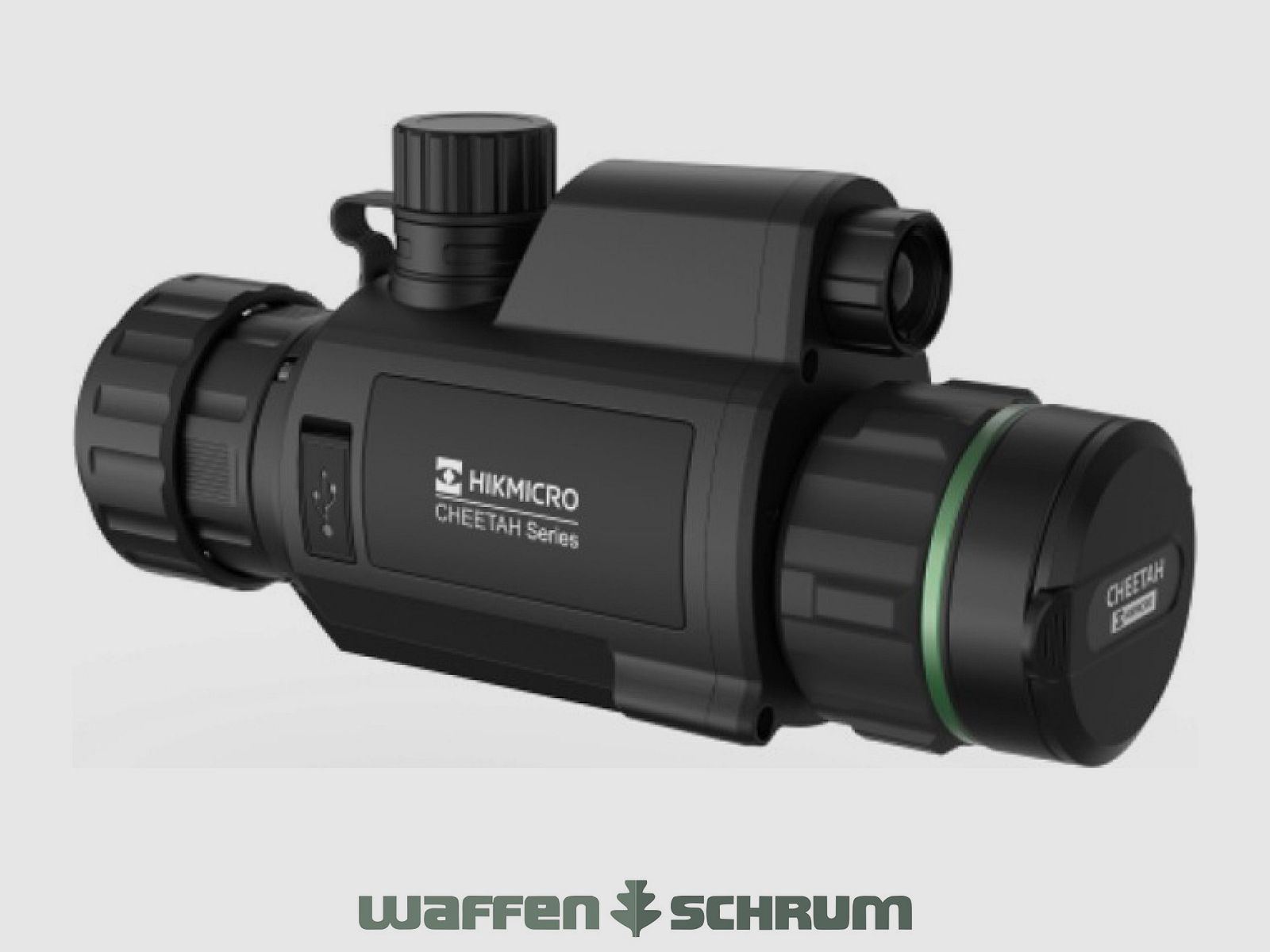

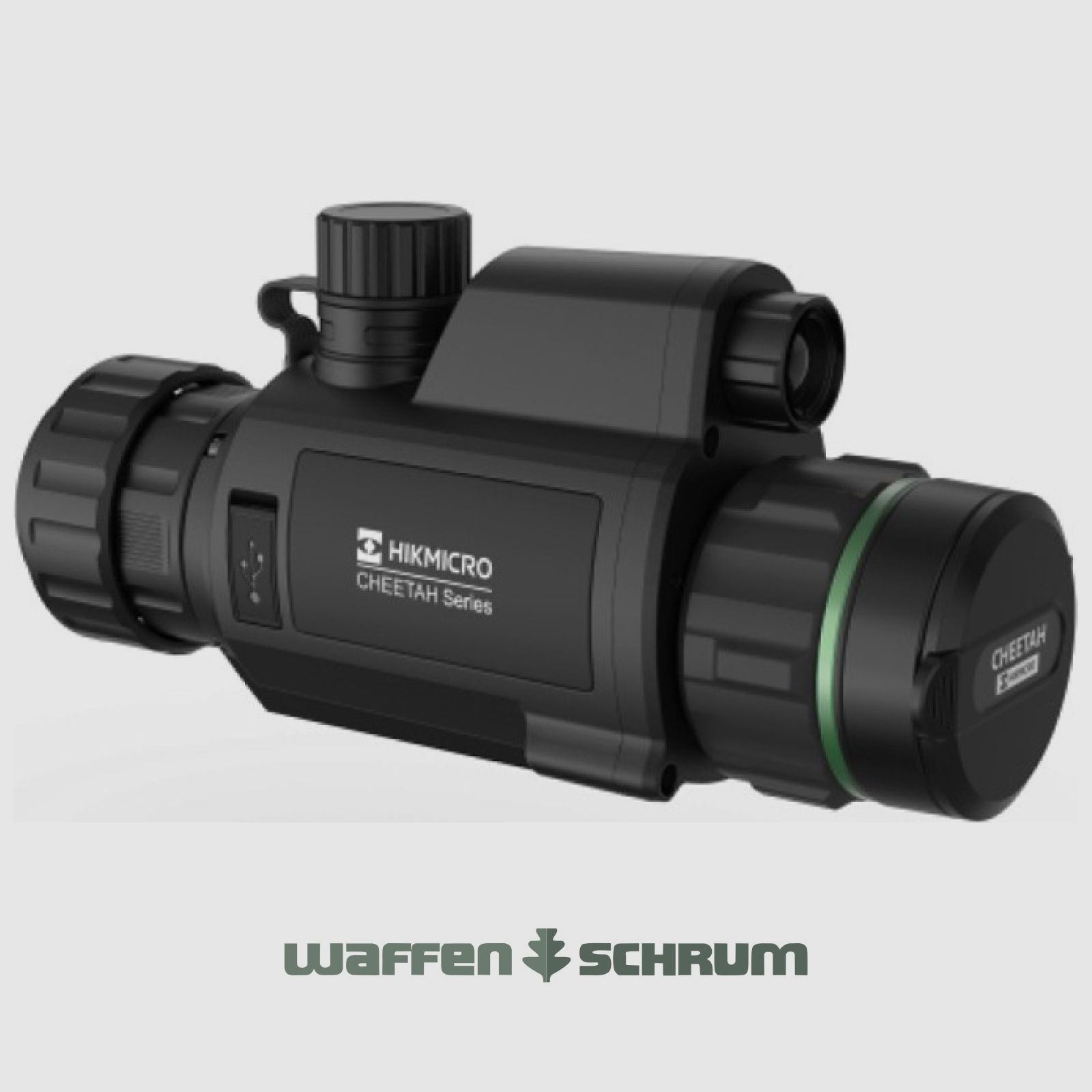

Hikmicro Cheetah C32F-N 940nm

Whether as a clip-on device or handheld – the digital night vision device Cheetah C32F-N 940nm from HikMicro impresses with its craftsmanship, quality, and usability.

Whether as a clip-on device or handheld – the digital night vision device Cheetah C32F-N 940nm from HikMicro impresses with its craftsmanship, quality, and usability.

The HIKMICRO Cheetah C32F is a powerful clip-on device for hunting. It is part of the new Cheetah series and offers a range of innovative features that make it an ideal companion for hunters in any terrain. Additionally, the dual-use device shines with its integrated infrared emitter with a power of 940nm.

The power supply is provided by a standard, replaceable 18650 battery, which allows for a runtime of 5.5 hours. The special feature of the battery placement: HIKMICRO installs these transversely to the axis of the Cheetah. When the shooter uses the device as a clip-on or riflescope, the batteries cannot lose contact due to recoil during the shot.

Powerful Sensor
The clip-on device features a powerful 2560 x 1440 pixel HD sensor and a high-resolution 1920 x 1080 pixel OLED display. This guarantees you a high-resolution and detailed image. Thanks to the DeFog mode (fog mode), you also have optimal visibility in poor weather conditions. The high sensitivity of the sensor allows the Cheetah C32 to deliver a sharp and high-contrast image even in low light conditions. This is a crucial advantage for hunters who want to hunt successfully at dusk, at night, or in rain and snow. The modern Ultra HD sensor with a resolution of 2560 × 1440 pixels and the large 0.49" OLED display with a resolution of 1920 × 1080 pixels provide very detailed and clear images even in complete darkness.

Ergonomic Design
The ergonomic design of the Cheetah C32F ensures easy and comfortable handling. The tactilely highlighted rotary knob allows for precise focusing even in low light conditions. The device is equipped with a universal threaded mount, allowing it to be used with any adapter from various manufacturers for attachment to optics. This facilitates mounting and ensures high stability.

Individual Customization
The Cheetah C32F offers a range of features for individual customization to meet the user's needs. These include adjusting the image brightness and hue, as well as storing up to 5 optical profiles. The adjustment of image brightness and hue allows the user to adapt the image to the respective lighting conditions and personal preferences. The ability to store up to 5 optical profiles enables the user to save settings for different target optics.

In addition to the highlighted features, the Cheetah C32F offers a number of other advantages that make it an attractive option for hunters. These include:

• Built-in IR emitter for hunting in darkness


• Waterproof and shockproof according to IP67


• Easy mounting

The HIKMICRO Cheetah C32F is a powerful and versatile thermal imaging clip-on device that is ideal for hunters in any terrain. It offers a range of innovative features that make it an indispensable companion for hunting.

Legal Notice: When using dual-use devices, please observe the legal regulations.

Scope of Delivery: Cheetah C32F-N, manual, cleaning cloth, USB-C cable, 2x battery, charger

Technical Specifications:

• Resolution: 2560 x 1440


• Frame Rate: 25Hz


• Focal Length: 32 mm


• Detection Range: 350 m (with IR 940 nm)


• Field of View: 9.9° × 7.5°


• Aperture: F1.2


• Magnification: 1


• Minimum Focus Distance: 3 m


• IR Wavelength: 850 nm


• Monitor: 0.49 inch, OLED, 1920 × 1080


• Optical Modes: Day, Night, Automatic, Defog


• Digital Zoom: 1x


• Picture-in-Picture: No


• Standby Mode: Yes


• Reticle: No


• Hotspot: Yes


• Storage: Built-in storage module (64 GB)


• Video Recording: integrated video recording


• Recoil-Activated Video Recording: Yes


• Audio Recording: Yes


• Snapshot: integrated image capture


• Maximum Recoil: 750 g


• Battery Type: removable Li-Ion battery


• Operating Time: 5.5 h


• Battery Capacity Display: Yes


• Power Supply: Type C


• Operating Temperature/Humidity: From -30 °C to 55 °C; Humidity 90% or less


• Protection Class: IP67


• Dimensions: 182.8 mm × 70 mm × 87.2 mm


• Weight: 477 g


• Laser Safety Class: 1


• Wavelength: 905 nm


• Maximum Measurement Distance: 1000 m


• Minimum Measurement Distance: 10 m


• Measurement Accuracy: +/- 4%
