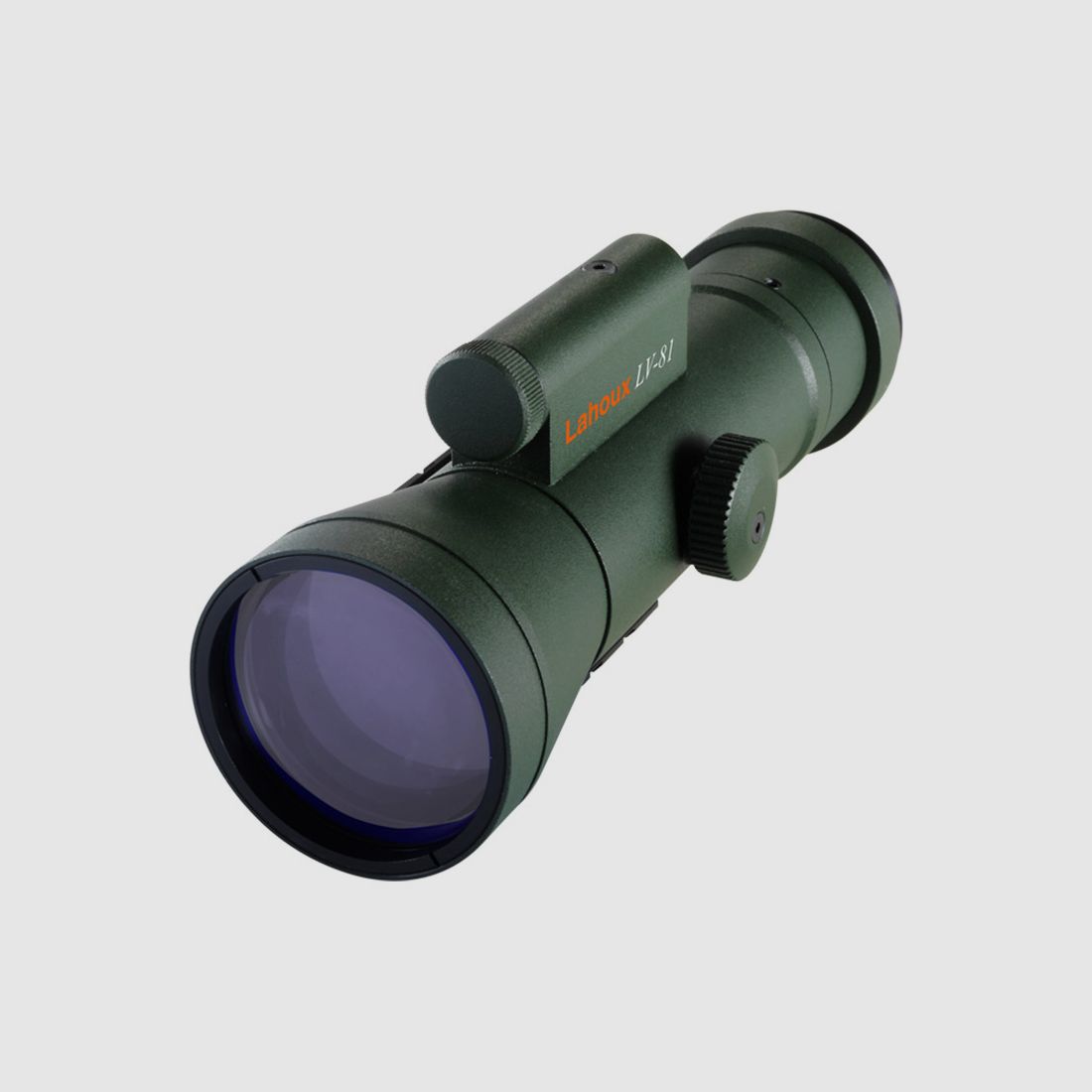

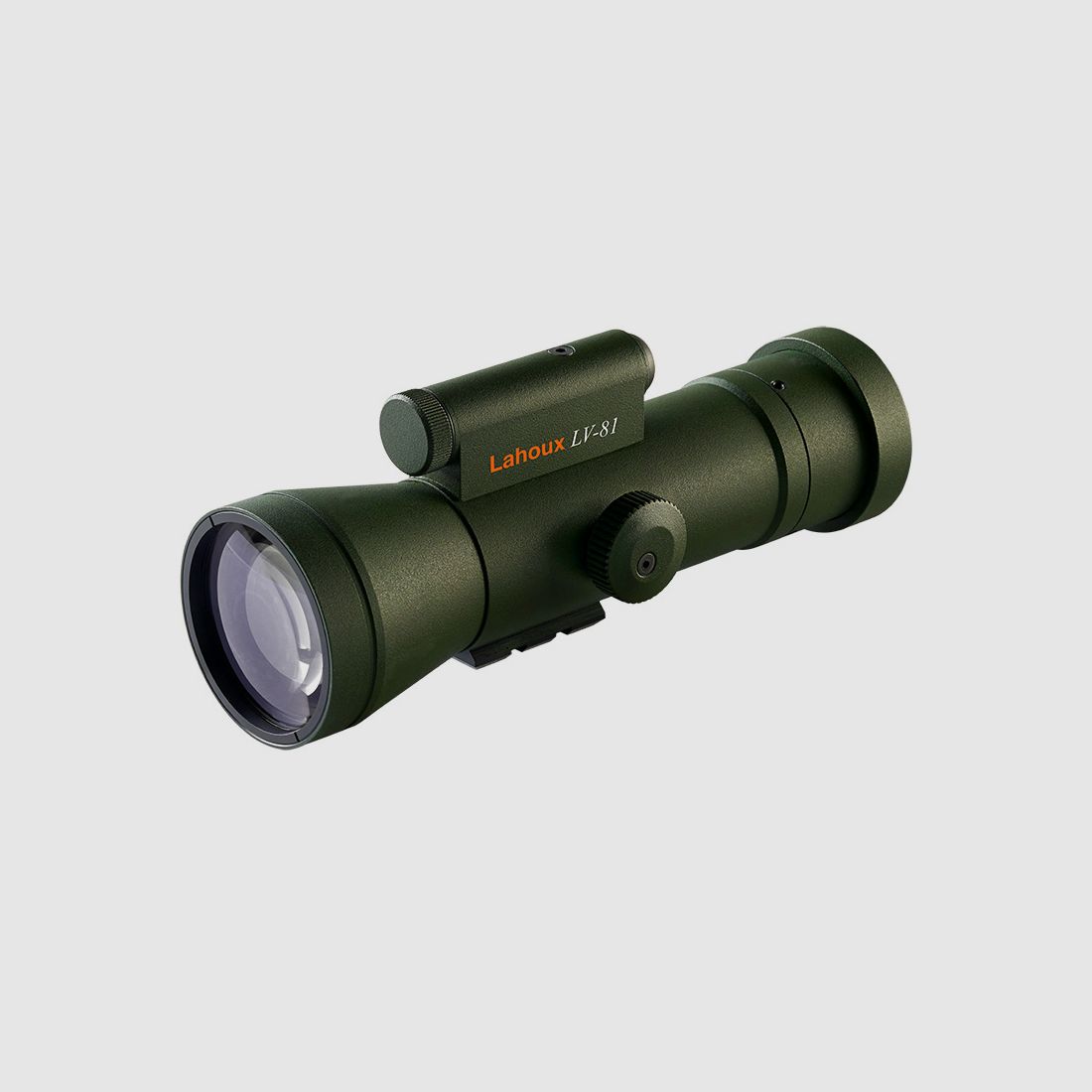

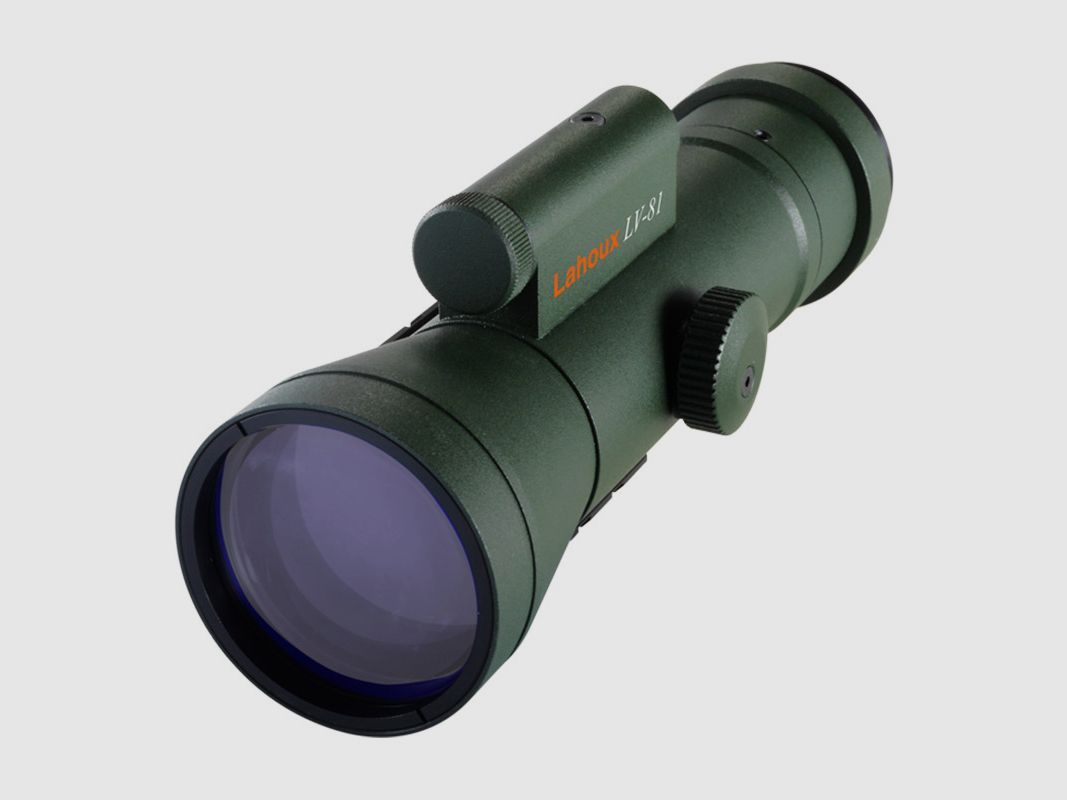

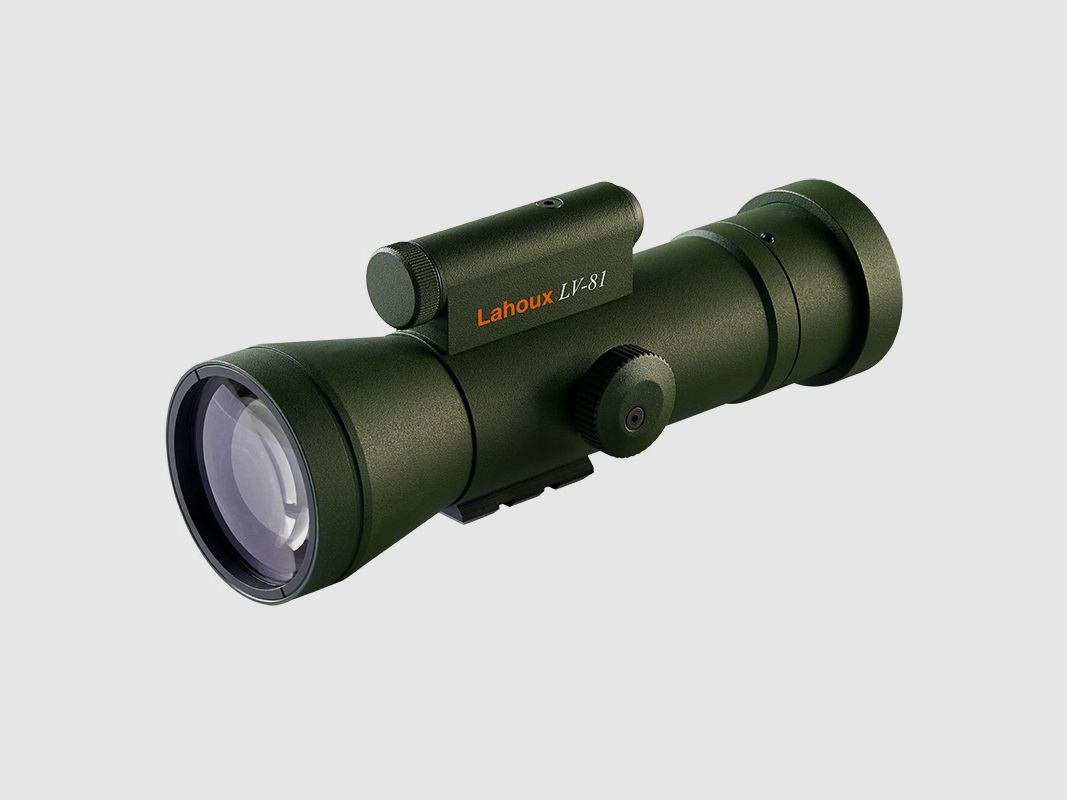

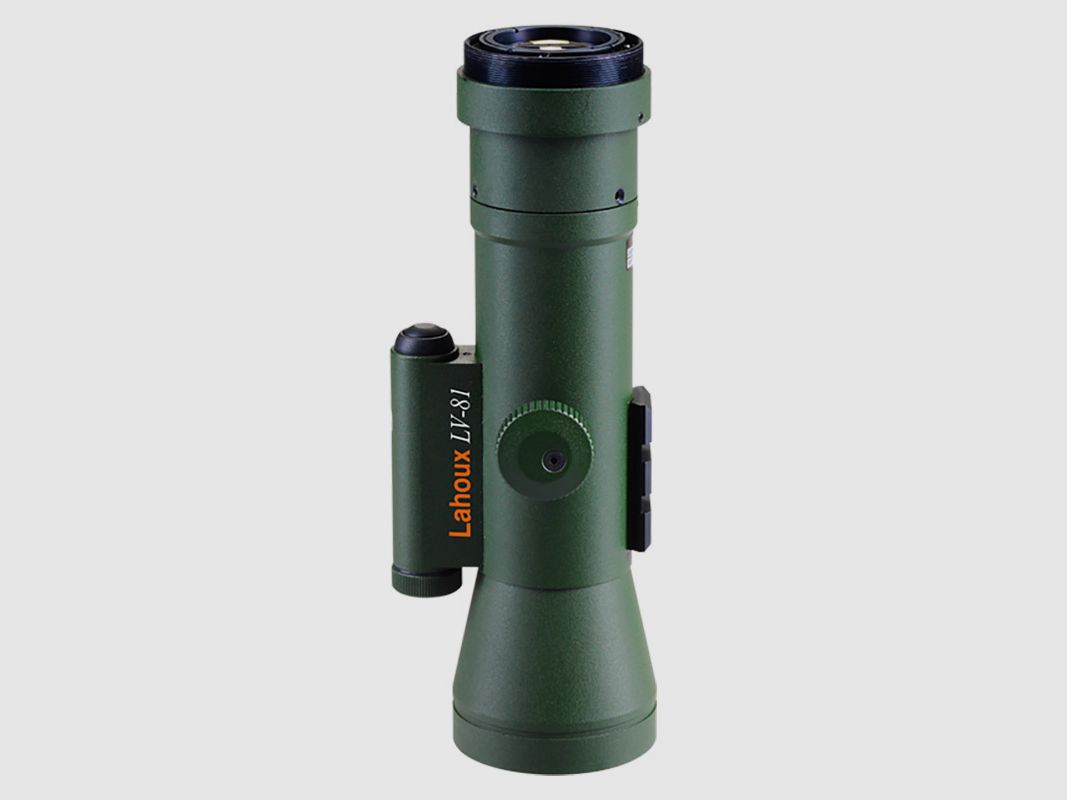

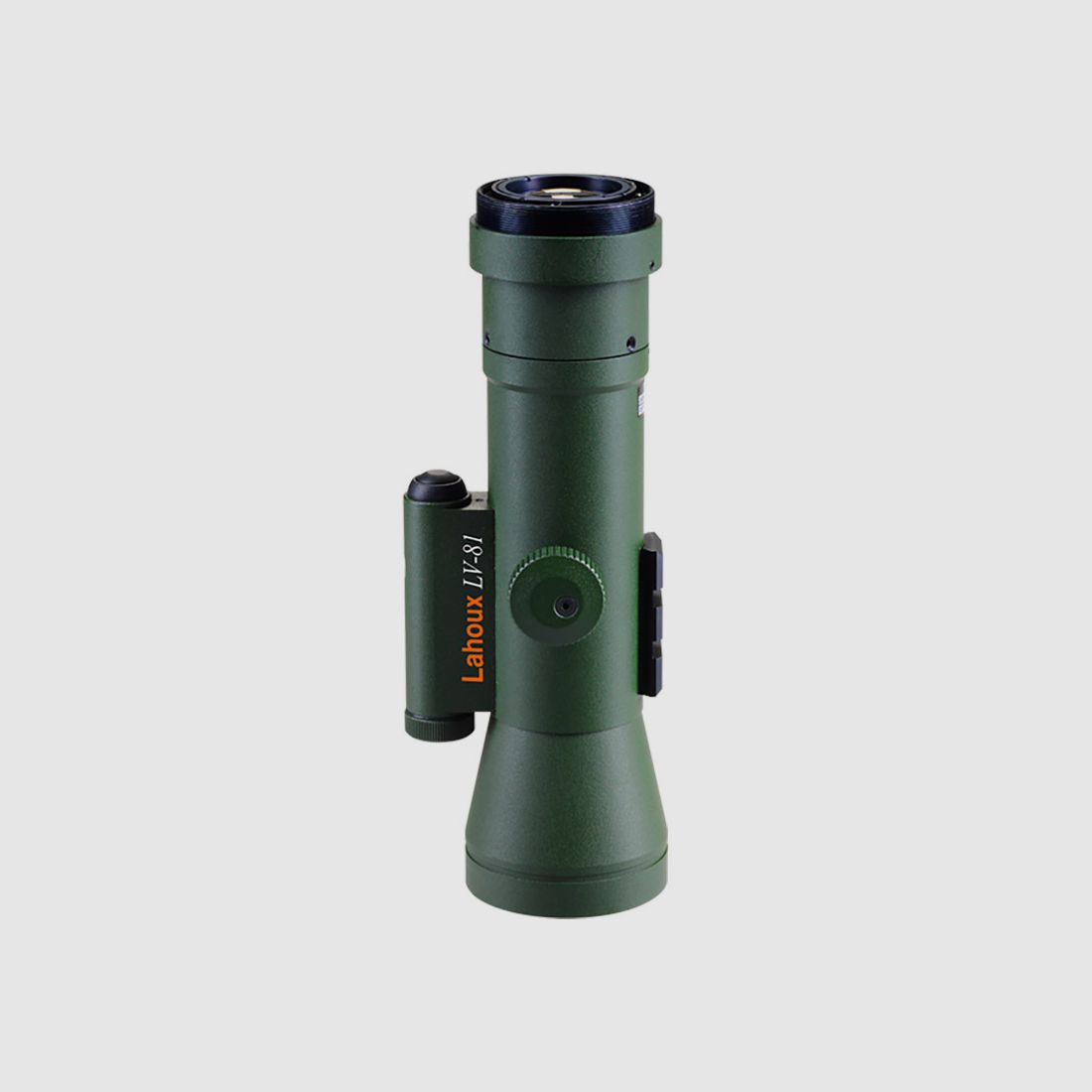

Lahoux LV-81 Standard+ ONYX image intensifier
With its long 80 mm focal length, this device is particularly suitable for observation at longer distances. The 34 mm objective lens with a special AR coating ensures high transmission values and an exceptionally sharp image. The high-contrast lenses and image intensifier tube are individually mounted to withstand impact. The LV81 features an automatic shutoff after 1 hour. The BKA classification notice is available.
This device is classified as a “dual-use” item. It is therefore not a prohibited item under the WaffG. Mounting night vision attachments on scopes is prohibited in Germany without BKA approval!
Lahoux night vision devices are known for their excellent image quality, precision manufacturing, durability, and reliability. Only impact-resistant Photonis image intensifier tubes are used. Design, manufacturing, and assembly all take place in the Netherlands.
Technical specifications:
Magnification: 1.0x
Field of view: 7.94°
Resolution: 62–72 lp/mm
Photonis XX0041 tube (FOM: min. 1400)
S/N ratio: 22–29
Lens: F/1.55, 80 mm
Focus range: 10 m to infinity
Eyepiece: 34 mm
Dimensions: 213x78x64 mm
Weight without battery: 710 g
Battery life: 50 hours
Temperature range: -40 °C to 50 °C
Included: case, quick start guide, lens cloth, lens cap, 1 x CR-123 battery, Photonis measurement sheet.

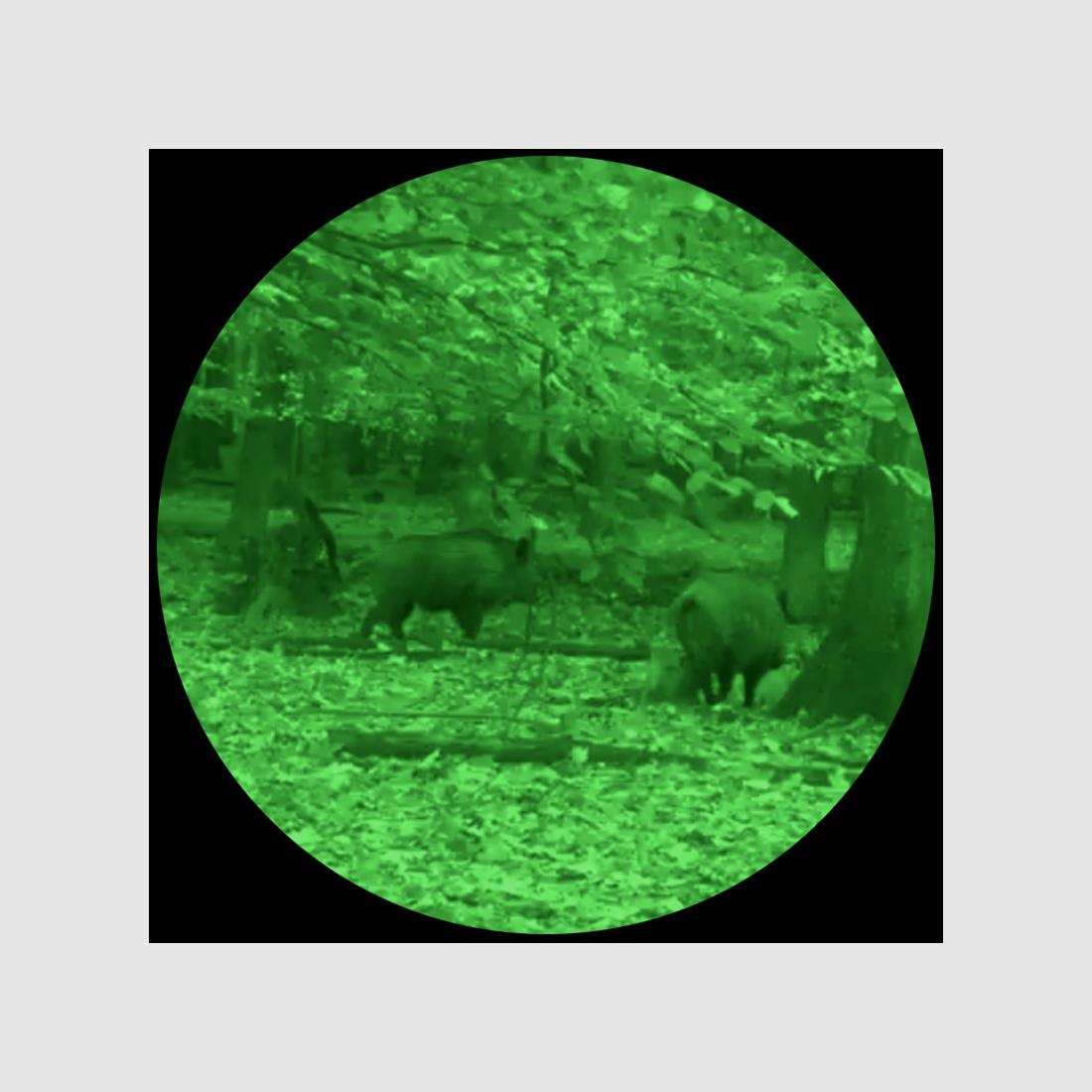

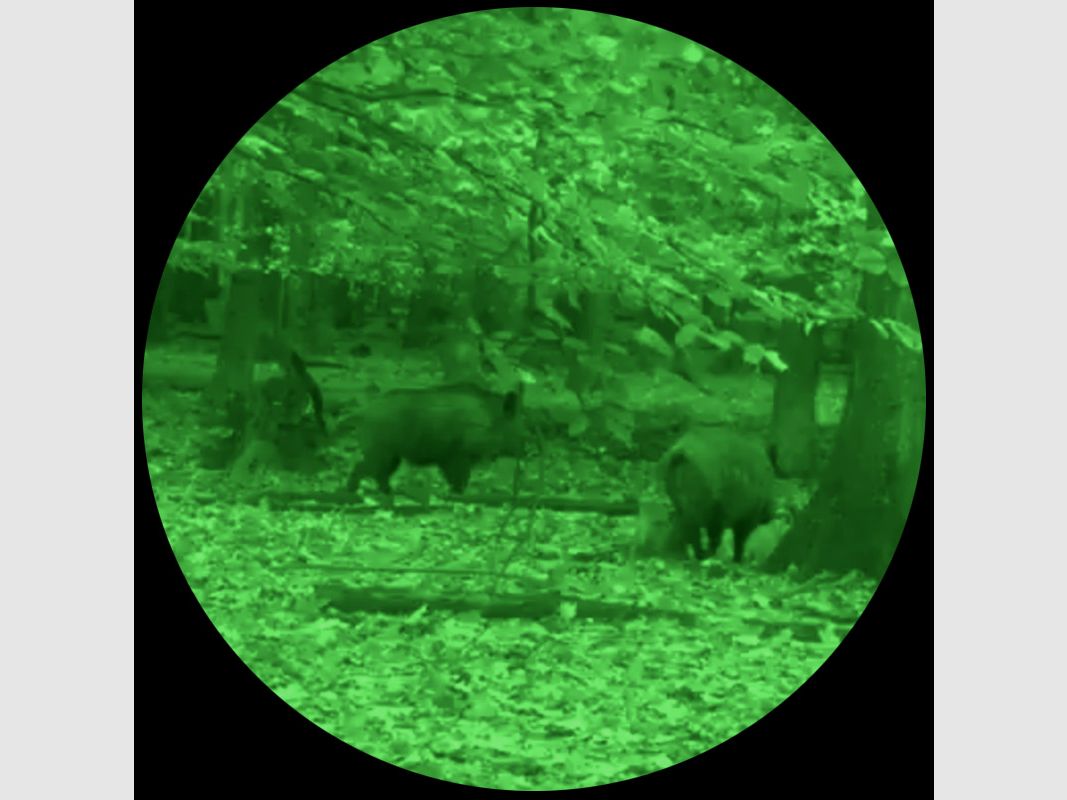

Image display: ONYX
(Show description in original language)
Lahoux LV-81 Standard+ Bildwiedergabe ONYX
Durch die lange Brennweite von 80mm eignet sich dieses Gerät besonders für Beobachtung auf höhere Entfernung. Die mit der speziellen AR-Beschichtung versehene 34mm Objektivlinse sorgt für hohe Transmissionswerte und ein unvergleichbar scharfes Bild. Die High-Contrast-Linsen und die Bildverstärkerröhre sind individuell stoßfest montiert. Das LV81 ist mit einer Auto-Abschaltung nach 1 Stunde ausgestattet. Der BKA Feststellungsbescheid liegt vor.
Dieses Gerät ist als "dual-use"-Gut eingestuft. Somit handelt es sich nicht um einen verbotenen Gegenstände gemäß WaffG. Die Montage von Nachtvorsätzen an Zielfernrohre ist in Deutschland ohne BKA Genehmigung verboten!
Lahoux Nachtsichtgeräte zeichnen sich durch sehr gute Bildqualität, präzise Herstellung, Robustheit und Zuverlässigkeit aus. Verwendet werden ausschließlich stoßfeste Photonis Bildverstärkerröhren. Die Planung, Herstellung und Montage finden komplett in den Niederlanden statt.
Technische Daten:
Vergrößerung: 1.0x
Sichtfeld: 7,94°
Auflösung: 62-72 lp/mm
Photonis XX0041-Röhre (FOM: min. 1400)
S/N-Wert: 22-29
Linse: F/1.55, 80 mm
Fokussierbereich: 10m bis unendlich
Okular: 34mm
Abmessungen: 213x78x64 mm
Gewicht ohne Batterie: 710 g
Batteriedauer: 50 Stunden
Temperaturbereich: -40 °C bis 50 °C
Lieferumfang: Tasche, Schnellstart-Anleitung, Linsentuch, Linsenkappe, 1 x CR-123 Batterie, Photonis-Meßblatt.
Bildwiedergabe: ONYX
