AT HOME EVERYWHERE

A large field of view for an overview, the necessary details for long-distance shots. The Z8i 2-16x50 P is a sophisticated all-rounder for stalking, sitting, and driven hunting. Its bright optics reveal crucial details for a hit even in adverse lighting conditions and at dusk.

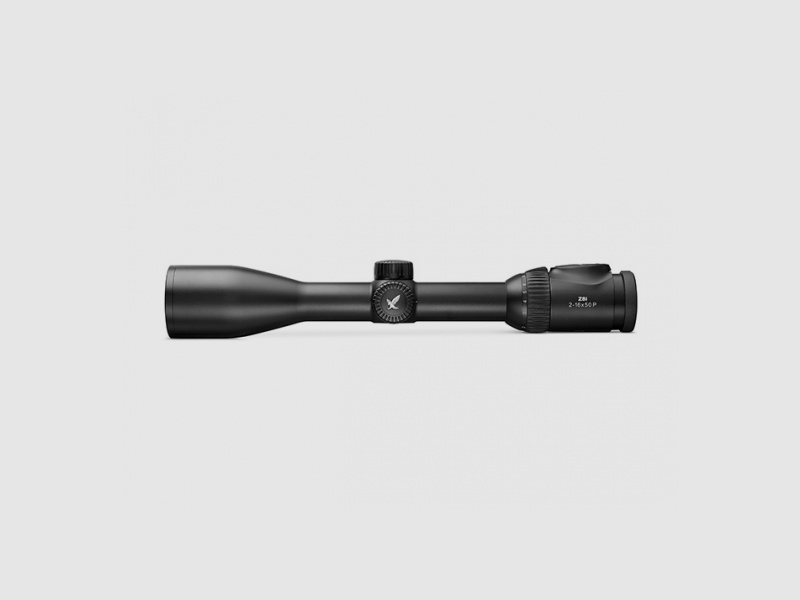

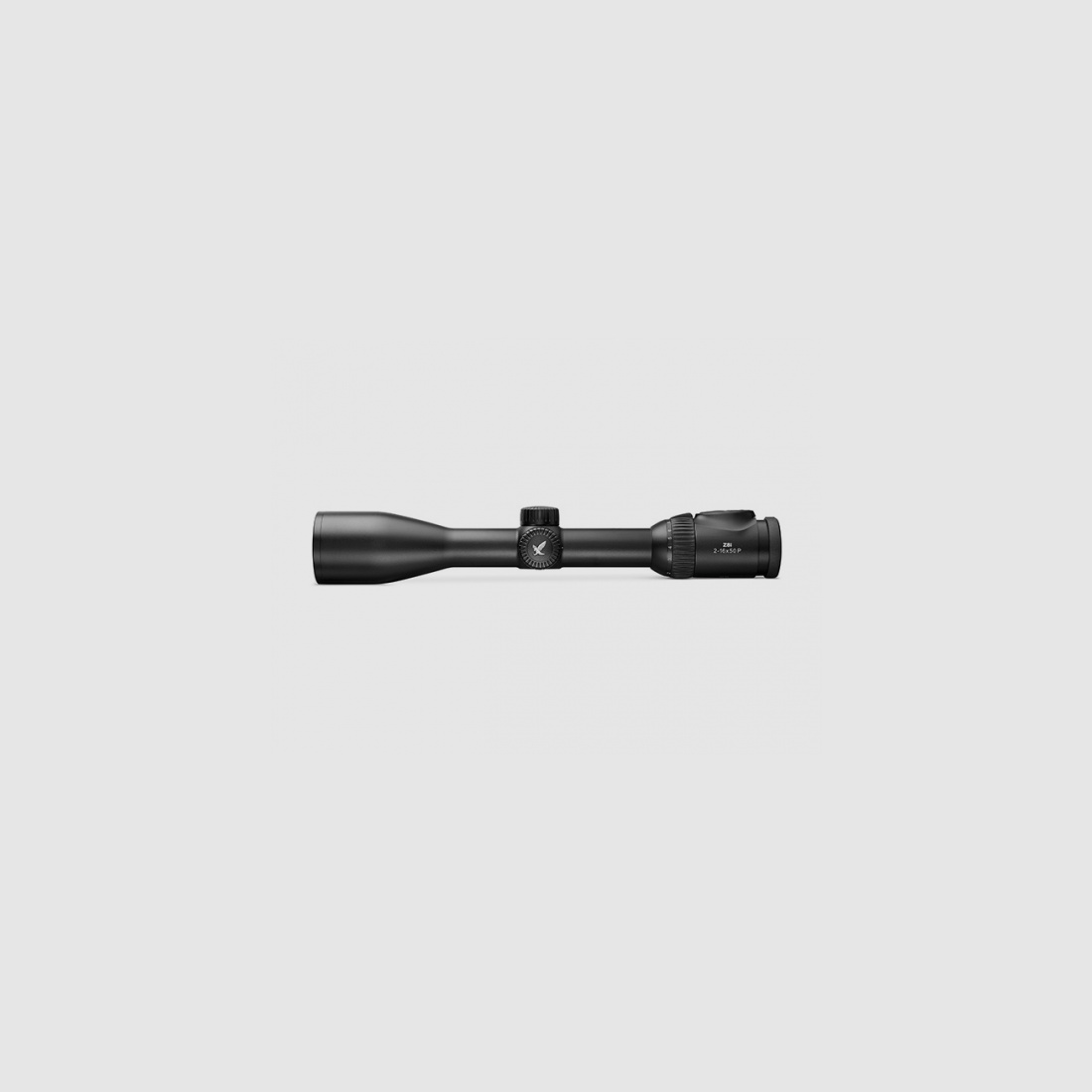

Z8i 2-16x50 P SR

With the illuminated Z8i 2-16x50 P SR, a field of view of 21 m and the details of up to 16x magnification impress during stalking, sitting, and driven hunting. Additionally, this riflescope is well-equipped for use in adverse lighting conditions due to its high light transmission. The SR mounting rail ensures easy and secure mounting.

Technical Data

• Magnification
  2-16x


• Effective objective diameter (mm)
  16.3-50


• Exit pupil diameter (mm)
  8.1-3.1


• Exit pupil distance (mm) (eye relief)
  95


• Field of view (m/100 m)
  21.0-2.6


• Field of view (degrees)
  12.0-1.5


• Eye-side field of view (degrees)
  24


• Diopter adjustment (dpt)
  -3 to +2


• Light transmission (%)
  93


• Dusk number according to ISO 14132-1
  5.7-28.3


• Impact point correction / click (mm/100 m)
  10


• Max. adjustment range for elevation/windage (m/100 m)
  1.5


• Manual parallax adjustment (m)
  50-∞


• Filter thread on the objective side
  M 52x0.75

Technical Data

• Length (mm)
  356


• Weight (g)
  690


• Tube diameter (mm)
  30


• Operating temperature
  -20 °C / +55 °C


• Storage temperature
  -30 °C / +70 °C


• Water resistance
  4 m water depth (noble gas filled)

Illumination Unit

• Brightness levels
  Night: 0 - 32 / Day: 33 - 64


• Operating time (h)
  Night mode at medium brightness: 1,400; Day mode at medium brightness: 180
