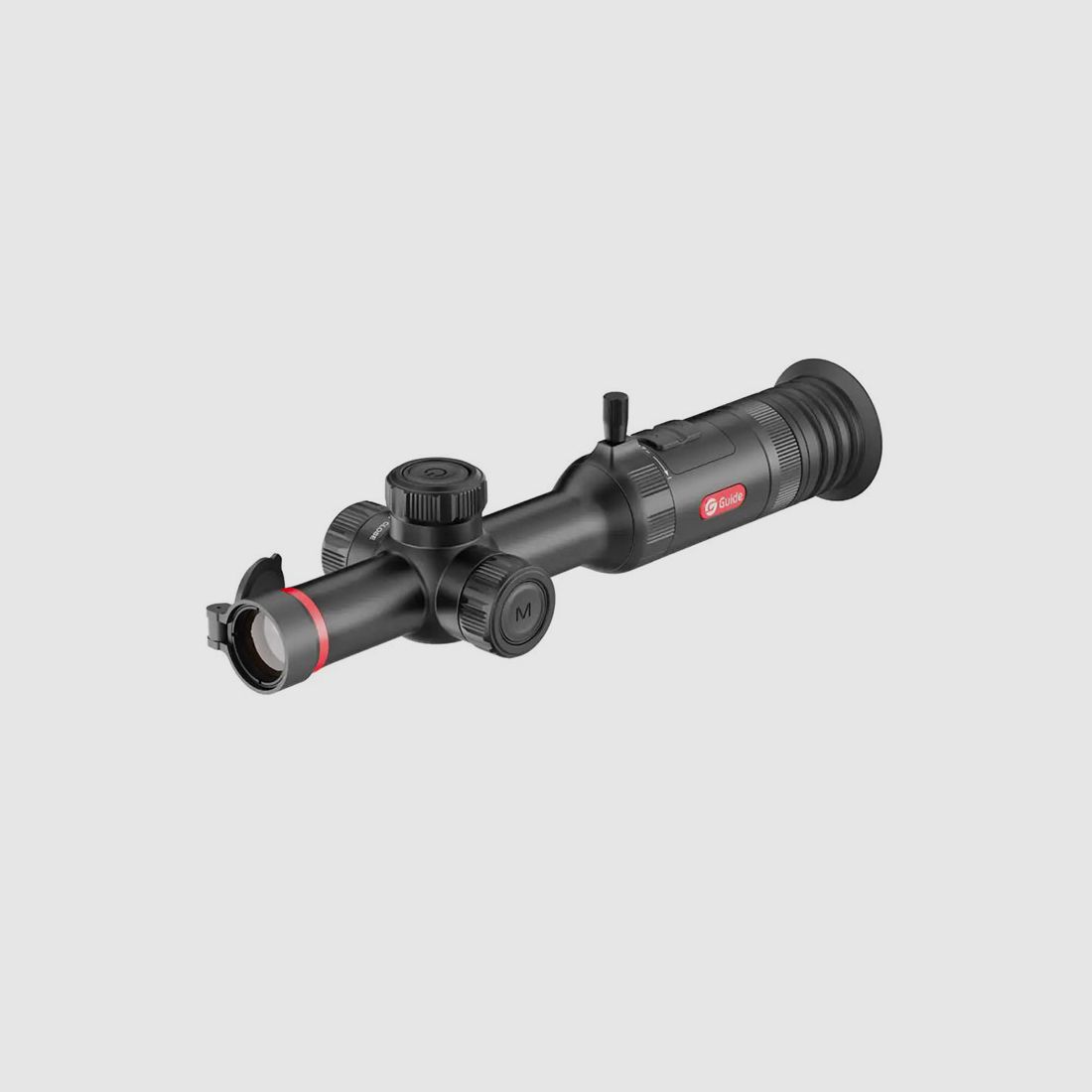

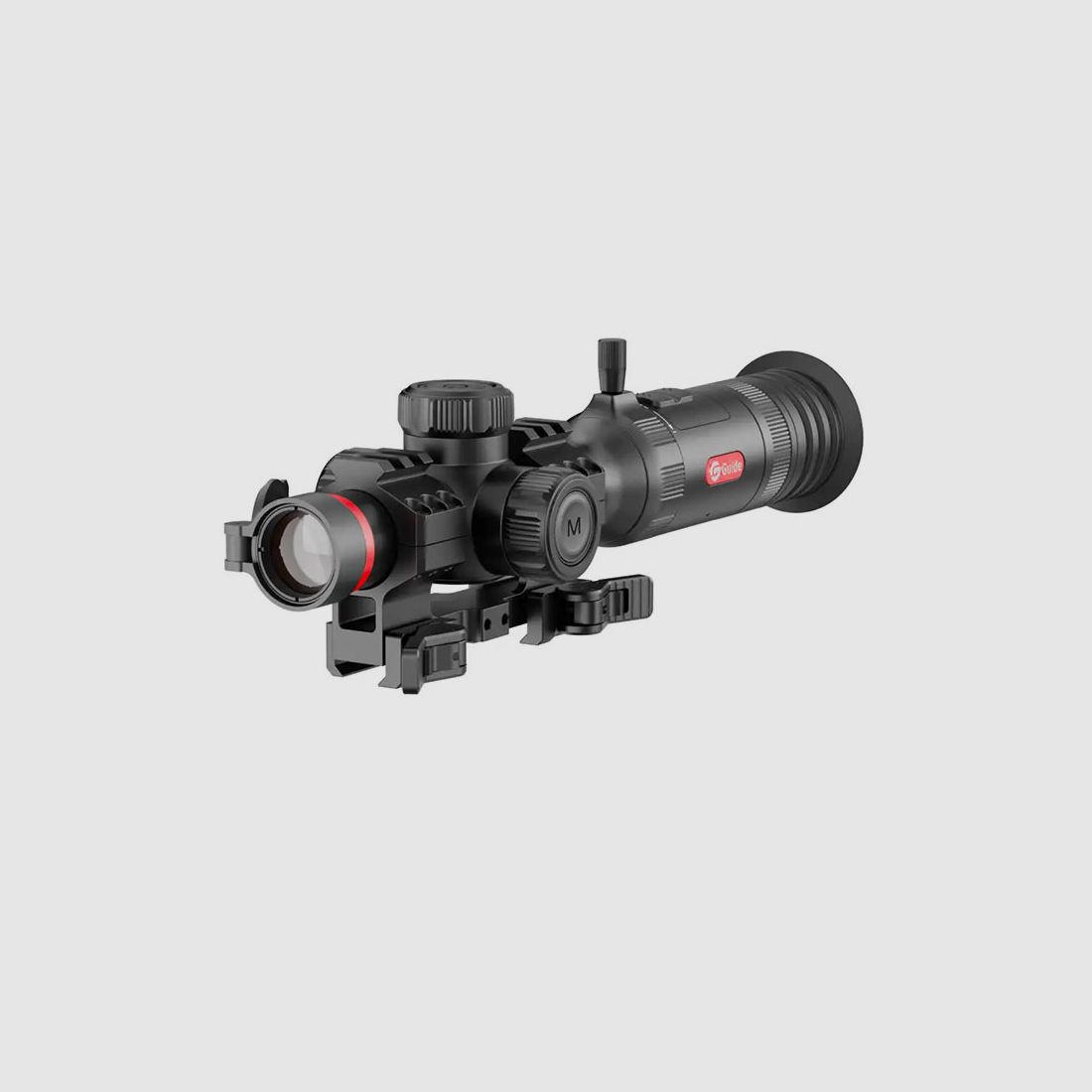

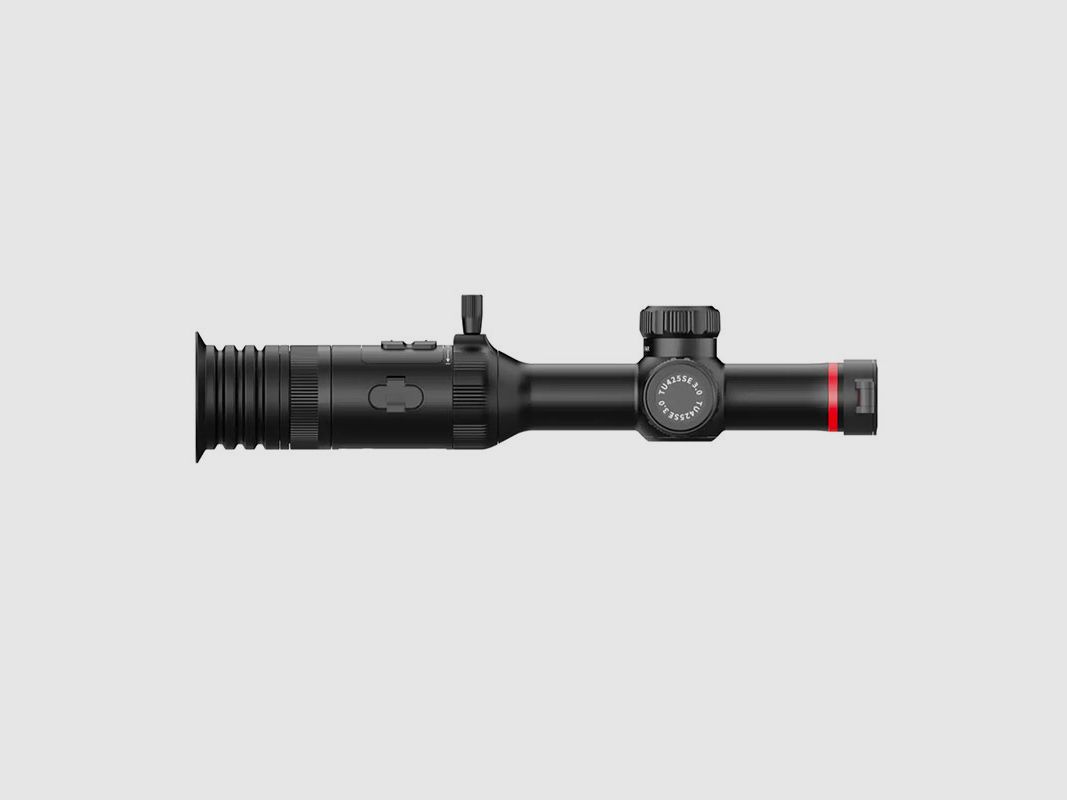

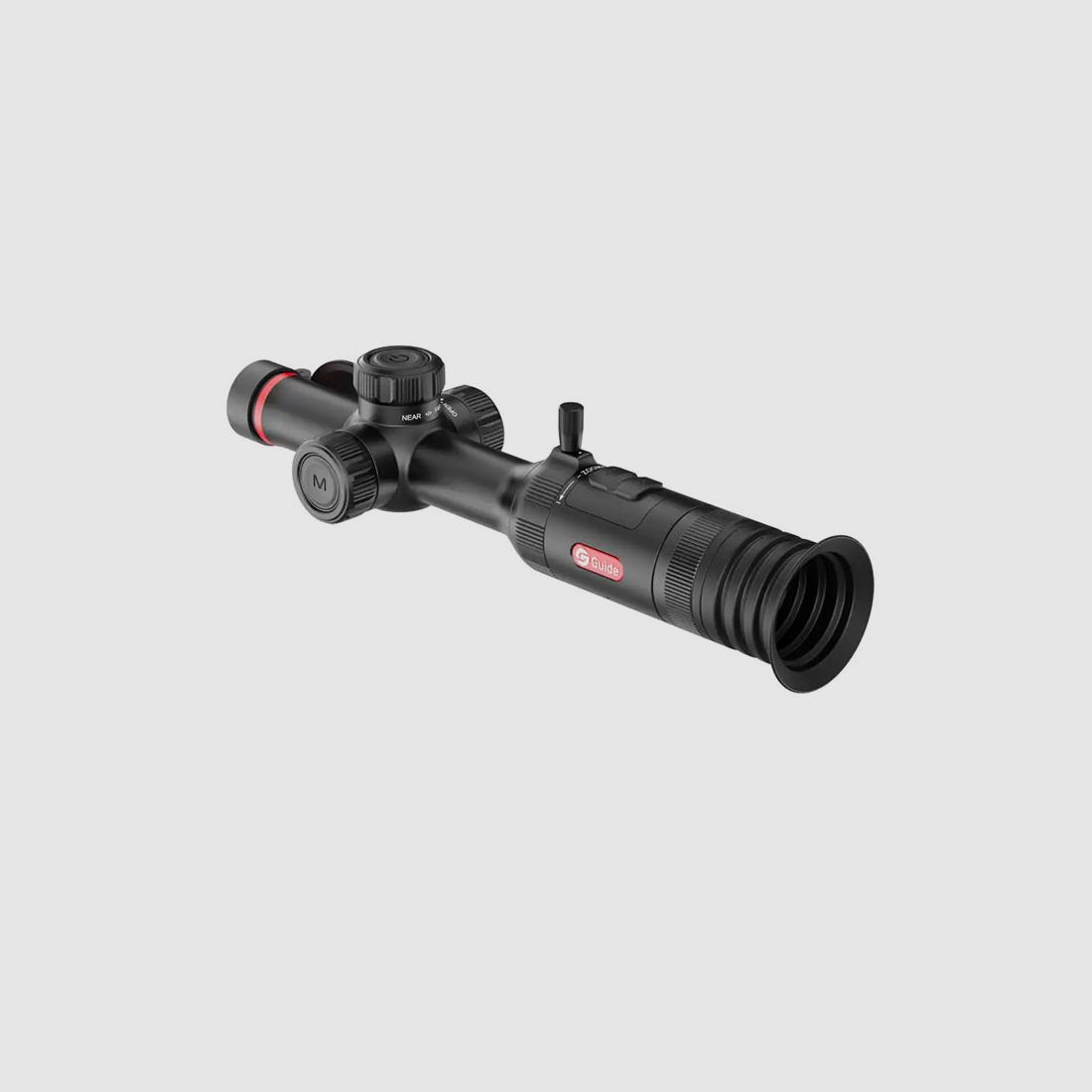

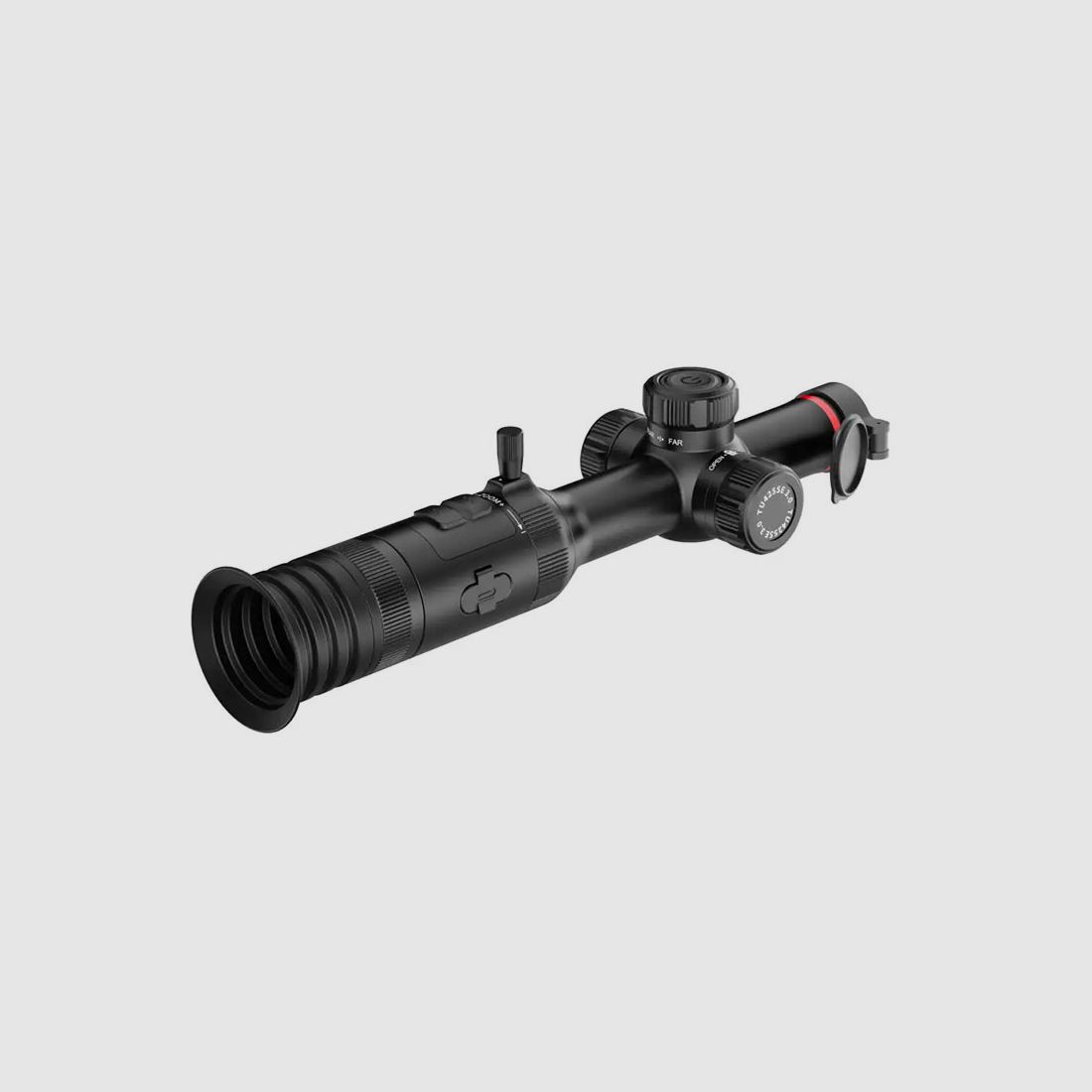

TU425S
Thermal Imaging Scope
The TU 3.0 series redefines precision optics with advanced thermal imaging, a modular design, and AI-enhanced performance. Available in six subseries, from ultralight, compact units to long-range dual-spectrum solutions, it meets the needs of hunters, professionals, and tactical users. With AI-enhanced imaging technology, a shutterless design, ergonomic controls, IP68 protection, and dual-band Wi-Fi, it delivers reliable performance in any environment.
400×300@12μm IR Resolution
1920×1080 0.49″ AMOLED Display
15mK NETD
OTA Upgrade for the latest firmware
Complete ApexVision S1 System Architecture
ApexVision is Guide Sensmart’s next-generation thermal imaging solution, redefining the core of outdoor infrared optics from the ground up. Designed for any conditions, ApexVision delivers ultra-sharp images with smooth, ghost-free motion, high-fidelity imaging, and exceptionally precise details, even at long range.
LPVO Style Ultra Light & Compact
With an LPVO-style design, the TU SE 3.0 series combines an ultracompact housing with advanced thermal technology in a revolutionary way, offering a size and weight advantage over traditional scopes.
12um high sensitivity infrared detector
With a high-sensitivity IR detector featuring a NETD of 15 mK, you can distinguish even the slightest temperature differences for sharper, clearer images.
Shutterless Design Uninterrupted Visuals
Innovative shutterless 3.0 technology eliminates shutter noise and image freeze, ensuring uninterrupted real-time viewing during hunts, even if a shutter is missed or an error occurs during calibration.
Note: The shutter module has been retained to ensure high image quality during startup and when there are significant temperature changes.
Tailored for Hunters Seamless Control
After several field-testing sessions, we evaluate design features based on hunters’ feedback, adapting and refining them to suit users’ habits. The focus ring, zoom lever, and button layout are carefully designed for ergonomic, intuitive control.
Rugged, Durable High Protection
Given the harsh conditions in the field, the scope needs to be tough and durable. It offers shock resistance up to 6000 J to withstand recoil, as well as an IP68 waterproof rating.
Media Gallery
Technical Parameters
Model TU425S
Sensor
Core Technology Item Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm Hyper-Light 2.0
Type Uncooled VOx Infrared Detector, 8 to 14μm
Resolution 400×300@12μm
NETD 15mK
Frame rate 50Hz
Lens
Objective lens 25mm, F1.0
Field of view 10.3°×6.2°
FOV m@100m 18×11
Magnification 4.3x~17.2x
Detection range 1300m/1400yd
Focus Manual
Display
Display type 0.49” AMOLED 1920×1080
Color palettes White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Eyepiece Eye relief: 48mm; Diopter -5 to +5; Zoom: 14x
Hardware
WIFI 2.4G, 5G
Interface USB-C (Charge/USB2.0)
Tube diameter Standard 30 mm
Others Microphone, Bluetooth
System
Recording function Photo/Video (Audio recording included)
Memory capacity 32GB
System
Recording function Photo/Video (Audio recording included)
Memory capacity 32GB
Environmental
Operating temp. -20°C to 50°C / -4°F to +122°F
Shock 6000J
Encapsulation IP68
Physical
Weight (g/oz) 575/20.28
Size (mm/in) 311×89×76/12.24×3.50×2.99
Standard Device, Eye Mask, Quick-Release Scope Mount, Carry Bag, Accessory Bag, Lint-Free Cloth, 18650 Battery ×2, Battery Charger, USB-A to USB-C Cable, Quick Start Guide, Warranty Card, 5V 2A
Adapter (US, UK, Australia, and Europe)
Optional Bluetooth Remote Control, 18650 Battery
